Used Huaya YHC 640 Vertical Drilling and Tapping Center with Mitsubishi M 80
Huaya · YHC640
2021 · Mitsubishi · China
DisponívelCNC Drilling Machine

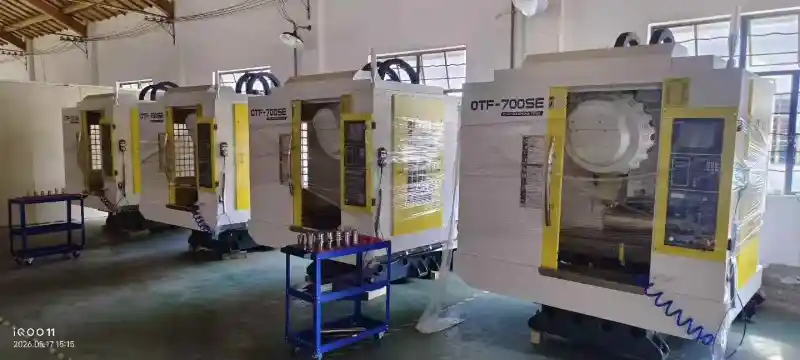

Otaifu T 700 SE High-Speed Drilling and Tapping Center
Brand new, same model: 4 units of Otaifu T 700 SE high-speed drilling and tapping center. Equipped with Japan Mitsubishi M80 system, three axes with original Korea-imported SBC guideways, Z-axis guideway width 35 mm, and three-axis ball screw diameter 32 mm. Taiwan Rui Ying BT30 spindle, 24000 rpm, supplied with oil cooler. Worktable 800 x 420 mm, travels 700 x 400 x 350 mm. Spindle: Mitsubishi 5.5 kW servo motor; 21-tool servo tool magazine.
- Código da Máquina
- DR260612
- Ano
- Sob consulta
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Taiwan Rui Ying BT30 spindle 24000 rpm with oil cooler
Principais Especificações
| Spindle speed | 24000 rpm |
|---|---|
| Spindle taper | BT30 |
| Worktable size | 800 x 420 mm |
| X/Y/Z travel | 700 x 400 x 350 mm |
| Spindle motor power | 5.5 kW |
| Tool magazine capacity | 21 |
| Guideway type | Linear guideway (SBC) |
| Ball screw diameter | 32 mm |
| Controller | Mitsubishi M80 |
| Z-axis Guideway Width | 35 mm |
| Oil Cooler | Yes |
| Machine Type | Drilling and Tapping Center |
