Used Shenyang Sanming CAK 5085 CNC Lathe with GSK 980 TDi

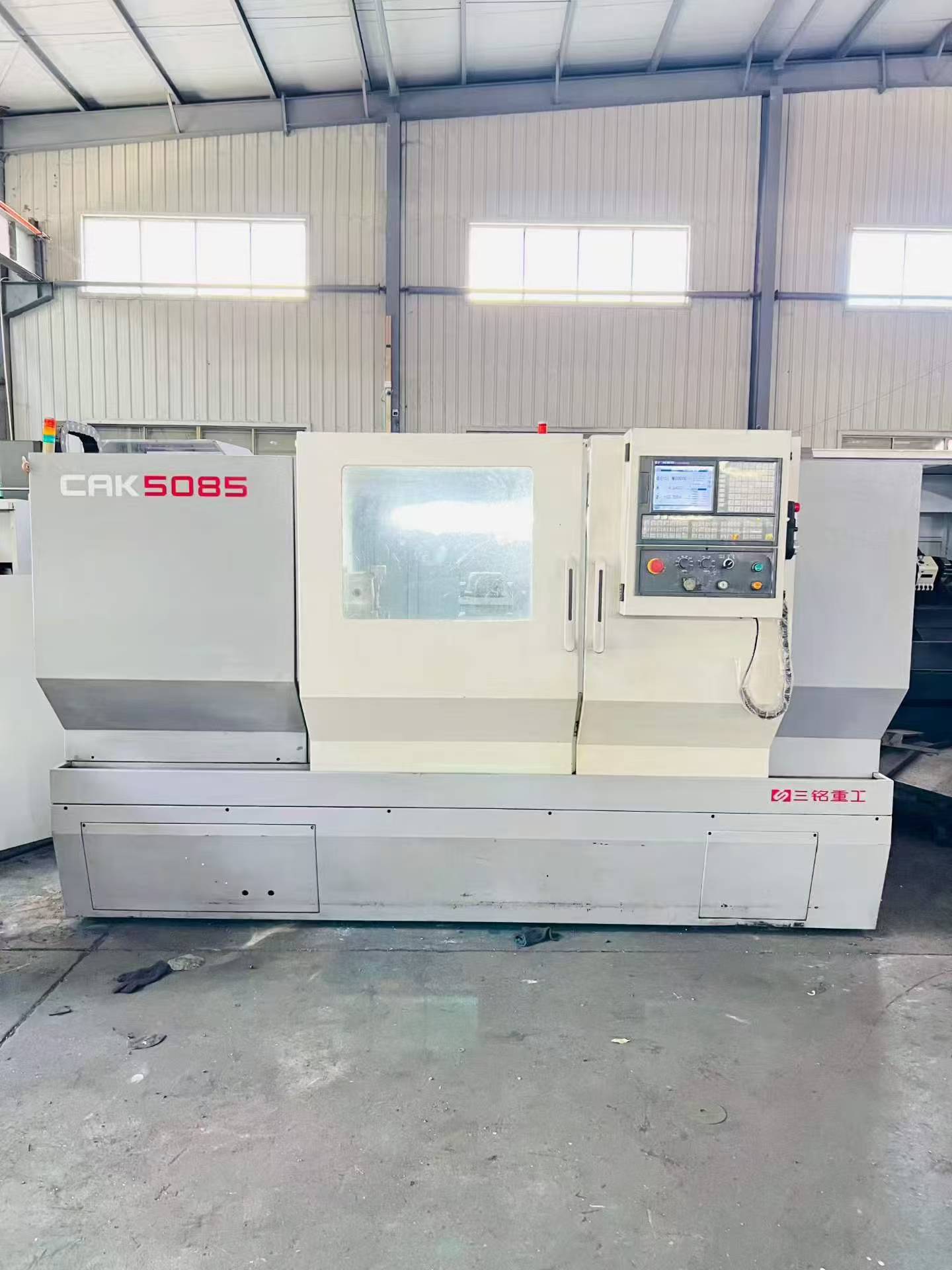

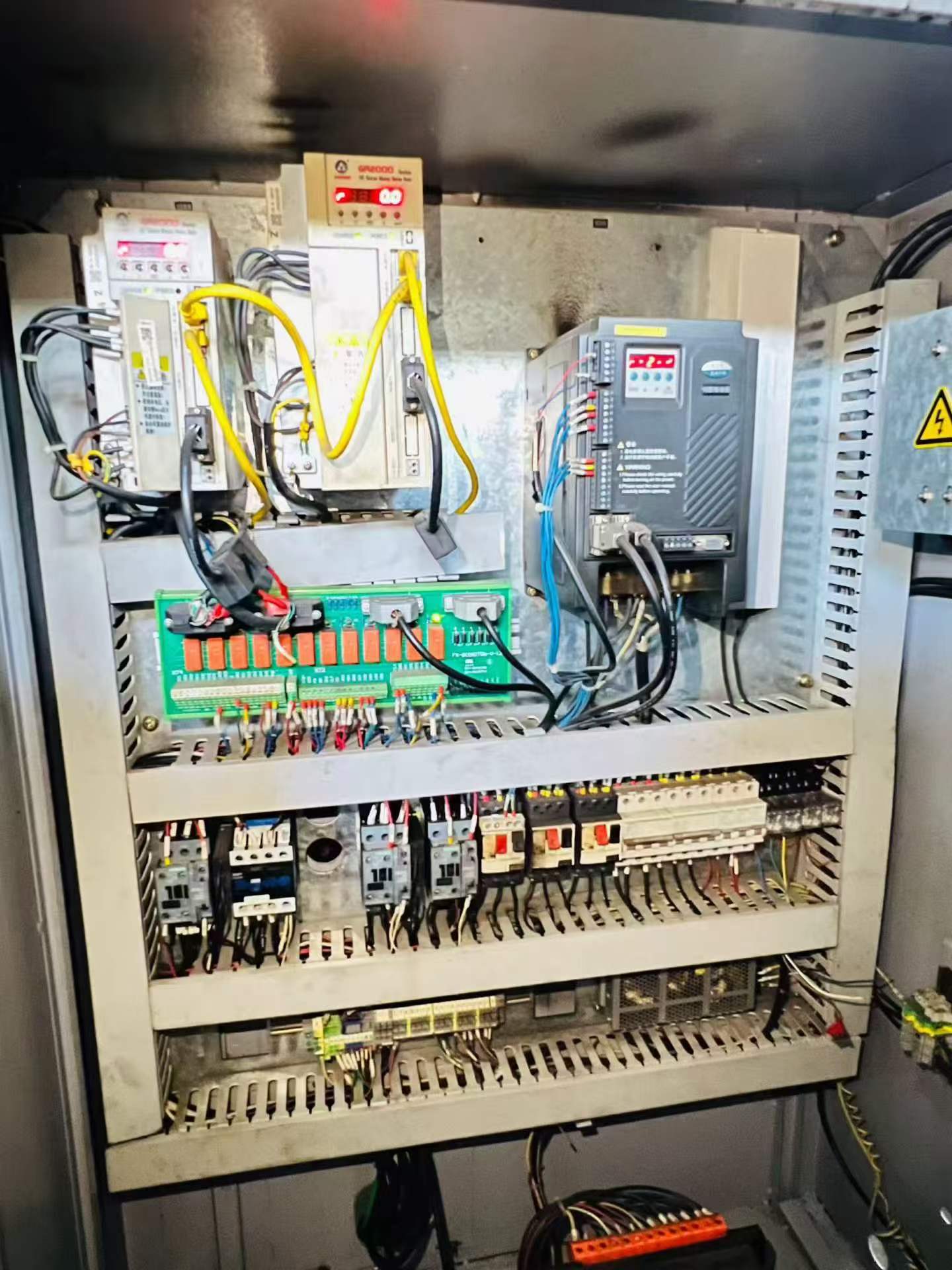

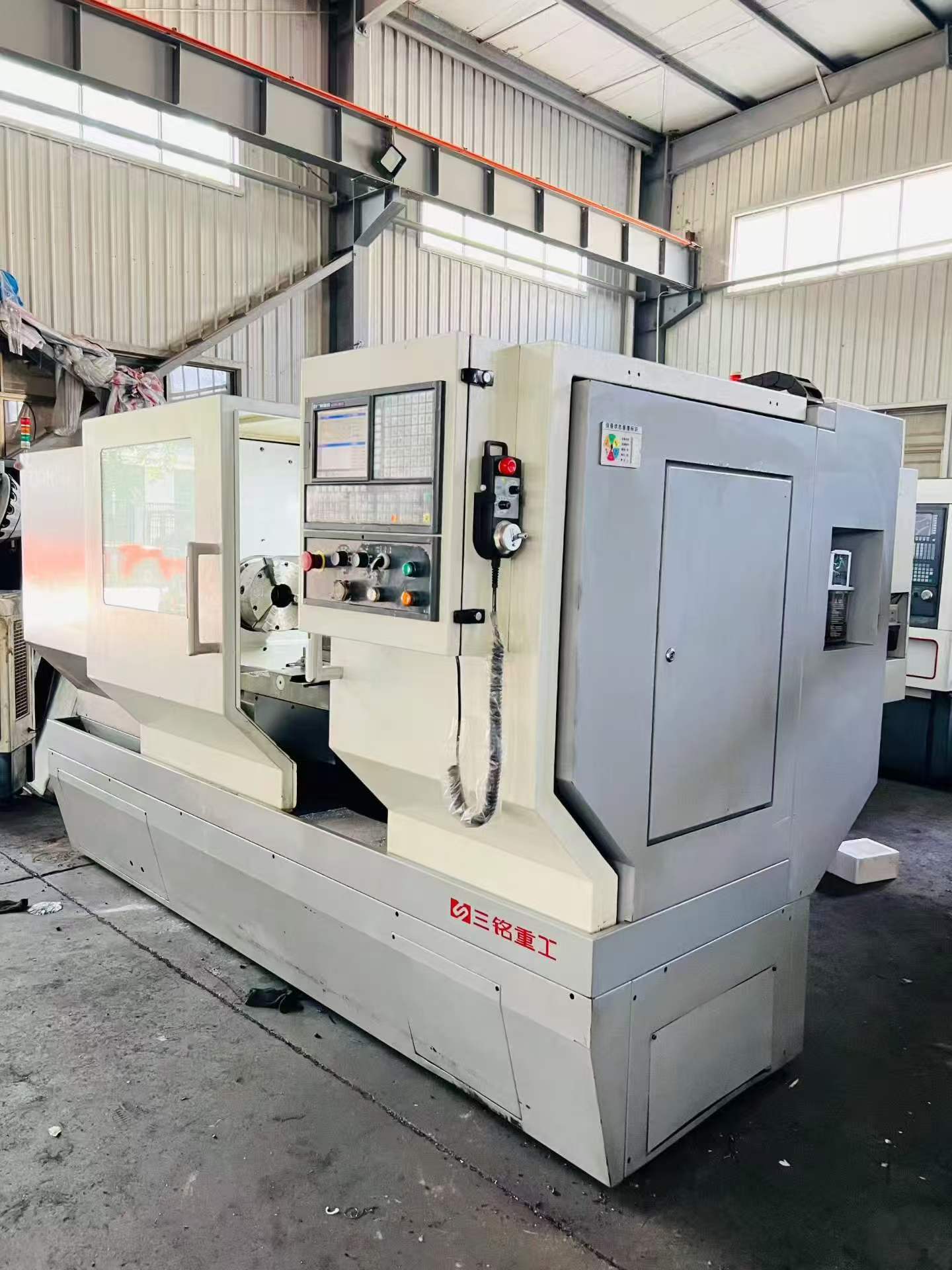

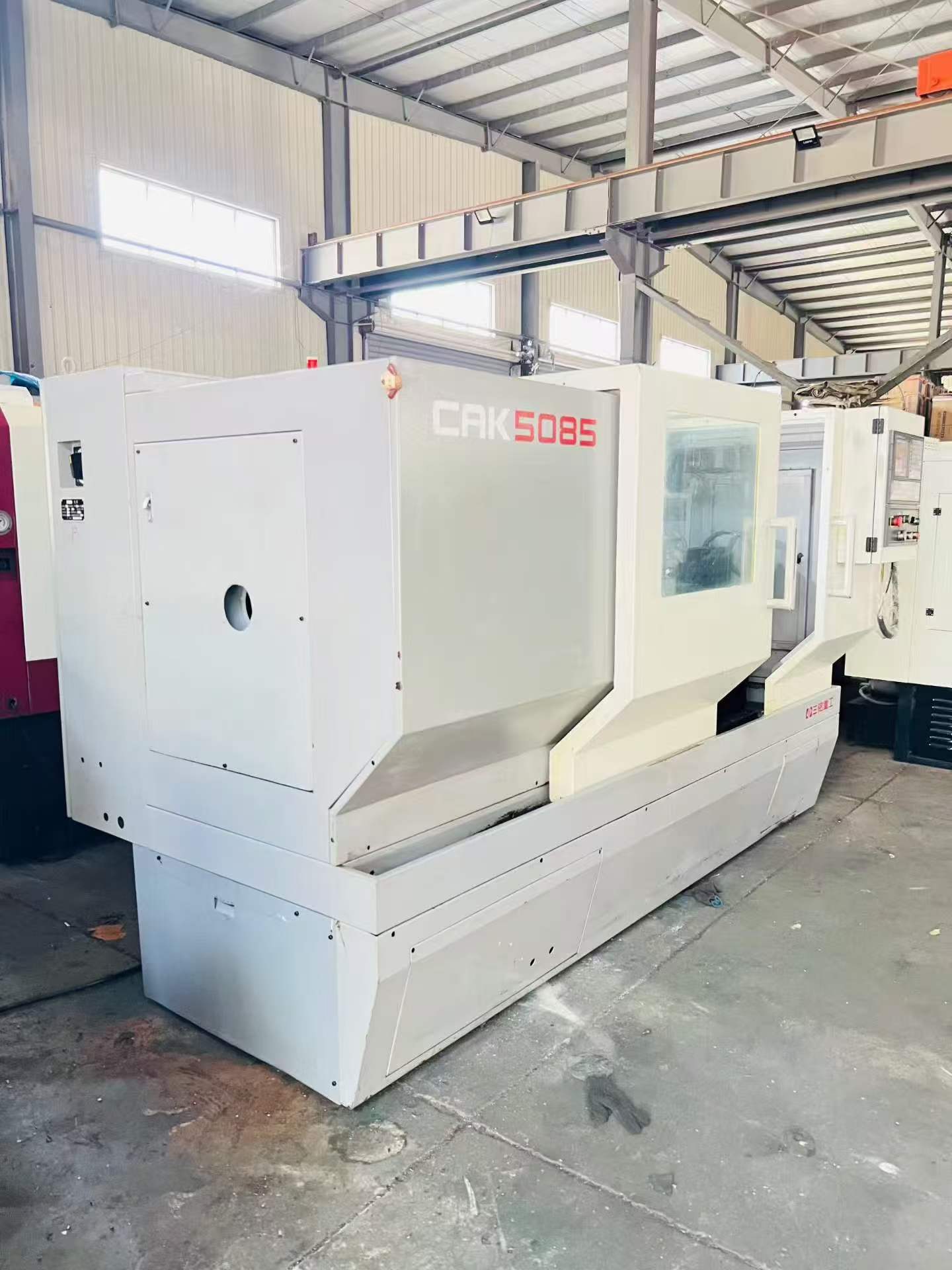

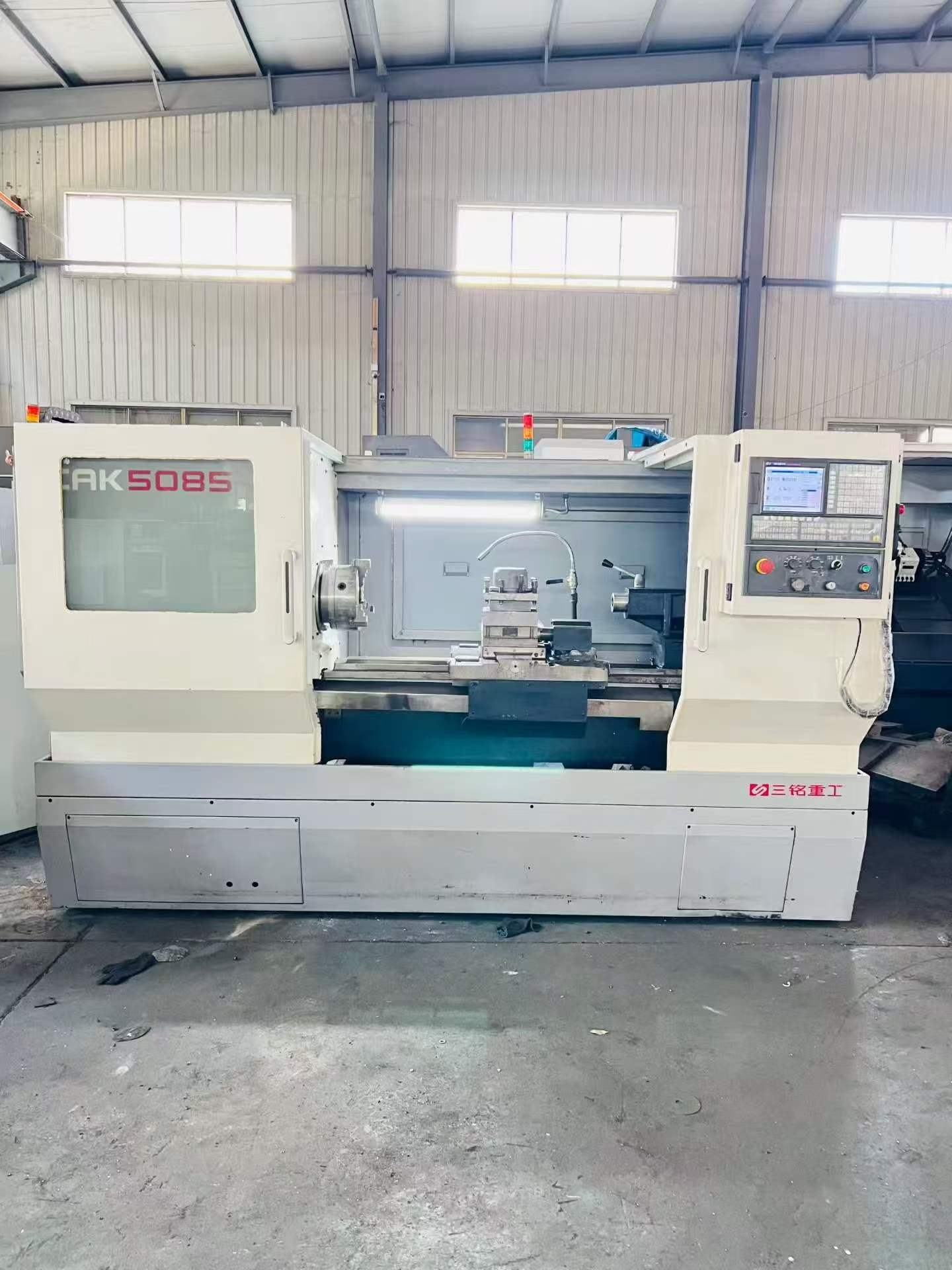

This is a flat-bed CNC lathe manufactured by Shenyang Sanming Heavy Industry, model CAK 5085, equivalent to the Shenyang CAK 5085 series. It is equipped with a GSK 980 TDi CNC system and GSK servo drives. The machine features a spindle bore of Ø70 mm, spindle speed range of 35-1600 rpm, and a 11 kW servo spindle motor. It comes with a standard 4-station electric turret and a 400 mm wide guideway. The machine is available for inspection.
- Código da Máquina
- CL2608217
- Ano
- Sob consulta
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios

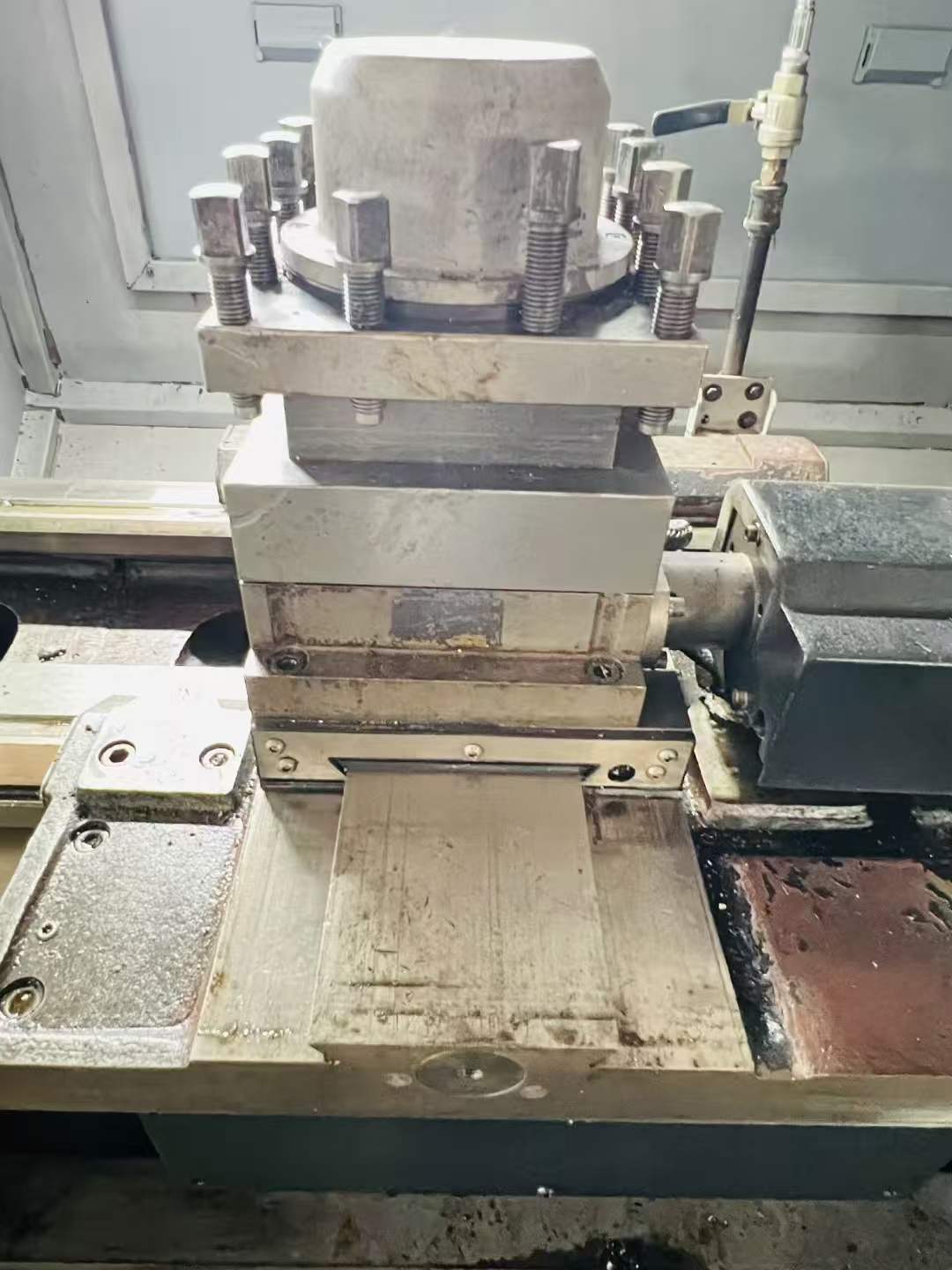

4-station electric turret
Principais Especificações
| Maximum swing over bed | Ø500 mm |
|---|---|
| Maximum swing over slide | Ø300 mm |
| Maximum turning length | 850 mm |
| X-axis travel | 250 mm |
| Z-axis travel | 890 mm |
| Spindle bore | Ø70 mm |
| Spindle speed range | 35-1600 rpm |
| Spindle motor power | 11 kW (servo) |
| Tool turret | 4-station electric |

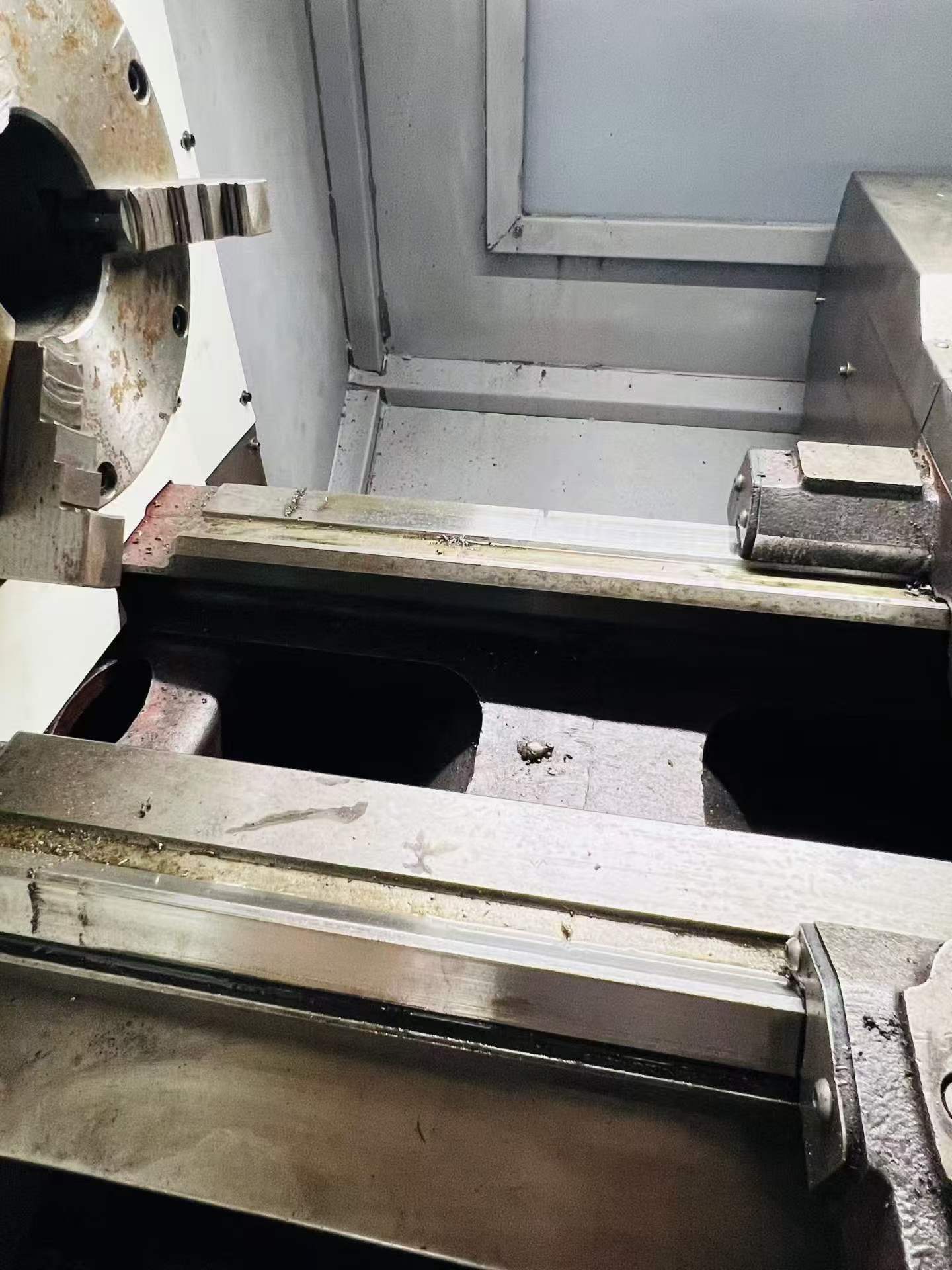

| Guideway width | 400 mm |
| Machine dimensions (L×W×H) | 2700 x 1600 x 1700 mm |
| Machine weight | approx. 2.8 t |
| Brand | Shenyang Sanming Heavy Industry |

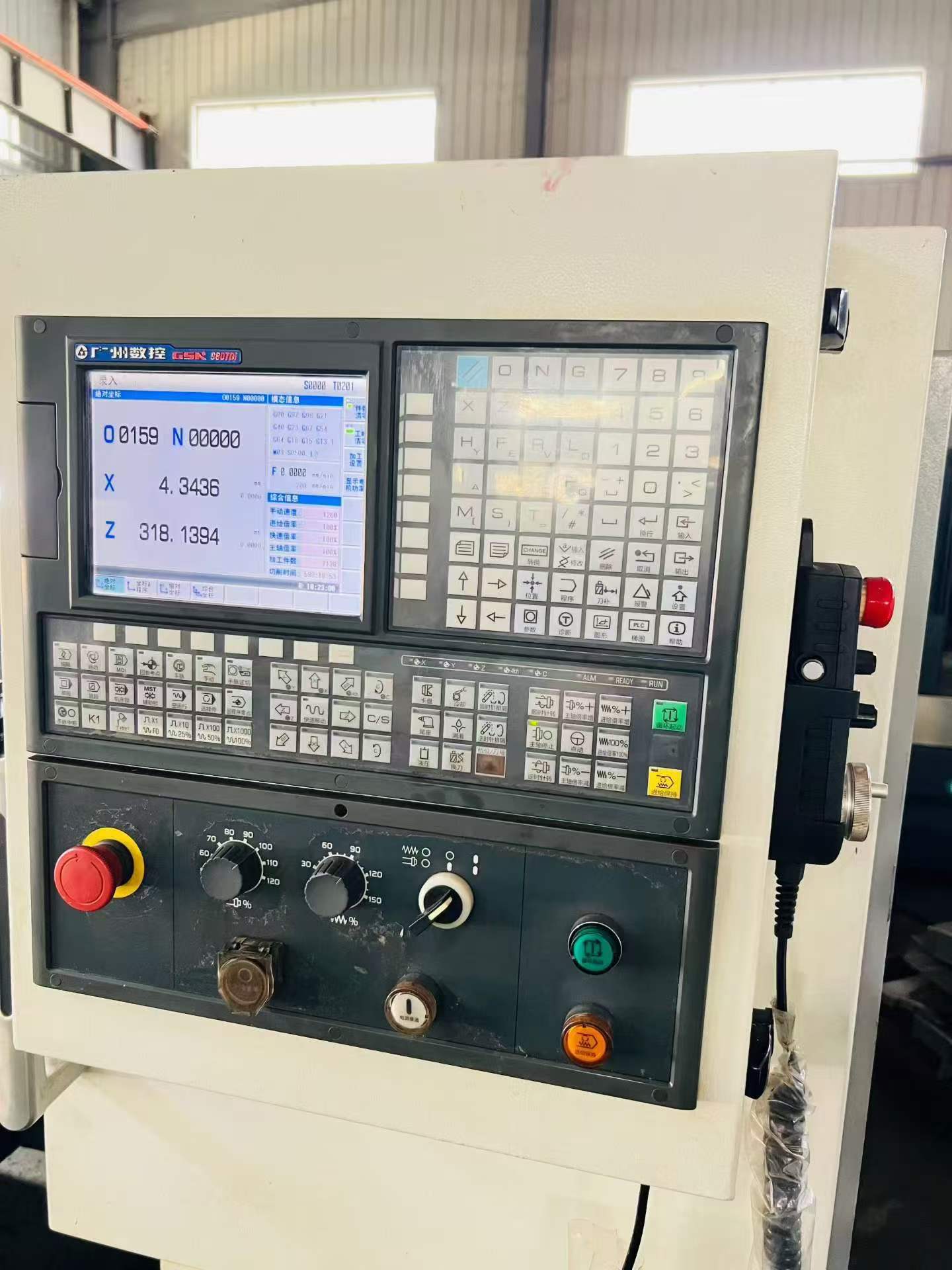

| Control system | GSK 980 TDi |
