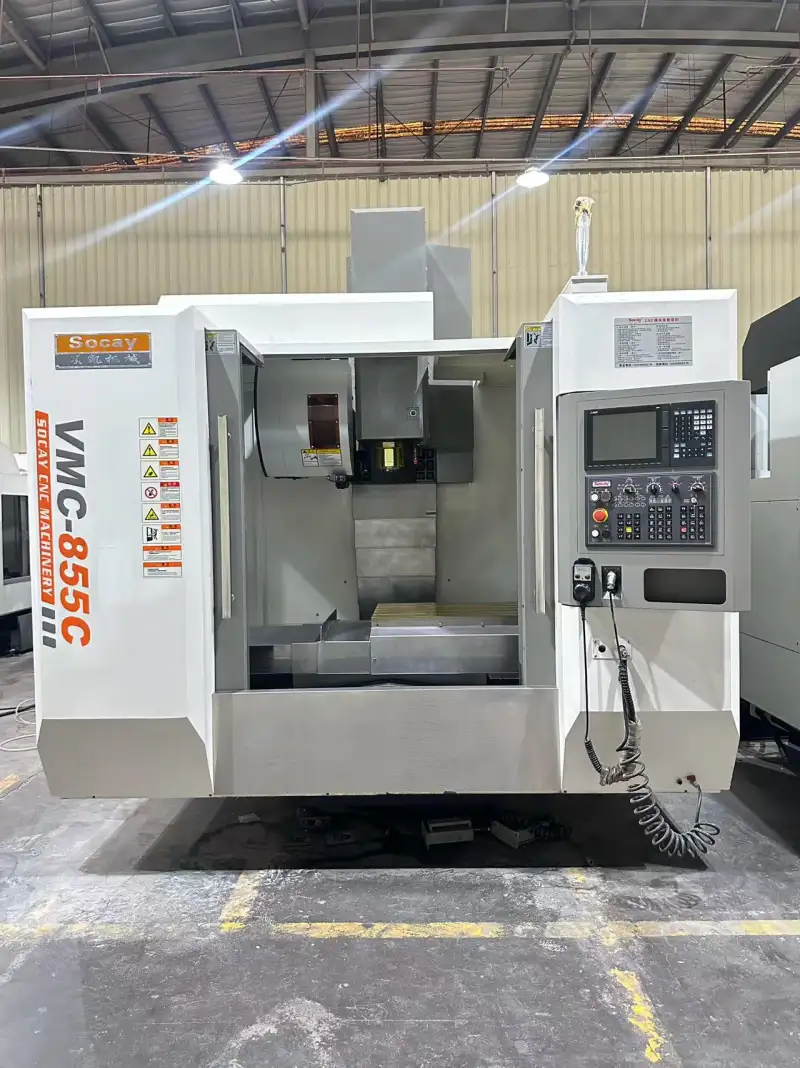

Used Socay VMC-855 C Vertical Machining Center with Mitsubishi M 80 Control

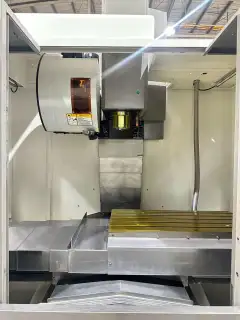

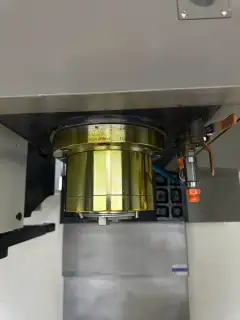

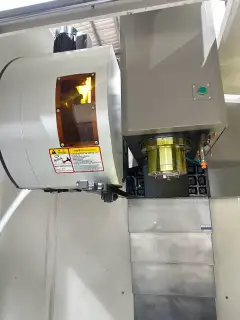

Socay VMC-855 C vertical machining center, built by Dongguan Socay Machinery Co., Ltd., equipped with the Mitsubishi M 80 CNC control system. The machine offers X/Y/Z travels of 850 x 550 x 600 mm and a BT40 belt-driven spindle supplied by VOLIS running up to 10,000 rpm. A 24-tool automatic tool changer supports continuous production, and the ball screws are cut with a 12 mm pitch. Positioning accuracy is held to 0.01 mm. The machine is fitted with an oil cooler and a full protective enclosure, and the worktable is provided with T-slots for fixture and vise mounting. Machine condition is as new. Available for inspection in China.

Código da Máquina: VMC261067
Ano: 2025
Localização: China
Horas de Uso: Sob consulta

Acessórios

Mitsubishi M 80 CNC control system; 24-tool automatic tool changer; oil cooler; full protective enclosure; T-slotted worktable.

Consulta por E-mail

Principais Especificações

Machine type	Vertical Machining Center
Model	VMC-855 C
Manufacturer	Dongguan Socay Machinery Co., Ltd.

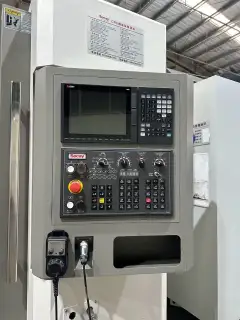

Control system	Mitsubishi M 80
X/Y/Z travel	850 x 550 x 600 mm
Spindle taper	BT40
Spindle drive	Belt-driven
Spindle speed	10,000 rpm
Spindle brand	VOLIS
Ball screw pitch	12 mm
Tool magazine capacity	24 tools
Positioning accuracy	0.01 mm

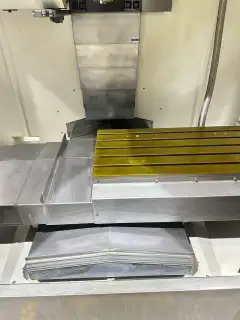

Worktable	T-slotted

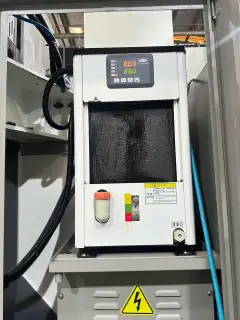

Cooling	Oil cooler
Enclosure	Full protective enclosure
Brand	Socay
