Used Chuangshengte'er 1165 Vertical Machining Center with FANUC 0i-MF Plus Control

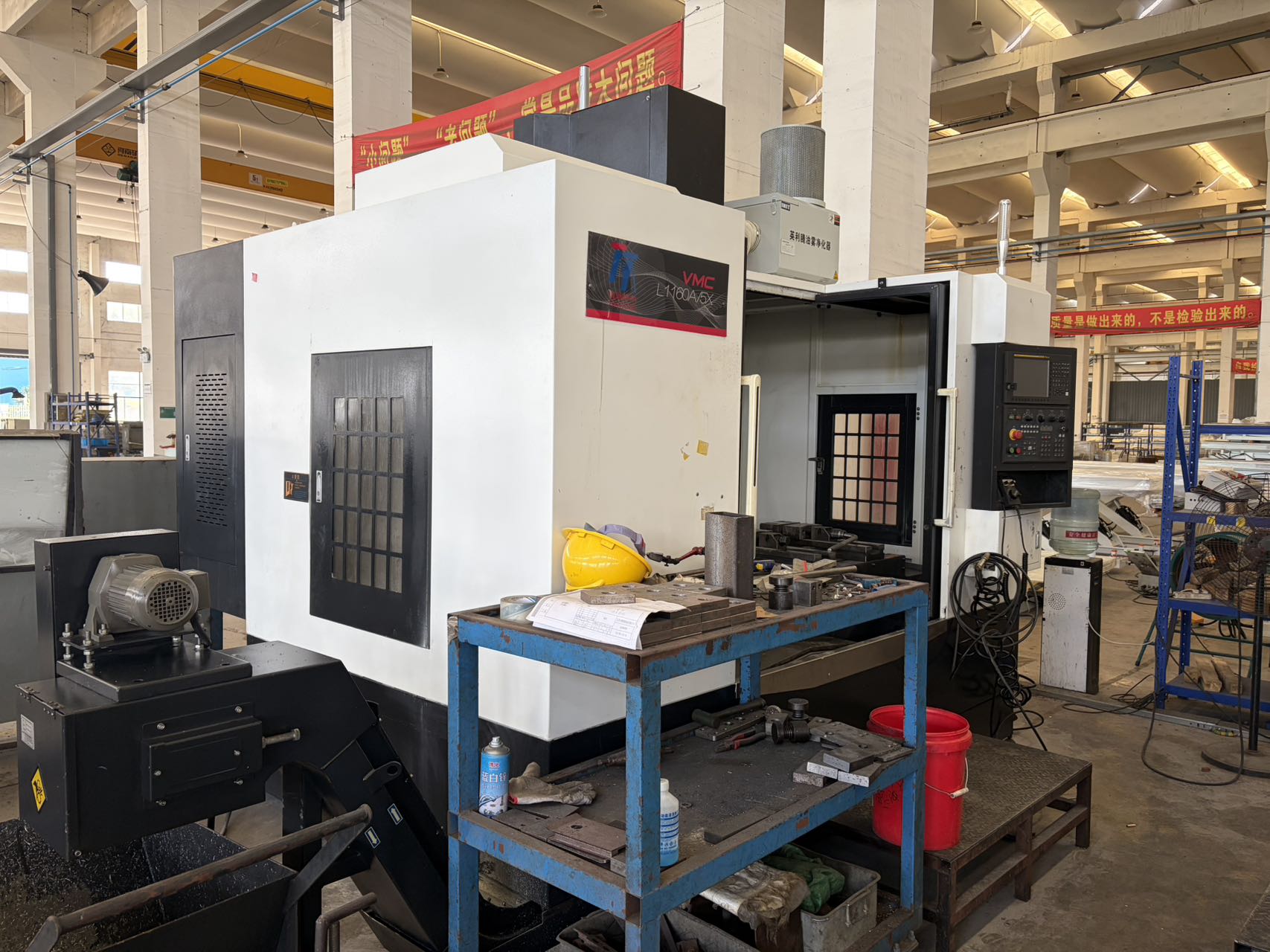

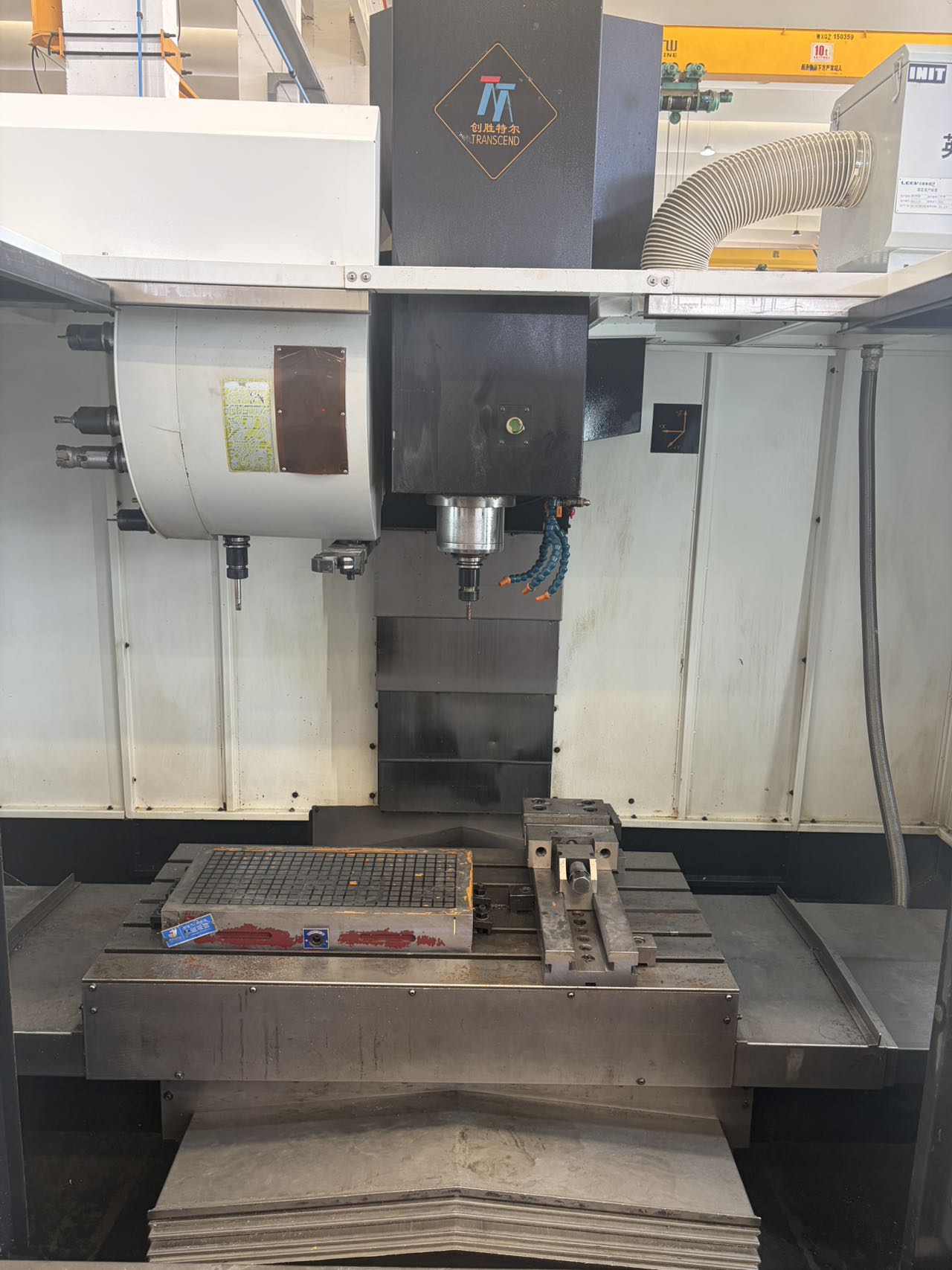

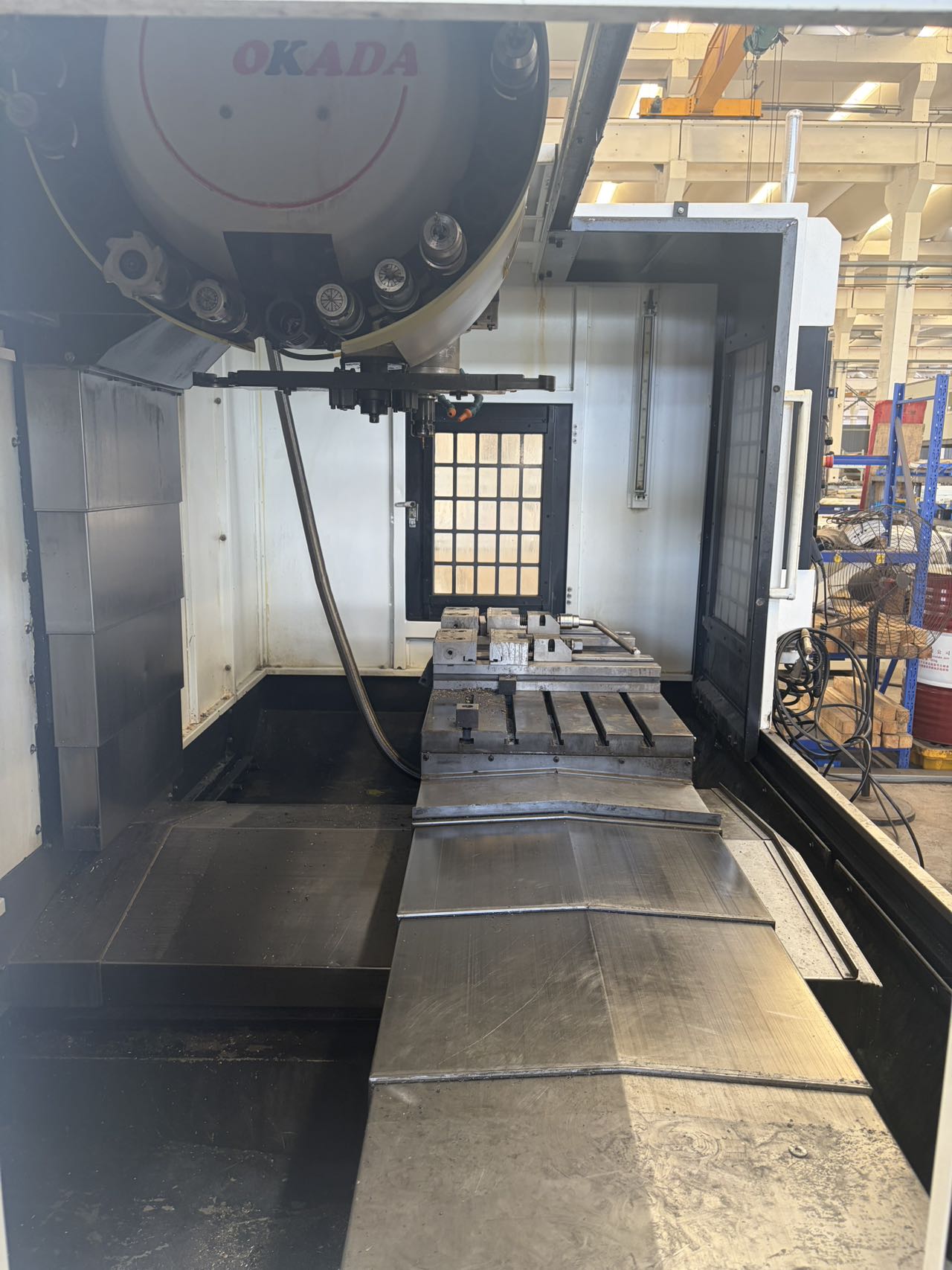

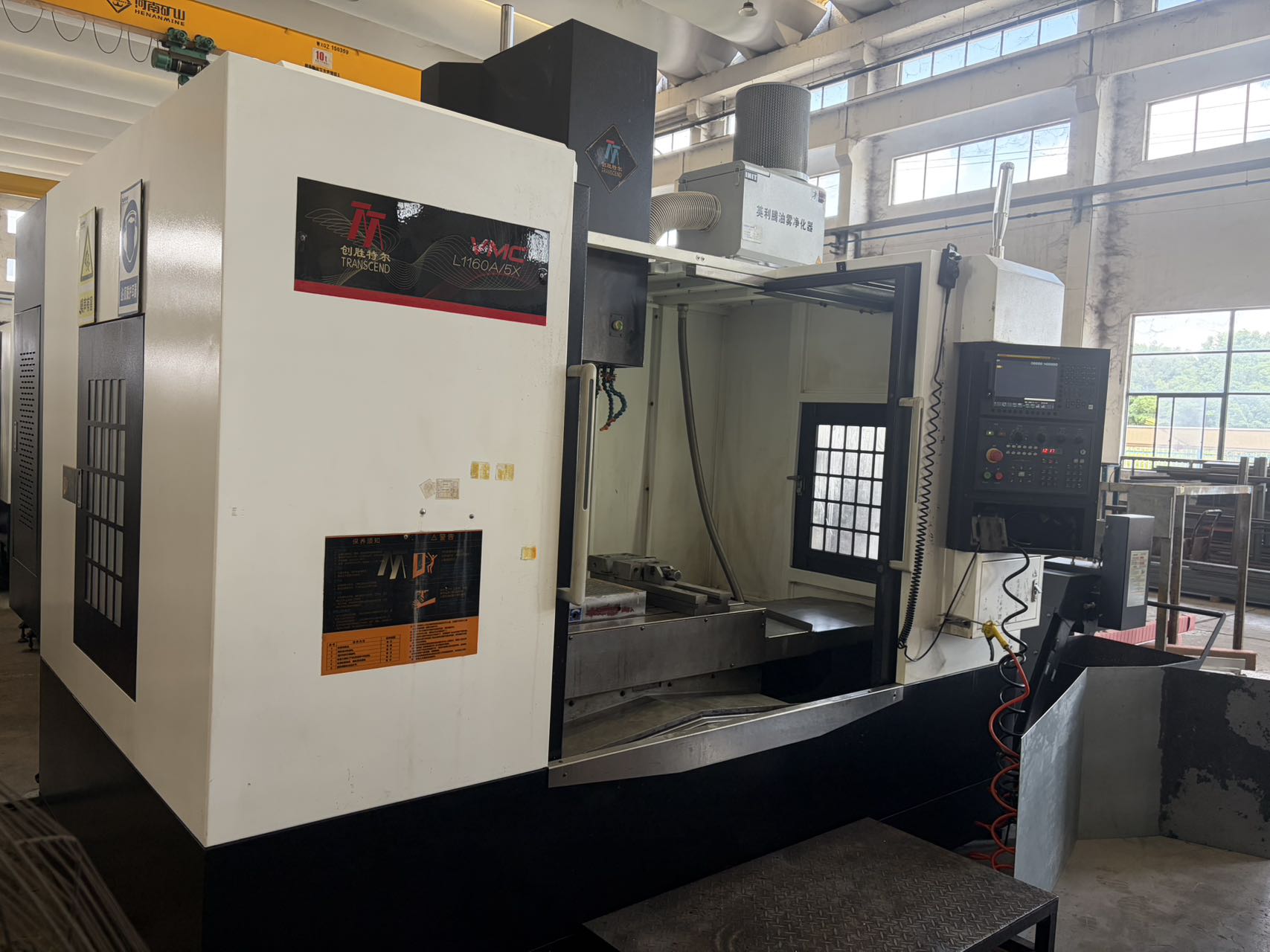

Two identical Chuangshengte'er 1165 vertical machining centers, built on a two-linear-guideway and one-box-guideway structure for rigidity and smooth axis motion. Each machine carries a 600 x 1200 mm worktable with X/Y/Z travels of 1100 x 600 x 600 mm. The BT40 spindle runs to 8000 rpm and is served by a 24-tool disc-type tool magazine with mechanical arm tool change for fast, repeatable tool swaps. The Z axis is fitted with nitrogen counterbalance, keeping the head stable during heavy cutting and reducing load on the drive. Both machines are equipped with the FANUC 0i-MF Plus CNC control system, an oil mist purifier and a chain-type chip conveyor. Body nameplate model: L 1160 A/5 X.

Código da Máquina: VMC2609158
Ano: 2023
Localização: China
Horas de Uso: Sob consulta

Acessórios

Oil mist purifier; chain-type chip conveyor.

Consulta por E-mail

Principais Especificações

Machine type	Vertical Machining Center
Guideway configuration	Two linear guideways and one box guideway
Worktable size	600 x 1200 mm
X/Y/Z travel	1100 x 600 x 600 mm
Spindle taper	BT40
Spindle speed	8000 rpm
Tool magazine capacity	24 tools (disc-type, mechanical arm)
Z axis	Nitrogen counterbalance

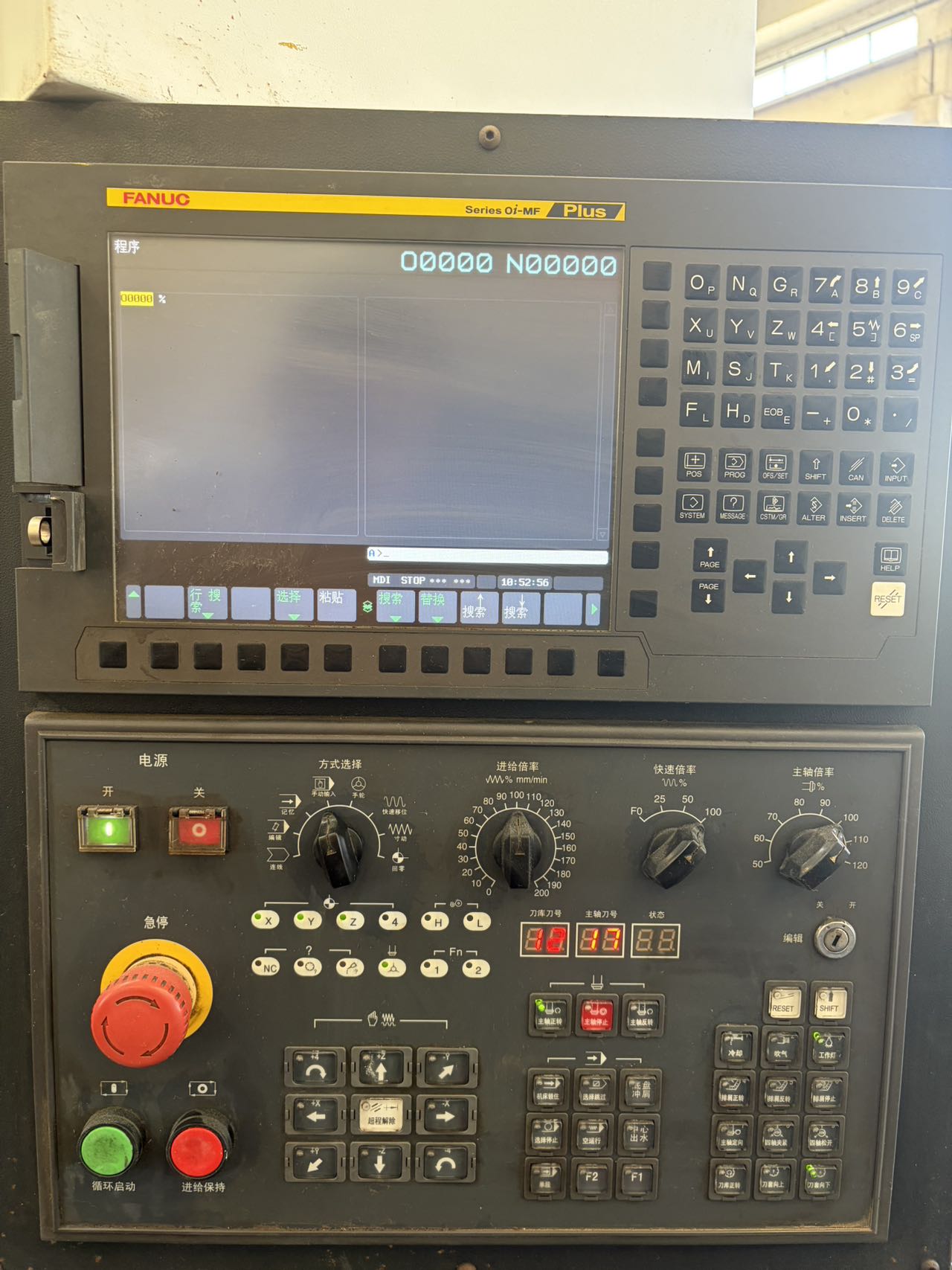

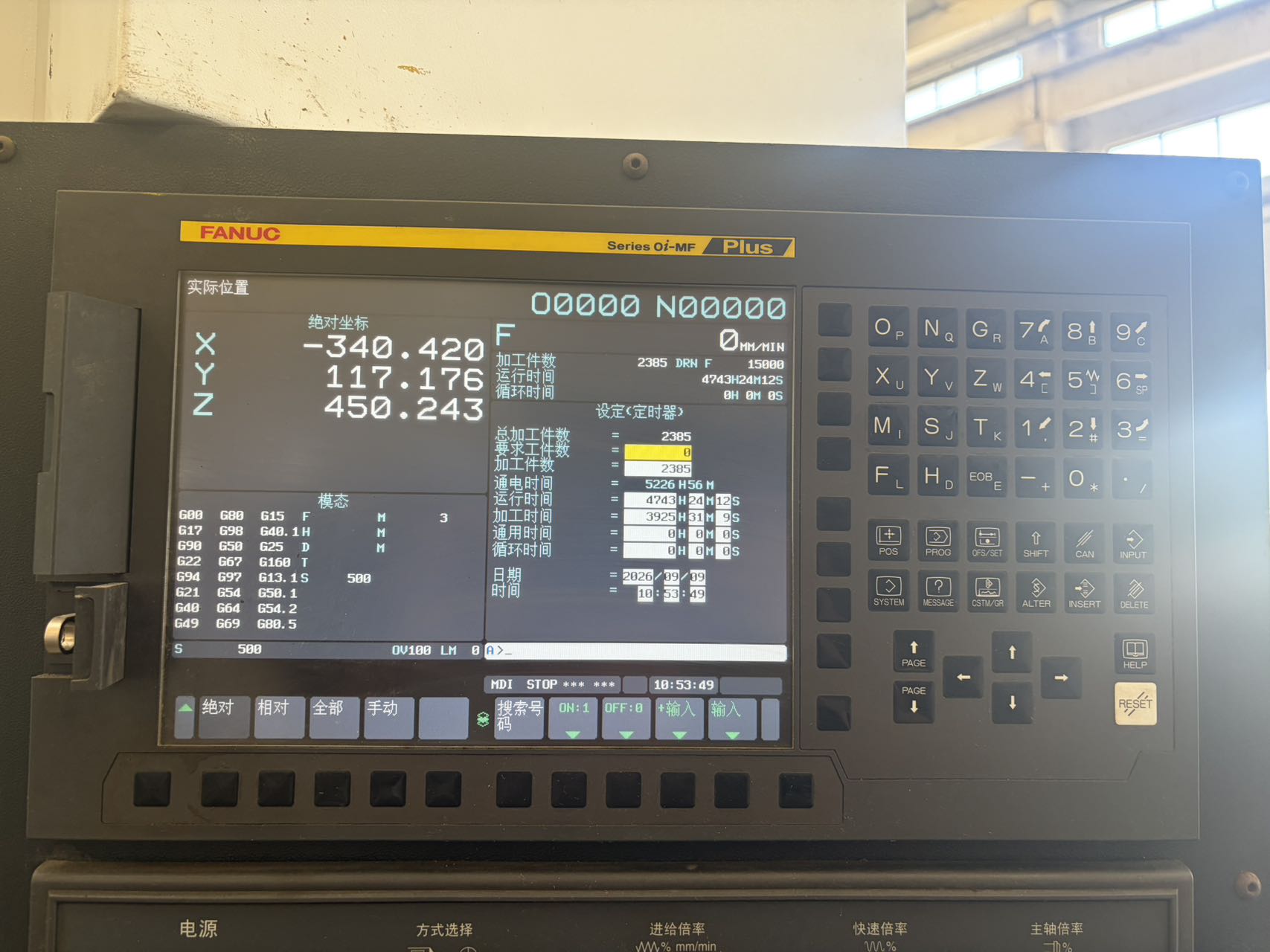

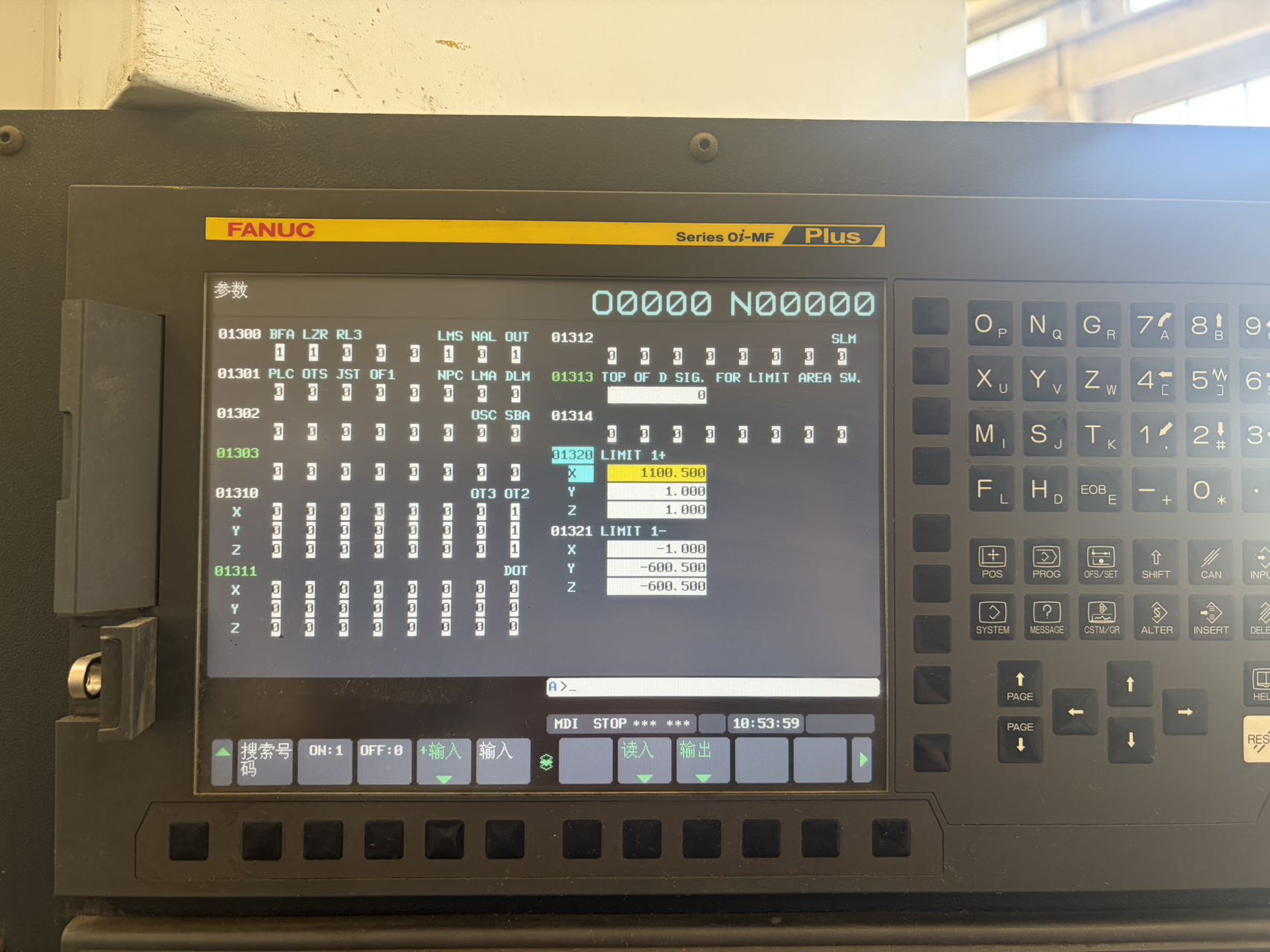

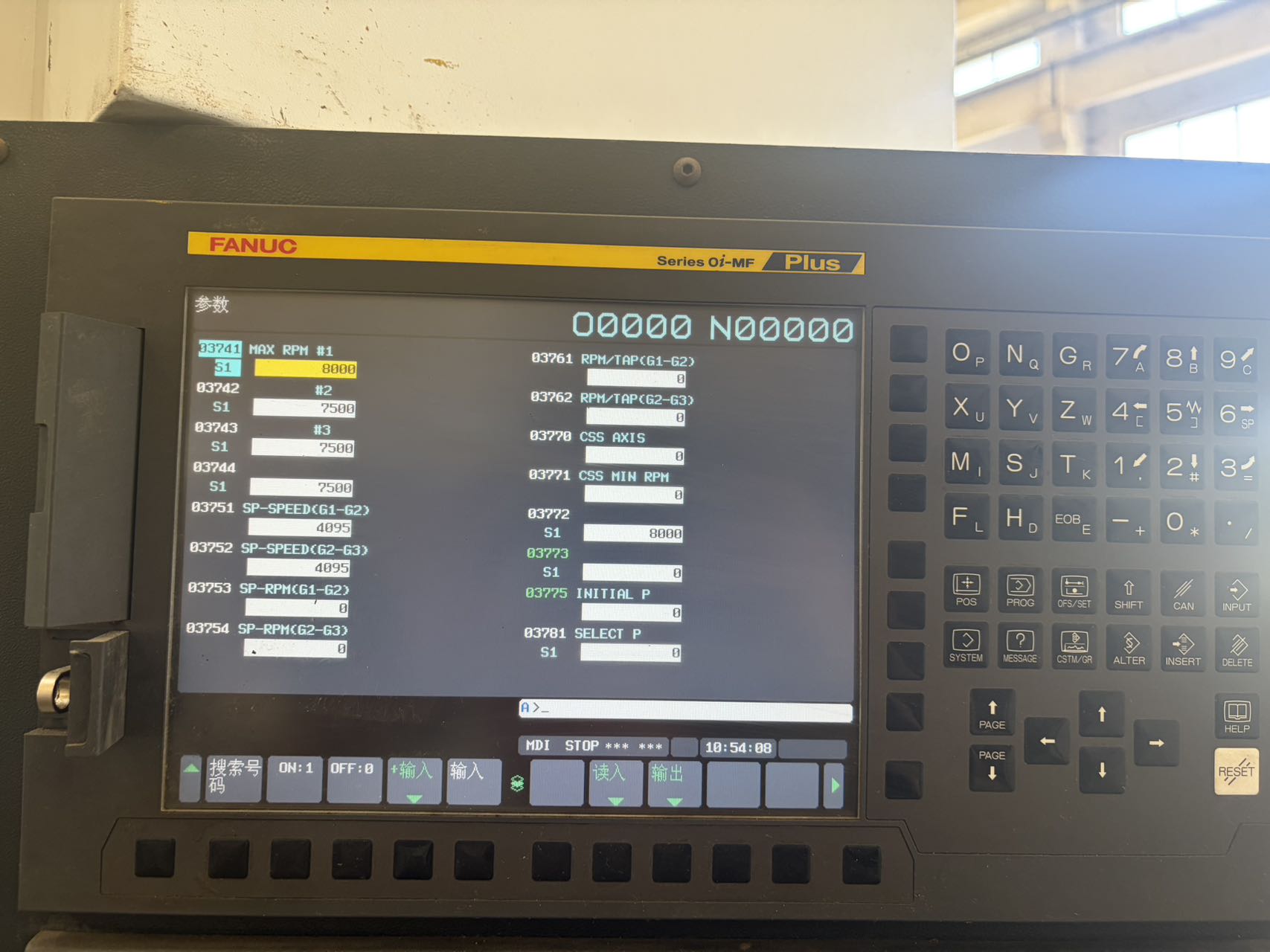

Controller	FANUC 0i-MF Plus

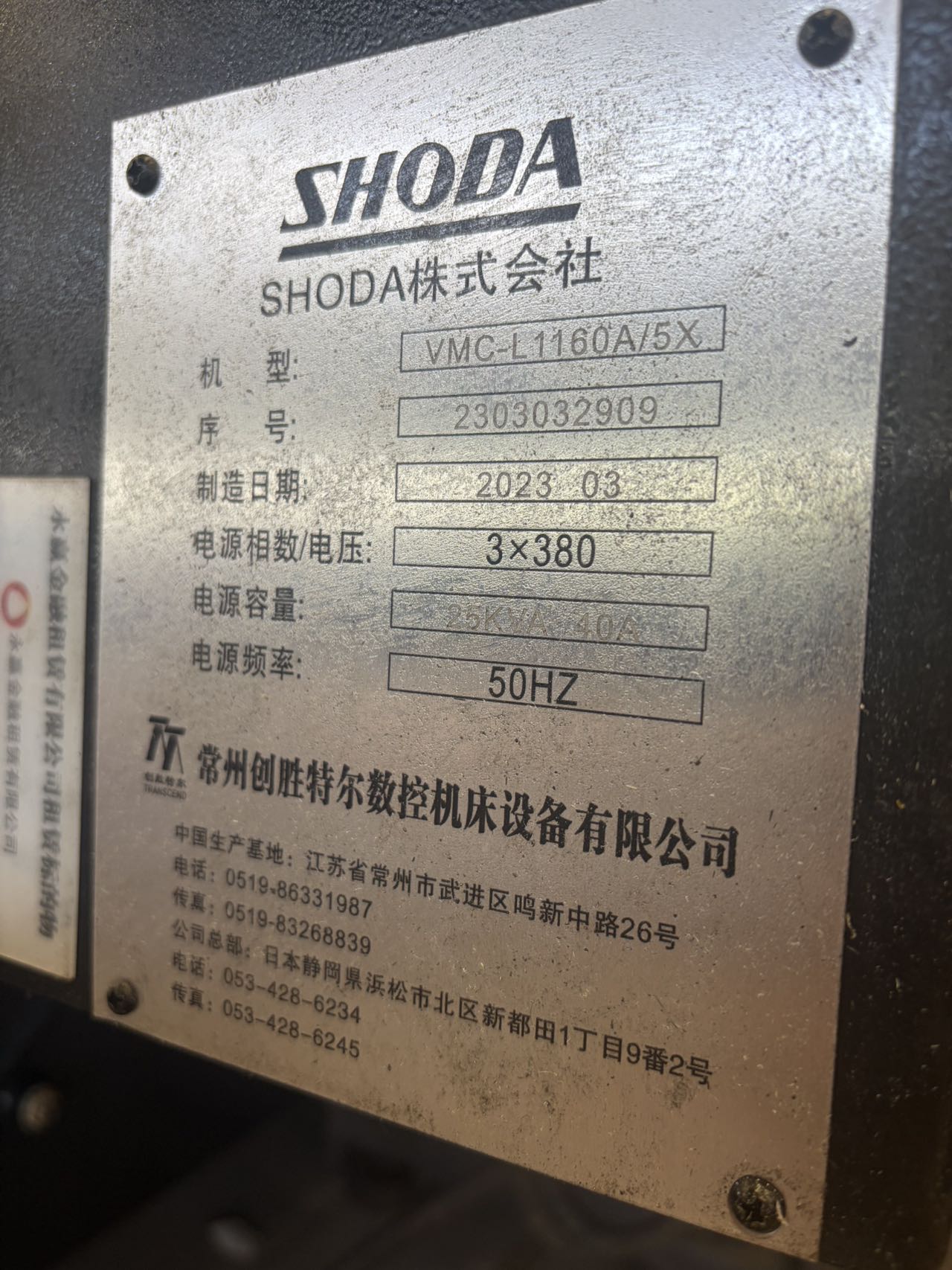

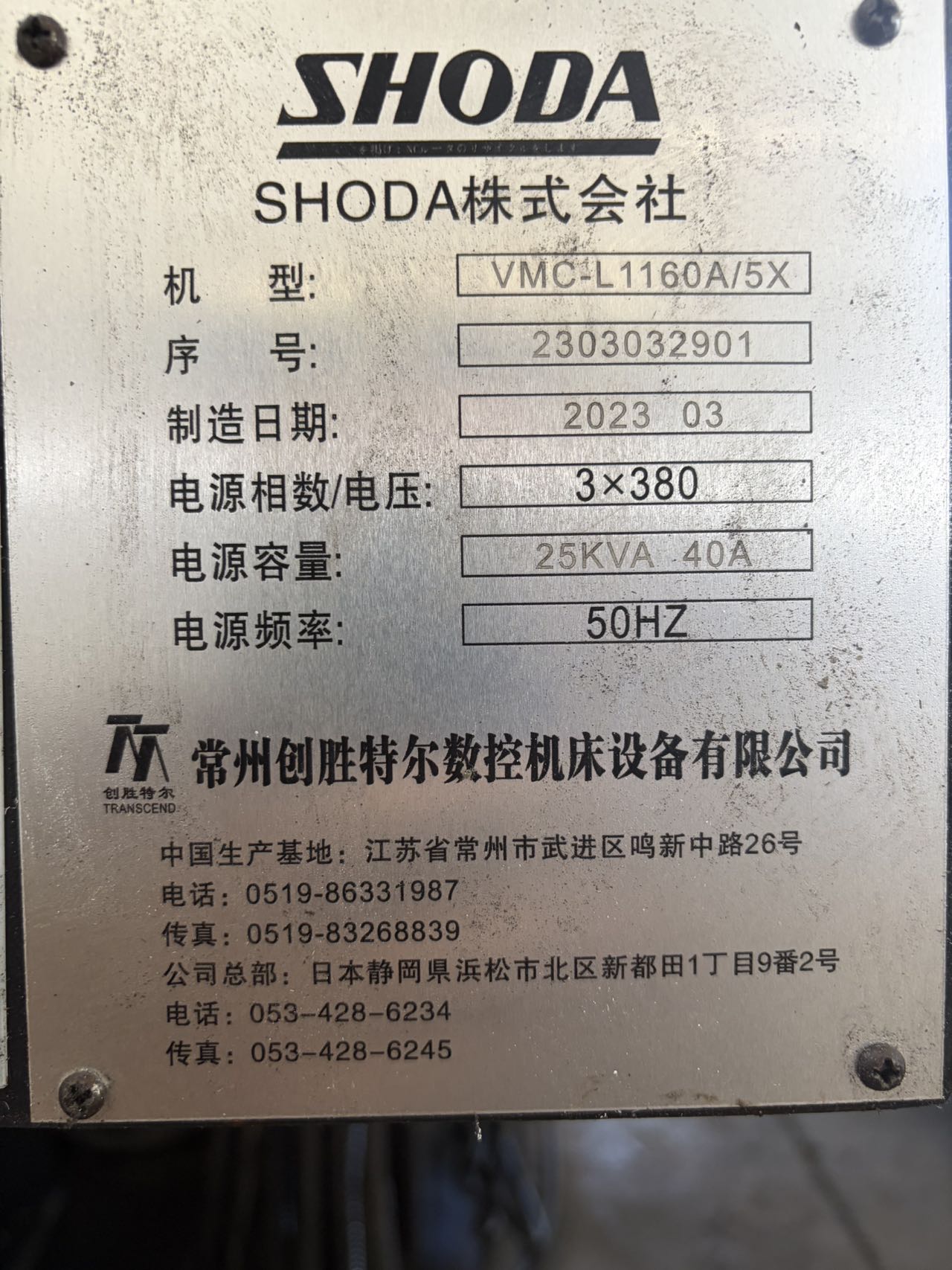

Body nameplate model	L 1160 A/5 X
Brand	Chuangshengte'er
Control system	FANUC 0i-MF Plus
