DisponívelVertical Machining Center

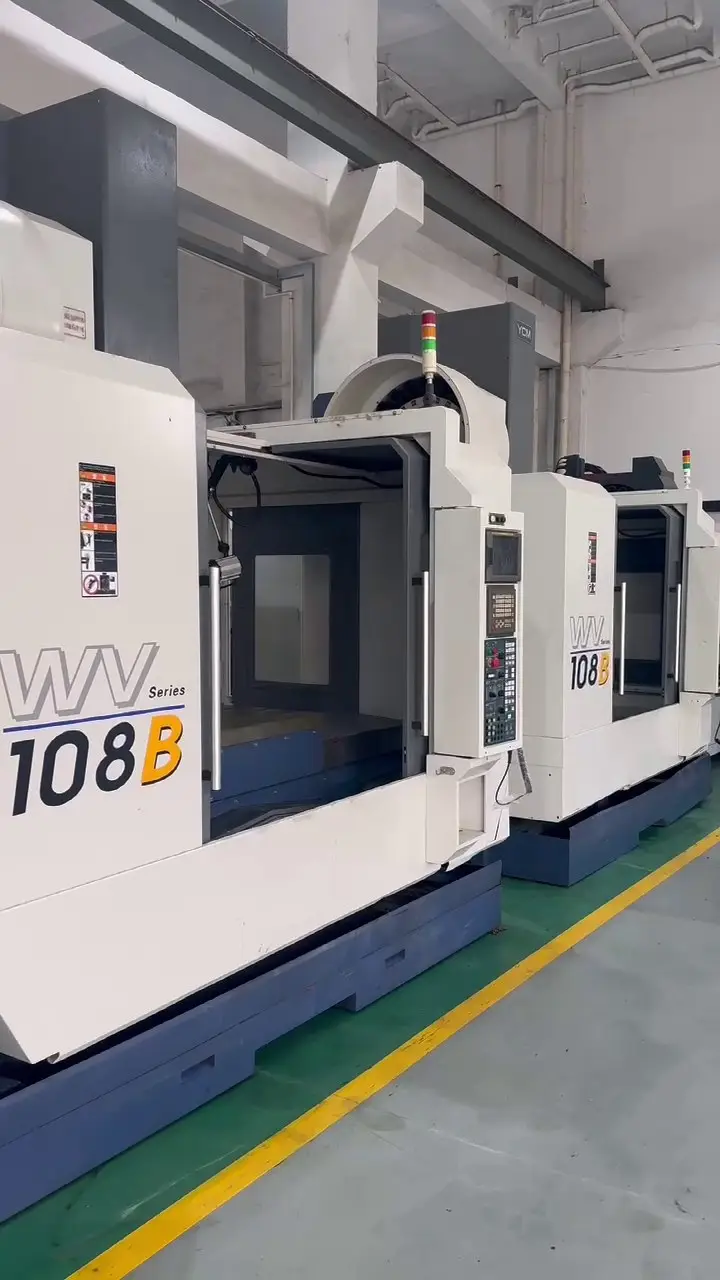

Two Units YCM WV 108 B Vertical Machining Centers with FANUC 200 i

Two identical YCM WV 108 B vertical machining centers from Taiwan, equipped with FANUC 200 i control. X/Y/Z travel: 1120 x 762 x 700 mm. Worktable size: 1300 x 820 mm. X/Y axes use linear guideways, Z axis uses a box guideway. One unit has a BT50 geared head spindle at 6000 rpm; the other has a BT50 direct-drive spindle at 10,000 rpm with high/low gear. Spindle power: 22 kW. Equipped with a 24-position arm-type ATC, oil cooler, and linear scales on all three axes. Machines manufactured in 2015.

Código da Máquina: VMC260860
Ano: 2015
Localização: China
Horas de Uso: Sob consulta

Acessórios

Oil cooler, linear scales on all three axes

Abrir vídeo da máquina Consulta por E-mail

Principais Especificações

X/Y/Z travel	1120 x 762 x 700 mm
Worktable size	1300 x 820 mm
Guideways	X/Y linear guideways, Z box guideway
Spindle taper	BT50
Spindle speed (Unit 1)	6000 rpm (geared head)
Spindle speed (Unit 2)	10000 rpm (direct drive with high/low gear)
Spindle power	22 kW
Tool magazine capacity	24 tools (arm-type ATC)
Manufacturing year	2015
