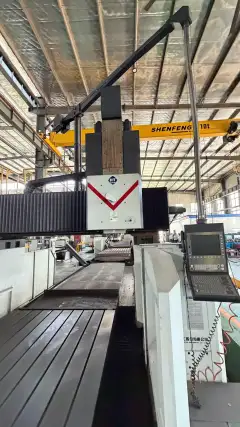

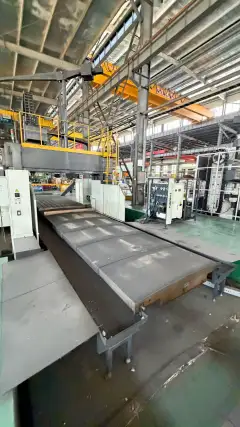

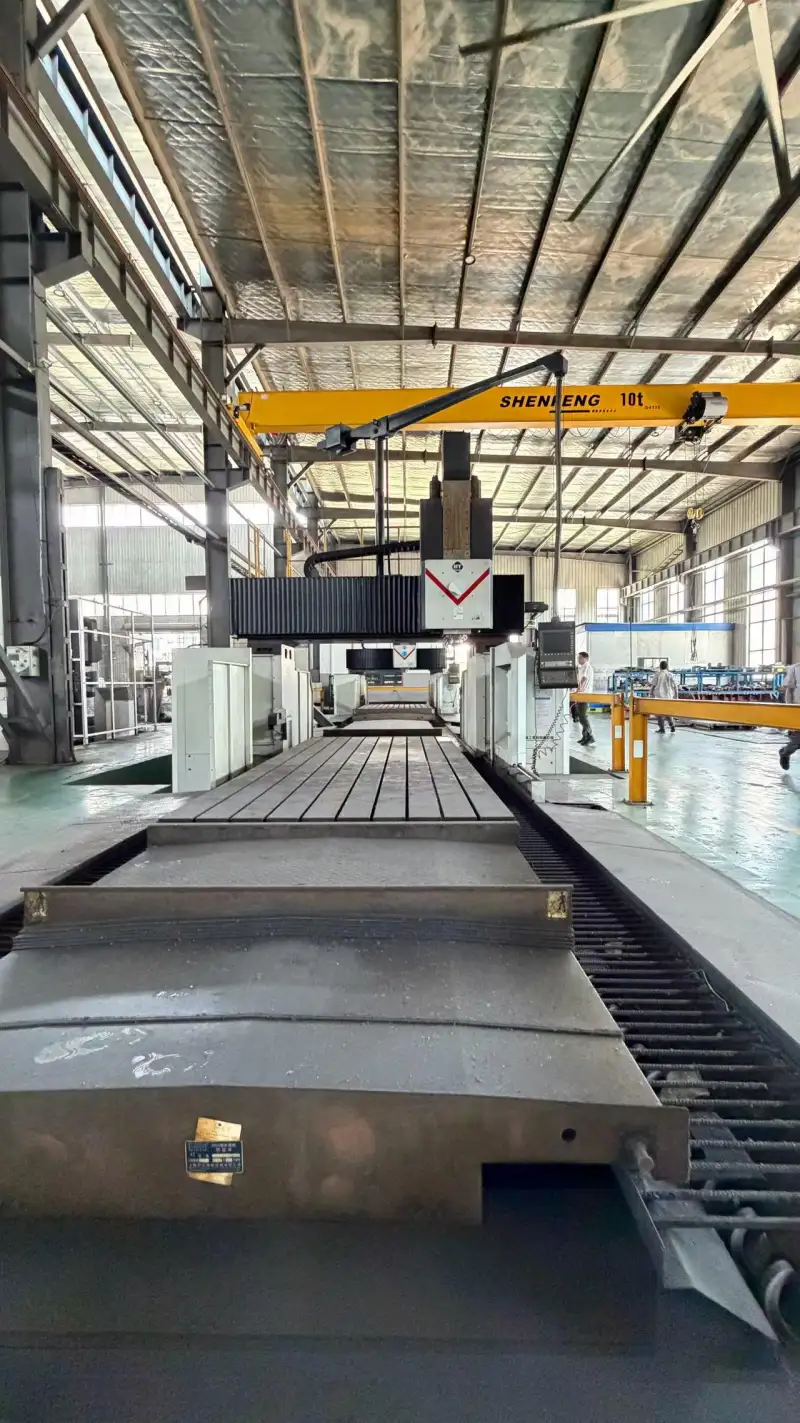

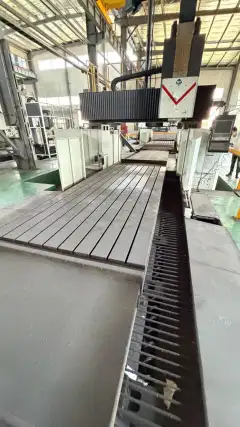

Used Dinghaitian 5028 Gantry Machining Center

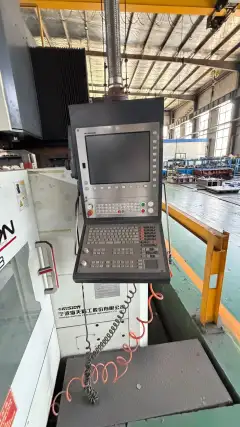

Used Dinghaitian 5028 high-speed gantry machining center for sale. Equipped with HEIDENHAIN TNC 620 control, HSK A 100 motorized spindle, and three-axis linear scales. Working hours less than 1000. Available for inspection on site.
- Código da Máquina
- MC260743
- Ano
- 2000
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Three-axis linear scales
Principais Especificações
| Spindle speed | 100-14000 rpm |
|---|---|
| X travel | 4200 mm |
| Y travel | 2750 mm |
| Z travel | 1000 mm |
| Worktable size | 2000 x 5000 mm |
| Door width | 2790 mm |
| Spindle nose to table | 335-1335 mm |
| Spindle taper | HSK A 100 |
| Control system | HEIDENHAIN TNC 620 |
| Working hours | < 1000 h |
| Machine Type | Gantry Machining Center |
| Model | 5028 |
| Brand | Dinghaitian |
| Spindle Type | Motorized spindle |
