DisponívelCNC Lathe

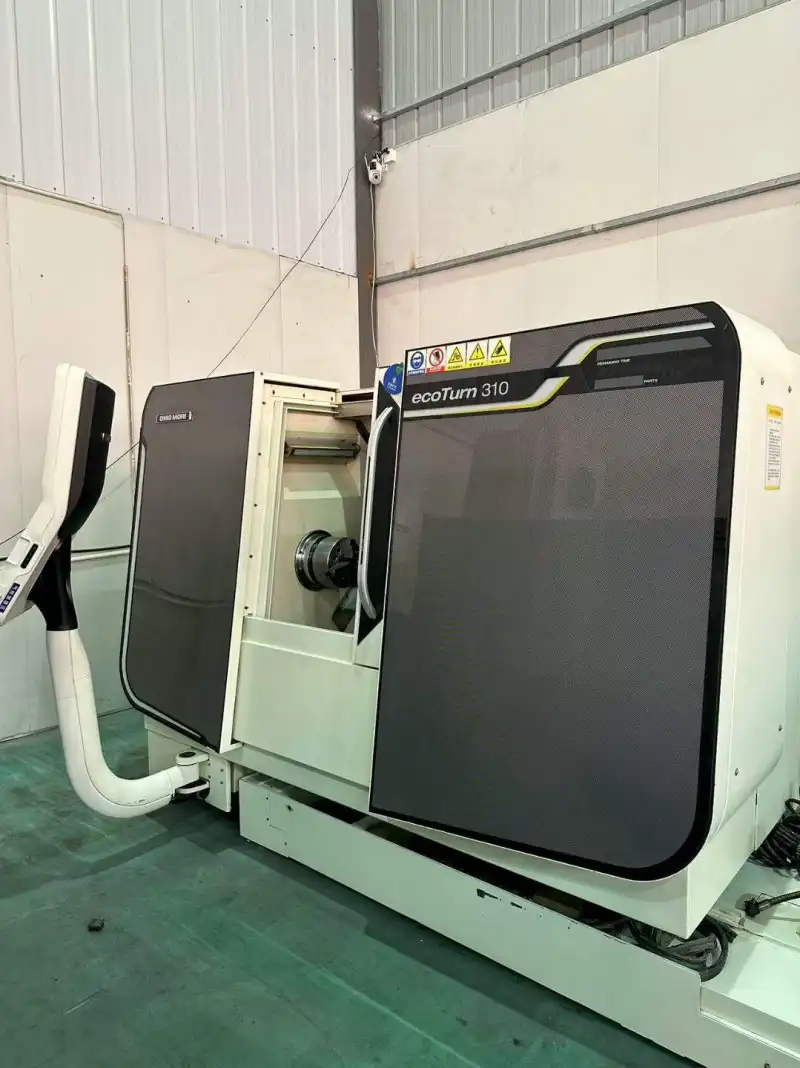

Used DMG MORI ecoTurn 310 CNC Lathe with Siemens 840 Control

DMG MORI ecoTurn 310 CNC Lathe with Siemens 840 control system. Equipped with 8-inch chuck, 12-station tool turret and tailstock center. Max machining diameter 200 mm, max swing 330 mm, bar capacity 51 mm, X/Z travel 160 x 450 mm. Max spindle speed 5,000 rpm, spindle power 16.5 kW, max torque 166.5 Nm. Year of manufacture: 2017.

Código da Máquina: CL2608119
Ano: 2017
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

Spindle speed	5000 rpm
Spindle power	16.5 kW
Max torque	166.5 Nm
Max machining diameter	200 mm
Max swing	330 mm
Bar capacity	51 mm
X travel	160 mm
Z travel	450 mm
Chuck size	8inches
Tool turret stations	12
Tailstock	With tailstock center
