DisponívelPlaner Milling Machine

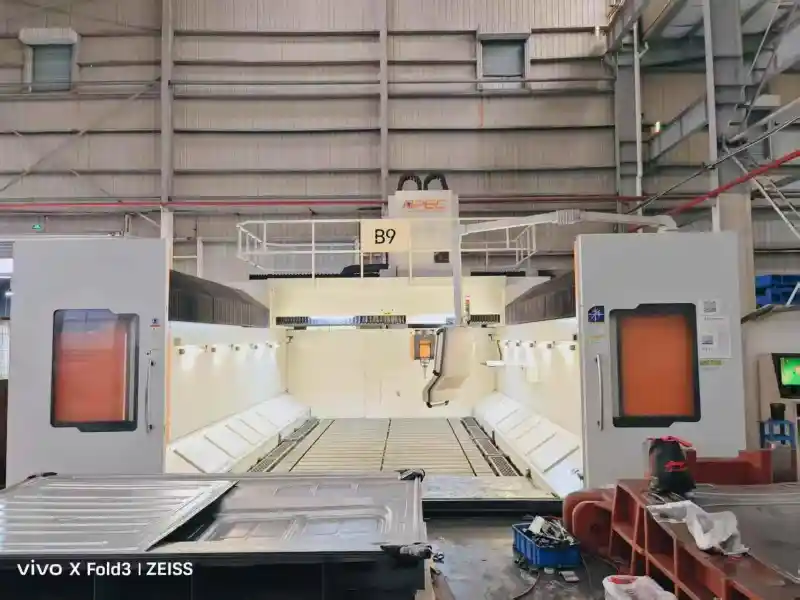

Used GM 3050-5 L 5-Axis Gantry Machining Center

Model: GM 3050-5 L. 5-axis gantry machining center with German Kessler 5-axis head. HEIDENHAIN iTNC 530 control. Box-in-box frame design. Dual linear motors on X/Y/Z. A-axis ±125°, C-axis ±360°. 24-tool magazine.

Código da Máquina: MC260641
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Acessórios

Tool setter Through-spindle coolant

Consulta por E-mail

Principais Especificações

Spindle speed	15000 rpm
Spindle taper	HSK100
X/Y/Z travel	5000 x 3000 x 1000 mm
Rapid traverse (X/Y/Z)	60 m/min
Spindle nose to table	300-1300 mm
A-axis range	±125°
C-axis range	±360°
Table size	5000 x 3000 mm
Tool magazine capacity	24
Max tool length	300 mm
Max tool diameter (adjacent)	75 mm
Max tool diameter (non-adjacent)	150 mm
Model	GM 3050-5 L
Spindle	Kessler 5-axis head
Controller	HEIDENHAIN iTNC 530
Structure	Box-in-box
Drive	X/Y/Z dual linear motors
Spindle Nose To Table Distance	300-1300 mm
Rapid Traverse Speed	60 m/min
Tool Setter	Included
Through-spindle Coolant	Included
