DisponívelMachining Center

Used Guosheng GMF 2715 T Gantry Machining Center with FANUC MF Plus

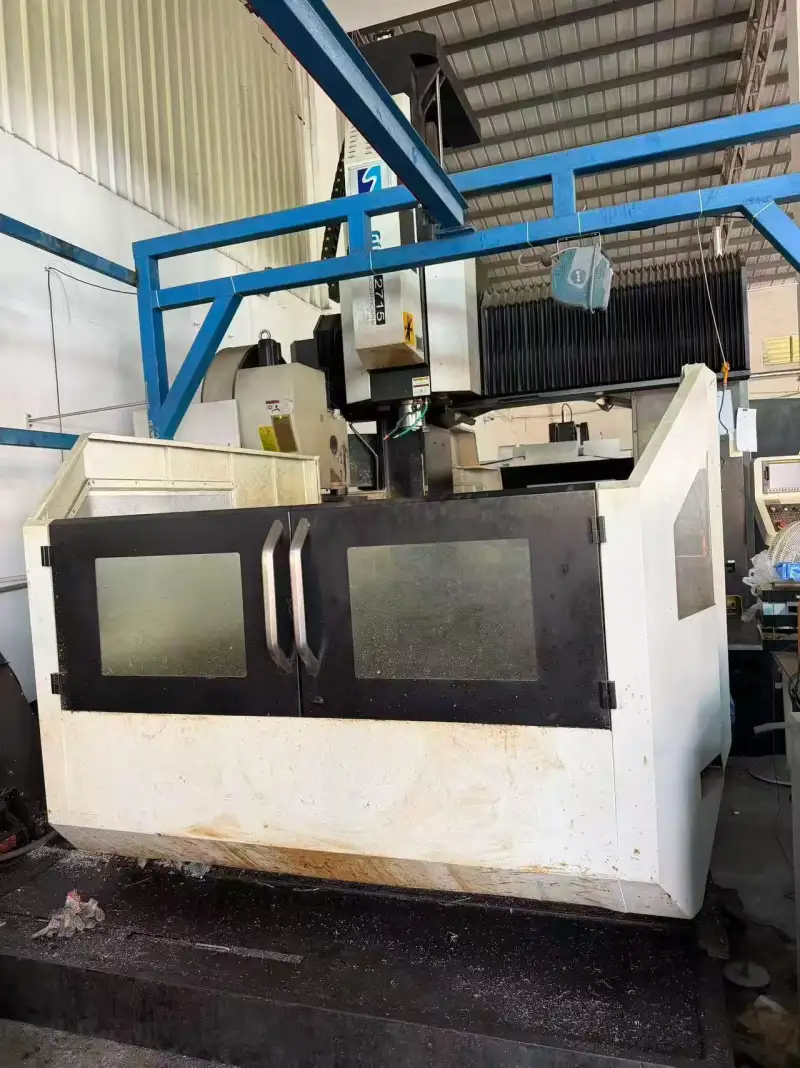

Used Guosheng GMF 2715 T gantry machining center located at a factory in Huizhou, China. Equipped with FANUC MF Plus control, high-power motor, arm-type tool magazine with 24 tools, BT50 spindle, spindle oil cooling, and dual screw and chain-type chip conveyor. Guideways are two linear and one box. Worktable is 2700 x 1300 mm with door width 1600 mm and door height 1200 mm. All specifications are translated from the original Chinese supplier notes and should be verified by inspection or video.

Código da Máquina: MC260841
Ano: Sob consulta
Localização: Huizhou, China
Horas de Uso: Sob consulta

Acessórios

Dual screw and chain-type chip conveyor

Consulta por E-mail

Principais Especificações

Control system	FANUC MF Plus
Spindle speed	6000 rpm
Spindle taper	BT50
Tool magazine capacity	24 tools
Worktable size	2700 x 1300 mm
Door width	1600 mm
Door height	1200 mm
Guideway type	Two linear guideways and one box guideway
Spindle cooling	Oil cooling
Chip conveyor	Dual screw and chain-type chip conveyor
Machine Type	Gantry Machining Center
Brand	Guosheng
Model	GMF 2715 T
Tool Magazine Type	Arm-type
Guideway Configuration	Two linear guideways and one box guideway
