DisponívelCNC Lathe

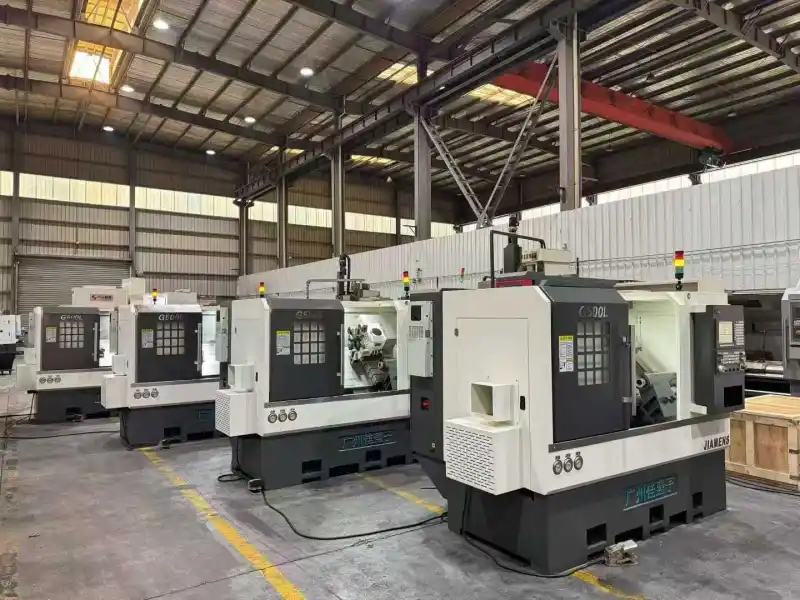

Used Jiamengzi G 500 L Slant-Bed Turret CNC Lathe (2025, 4 Units Available)

Just arrived: 4 units of used Jiamengzi G 500 L slant-bed turret CNC lathes, 95% new. Part of the Jiamengzi G series with heavy-duty integral bed, these high-end heavy-duty machines are equipped with a GSK 988 large-screen bus absolute system, A 2-6 high-speed spindle unit, 8-inch hollow hydraulic chuck, 10-station integrated servo turret, X/Z heavy-duty roller linear guideways, 11 kW servo spindle motor, and MT 5 hydraulic tailstock. Maximum swing diameter is 500 mm and maximum machining length is 500 mm. Manufactured in 2025, installed and seldom used. Contact us for details.

Código da Máquina: CL260809
Ano: 2025
Localização: China
Horas de Uso: Sob consulta

Acessórios

8" hollow hydraulic chuck; MT 5 hydraulic tailstock

Consulta por E-mail

Principais Especificações

Year	2025
Controller	GSK 988
Spindle nose	A 2-6
Chuck	8-inch hollow hydraulic chuck
Turret stations	10
Turret type	Integrated servo turret
Guideways	X/Z heavy-duty roller linear guideways
Spindle motor power	11 kW
Maximum swing diameter	Ø500 mm
Maximum machining length	500 mm
Tailstock	MT 5 hydraulic tailstock
Machine Type	Slant-Bed Turret-Type CNC Lathe
Guideway Configuration	X/Z heavy-duty roller linear guideways
Brand	Jiamengzi
Model	G 500 L
Quantity	4 units
Condition	95% new
Controller Details	Large-screen bus absolute value system
Spindle Type	High-speed spindle unit
Spindle Motor Type	Servo motor
Usage	Installed and little used
