DisponívelPlaner Milling Machine

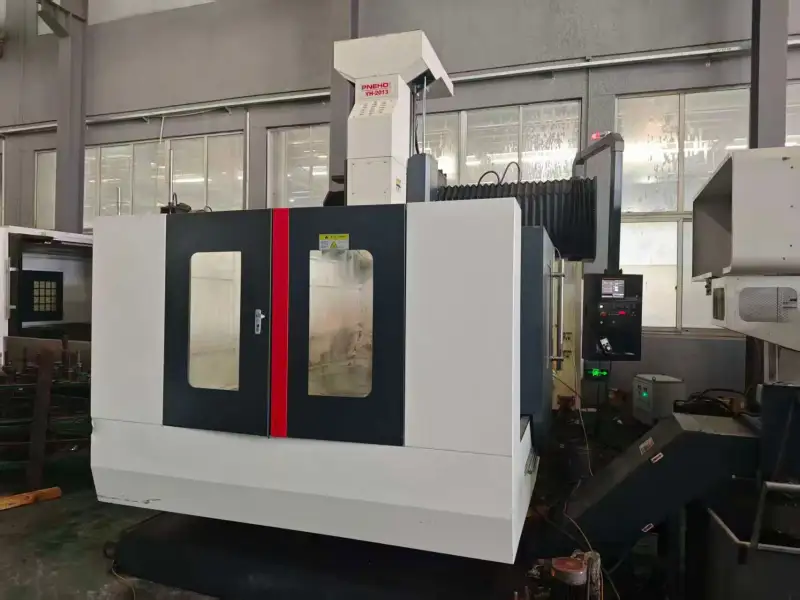

Used Kunshan Pengyihao YH-2013 Gantry Milling Machine with FANUC MF Plus

One used Kunshan Pengyihao YH-2013 CNC gantry milling machine manufactured in 2022. Equipped with FANUC MF Plus control, BT50 spindle 6000 rpm with oil cooling, worktable size 1100 x 2000 mm, three-axis linear guideways, door width 1310 mm, door height 1030 mm, spindle nose to table 940 mm, X/Y/Z travel 2000 x 1300 x 800 mm, built-in dual screw and chain chip conveyor. Machine is in good condition.

Código da Máquina: MIL260601
Ano: 2022
Localização: Kunshan, China
Horas de Uso: Sob consulta

Acessórios

Dual screw and chain chip conveyor

Consulta por E-mail

Principais Especificações

Spindle speed	6000 rpm
Worktable size	1100 x 2000 mm
X travel	2000 mm
Y travel	1300 mm
Z travel	800 mm
Door width	1310 mm
Door height	1030 mm
Spindle nose to table	940 mm
Spindle taper	BT50
Machine Type	Gantry Milling Machine
Brand	Kunshan Pengyihao YH-2013
Year	2022
Controller	FANUC MF Plus
Oil Cooler	Included
Guideway Configuration	X/Y/Z linear guideways
Chip Conveyor	Dual screw and chain chip conveyor
