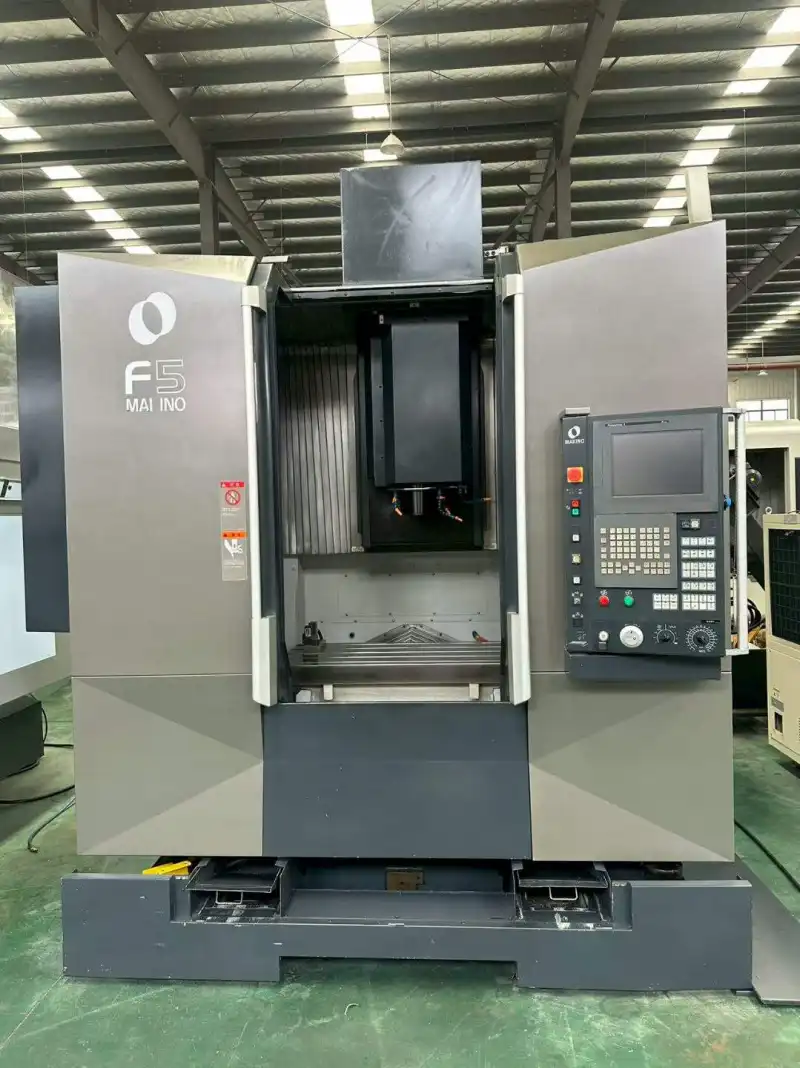

Used Makino F 5 Vertical High-Speed Machining Center

Makino F 5 vertical high-speed machining center. Equipped with Makino Professional 5 control system, 3-axis linear scales. Suitable for plastic molds, die casting molds, medical parts, precision 3 D curved parts, and hard material high-speed precision milling. Year of manufacture: 2012.

Código da Máquina: VMC260769
Ano: 2012
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

X/Y/Z travel	900 x 500 x 450 mm
Worktable size	1000 x 500 mm
Spindle taper	HSK A 63
Spindle speed	20000 rpm
Spindle motor power	15 kW
Tool magazine capacity	20 (disc type)
Control system	Makino Professional 5
With linear scales	3 axes
Year of manufacture	2012
Machine Type	Vertical Machining Center
Brand/Model	Makino F 5
Application	Plastic molds, precision 3 D curved surface parts
