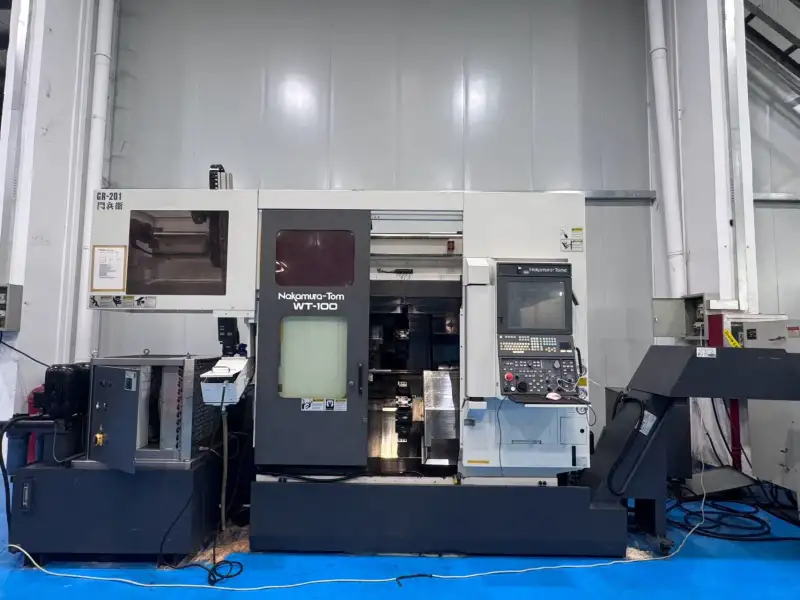

Used Nakamura-Tome WT-100 Dual-Spindle Dual-Turret Turn-Mill CNC Lathe

In stock: Nakamura-Tome WT-100 dual-spindle dual-turret turn-mill CNC lathe. It features dual control systems: Nakamura-Tome system and FANUC 31i-B system. Both turrets are 12-station with 24 indexing positions. The machine is equipped with dual spindles (left and right) with a maximum speed of 6000 min-1 and dual milling motors, allowing for small tools to perform large machining tasks. The combined spindle power reaches 22 kW when both spindles are clamped for simultaneous machining. Trial cutting accuracy is 0.004 mm.

Código da Máquina: TML260802
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

Maximum machining diameter	190 mm
Maximum machining length	503 mm
Bar capacity (round)	42 mm
Chuck size	6inch
Turret configuration	12 stations, 24 indexing positions (both turrets)
Spindle speed	6000 min-1
Spindle motor power	11/7.5 kW x 2
Max combined spindle power	22 kW
Milling motor power	7.1/2.2 kW x 2
Trial cutting accuracy	0.004 mm
Control system	Nakamura-Tome / FANUC 31i-B
