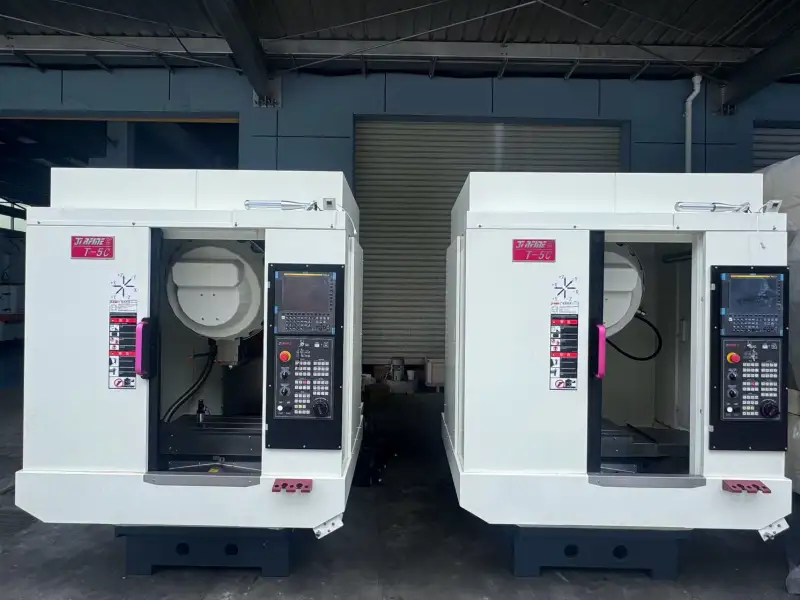

Used Qiaofeng T-5 C Drilling and Tapping Center with FANUC 0i-MF Plus, 2025
In stock on shared platform, 11 units available. Lightly used Qiaofeng T-5 C drilling and tapping center, manufactured in 2025, equipped with FANUC 0i-MF Plus control. Features BT30 direct-drive 24000 rpm spindle, 21-tool servo tool magazine, three-axis linear guideways, 500 x 400 x 350 mm travel and 650 x 400 mm worktable. Accuracy test: spindle runout 0.01 mm, front and side generatrix 0.01 mm, three-axis repeatability 0.003 mm. Contact for inspection and quotation.
- Código da Máquina
- DR260803
- Ano
- 2025
- Localização
- China
- Horas de Uso
- Sob consulta
Principais Especificações
| Spindle taper | BT30 |
|---|---|
| Spindle speed | 24000 rpm |
| Spindle motor power | 2.2-3.7 kW |
| X/Y/Z travel | 500 x 400 x 350 mm |
| Rapid traverse | 48 m/min |
| Worktable size | 650 x 400 mm |
| Spindle nose to table surface | 520 mm |
| Tool magazine capacity | 21 tools (servo) |
| Guideways | Three-axis linear guideways |
| Spindle runout | 0.01 mm |
| Spindle axis parallelism (front generatrix) | 0.01 mm |
| Spindle axis parallelism (side generatrix) | 0.01 mm |
| Three-axis repeatability | 0.003 mm |
