DisponívelPlaner Milling Machine

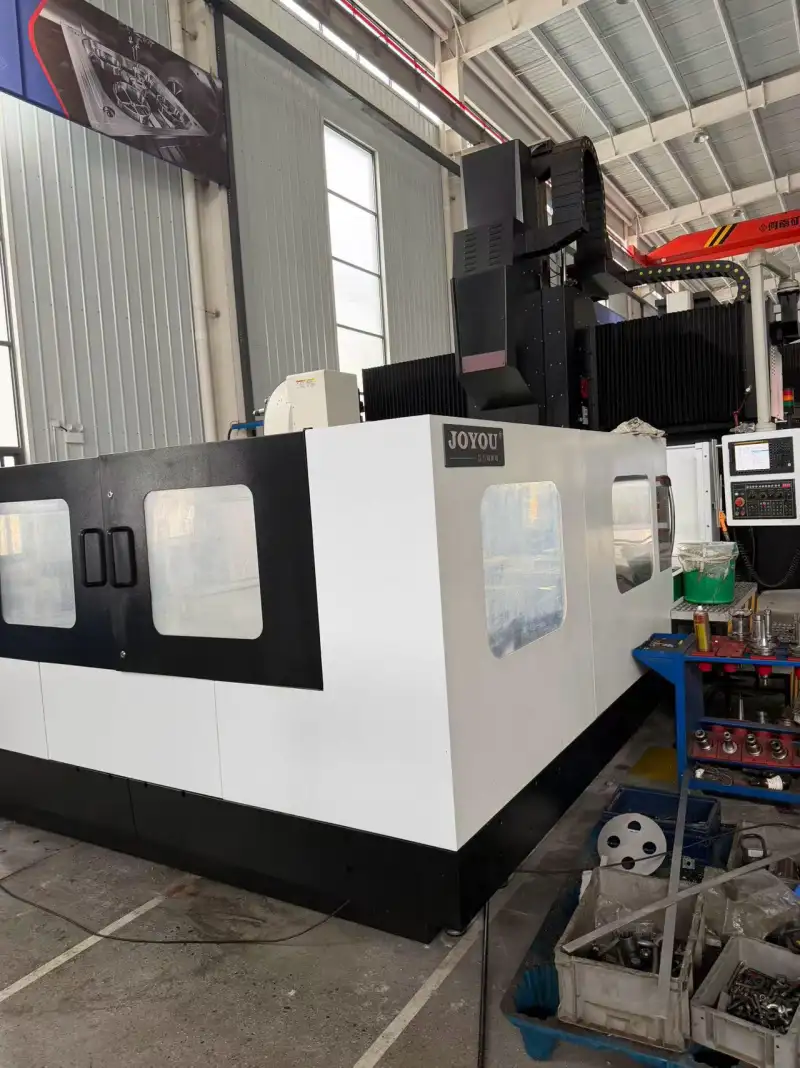

Used Qiaoyang 3018 Gantry Machining Center with FANUC MF Plus

Used Qiaoyang 3018 Gantry Machining Center, machine No. 2. Two identical units are available. Equipped with FANUC MF Plus control. X/Y/Z travel: 3200/1800/800 mm, worktable: 1600 x 3000 mm, door width: 1800 mm, door height: 950 mm. X/Y axes use linear guideways, Z axis uses two linear and two box guideways. BT50 spindle taper, 6000 rpm, 24-tool magazine. The machine is available for inspection from stock in China.

Código da Máquina: MC260806
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Acessórios

24-tool magazine

Consulta por E-mail

Principais Especificações

Worktable size	1600 x 3000 mm
Door width	1800 mm
Door height	950 mm
X/Y/Z travel	3200/1800/800 mm
Guideways	X/Y linear guideways, Z axis with two linear and two box guideways
Spindle taper	BT50
Spindle speed	6000 rpm
Tool magazine capacity	24 tools
Controller	FANUC MF Plus
Machine Number	2
Machine Type	Gantry Machining Center
Brand	Qiaoyang
Model	3018
Quantity	2
Guideway Configuration	X/Y linear guideways; Z axis: two linear and two box guideways
