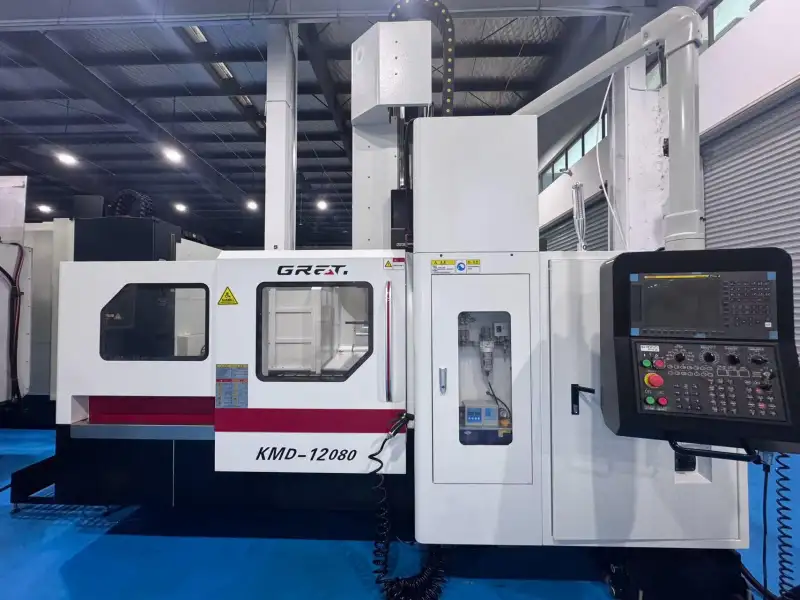

Used Qiruida KMD-12080 CNC Gantry Machining Center

For sale Qiruida KMD-12080 CNC Gantry Machining Center. FANUC 0i-MF Plus control. HSK63 spindle 20000 rpm. 24-tool magazine. Gantry width 920 mm, gantry height 800 mm. Worktable size 1300 x 800 mm. Linear guideways on all axes. X/Y/Z travel 1205 x 900 x 550 mm. Rapid traverse 18 m/min. Precision tested: spindle runout 0.01 mm, vertical parallelism 0.01 mm, side parallelism 0.01 mm, repeatability 0.005 mm. Equipped with spindle oil cooler and 30 kg through-spindle coolant. Year 2024, lightly used.

Código da Máquina: MC260715
Ano: 2024
Localização: China
Horas de Uso: Sob consulta

Acessórios

Spindle oil cooler; 30 kg through-spindle coolant

Consulta por E-mail

Principais Especificações

Spindle speed	20000 rpm
Spindle taper	HSK63
X/Y/Z travel	1205 x 900 x 550 mm
Rapid traverse	18 m/min
Worktable size	1300 x 800 mm
Gantry width	920 mm
Gantry height	800 mm
Tool magazine capacity	24
Spindle runout	0.01 mm
Repeatability	0.005 mm
Machine Type	Gantry Machining Center
Controller	Fanuc 0i-MF Plus
Guideway Configuration	X/Y/Z linear guideways
Accessory	Spindle oil cooler
Through-spindle Coolant Pressure	30 kg/cm²
Manufacturing Year	2024
Brand And Model	QiRuida KMD-12080
