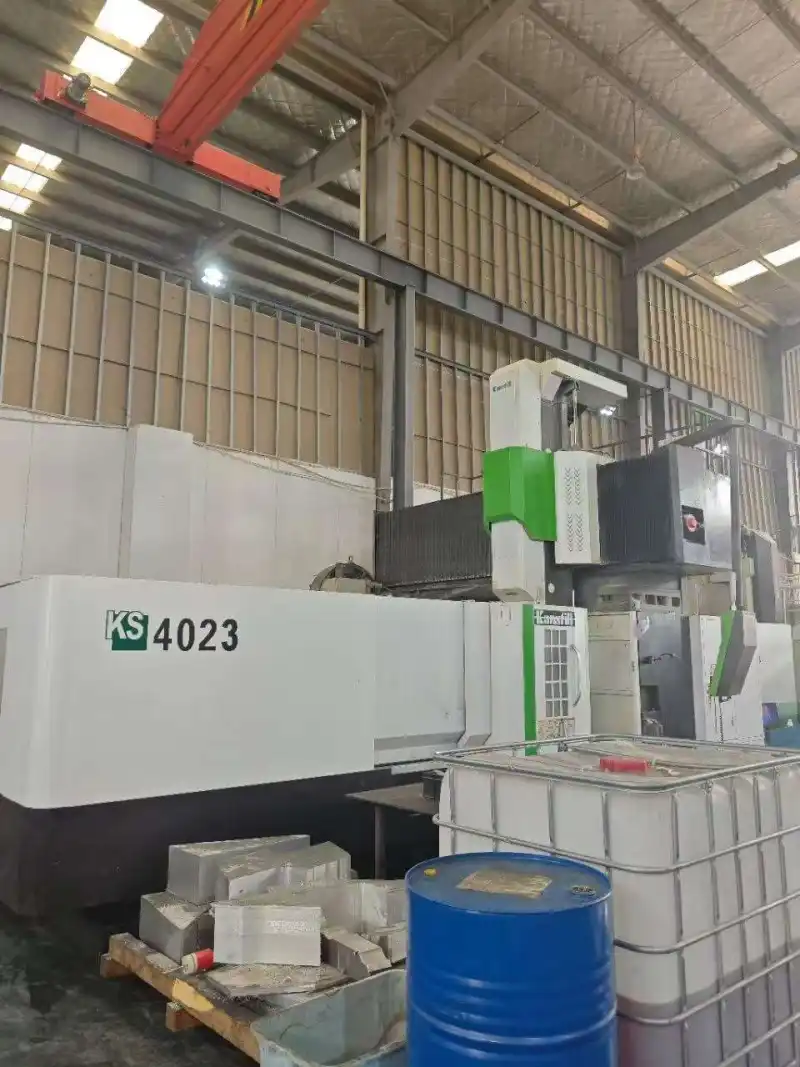

Used Qunzhi 4023 Gantry Machining Center with FANUC MF Plus Control

Worktable size: 2000 x 4000 mm. Gantry width: 2300 mm. Gantry height: 1600 mm. Configuration: two linear guideways (roller type 55 mm) on X and Y axes, one box guideway (rectangular ram) on Z axis. Spindle: Taiwan Luo Yi BT50 belt-drive, 6000 rpm. Control system: FANUC MF Plus. Tool magazine: Taiwan Okay 24-station. Chip conveyors: hinged belt and screw types.

Código da Máquina: MC260695
Ano: 2000
Localização: Kunshan, China
Horas de Uso: Sob consulta

Acessórios

Hinged belt chip conveyor, screw chip conveyor.

Consulta por E-mail

Principais Especificações

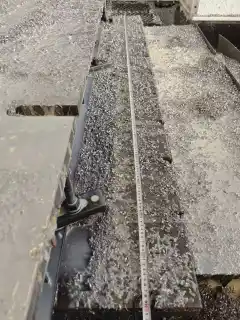

Worktable size	2000×4000 mm
Gantry width	2300 mm
Gantry height	1600 mm
X/Y guideway	Roller linear guideway (55mm)
Z guideway	Box guideway (rectangular ram)
Spindle speed	6000 rpm
Spindle taper	BT50
Rapid traverse X/Y/Z	12/12/12 m/min
Tool magazine capacity	24 stations
Chip conveyor	Hinged belt and screw type
Guideway Configuration	X and Y: roller linear guideway (55 mm); Z: box guideway (rectangular ram)
Controller	FANUC MF Plus
