DisponívelCNC Lathe

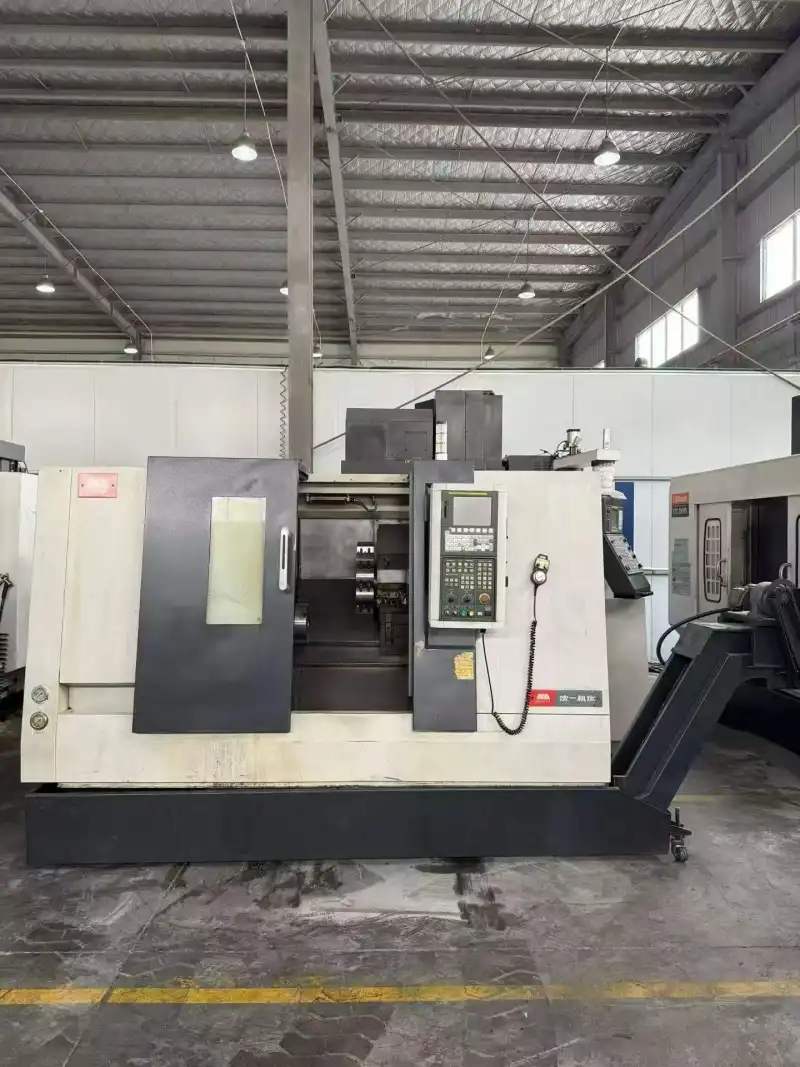

Used Shenyang ViVaT 2 C/500 CNC Lathe with FANUC TD Control

Used Shenyang ViVaT 2 C/500 slant-bed CNC lathe with FANUC TD control. This is a genuine Shenyang Machine Tool, not a replica. The machine features a heavy-duty 45° integral slant bed, two-axis THK linear guideways, an 8-inch hollow hydraulic chuck, a 12-station hydraulic turret, and a fully automatic programmable MT 5 hydraulic tailstock. The spindle is driven by an 11 kW FANUC servo system. Contact us for videos and on-site inspection.

Código da Máquina: CL2608132
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

Maximum swing over bed	Φ560 mm
Maximum machining length	500 mm
Bed structure	Heavy-duty 45° integral slant bed
Guideways	Two-axis THK linear guideways
Chuck	8-inch hollow hydraulic chuck
Turret	12-station hydraulic turret
Control system	FANUC TD
Spindle motor	11 kW FANUC main servo system
Tailstock	Fully automatic programmable MT 5 hydraulic tailstock
Origin	Genuine Shenyang Machine Tool
Guideway Configuration	Two-axis THK linear guideways
Machine Type	Turret-type slant-bed CNC lathe
Model	ViVaT 2 C/500
