DisponívelMachining Center

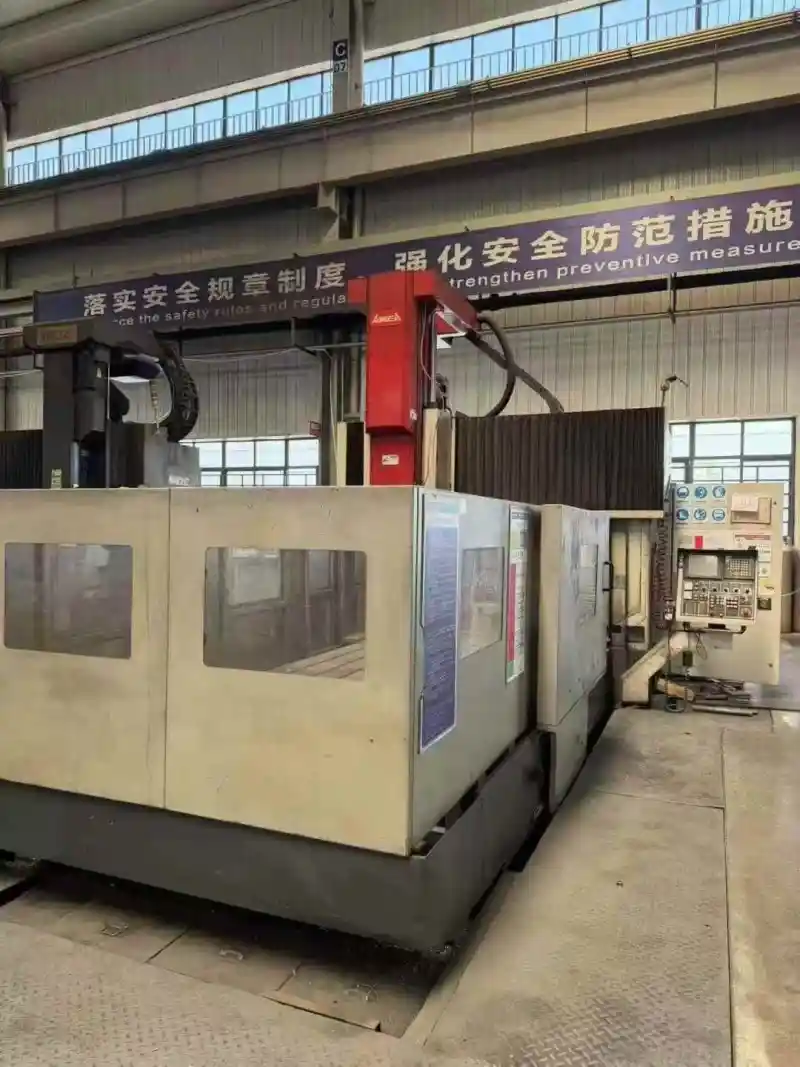

Used Taiwan AsiaWei SP-3016 Gantry Machining Center

Brand: Taiwan AsiaWei SP-3016 gantry type. X axis travel: 3060 mm, Y axis travel: 1600 mm, Z axis travel: 760 mm. Spindle nose to table distance: 200-960 mm. Worktable size: 3000 x 1500 mm. Max table load: 10000 kg. Spindle motor power: 22/26 kW. System: FANUC 18i-MB. Guideway: two linear guideways and one box guideway. The machine is newly purchased by a Qingdao factory at a cheap price.

Código da Máquina: MC2606132
Ano: Sob consulta
Localização: Qingdao, China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

X axis travel	3060 mm
Y axis travel	1600 mm
Z axis travel	760 mm
Worktable size	3000 x 1500 mm
Max table load	10000 kg
Spindle motor power	22/26 kW
Spindle nose to table distance	200-960 mm
Guideway type	Two linear guideways and one box guideway
Distance Between Columns	1700 kg
Controller	FANUC 18i-MB
Guideway Configuration	Two linear guideways and one box guideway
Spindle Nose To Table Surface Distance	200-960 mm
Maximum Table Load	10000 kg
