DisponívelCNC Lathe

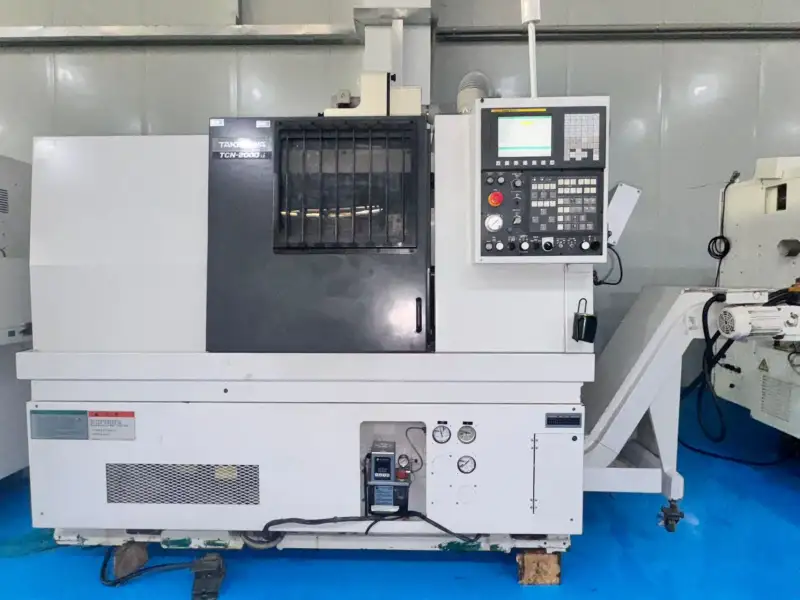

Used Takisawa TCN-2000-L 6 CNC Lathe

Used Takisawa TCN-2000-L 6 CNC Lathe for sale. FANUC 0i-TD control. Box guideway X/Z axes. 12-station servo turret. 8-inch chuck. Equipped with chip conveyor. Test accuracy 0.01 mm. Manufactured in 2015.

Código da Máquina: CL260634
Ano: 2015
Localização: China
Horas de Uso: Sob consulta

Acessórios

Chip conveyor (Longtop brand)

Consulta por E-mail

Principais Especificações

Spindle speed	4500 rpm
Maximum machining diameter	380 mm
Spindle power	15 kW
Spindle bore	42 mm
X travel	460 mm
Z travel	650 mm
Rapid traverse X/Z	20/30 m/min
Guideway type	Box guideway (X/Z)
Turret stations	12
Chuck size	8 inch
Test accuracy	0.01 mm
Machine Model	Takisawa TCN-2000-L 6 CNC Lathe
Controller	FANUC 0i-TD
Rapid Traverse (X/Z)	20/30 m/min
Floor Dimensions	3200 x 1700 mm
Chip Conveyor	Longtou chip conveyor
Year Of Manufacture	2015
Spindle Type	Motorized spindle
Guideway Configuration	Box guideway (X/Z)
