DisponívelPlaner Milling Machine

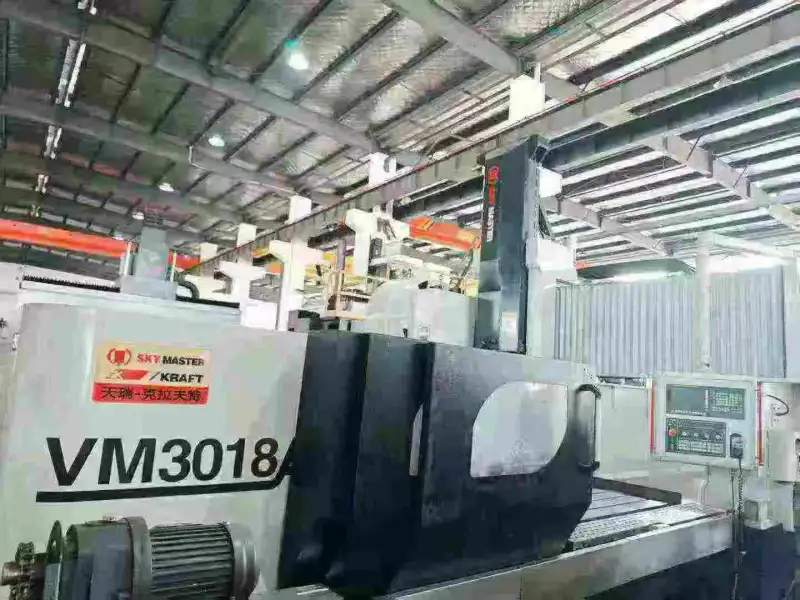

Used Tianrui Precision Claft 3018 Gantry Machining Center with FANUC 0i-MF

Used Tianrui Precision Claft 3018 gantry machining center, year 2020, with FANUC 0i-MF control. Linear guideways on all three axes. Equipped with 24-tool mechanical tool magazine, BT50 gear head, 6000 rpm spindle, milling head, and dual screw and chain chip conveyor. Machine in good condition and available for inspection.

Código da Máquina: MC2606155
Ano: 2020
Localização: China
Horas de Uso: Sob consulta

Acessórios

24-tool mechanical tool magazine, BT50 gear head, 6000 rpm spindle, milling head, dual screw and chain chip conveyor

Consulta por E-mail

Principais Especificações

Spindle speed	6000 rpm
Tool magazine capacity	24
Spindle taper	BT50
Worktable size	3200 x 1600 mm
X/Y/Z travel	3200/1930/800 mm
Gantry height	1020 mm
Gantry width	1840 mm
Spindle nose to table	1010 mm
Machine Type	Gantry Machining Center
Year	2020
Controller	FANUC 0i-MF
Guideway Configuration	X/Y/Z linear guideways
Chip Conveyor	Dual screw and chain chip conveyor
Brand	Ningbo Tianrui Jinggong-Kraft
Model	Kraft 3018
Spindle Drive	Geared head (齿轮头)
