DisponívelCNC Lathe

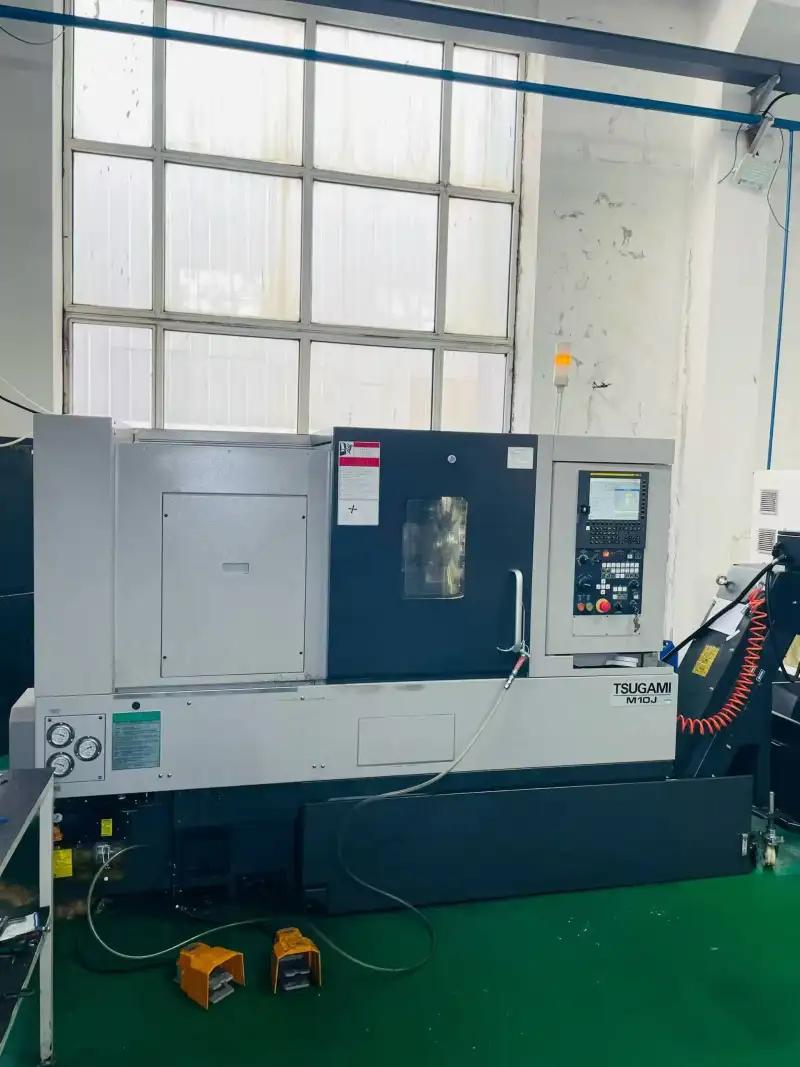

Used Tsugami M 10 J Slant-Bed Turret-Type CNC Lathe with Fanuc

Used Tsugami M 10 J slant-bed CNC lathe in excellent condition. Equipped with FANUC TF Plus control, A 2-8 spindle, 10-inch hollow hydraulic chuck, 12-station servo turret, and programmable servo tailstock. The machine has only over 100 cutting hours, ensuring near-new quality. Heavy cutting capability with X-axis box guideway and Z-axis roller linear guideway. Ideal for high-precision turning applications. Contact us for inspection.

Código da Máquina: CL260777
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

Model	Tsugami M 10 J
Spindle Nose	A 2-8
Chuck	10-inch hollow hydraulic
Bar Capacity	80 mm
Maximum Swing Over Bed	660 mm
Maximum Machining Diameter	400 mm
Maximum Machining Length	550 mm
X-axis Guideway	Box (hard) guideway
Z-axis Guideway	Roller linear guideway
Turret	12-station servo turret
Tailstock	Programmable servo tailstock
Control	FANUC TF Plus
Cutting Hours	100+.
Machine Type	Slant-bed turret-type CNC lathe
