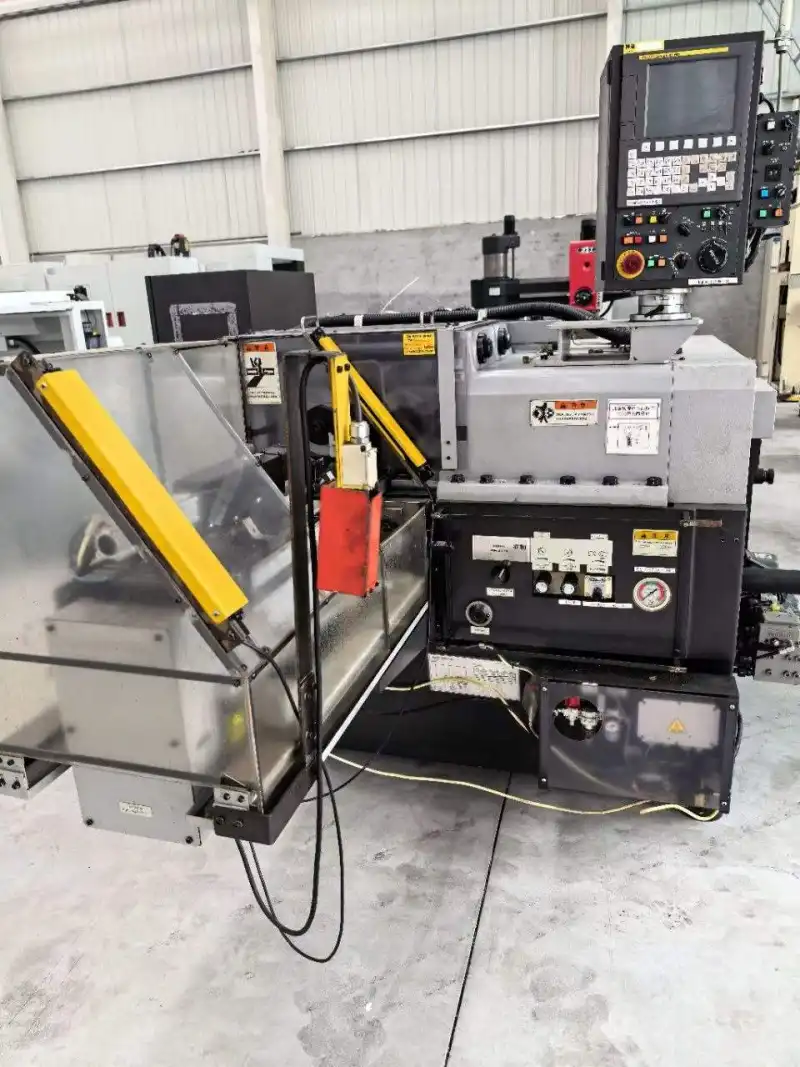

Used Tsugami R 30 A Thread Rolling Machine
Japan original Tsugami R 30 A thread rolling machine, manufactured in 2020, weight 4.6 T. Parameters for reference only, subject to actual inspection. Suitable for medium to high strength thread rolling with hydraulic feed control.
- Código da Máquina
- OE260643
- Ano
- 2020
- Localização
- China
- Horas de Uso
- Sob consulta
Principais Especificações
| Maximum machining outer diameter | φ30 mm (chuck type), φ25 mm (through-feed) |
|---|---|
| Maximum machining length | 150 mm (chuck type), 4000 mm (through-feed, customizable) |
| Rolling capacity | 30 tons (approx. 300 kN) |
| Pitch range | Radial feed max 4.0 mm |
| Spindle speed | 37/46/63/79 rpm (4 steps) |
| Roller die outer diameter | φ120-170 mm |
| Roller die inner diameter | φ54 mm |
| Roller die center distance | 125-225 mm |
| Roller die thickness | 30-100 mm |
| Spindle tilt angle | ±4° |
| Mechanical drive motor | 4.0 kW / 1450 rpm |
| Hydraulic drive motor | 2.2 kW / 1450 rpm |
| Hydraulic maximum feed force | 120 kN |
| Hydraulic time adjustment | Feed/dwell 0.1-99.9 s |
| Machine weight | 4.6 T |
| Brand | Tsugami |
| Model | R 30 A |
| Machine Type | Thread rolling machine |
| Year | 2020 |
