DisponívelPlaner Milling Machine

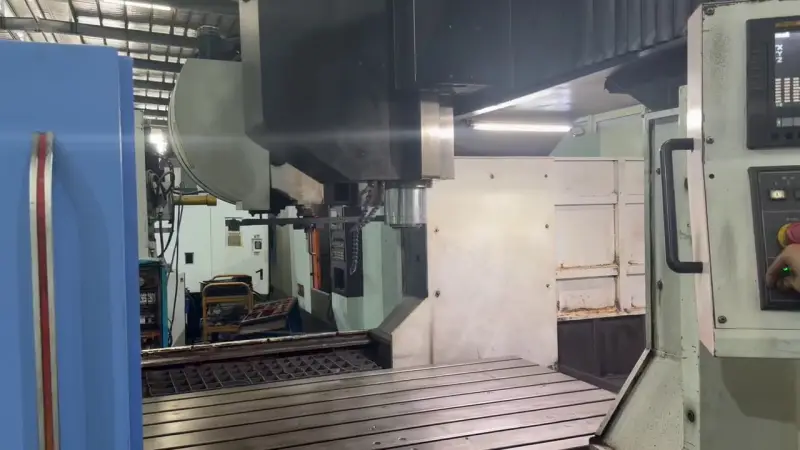

Used YCM 2017 CNC Gantry Machining Center with FANUC 0i-MF Plus

Just arrived: used YCM 2017 CNC gantry machining center, manufactured in 2023. It features a FANUC 0i-MF Plus control, Taiwan Royal BT50 spindle with 6,000 rpm and oil cooling, 24-tool Taiwan OKADA mechanical tool magazine, worktable 1300 x 2200 mm, door width 1700 mm, door height 1250 mm, spindle nose to table distance 1070 mm, X/Y/Z travel 2000 / 1760 / 900 mm, two linear guideways and one box guideway, and a built-in twin-screw and chain-type chip conveyor. The machine has been installed and rarely used; condition is good. Contact us if interested.

Código da Máquina: MC2608119
Ano: 2023
Localização: China
Horas de Uso: Sob consulta

Acessórios

Taiwan OKADA 24-tool mechanical tool magazine; spindle oil cooling system; built-in twin-screw and chain-type chip conveyor.

Abrir vídeo da máquina Consulta por E-mail

Principais Especificações

Control system	FANUC 0i-MF Plus
Spindle taper	BT50
Spindle speed	6,000 rpm
Spindle cooling	Oil cooling
Tool magazine	24-station Taiwan OKADA mechanical tool magazine
Worktable size	1300 x 2200 mm
Door width	1700 mm
Door height	1250 mm
Spindle nose to table distance	1070 mm
X/Y/Z travel	2000 / 1760 / 900 mm
Guideway configuration	Two linear guideways and one box guideway
Chip conveyor	Built-in twin-screw and chain-type chip conveyor
Year of manufacture	2023
Machine Type	Gantry Machining Center
Brand	YCM
