DisponívelPlaner Milling Machine

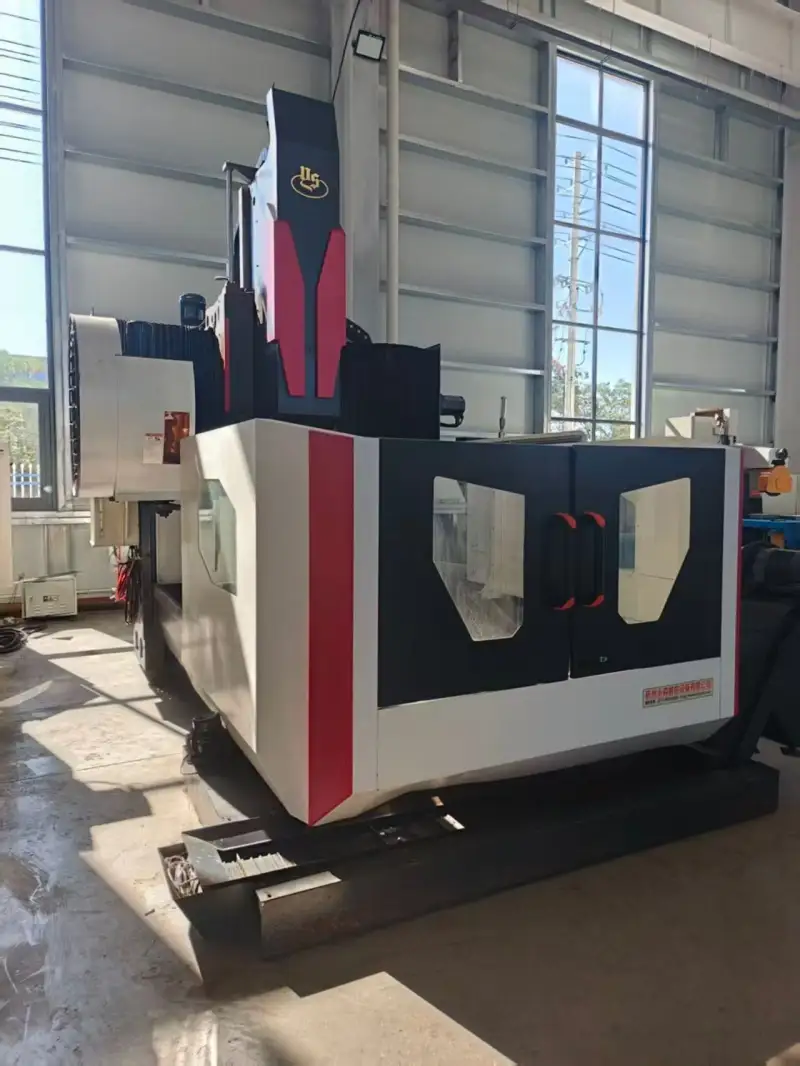

Used Yongsen 2214 Gantry Machining Center with FANUC MF Plus

Used Yongsen 2214 gantry machining center in 95% new condition. Equipped with a FANUC MF Plus control, BT50 spindle, two linear guideways and one box guideway. Worktable size is 1200 x 2200 mm; gantry clearance is 1400 mm wide and 1000 mm high. X/Y/Z travels are 2200 x 1350 x 800 mm, spindle nose to table is 800 mm. Tool changing is handled by a 24-position arm-type ATC. Actual machining time is only 300+ hours.

Código da Máquina: MC260832
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Consulta por E-mail

Principais Especificações

Worktable size	1200 x 2200 mm
Gantry clearance width	1400 mm
Gantry clearance height	1000 mm
X/Y/Z travel	2200 x 1350 x 800 mm
Spindle nose to table	800 mm
Spindle taper	BT50
Guideways	Two linear guideways and one box guideway
Controller	FANUC MF Plus
Tool magazine capacity	24 tools
Machining time	300+ hours
