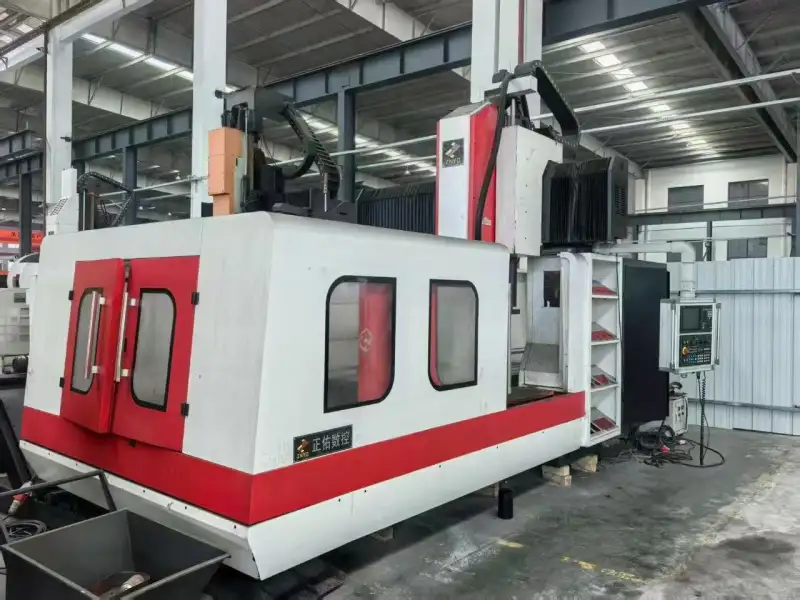

Zhengyou 2513 CNC Gantry Milling Machine with Mitsubishi M80
Used Zhengyou 2513 CNC Gantry Milling Machine with Mitsubishi M80 control system available from China. The machine information is translated from the original Chinese supplier notes and can be verified by video or on-site inspection.
- Código da Máquina
- OE260605
- Ano
- 2021
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Built-in dual screw and chain chip conveyor
Principais Especificações
| Spindle speed | 6000 rpm |
|---|---|
| Spindle taper | BT50 |
| Worktable size | 2500 x 1100 mm |
| X/Y/Z travel | 2500/1500/750 mm |
| Spindle nose to table distance | 930 mm |
| Gantry width | 1300 mm |
| Gantry height | 1150 mm |
| Machine Type | Gantry Milling Machine |
| Brand And Model | Zhengyou 2513 |
| Controller | Mitsubishi M80 |
| Manufacturing Year | 2021 |
| Guideway Configuration | two linear guideways and one box guideway |
| Spindle Oil Cooler | Included |
| Z-axis Guideway Type | four linear guideways |
| X/Y/Z Travel (gantry) | 2500/1900/900 mm |
| X/Y/Z Travel (table) | 2500/1500/750 mm |
| Chip Conveyor | Dual screw and drag chain chip conveyor |
| Spindle | BT50, 6000 rpm, with oil cooler |
