AvailableMachining Center

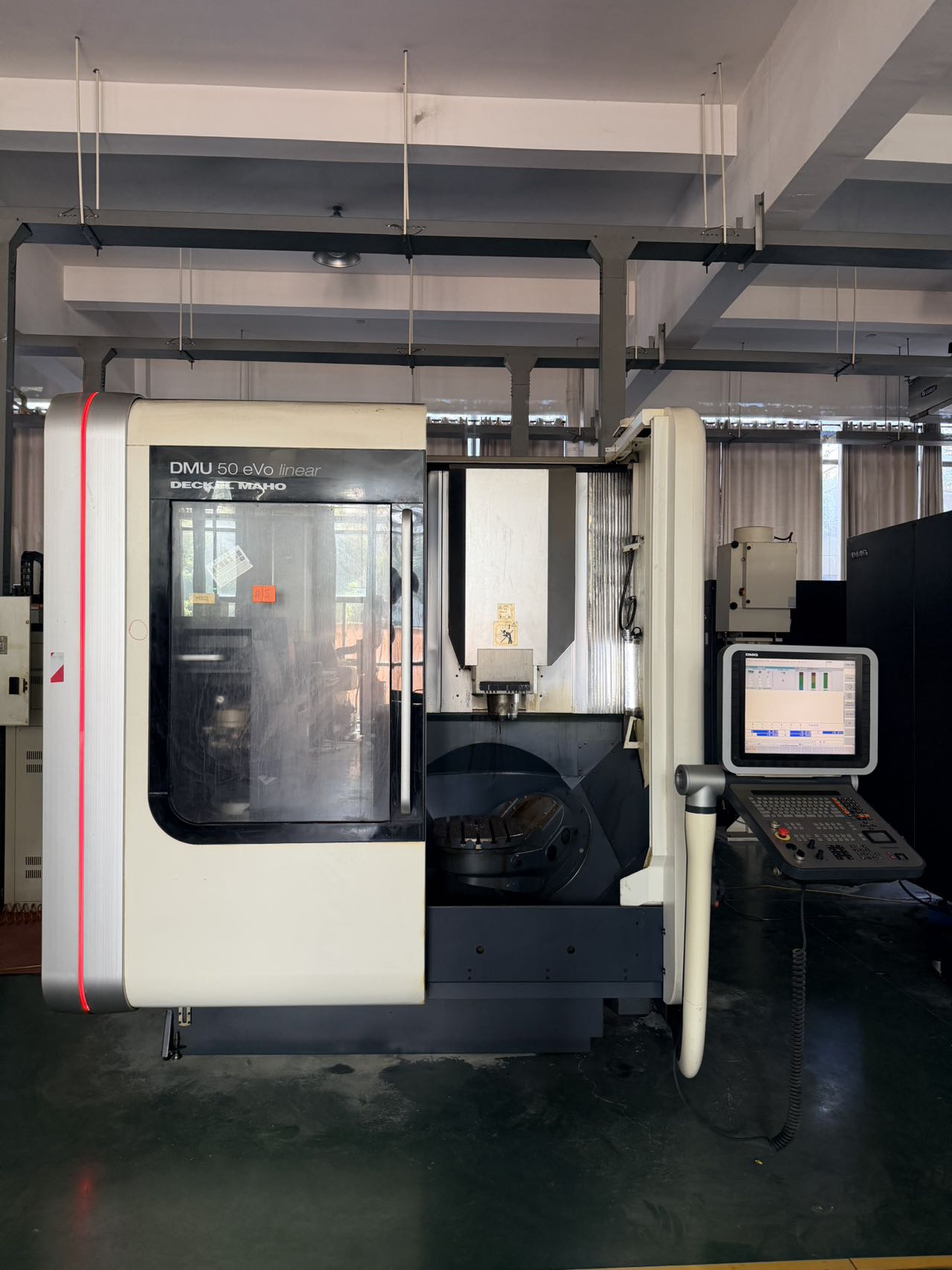

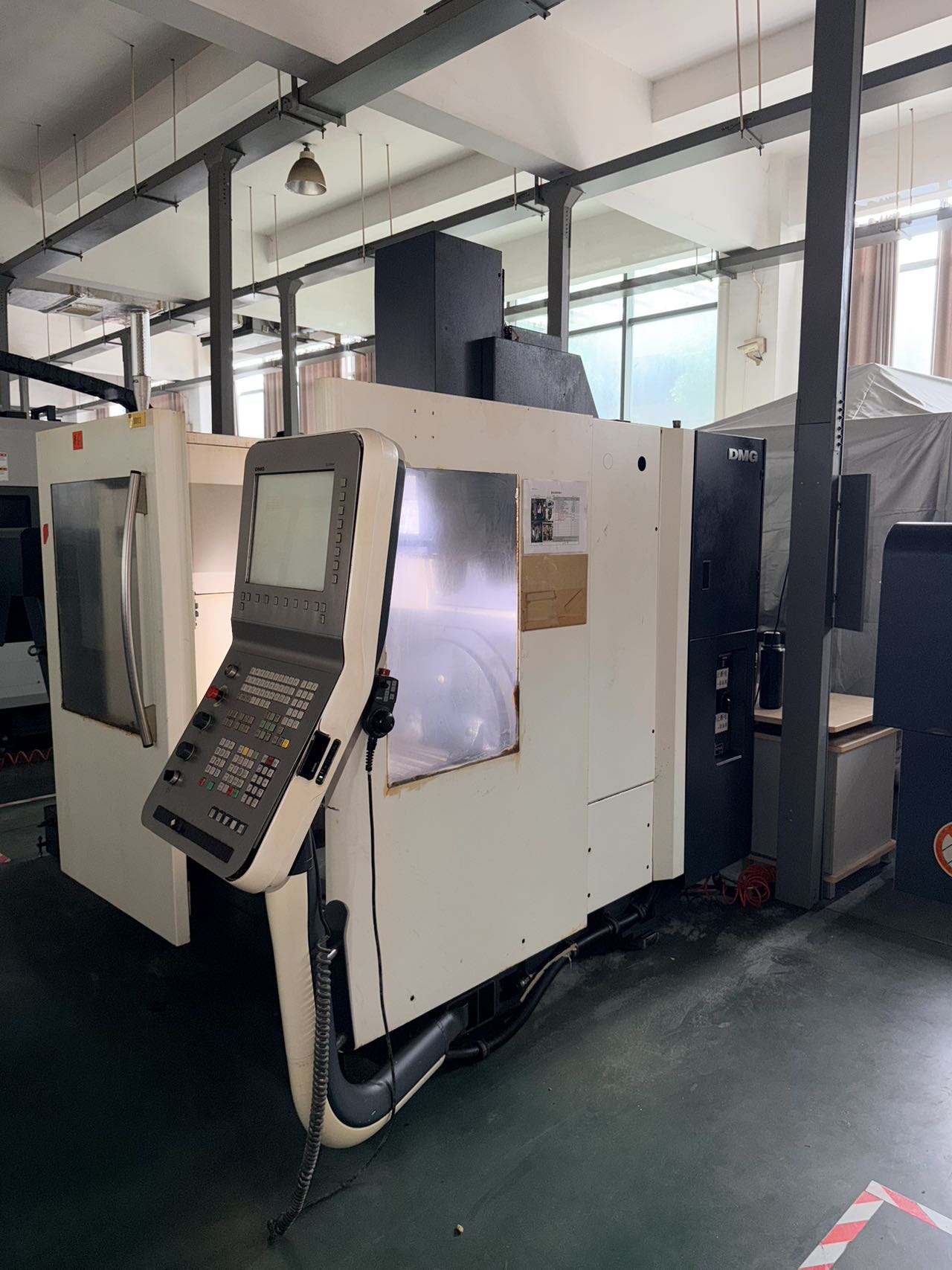

Used DMG MORI DMU 50 ecoline 5-Axis CNC Machining Center with Siemens 810 D

Used DMG MORI DMU 50 ecoline 5-axis simultaneous machining center. Equipped with Siemens 810 D control, BT40 spindle taper, 16-station tool magazine, and 5 axes with linear scales. Features X/Y/Z travels of 500/450/400 mm, B-axis swivel range -5° to +110°, C-axis 360°, and workpiece capacity up to 500 mm diameter and 400 mm height. Machine is located in China and available for inspection.

Machine Code: MC2608325
Year: On request
Location: China
Usage Hours: On request

Accessories

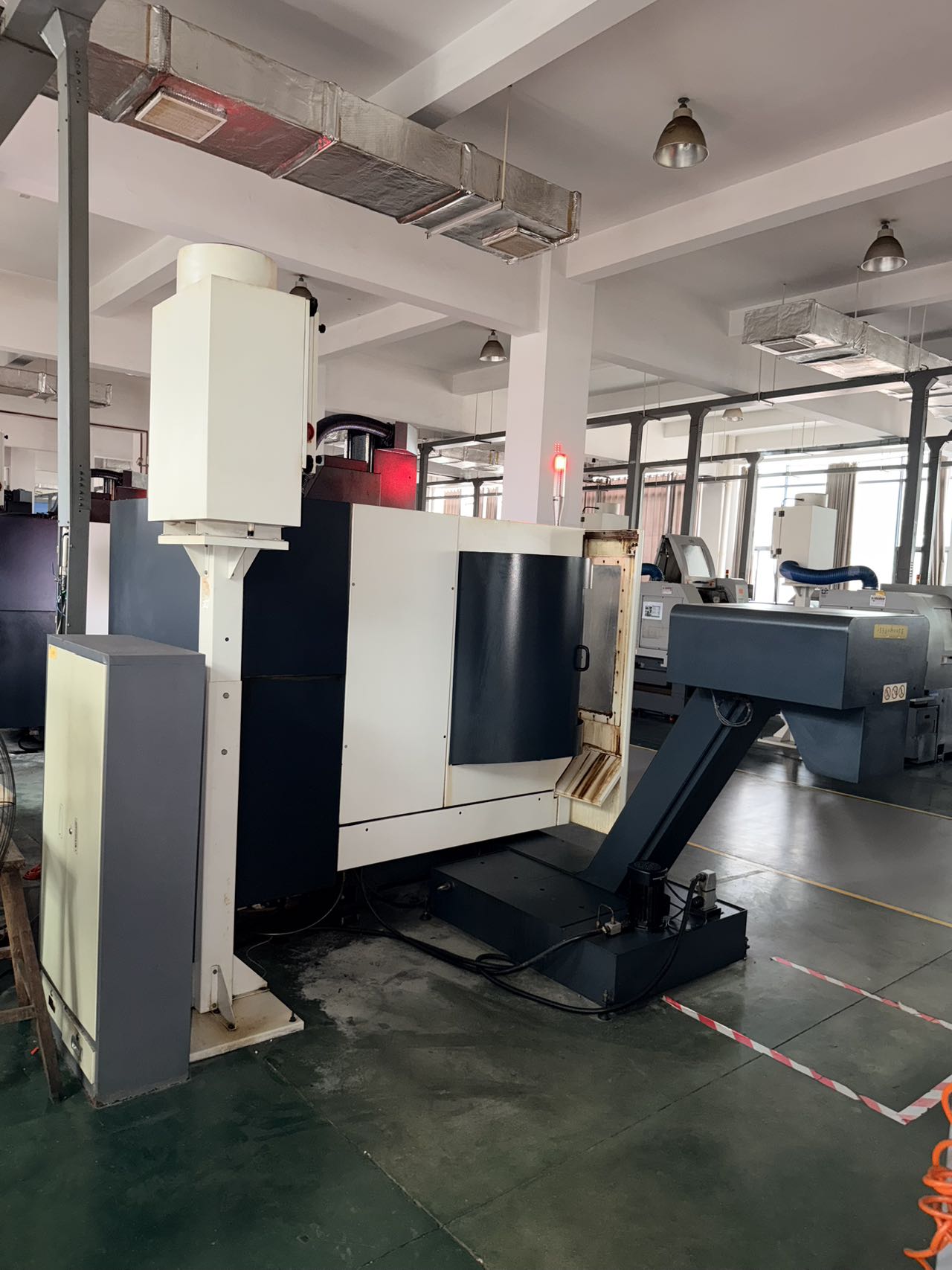

Air purifier, chip conveyor

Email Inquiry

Main Specifications

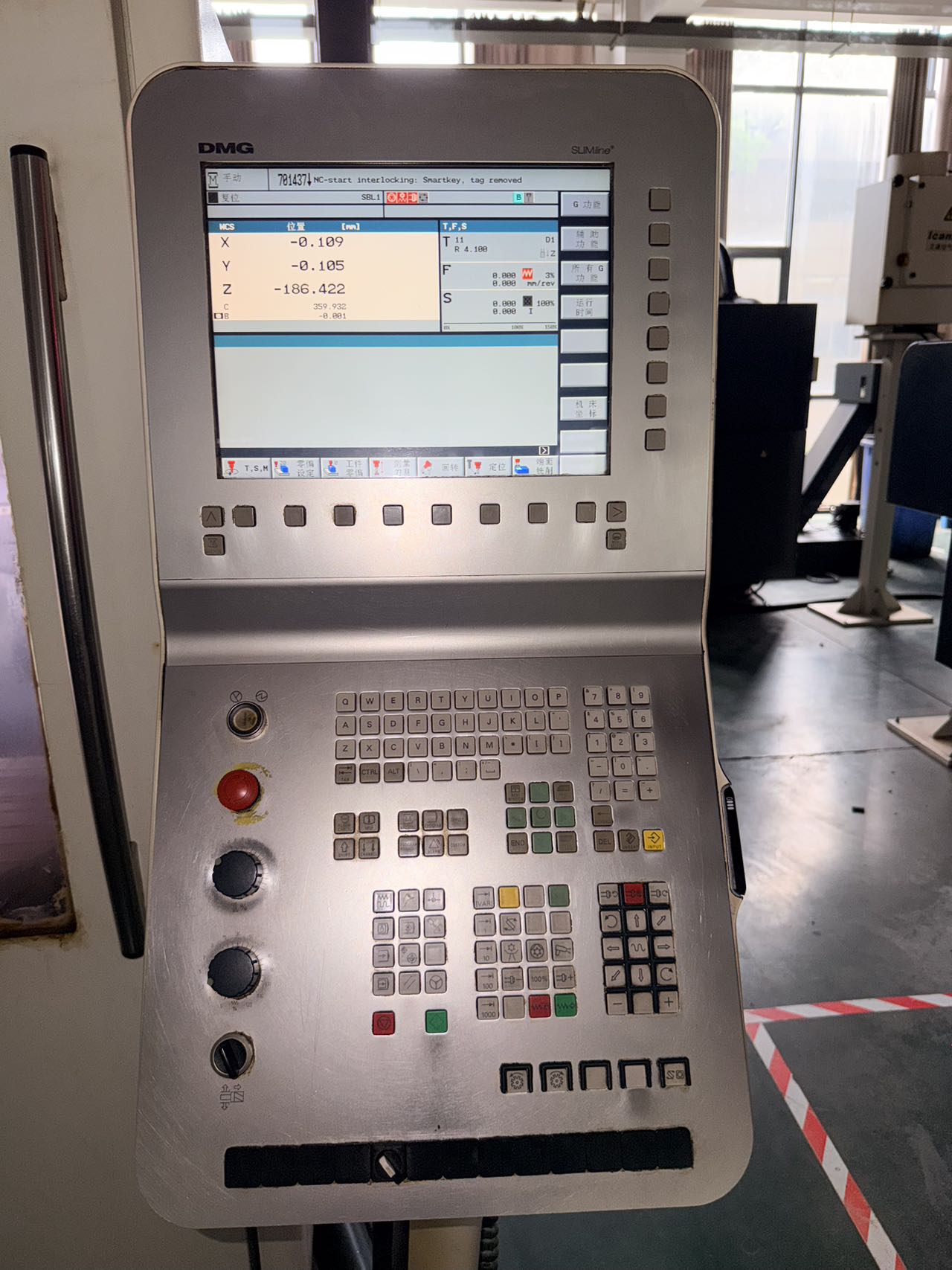

Control system	Siemens 810 D
Spindle speed	8000 rpm
Spindle taper	BT40
Spindle power	9 kW
Tool holder	SK-40

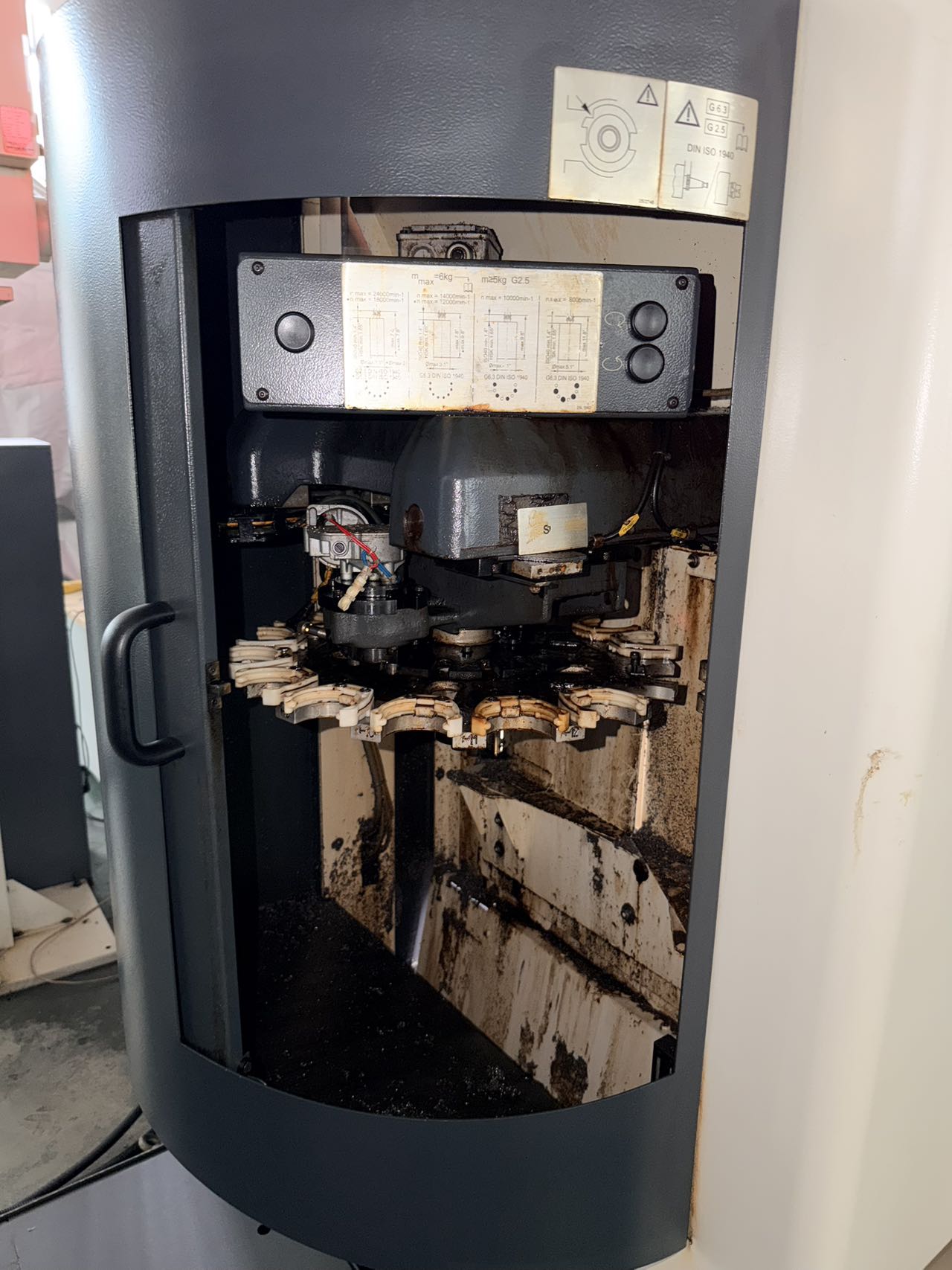

Tool magazine capacity	16 tools
Number of axes	5 axes
X-axis travel	500 mm
Y-axis travel	450 mm
Z-axis travel	400 mm

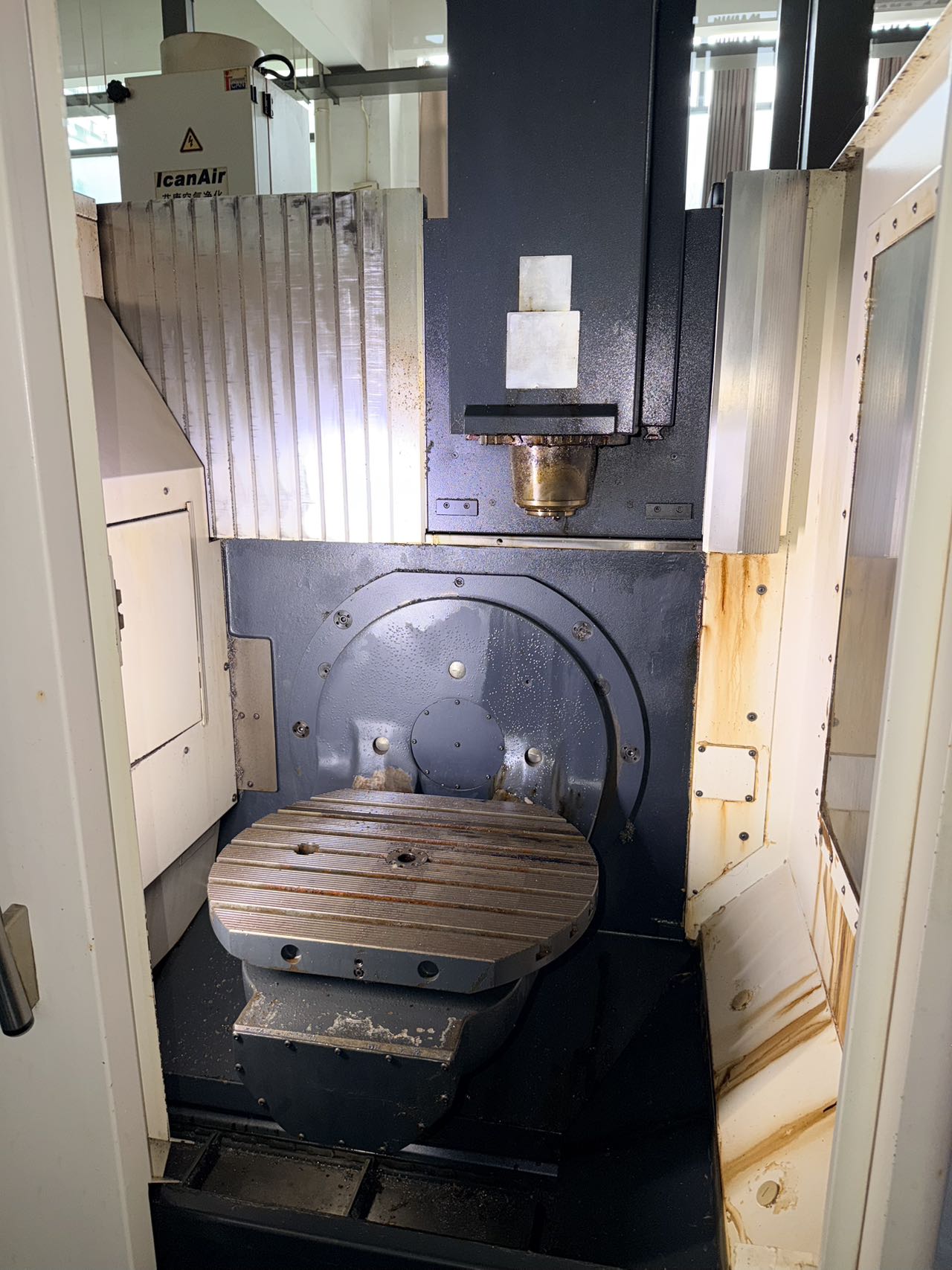

B-axis swivel range	-5° to +110°
C-axis rotation	360°
Worktable surface	630 mm
Max workpiece diameter	500 mm
Max workpiece height	400 mm
Max table load	300 kg
Working hours	32494 h
Linear scales	5 axes
Brand	DMG MORI
