AvailableTurn-Mill CNC Lathe

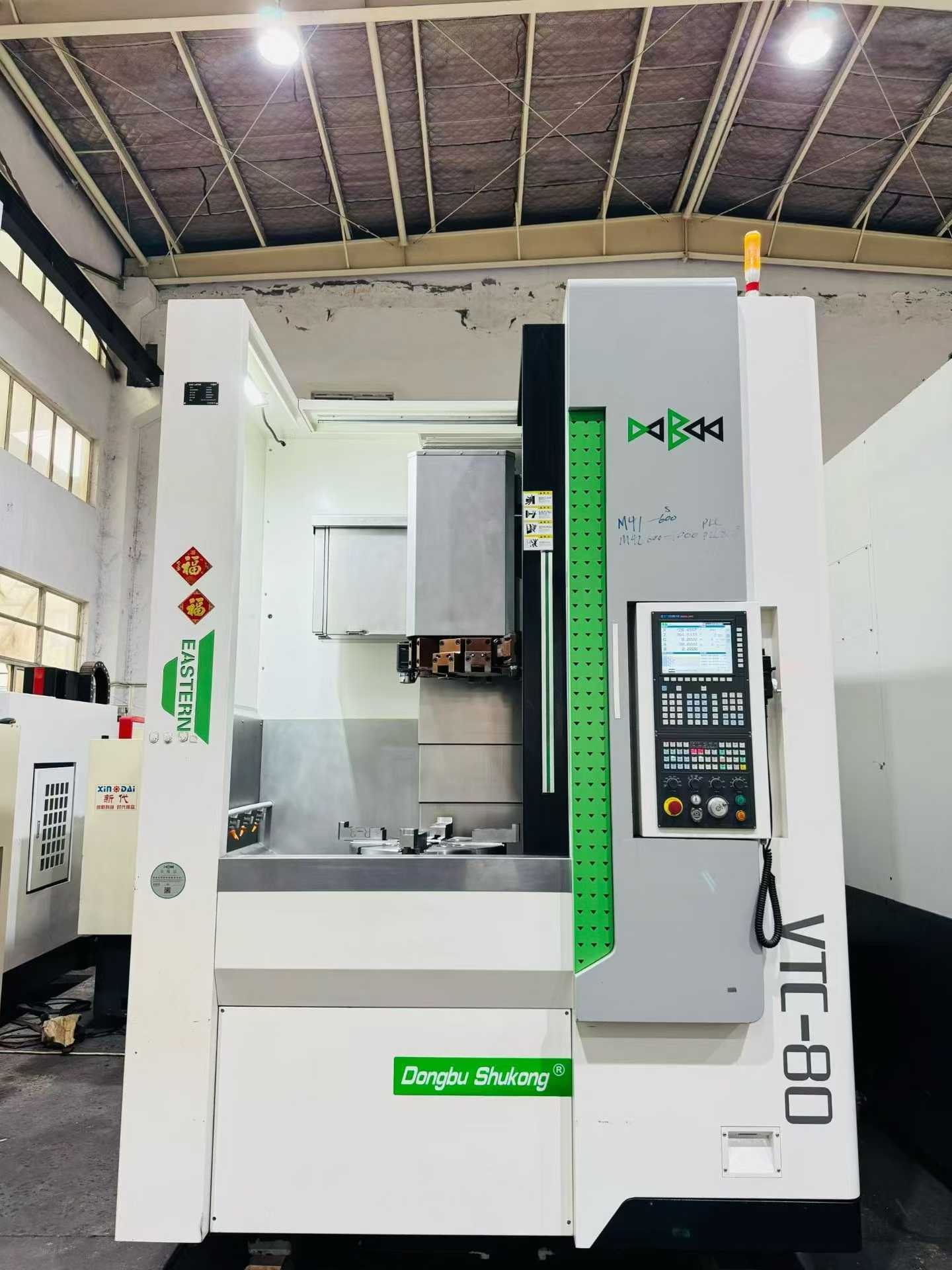

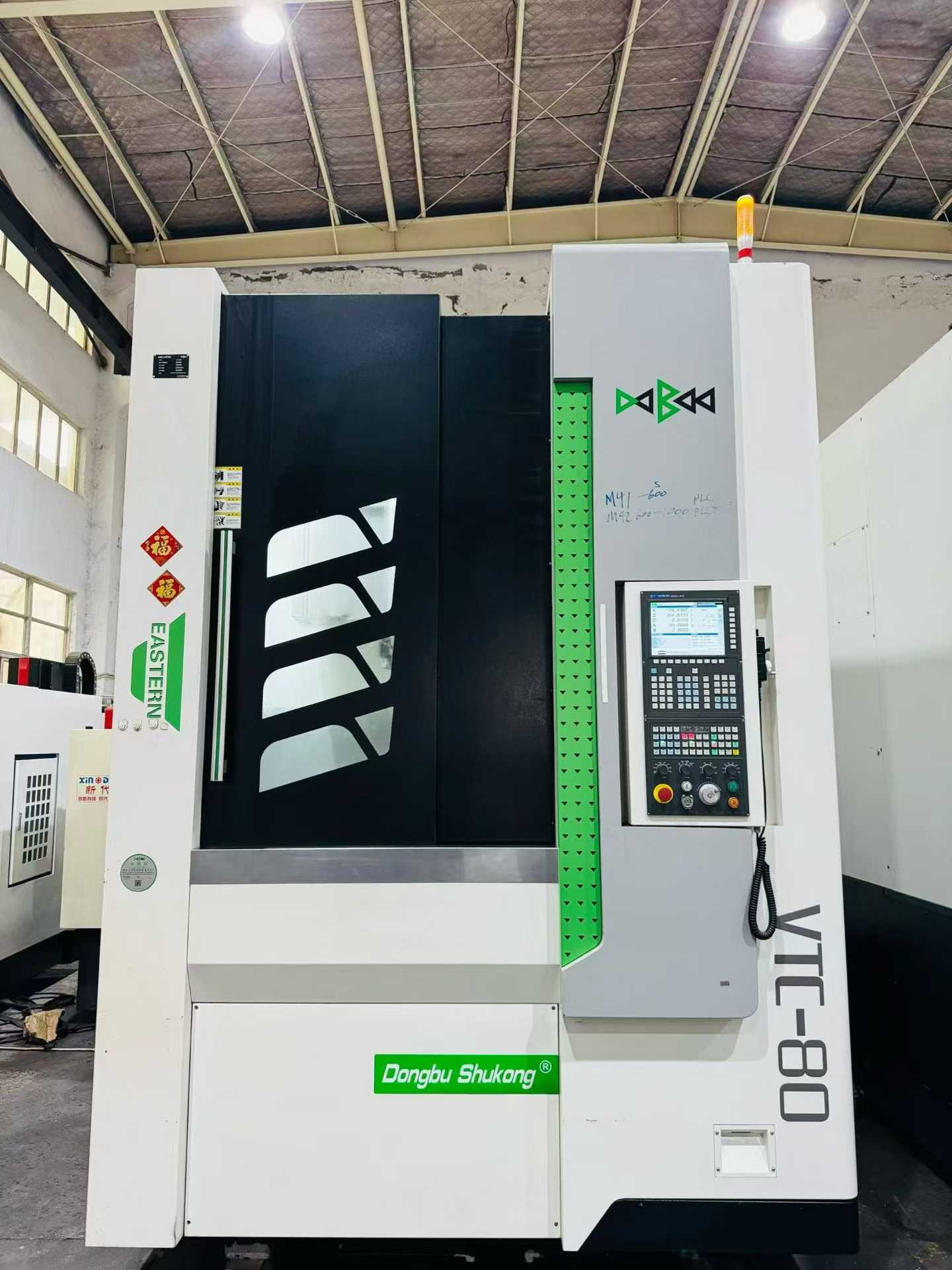

Used Dongbu Dasen VTC-80 Vertical Turn-Mill Center with GSK 988 Control

This Dongbu Dasen VTC-80 is a high-speed vertical turn-mill center built in 2024 and in near-new condition with very little use since installation. It accepts workpieces up to Ø900 mm swing diameter with a maximum machining height of 650 mm. The machine is fitted with an A 2-15 heavy-duty mechanical spindle driven by a 22 kW servo main motor, delivering spindle speeds from 50 to 1000 rpm. Workholding is handled by a 24-inch hydraulic chuck. Turning and milling capability comes from an oversized 12-station BMT 65 servo live tooling turret, supplied with four live tools — two at 0° and two at 90°. The machine runs the latest GSK 988 large-screen absolute bus CNC system. Overall machine weight is approximately 10 t.

Machine Code: TML260904
Year: 2024
Location: China
Usage Hours: On request

Accessories

24-inch hydraulic chuck; 12-station BMT 65 servo live tooling turret; four live tool holders (two at 0°, two at 90°).

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

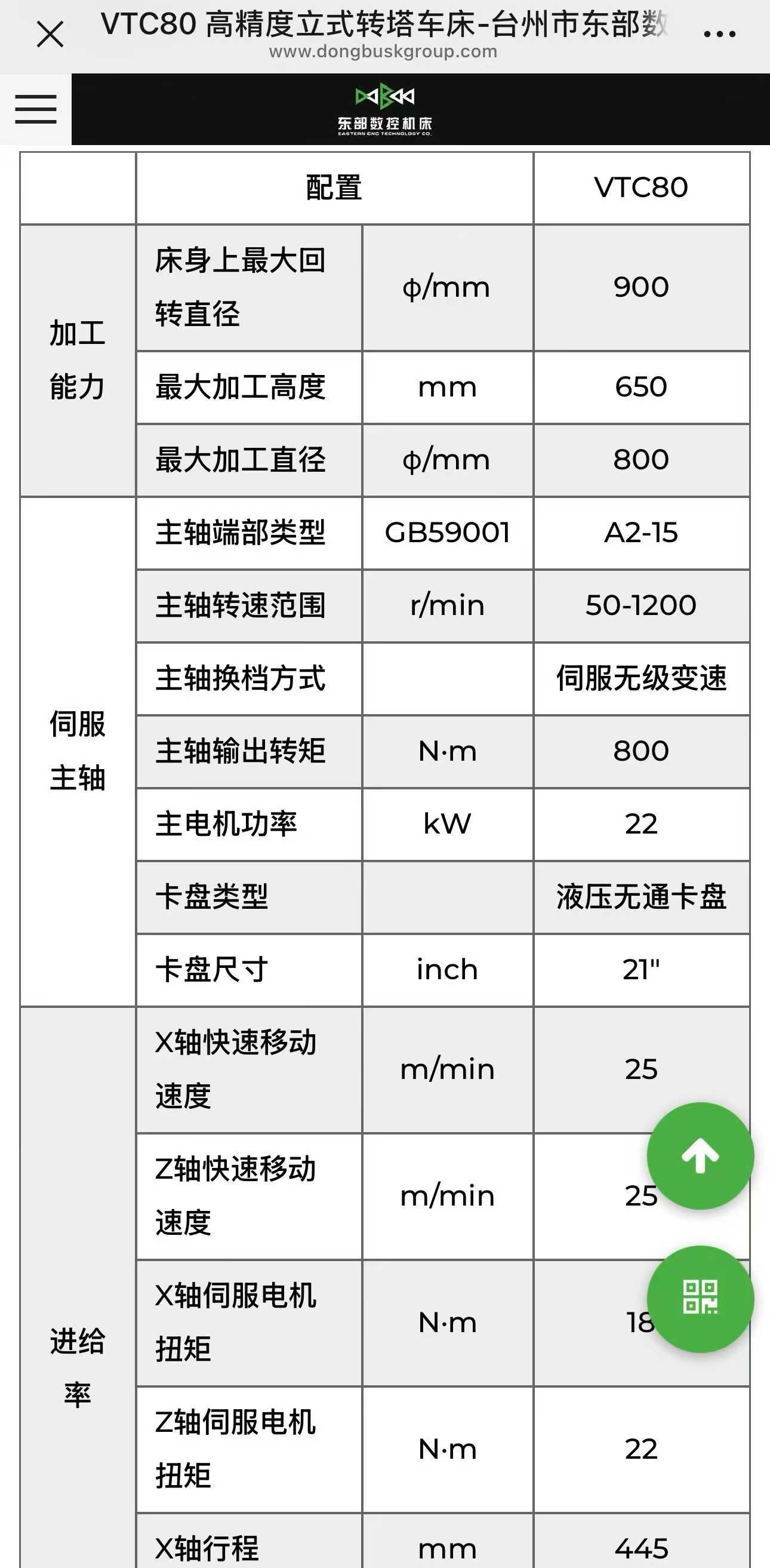

Main Specifications

Maximum swing diameter	Ø900 mm
Maximum machining height	650 mm
Spindle nose	A 2-15
Spindle speed	50–1000 rpm
Spindle motor power	22 kW

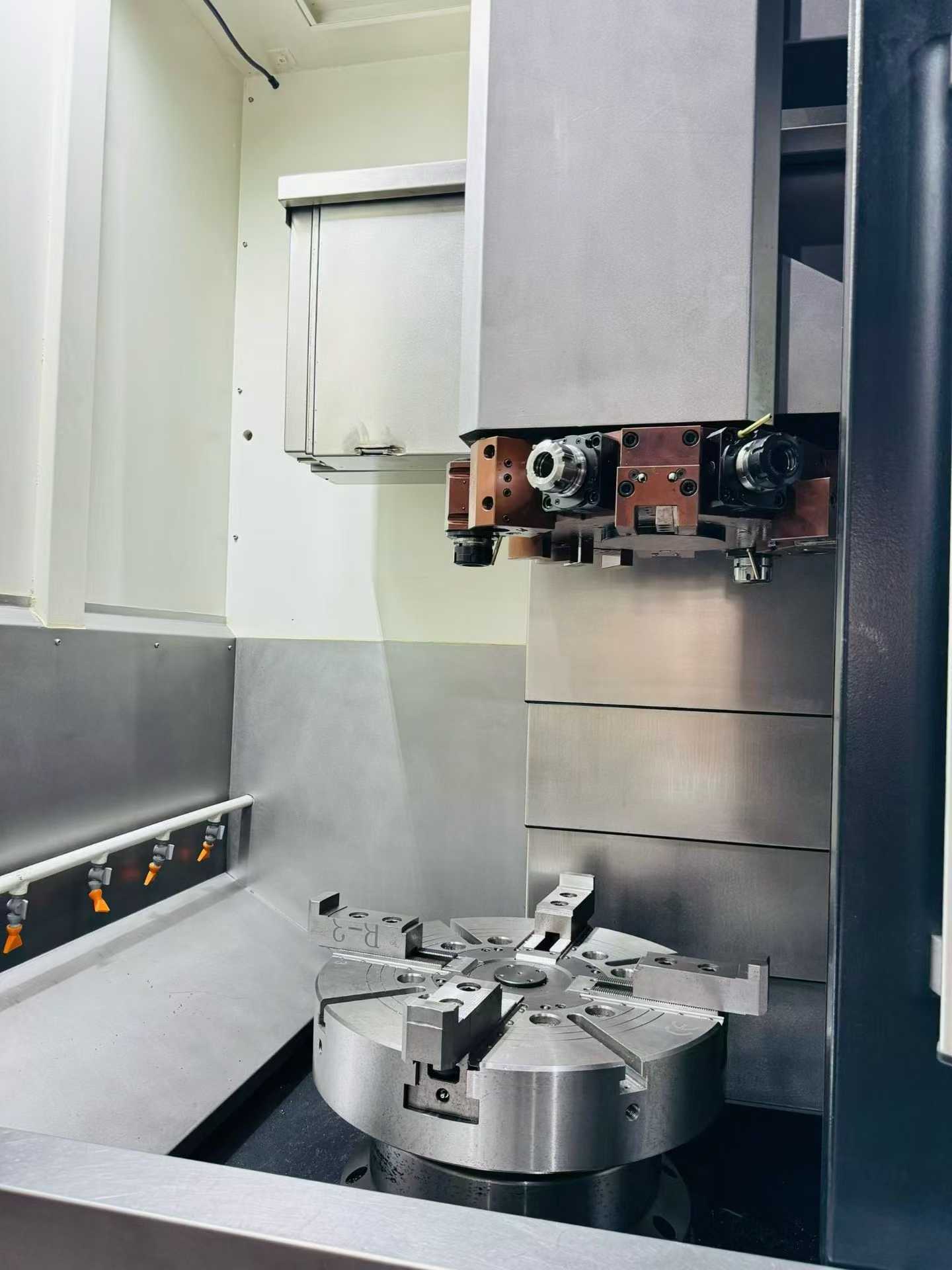

Chuck size	24 in hydraulic chuck

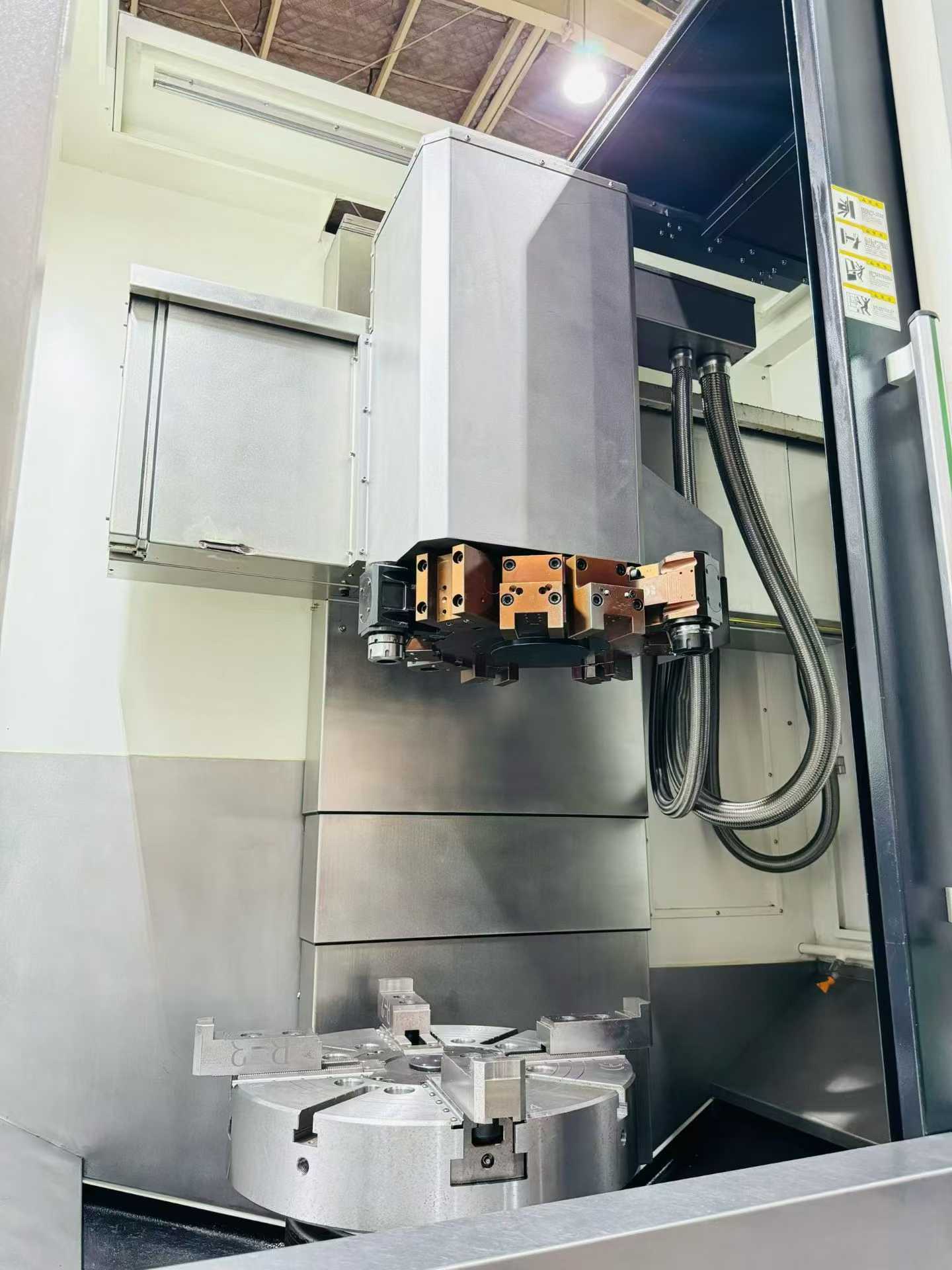

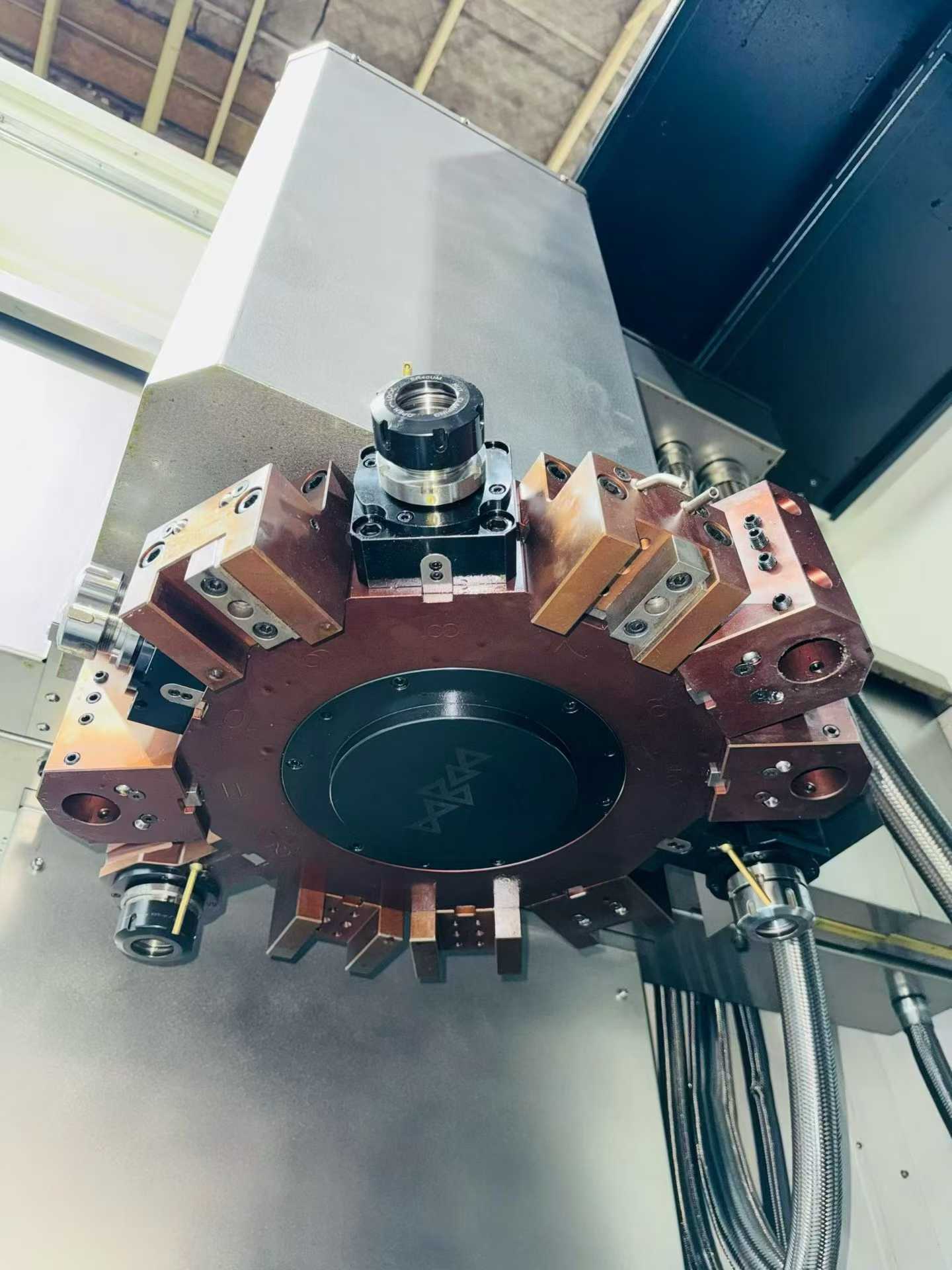

Tool turret	12-station BMT 65 servo live tooling turret
Live tools	4 (2 x 0°, 2 x 90°)

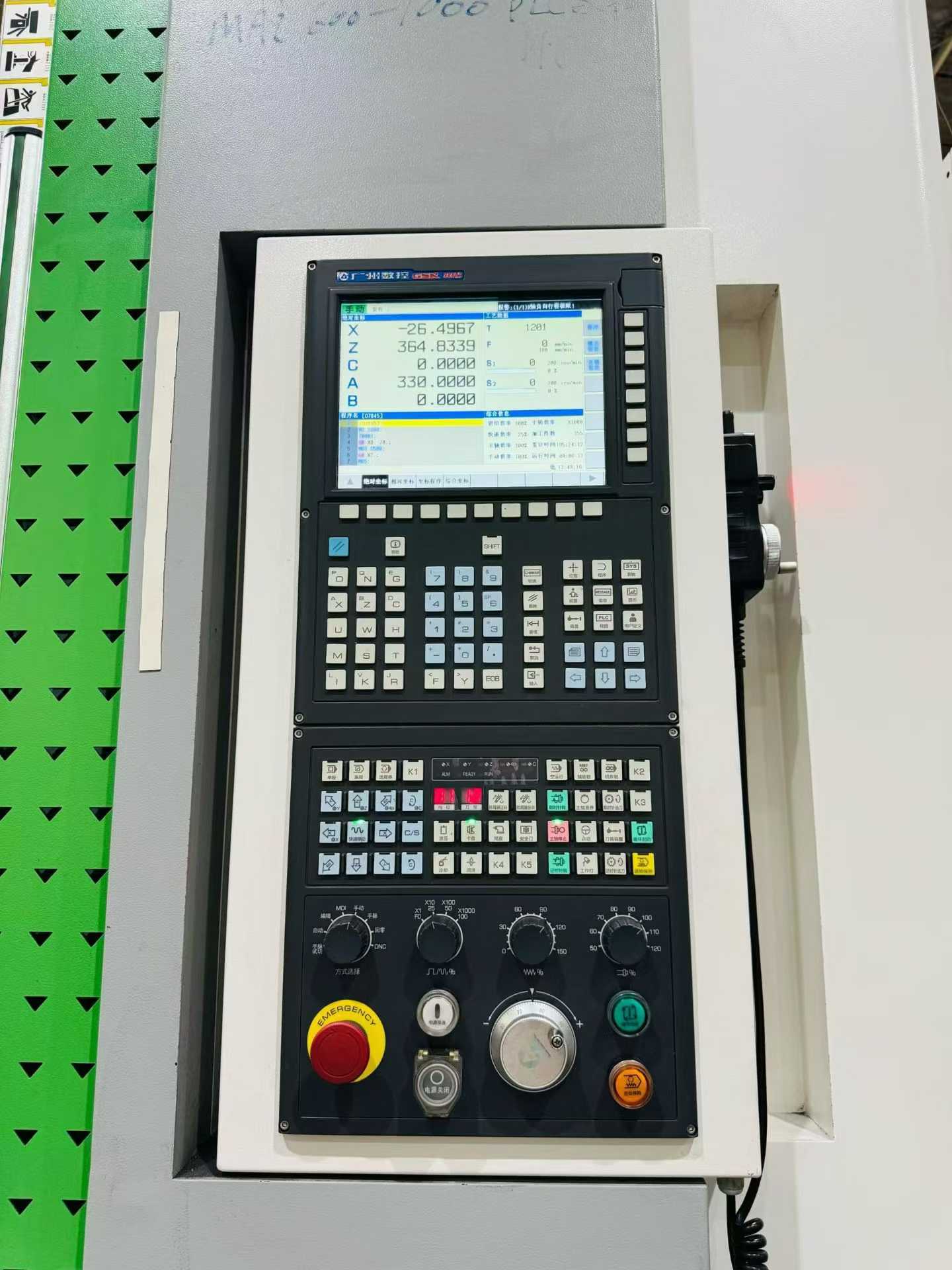

CNC control	GSK 988 large-screen absolute bus system
Machine weight	approx. 10 t
Year	2024
Machine Type	Vertical Turn-Mill
Spindle	Heavy-duty mechanical spindle
Brand	Dongbu Dasen
Series	800
Model	VTC 80
Condition	95% new, just arrived
Spindle Motor Type	Servo main motor
Control system	GSK 988
Year of manufacture	2024
