Used HISION HTM-3228 GFA 5-Axis Gantry Machining Center

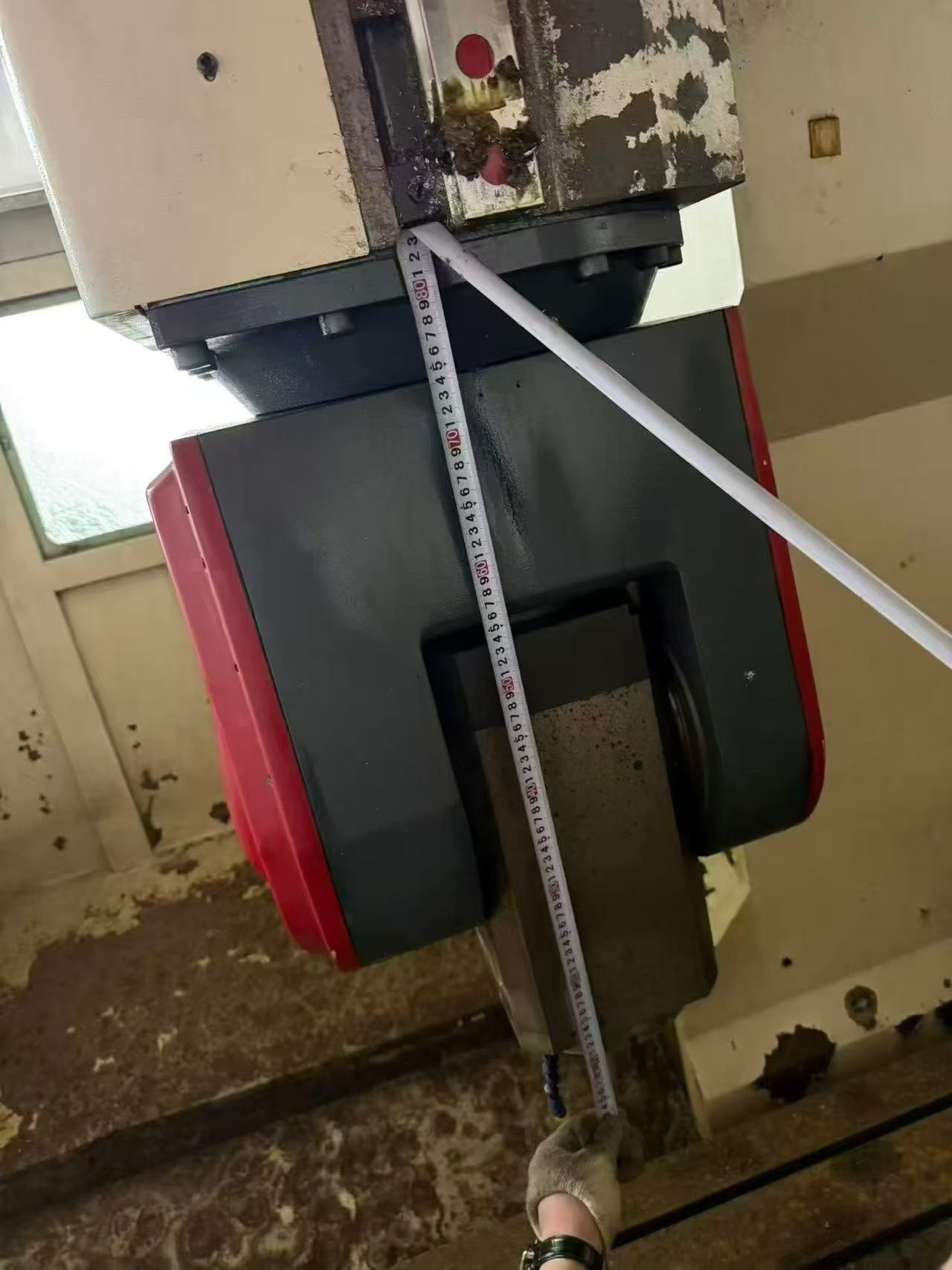

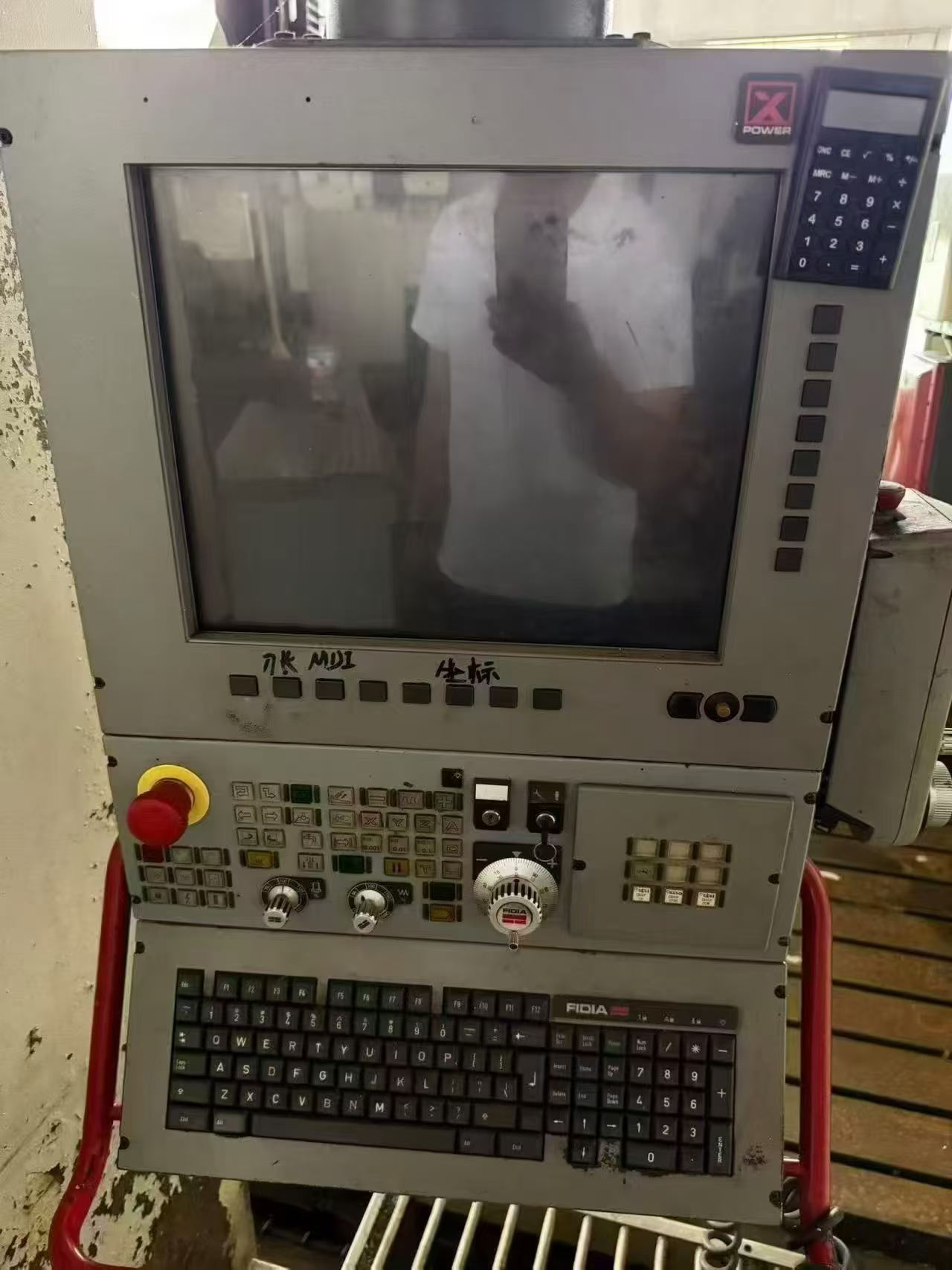

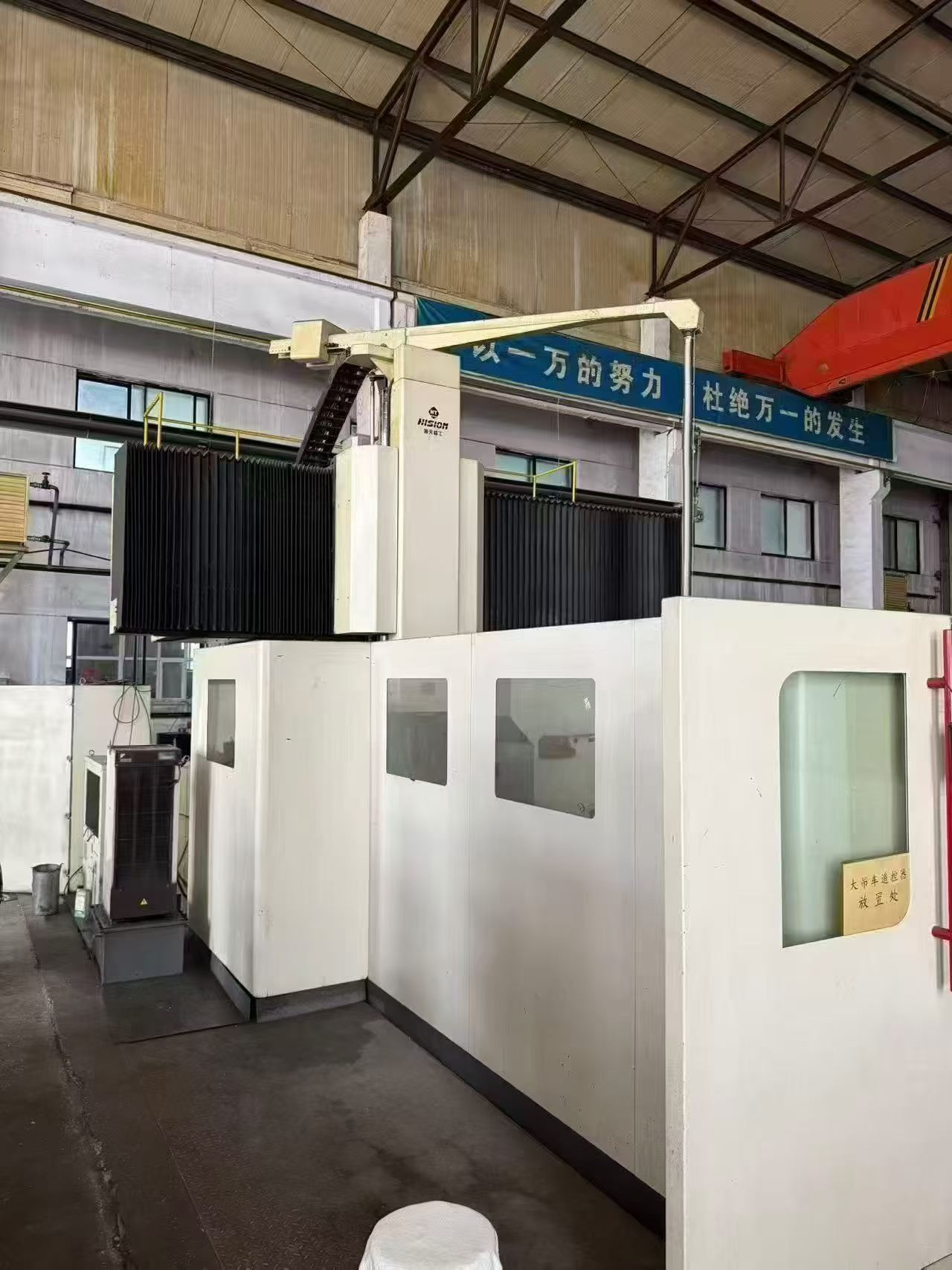

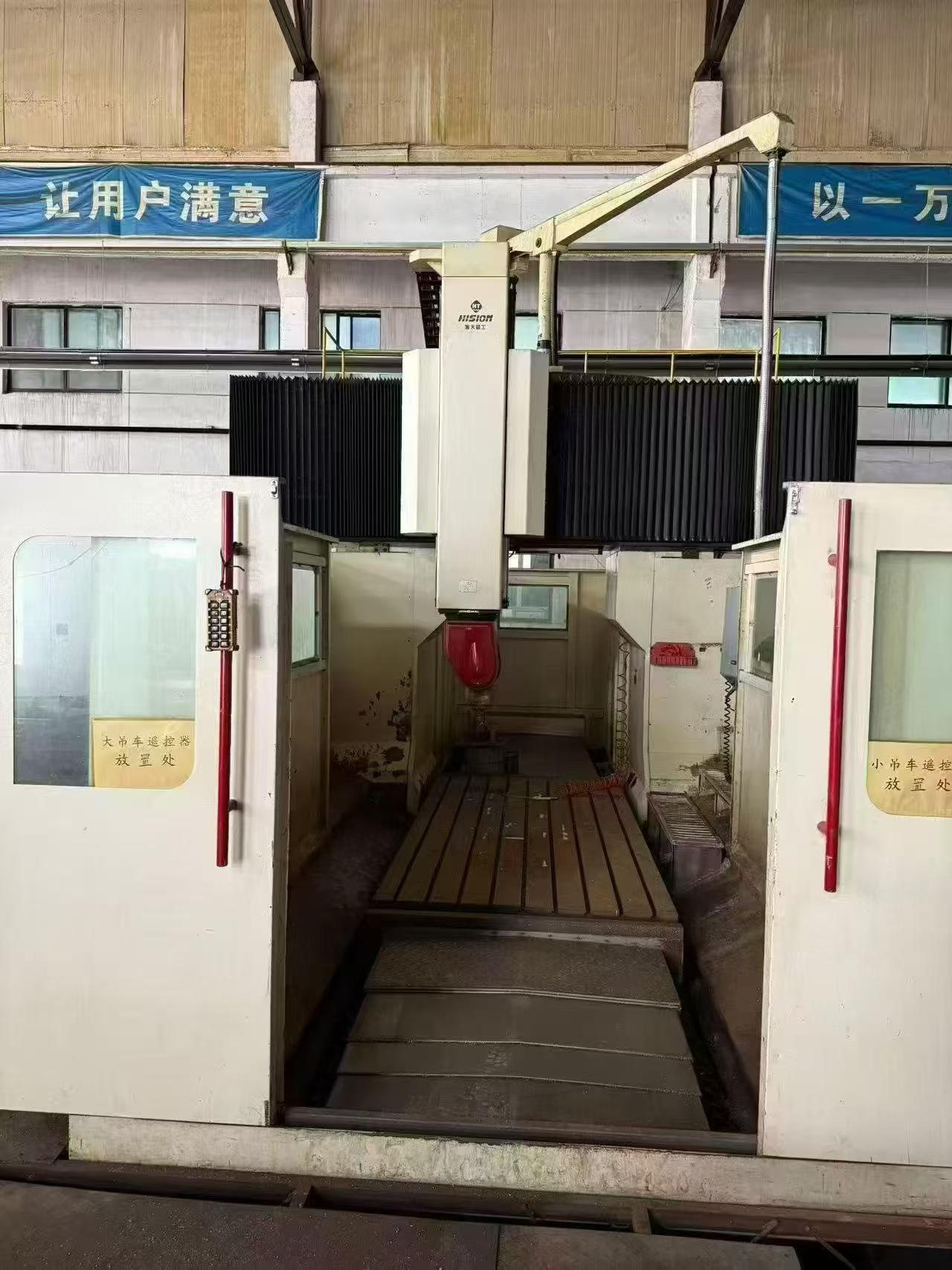

HISION HTM-3228 GFA 5-axis high-speed CNC gantry milling machine, a heavy-duty gantry-type machine of the earlier series built on a rigid gantry structure with three linear guideways. The gear-head spindle is suited to heavy cutting as well as high-speed 5-axis simultaneous milling of large workpieces. Worktable size is 1500 x 3000 mm, giving generous capacity for large moulds, dies and structural parts. Door width is 1700 mm and door height is 1900 mm, allowing large workpieces to be loaded directly onto the table. The machine is equipped with the FIDIA CNC control system, and the control panel configuration supports 5-axis simultaneous interpolation. Serial number G 09213. Manufactured by Ningbo Haitian Precision Machinery Co., Ltd. This heavy-duty 5-axis gantry configuration is rarely offered on the used market. The machine is available for inspection.

Machine Code: MC260981
Year: 2010
Location: China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Gantry-type 5-axis simultaneous high-speed CNC milling machine
Model	HTM-3228 GFA
Worktable size	1500 x 3000 mm
Door width	1700 mm
Door height	1900 mm
Guideway type	Three linear guideways
Spindle type	Gear-head spindle
Control system	FIDIA

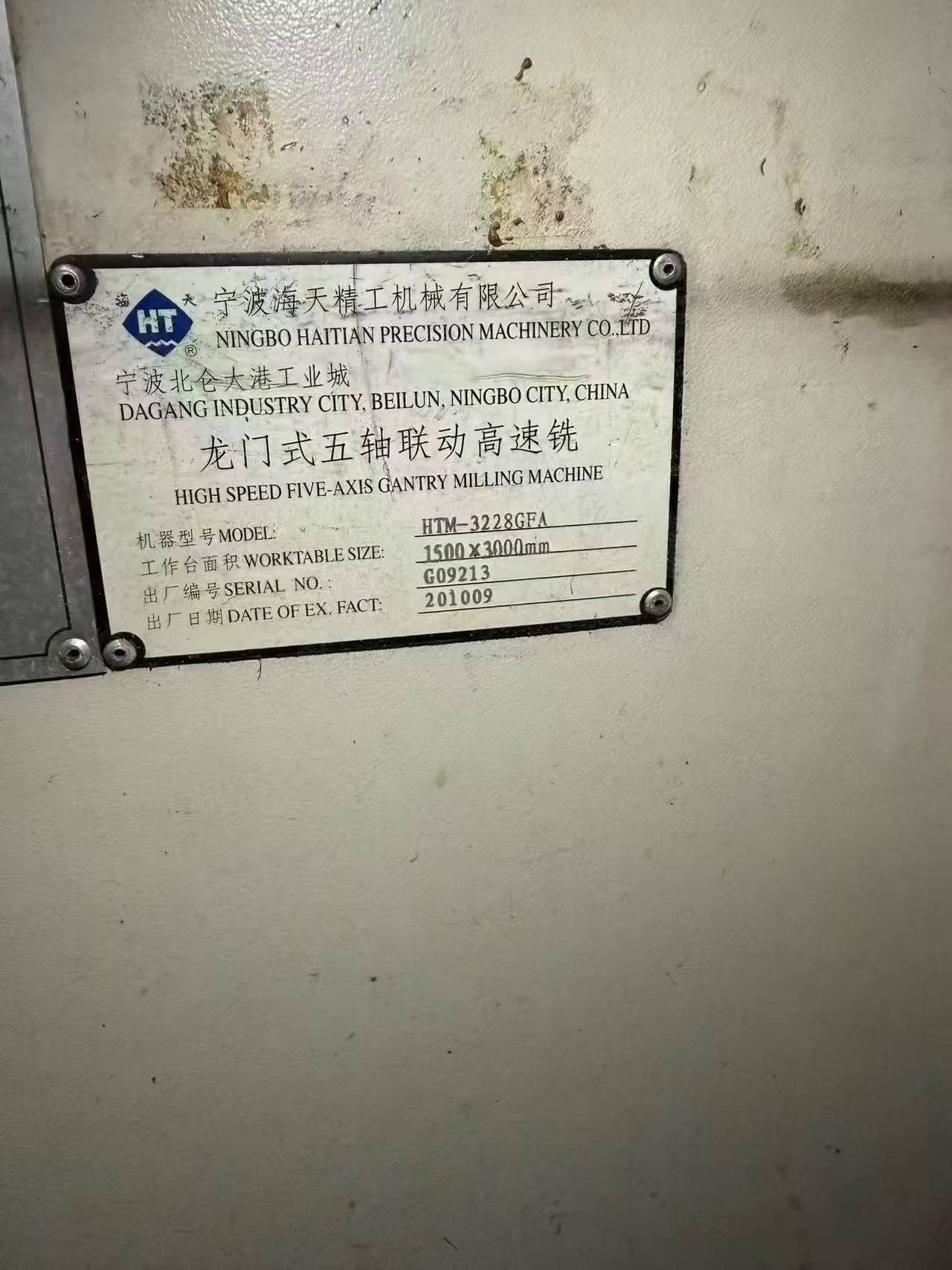

Serial number	G 09213
Manufacturer	Ningbo Haitian Precision Machinery Co., Ltd.
Brand	HISION
