AvailableVertical Machining Center

Used KAFO MV-116 B Vertical Machining Center with FANUC 0i-MF

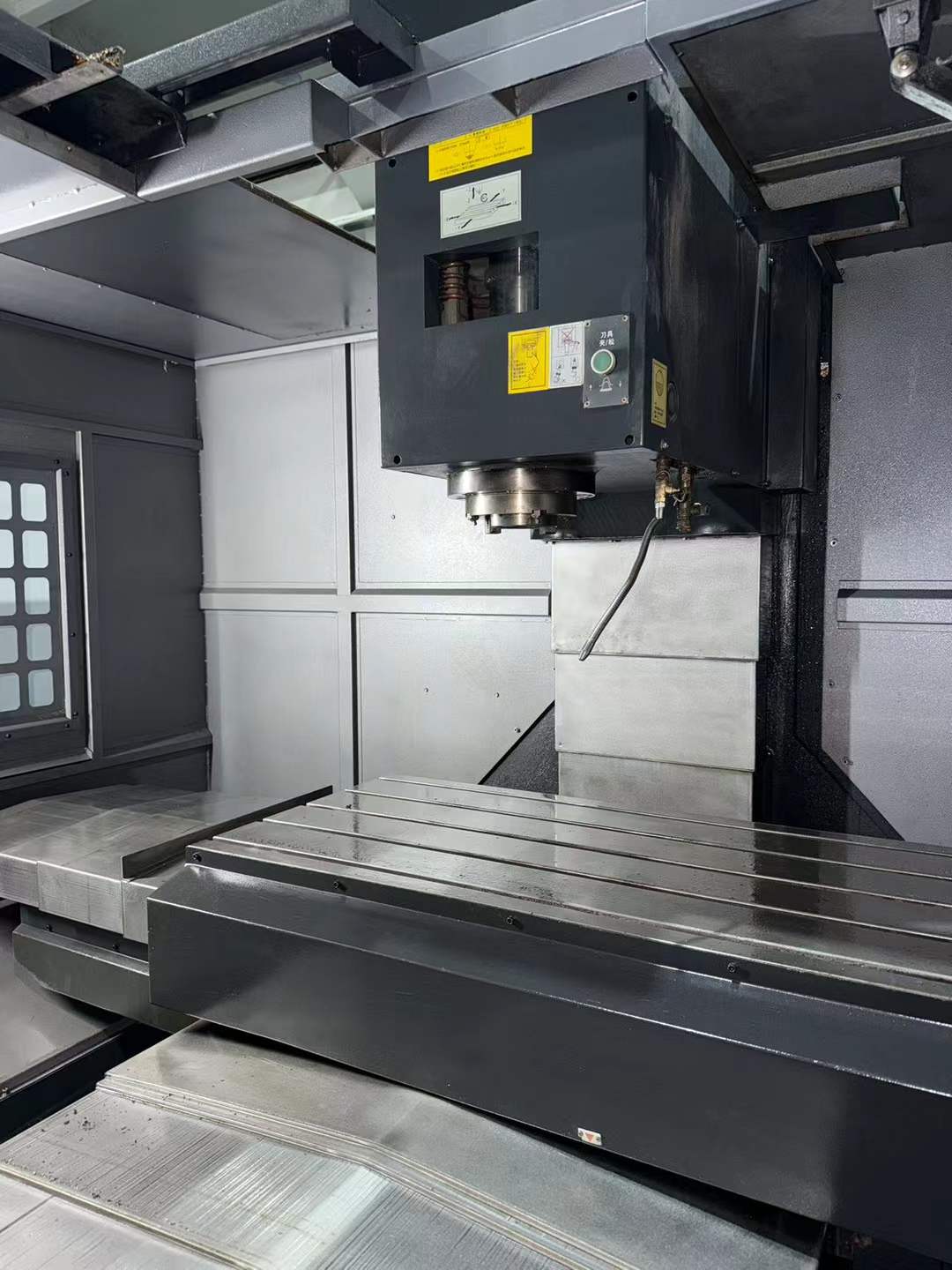

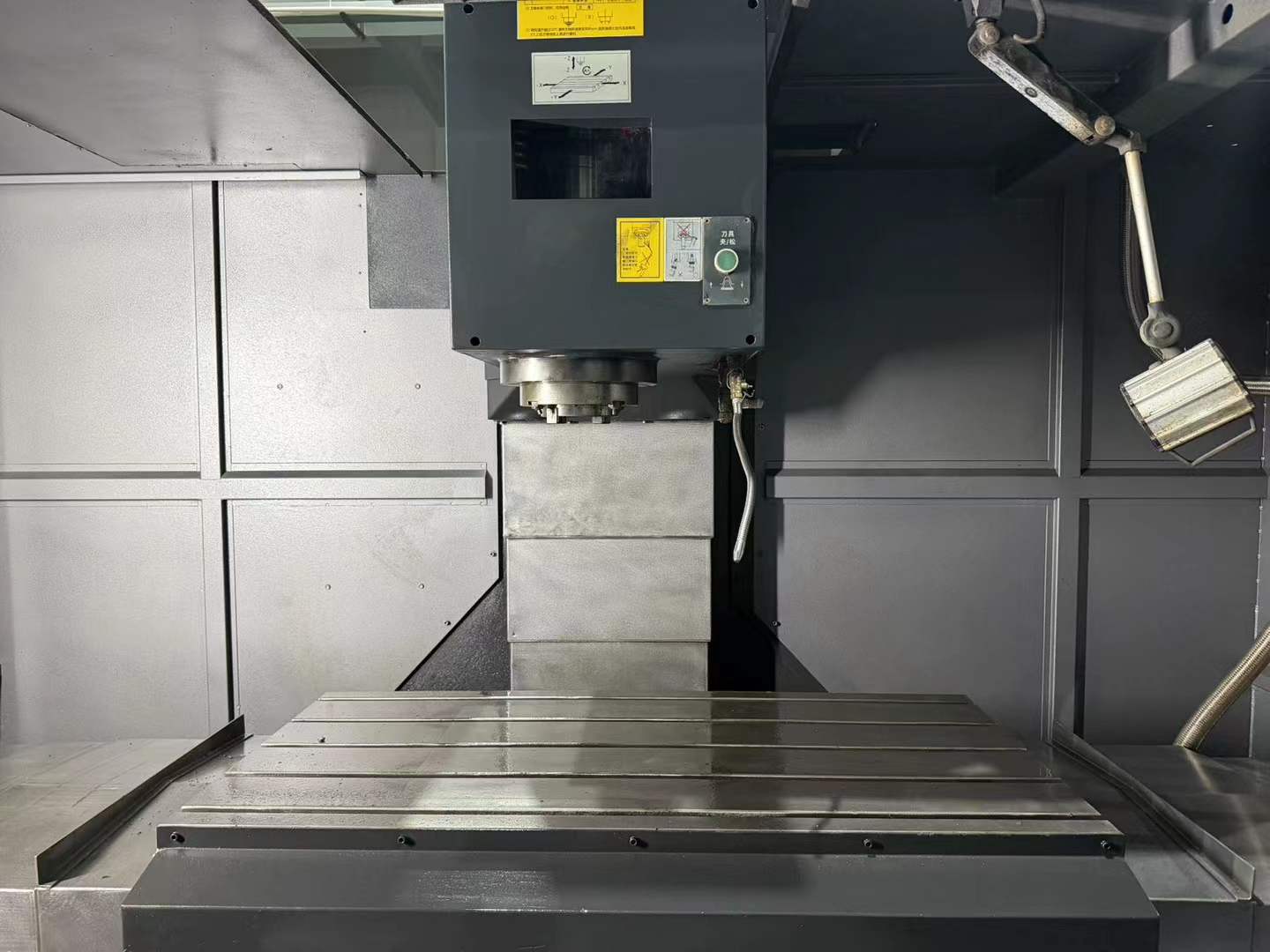

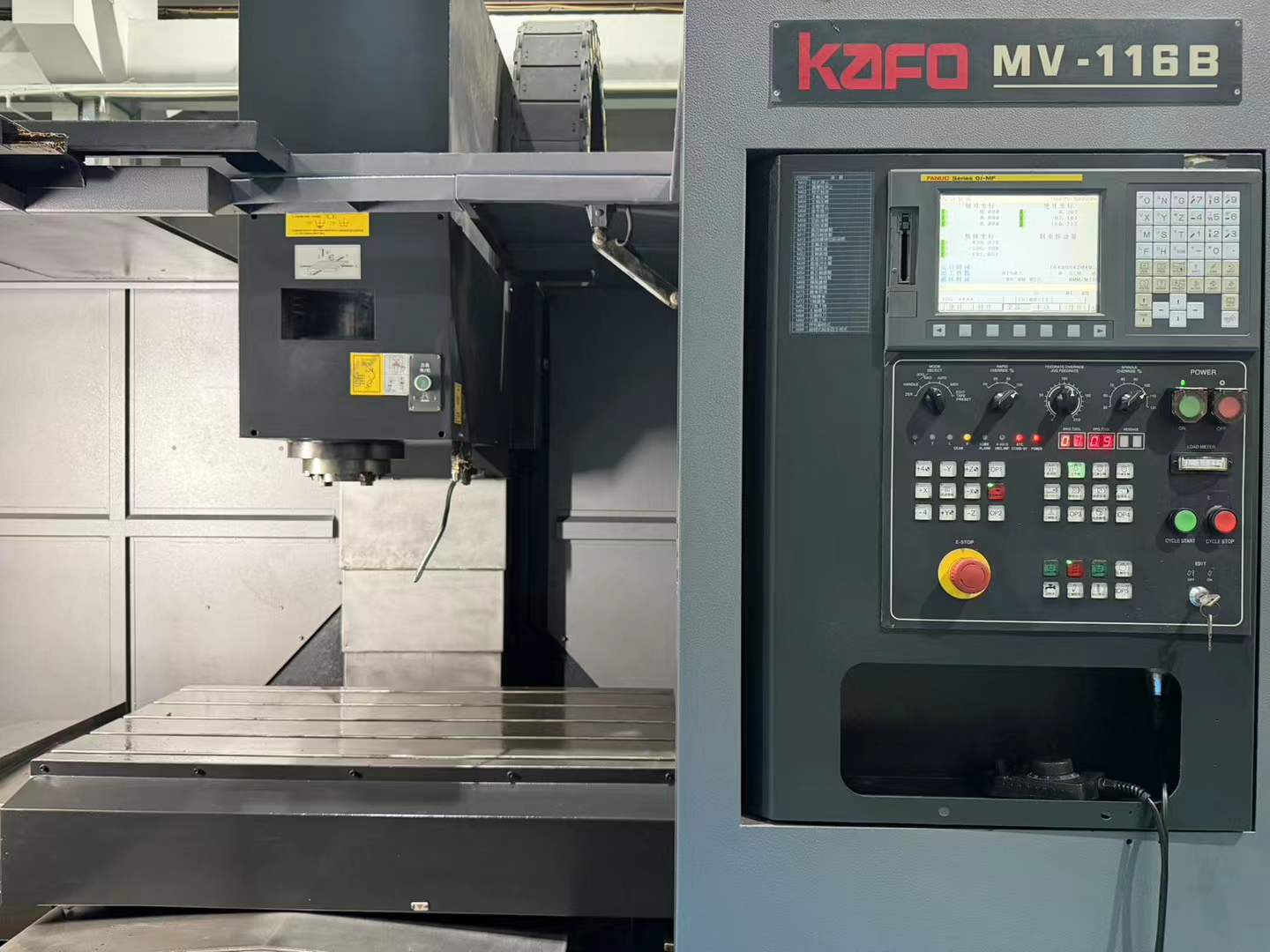

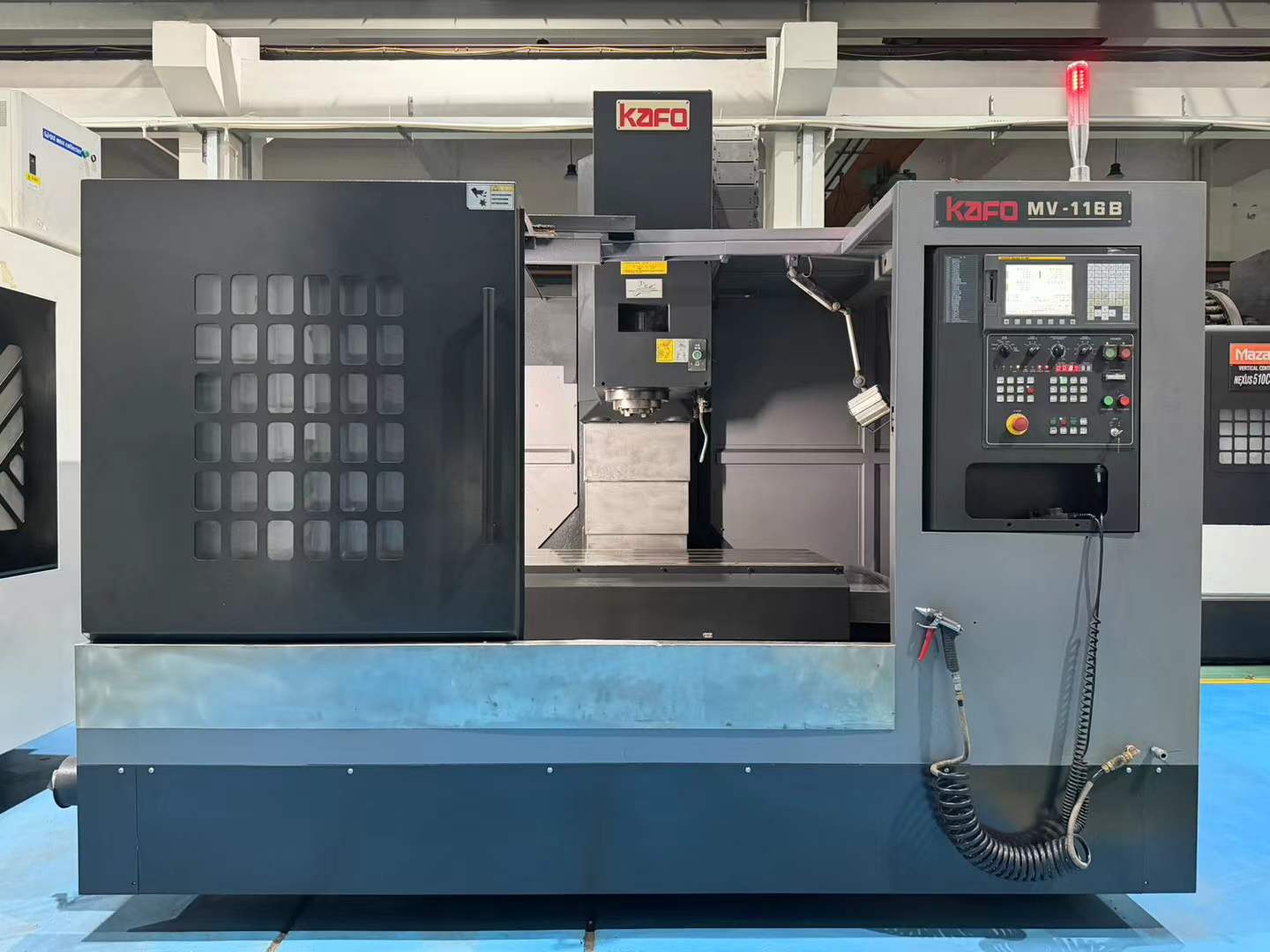

KAFO MV-116 B vertical machining center, manufactured in 2020 by KAFO Machinery Industry (Huai'an) Co., Ltd. Equipped with a FANUC Series 0i-MF CNC control system with the mold package, and FANUC servo drives in the electrical cabinet. BT50 gear-head spindle running up to 6000 rpm. X/Y/Z travels of 1100 / 600 / 600 mm on three-axis mirror-finish guideways. The T-slotted worktable has chip-removal grooves. A tool magazine can be added to suit the application. Machine weight 7500 kg. Supplied with a chip conveyor.

Machine Code: VMC2609168
Year: 2020
Location: China
Usage Hours: On request

Accessories

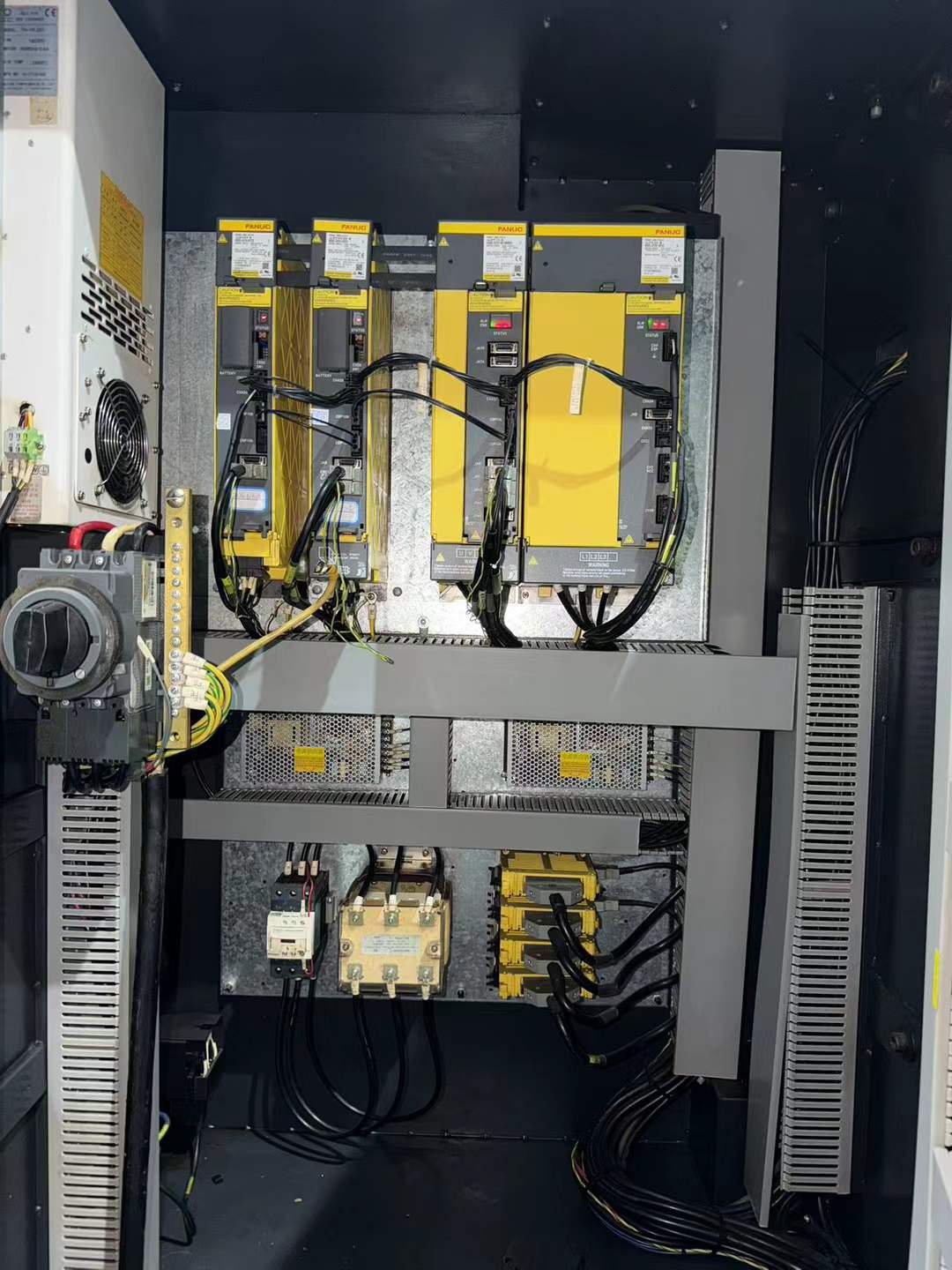

Chip conveyor Tool magazine can be added T-slotted worktable with chip-removal grooves FANUC servo drives in the electrical cabinet

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

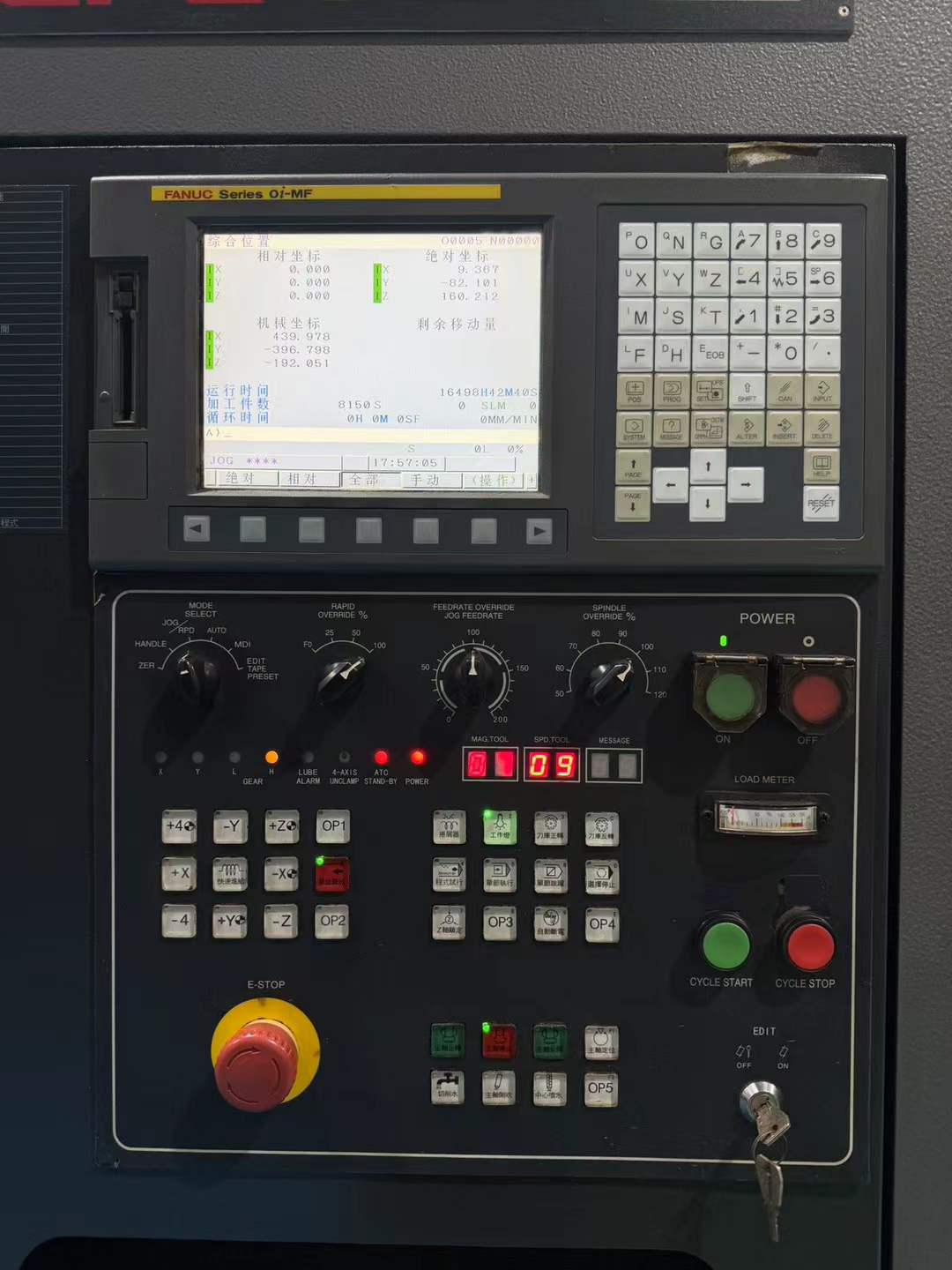

CNC control	FANUC Series 0i-MF with mold package
Spindle taper	BT50

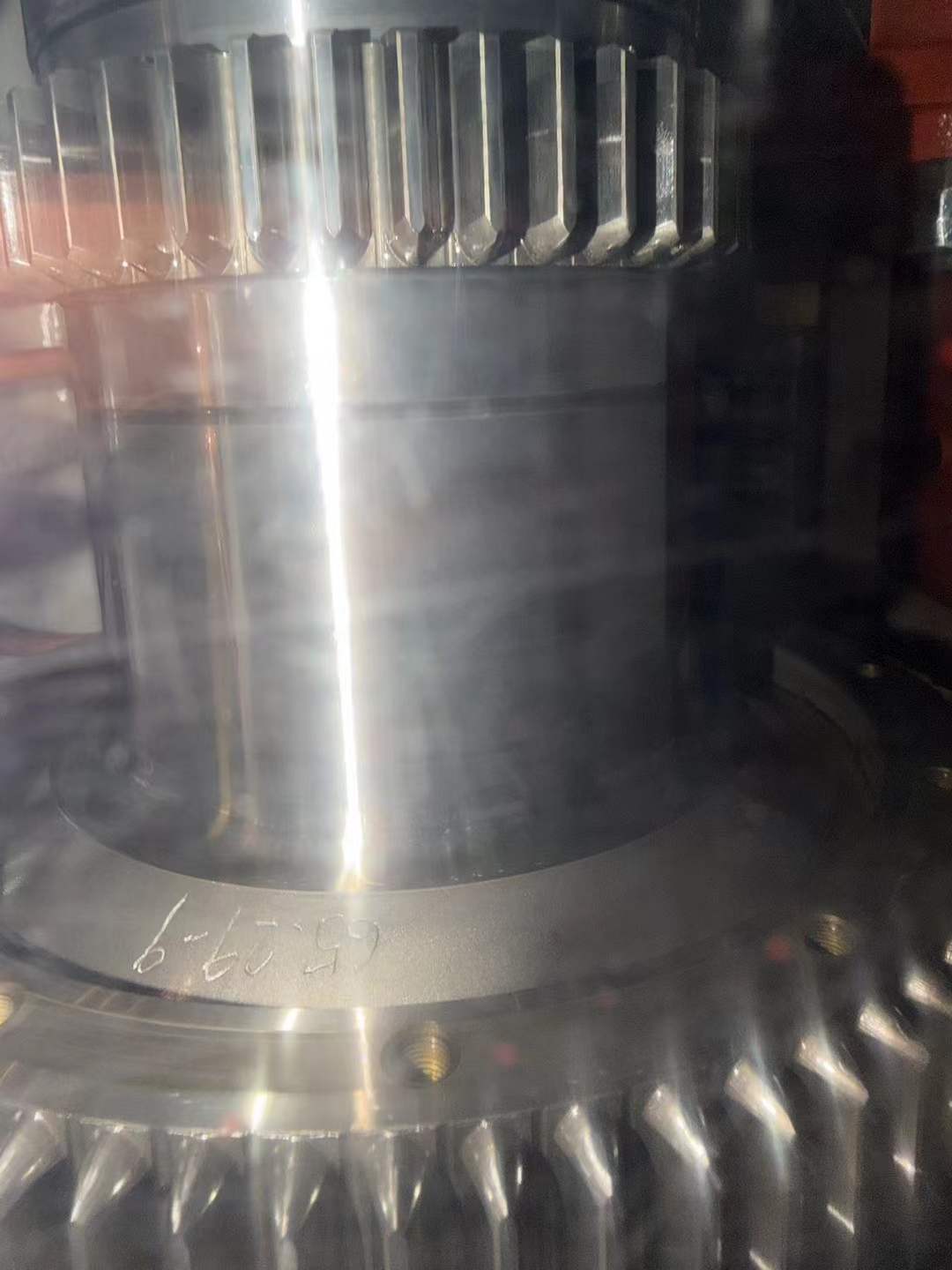

Spindle type	Gear-head spindle
Spindle speed	6000 rpm
X/Y/Z travel	1100 / 600 / 600 mm
Guideway type	Three-axis mirror-finish guideways
Worktable	T-slotted with chip-removal grooves
Machine weight	7500 kg
Year of manufacture	2020
Brand	KAFO
Control system	FANUC 0i-MF
