AvailableVertical Machining Center

Used Gaoxun KS-TV 10 Vertical Machining Center with Mitsubishi M 80 Control

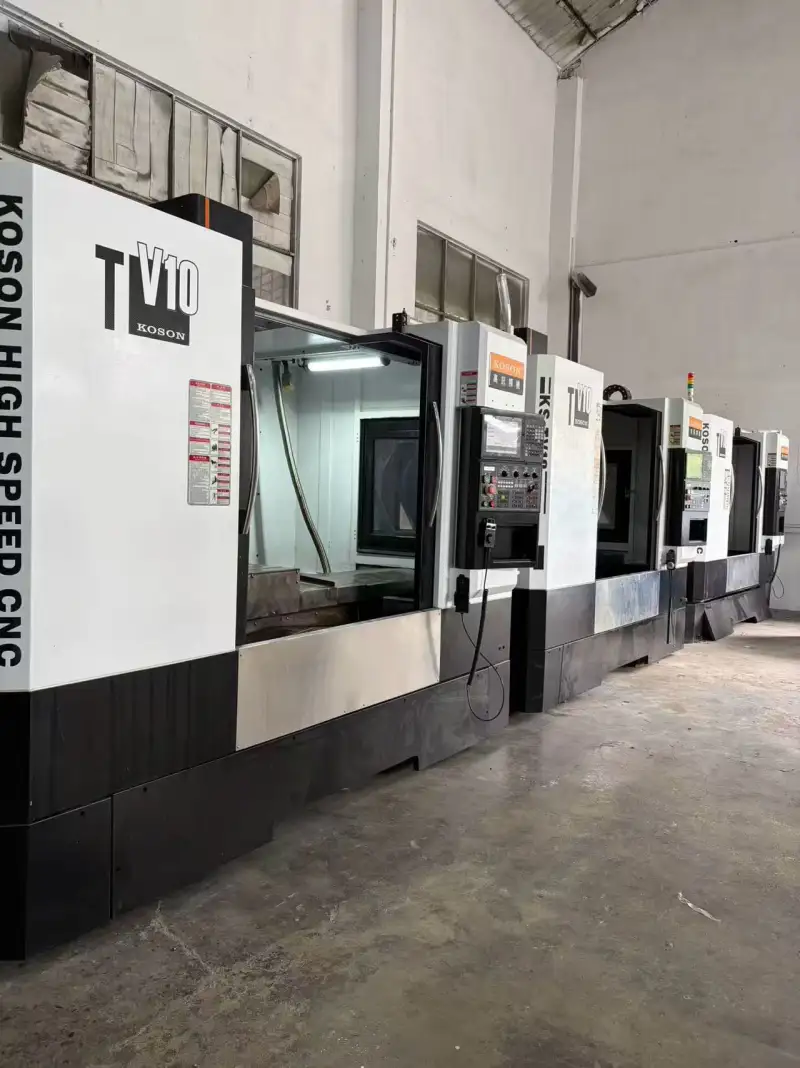

Three identical Gaoxun KS-TV 10 vertical machining centers are available. Each machine is equipped with a Mitsubishi M 80 CNC control system and a belt-driven BT40 spindle with a maximum speed of 10,000 rpm. The 24-tool arm-type automatic tool changer supports fast tool changes, and the machine includes a spindle oil chiller and a chip conveyor. The spindle motor is rated 11 kW, and the machine operates on AC 380 V, 50 Hz power. All three axes use linear guideways, and the three axes and spindle run quietly. Test accuracy is 0.01 mm.

Machine Code: VMC2609268
Year: On request
Location: China
Usage Hours: On request

Accessories

Spindle oil chiller, 24-tool arm-type automatic tool changer, chip conveyor.

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Machine type	Vertical machining center
Brand	Gaoxun
Model	KS-TV 10
Control system	Mitsubishi M 80
Spindle taper	BT40
Spindle drive	Belt-driven
Spindle speed	10,000 rpm
Spindle motor power	11 kW
Tool magazine capacity	24 tools, arm-type
Guideways	Linear guideways on three axes
Power supply	AC 380 V, 50 Hz
Test accuracy	0.01 mm
Units available	3
