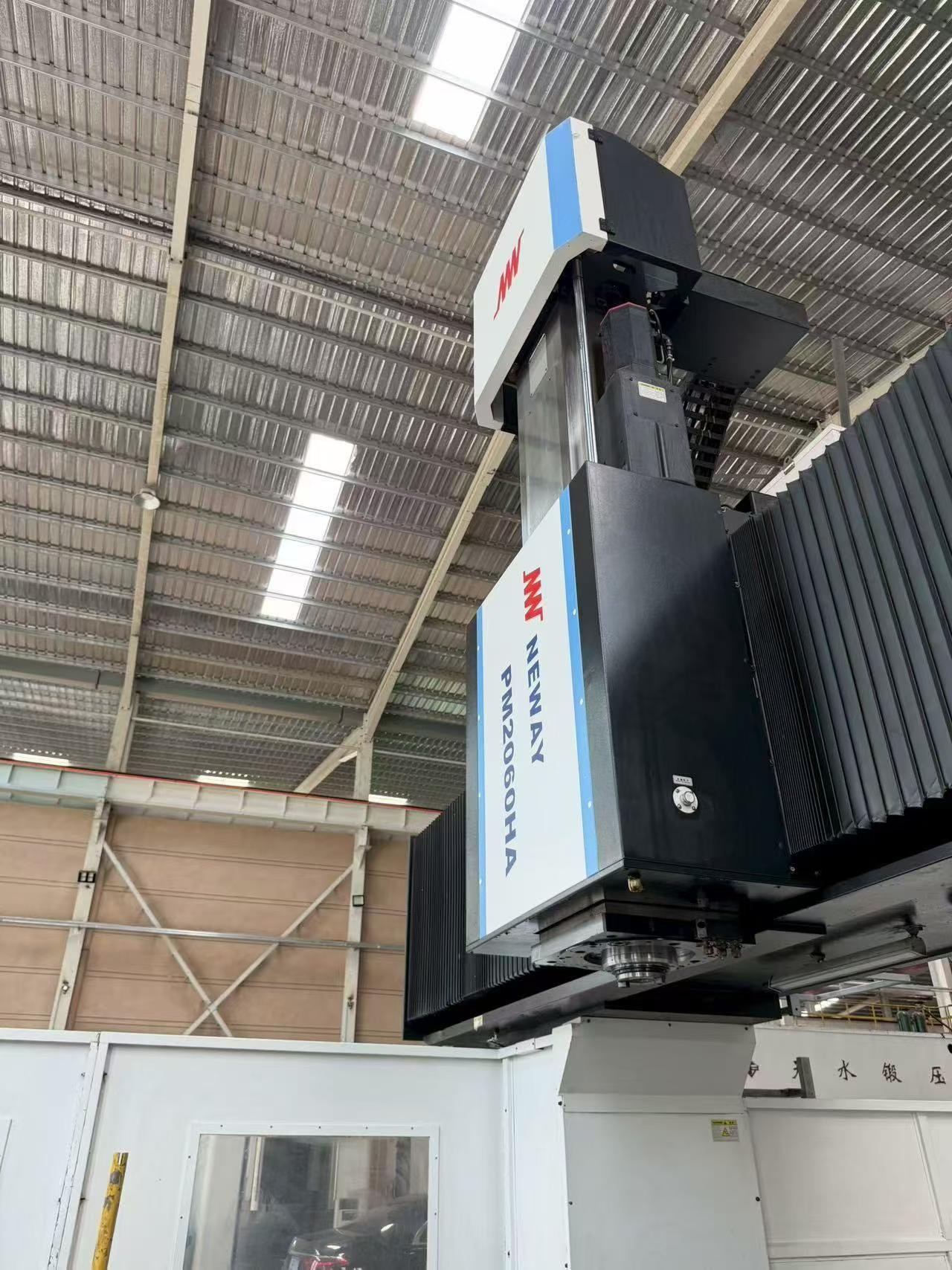

Used Neway PM 2060 HA Gantry Machining Center with FANUC MF Plus

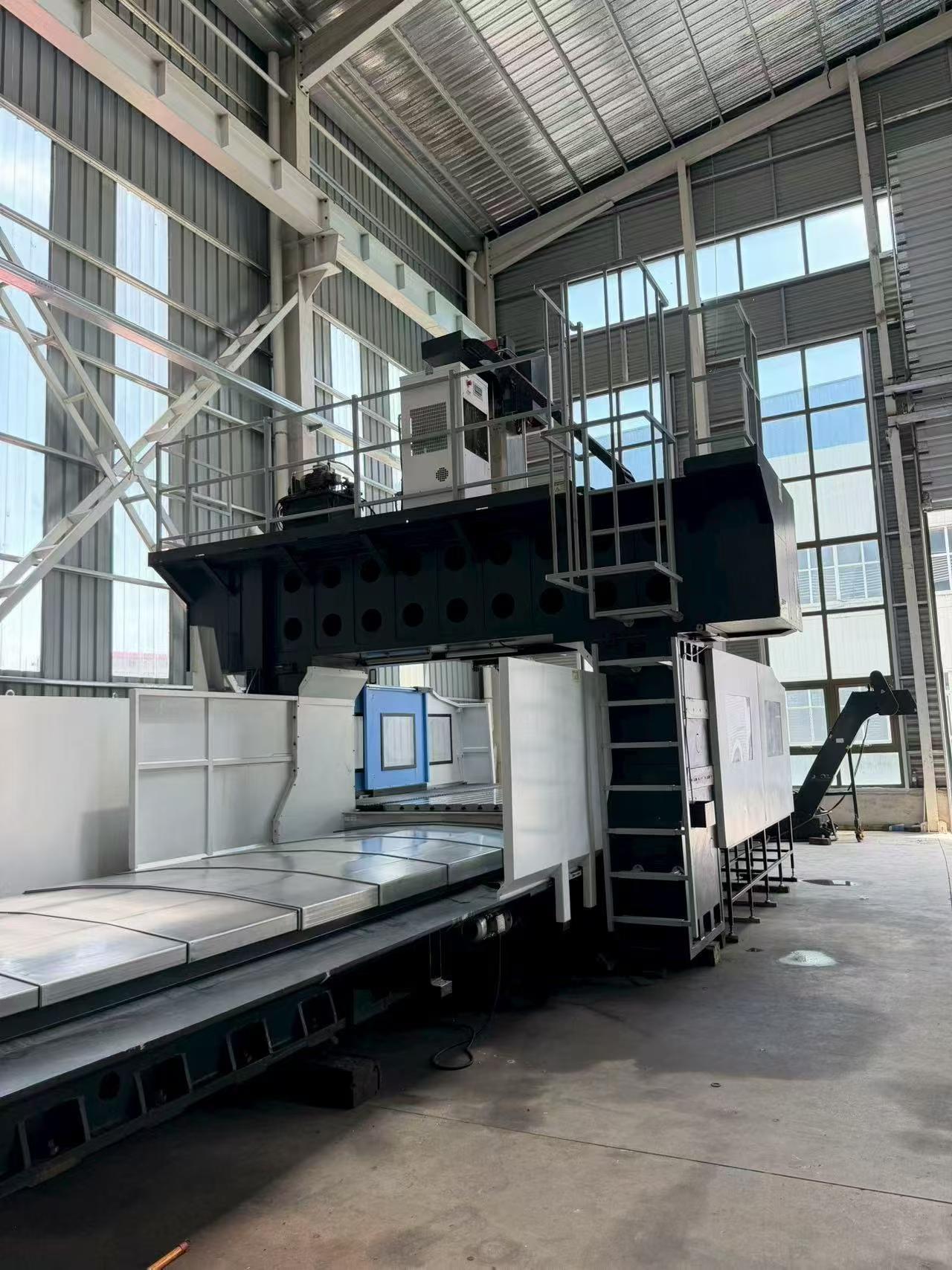

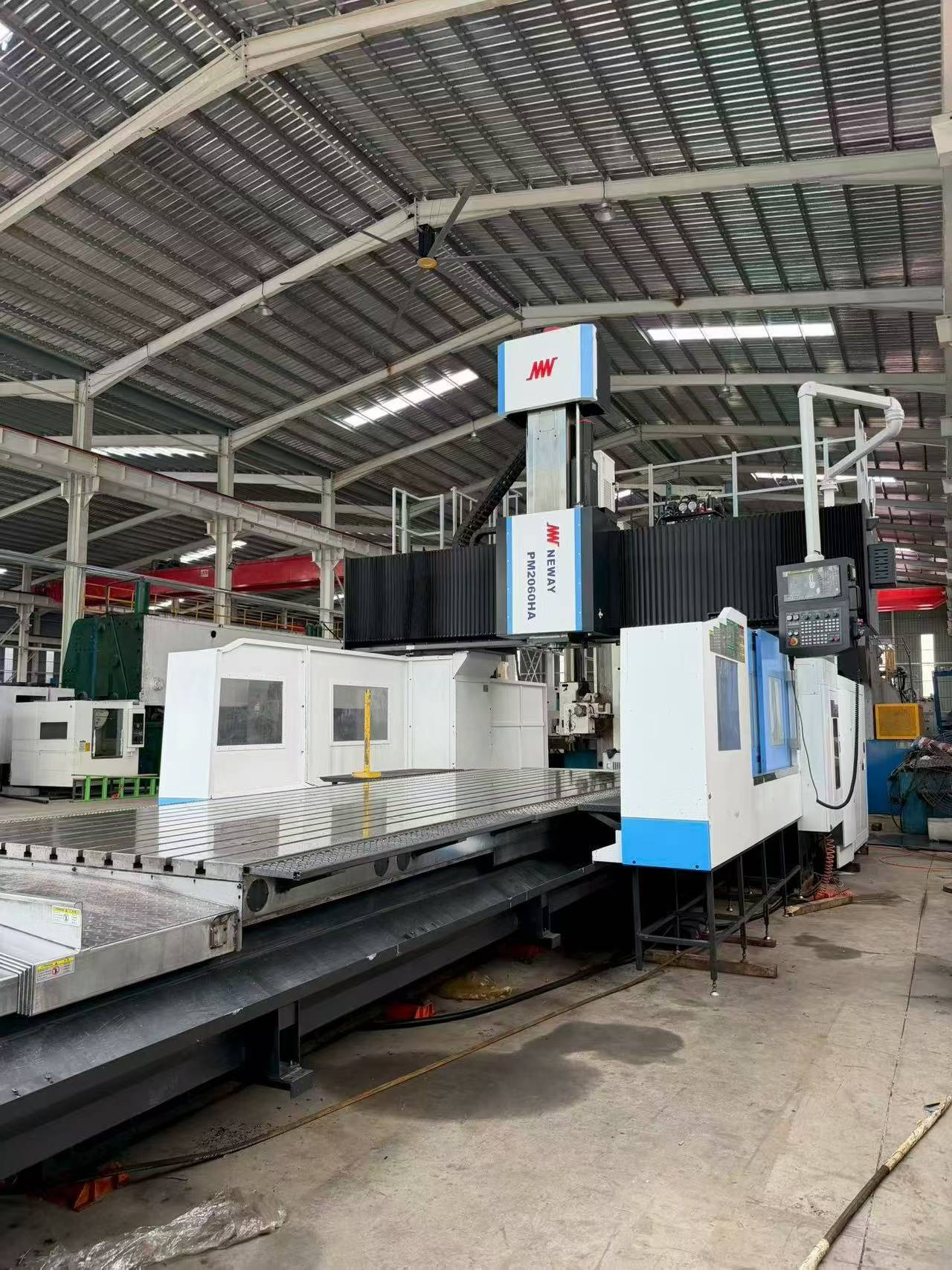

Neway PM 2060 HA high-specification gantry machining center equipped with the FANUC MF Plus CNC control system. The machine is fitted with a gear head and a Taiwan side milling head. X/Y/Z travel is 3200 x 6200 x 1000 mm. The worktable measures 2000 x 6000 mm, with a gantry height of 1.25 m and gantry width of 2800 mm. A 24-tool disc-type tool magazine is installed. Machine weight is 55,000 kg. Approximately 3,000+ working hours have been used since installation.

Machine Code: MC260978
Year: 2022
Location: China
Usage Hours: On request

Accessories

Taiwan side milling head; 24-tool disc-type tool magazine

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

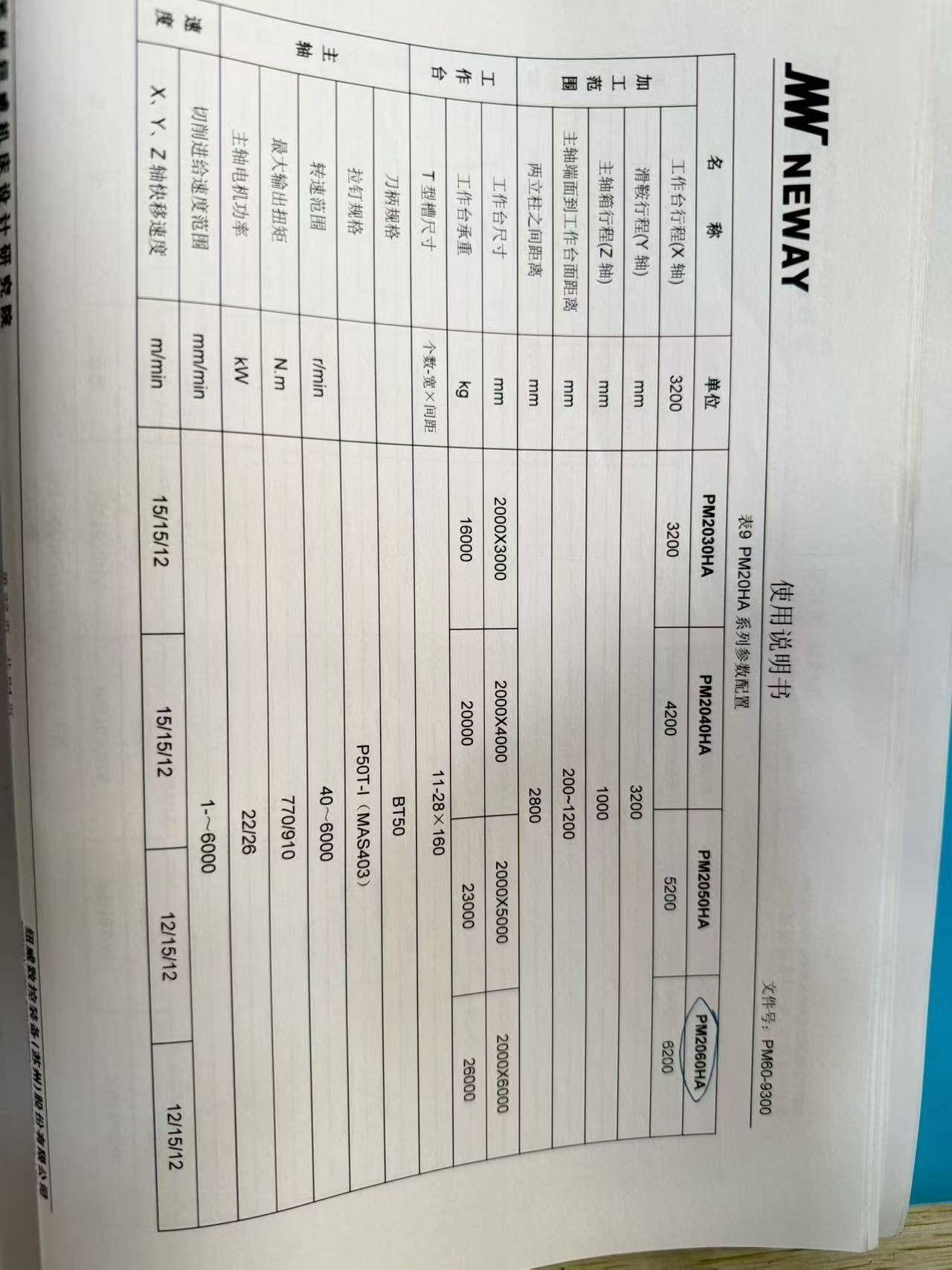

Main Specifications

Machine type	Gantry Machining Center

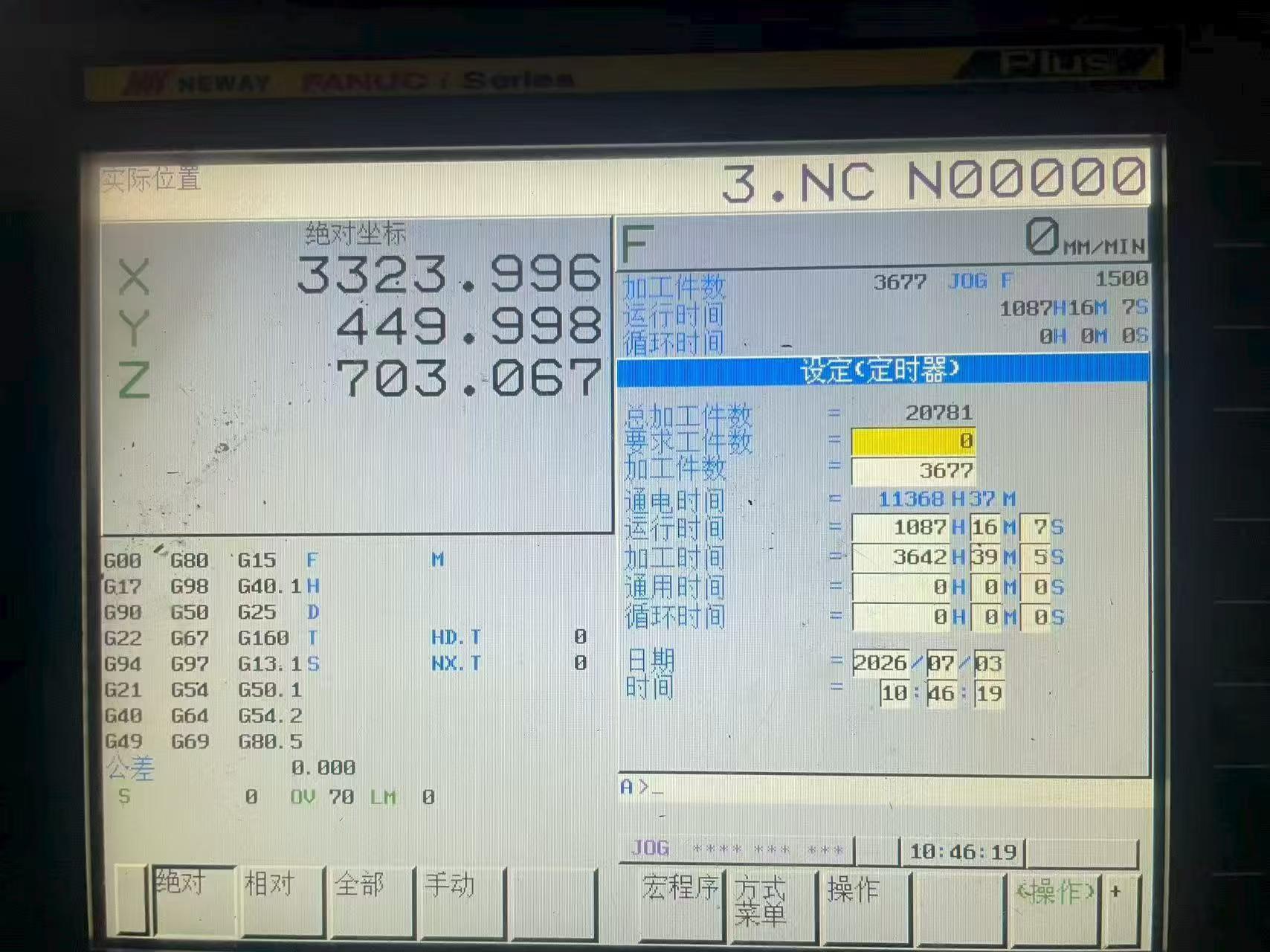

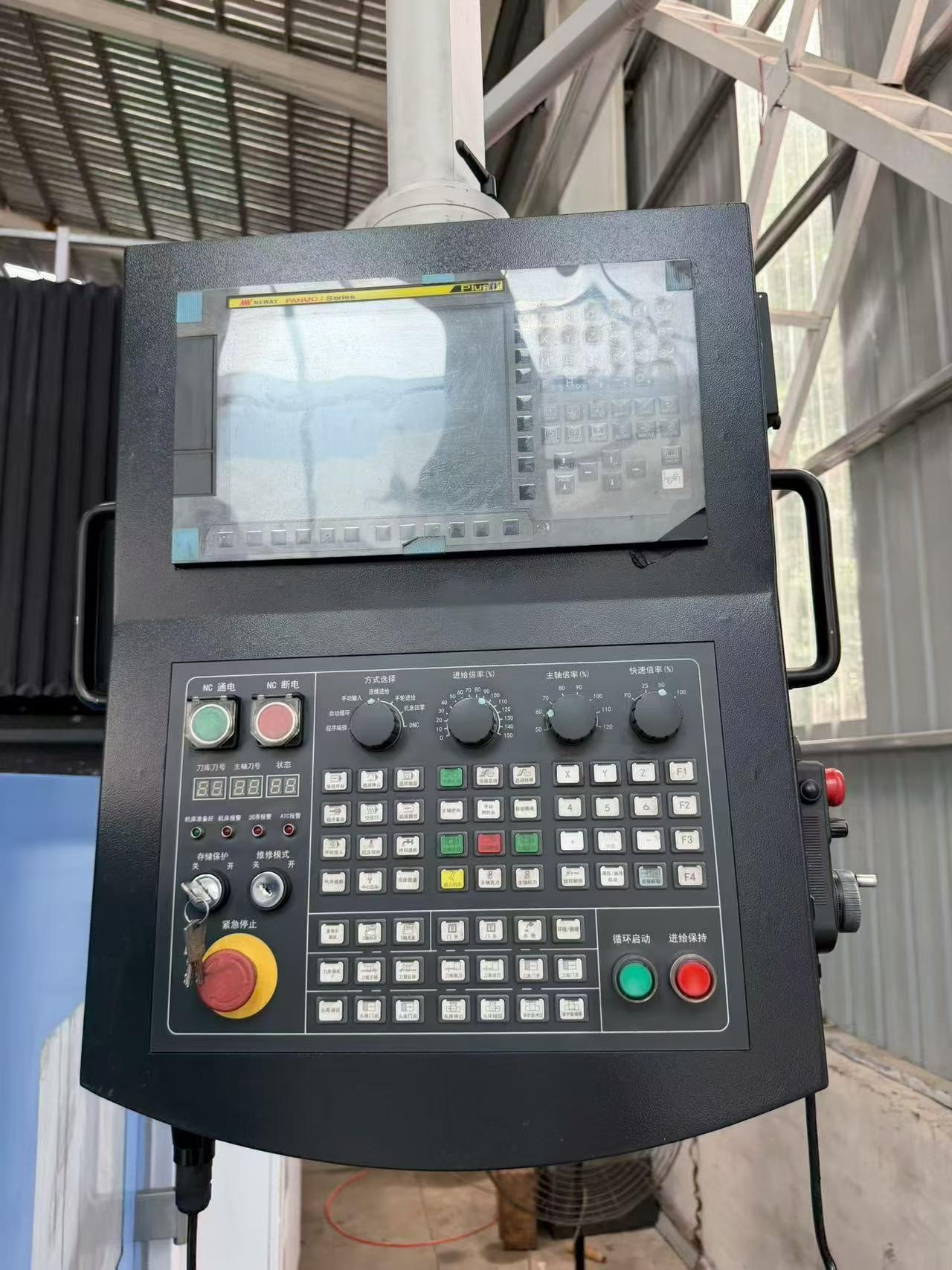

Control system	FANUC MF Plus
X/Y/Z travel	3200 x 6200 x 1000 mm

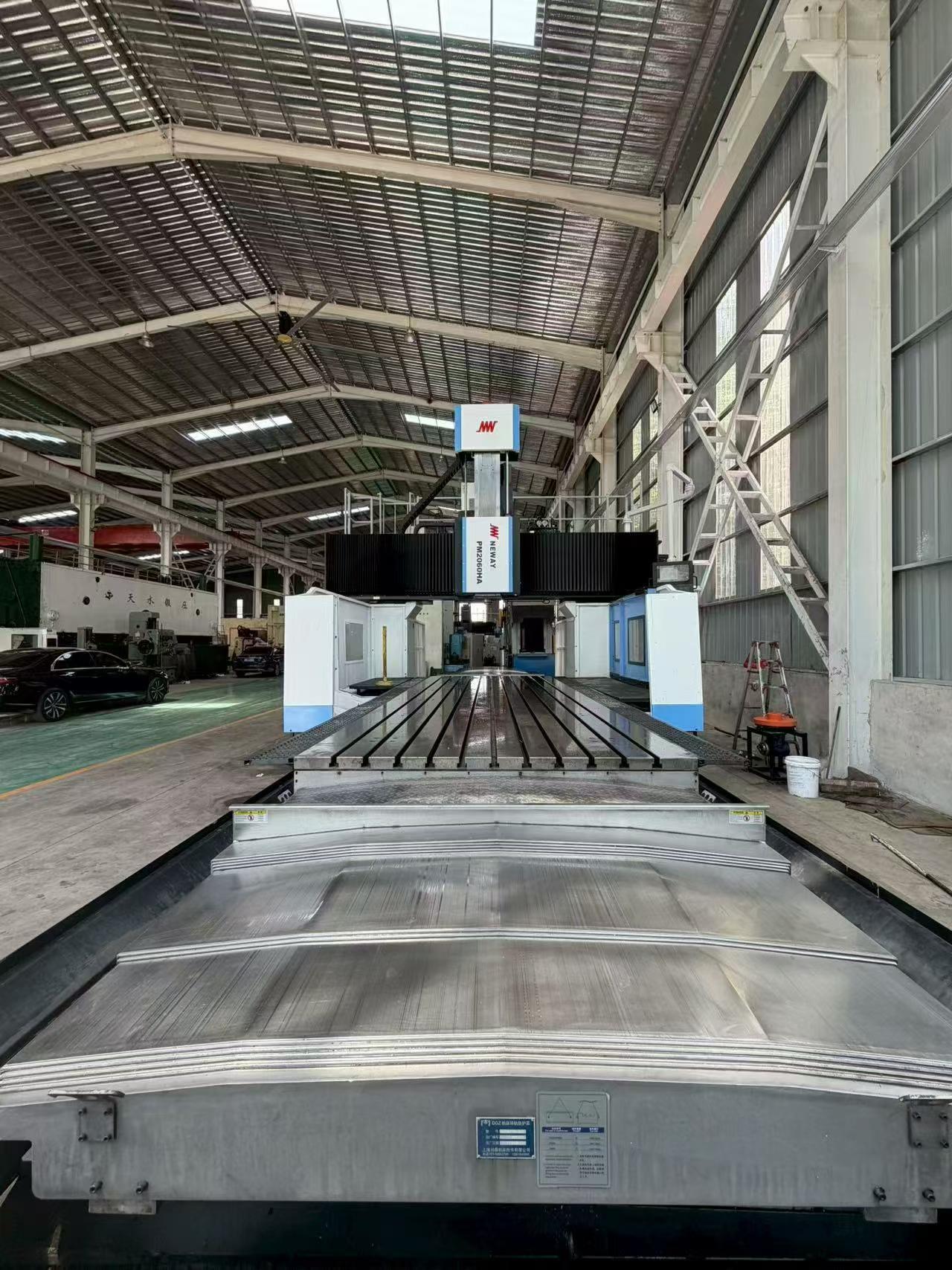

Worktable size	2000 x 6000 mm
Gantry height	1.25 m
Gantry width	2800 mm
Spindle head	Gear head
Side milling head	Taiwan side milling head
Tool magazine capacity	24 tools (disc type)
Machine weight	55,000 kg
Working hours	Approximately 3,000+ hours
Brand	Neway
