AvailableMachining Center

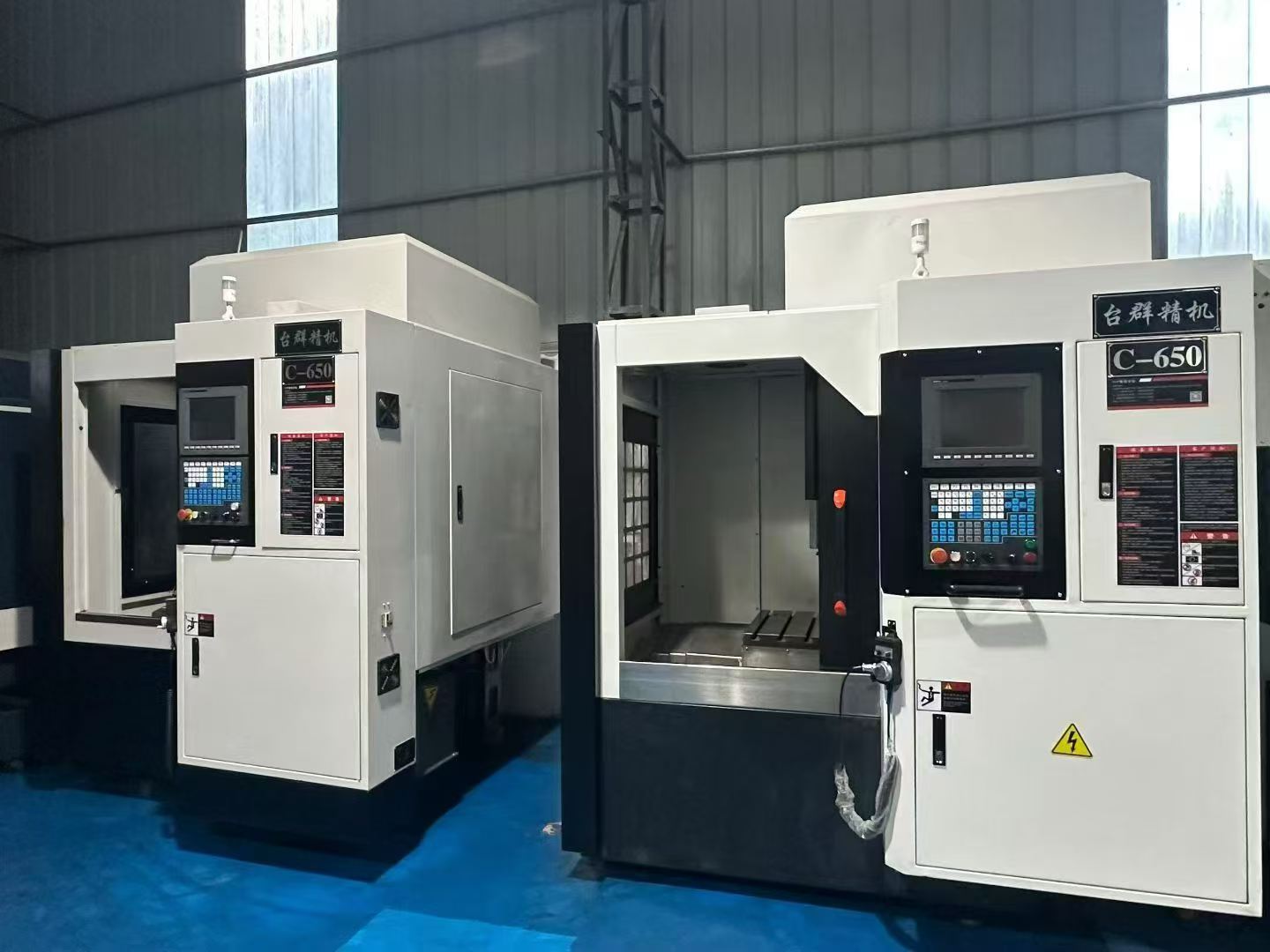

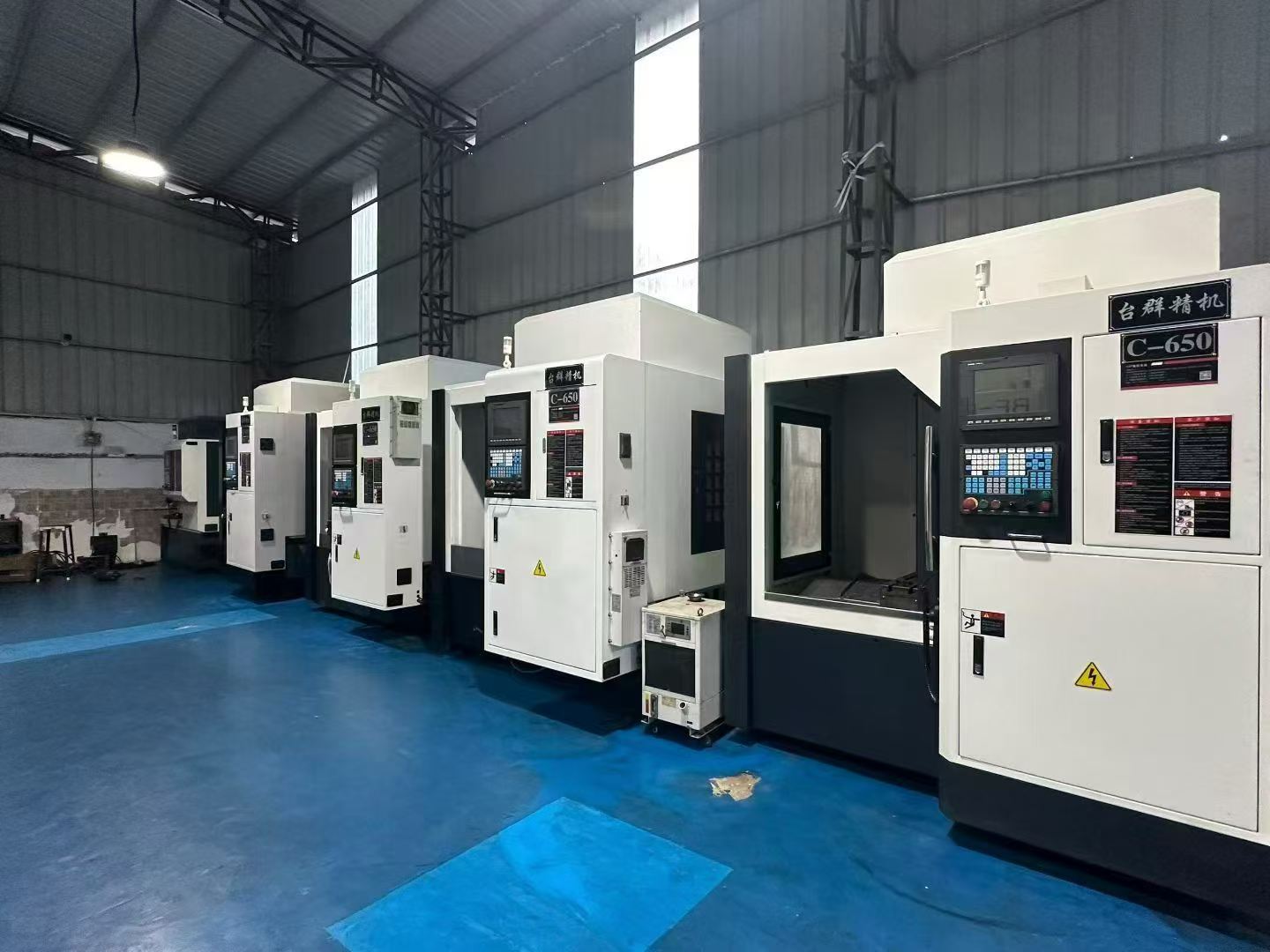

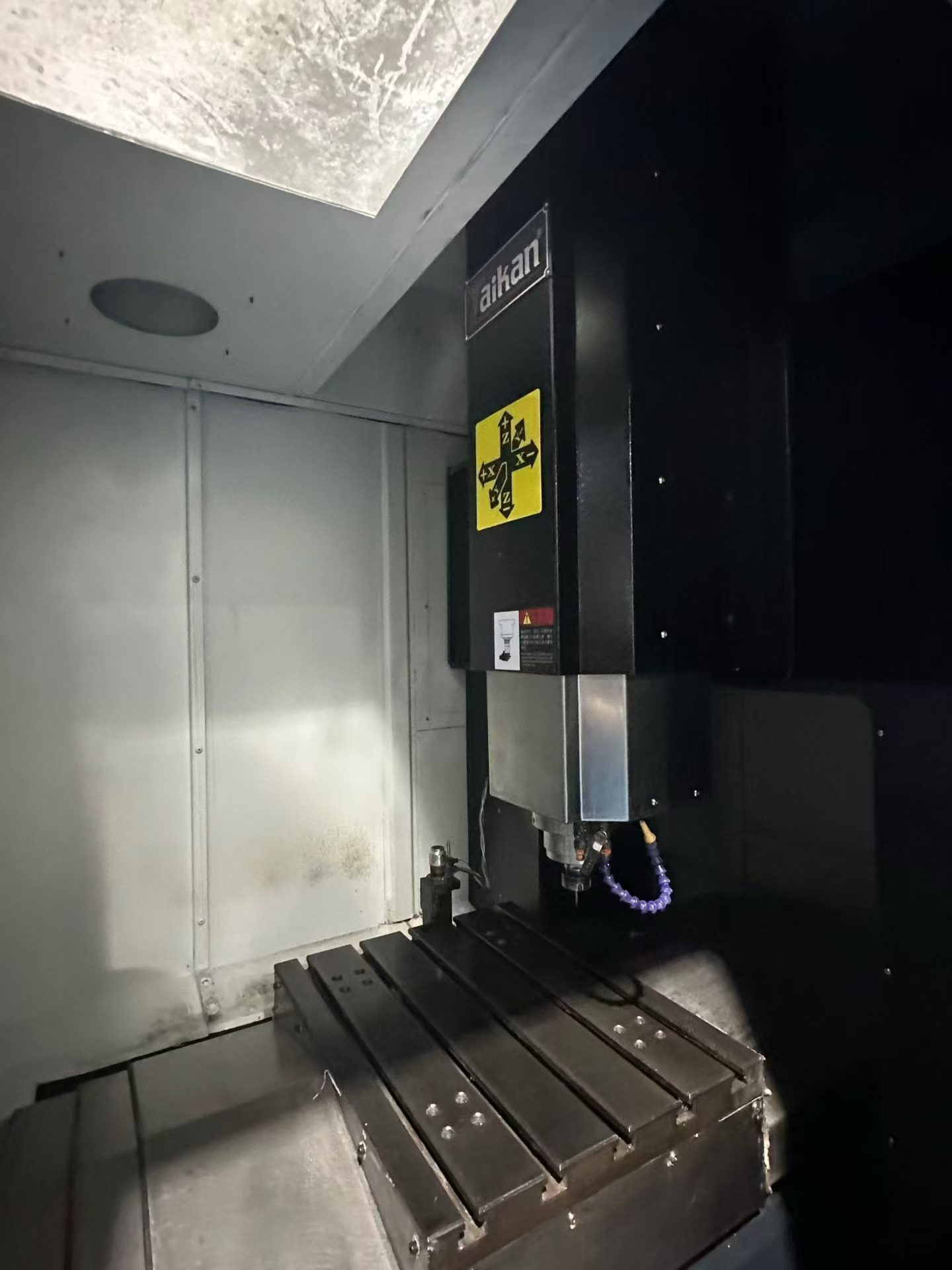

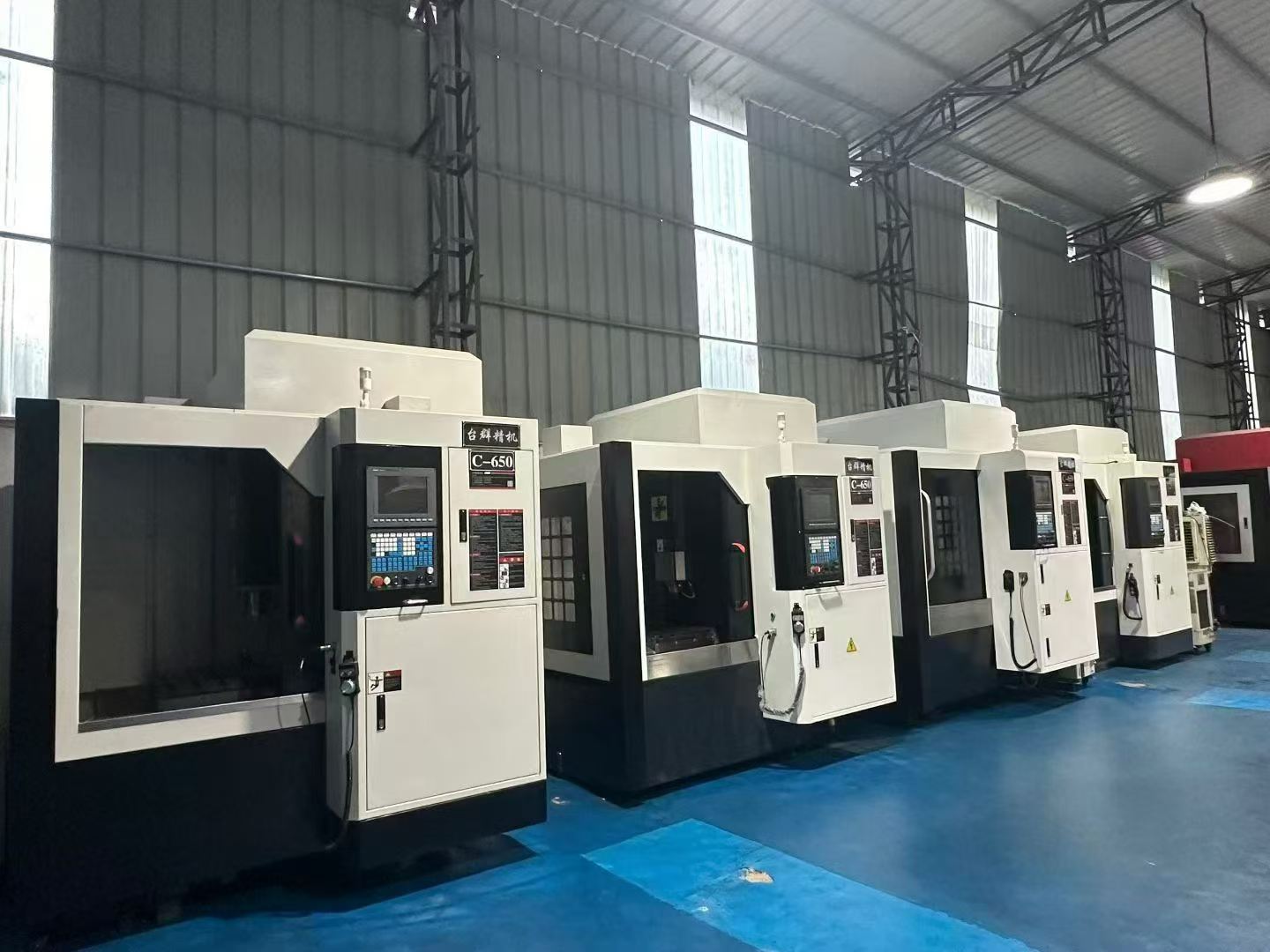

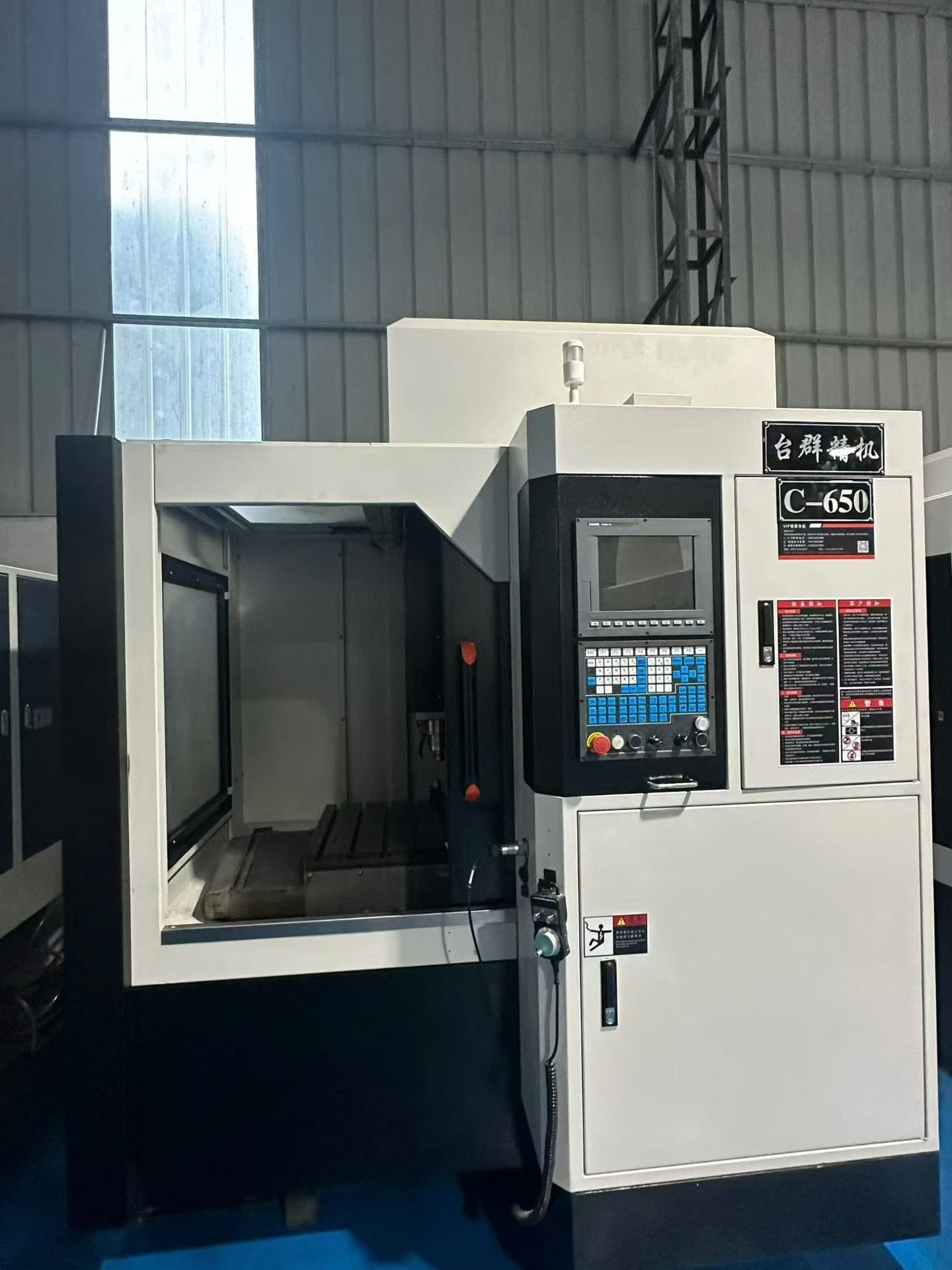

Used Taikan C-650 Vertical CNC Engraving and Milling Machine with SYNTEC 21 MA-H/E Control

Taikan C-650 vertical engraving and milling machine held in stock in Dongguan, with several identical units available. The machine is built in a fully enclosed structure and is equipped with the SYNTEC 21 MA-H/E CNC control system. Spindle configurations cover an ER 25 collet interface with a 5.5 kW spindle and an ER 32 collet interface with a 7.5 kW spindle, both rated to 24,000 rpm, with axis motion driven by Yaskawa 7-series servo motors. Machine condition is excellent and working accuracy is held to 0.01 mm. Material test cutting is welcome so the machine can be checked under power before delivery.

Machine Code: MC260976
Year: On request
Location: Dongguan, China
Usage Hours: On request

Accessories

ER 25 collet interface spindle; ER 32 collet interface spindle; Yaskawa 7-series servo motors; full-enclosure guarding

Email Inquiry

Main Specifications

Machine type	Vertical engraving and milling machine (vertical machining center)
Control system	SYNTEC 21 MA-H/E
Spindle speed	24000 rpm
Spindle interface	ER 25 / ER 32
Spindle power	5.5 kW (ER 25) / 7.5 kW (ER 32)
Servo motor	Yaskawa 7-series
Accuracy	0.01 mm
Structure	Fully enclosed guarding
Brand	Taikan
