Used Takumi H 10 M Gantry-Type High-Speed Machining Center with Mitsubishi M 80 Control

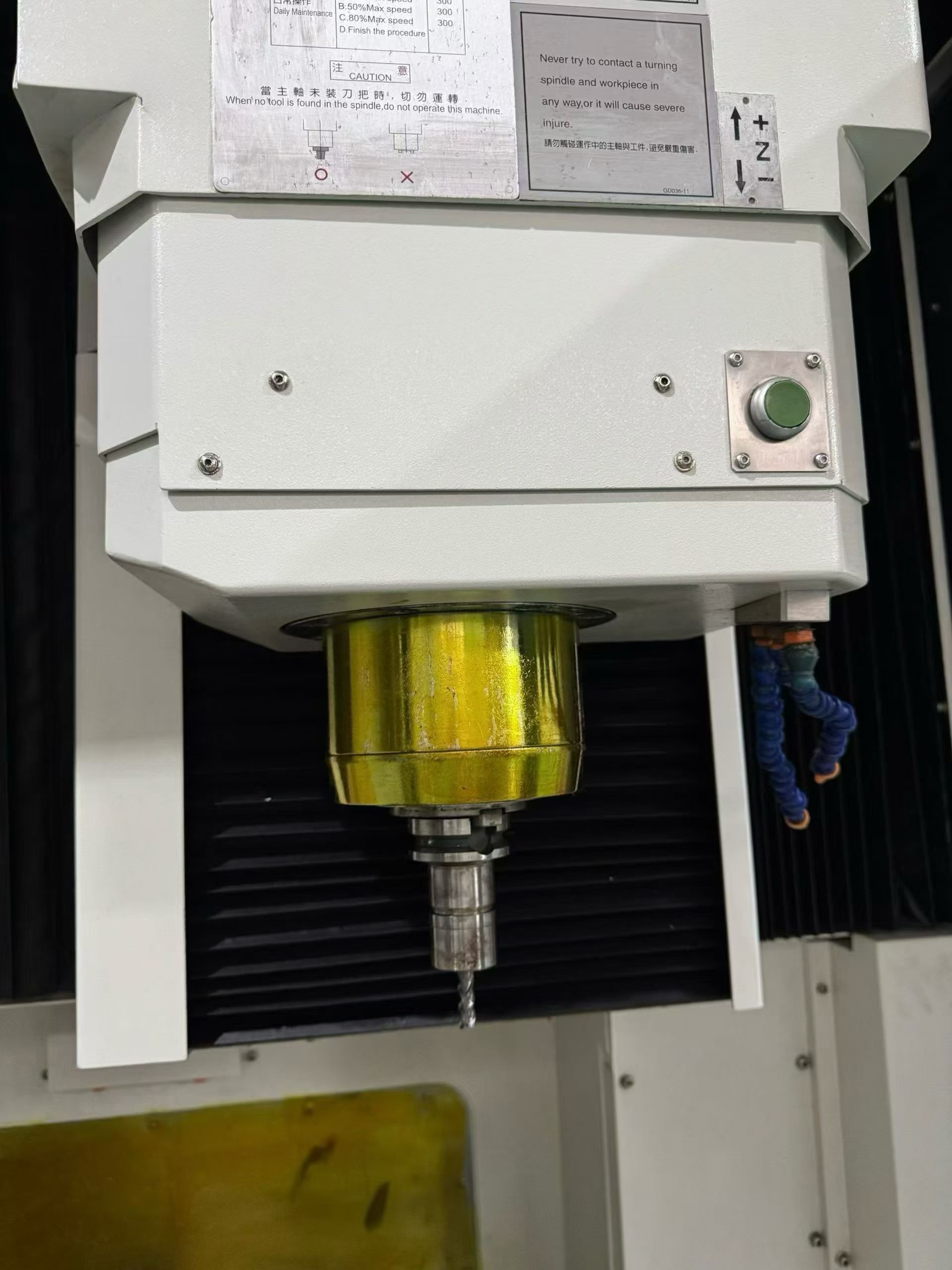

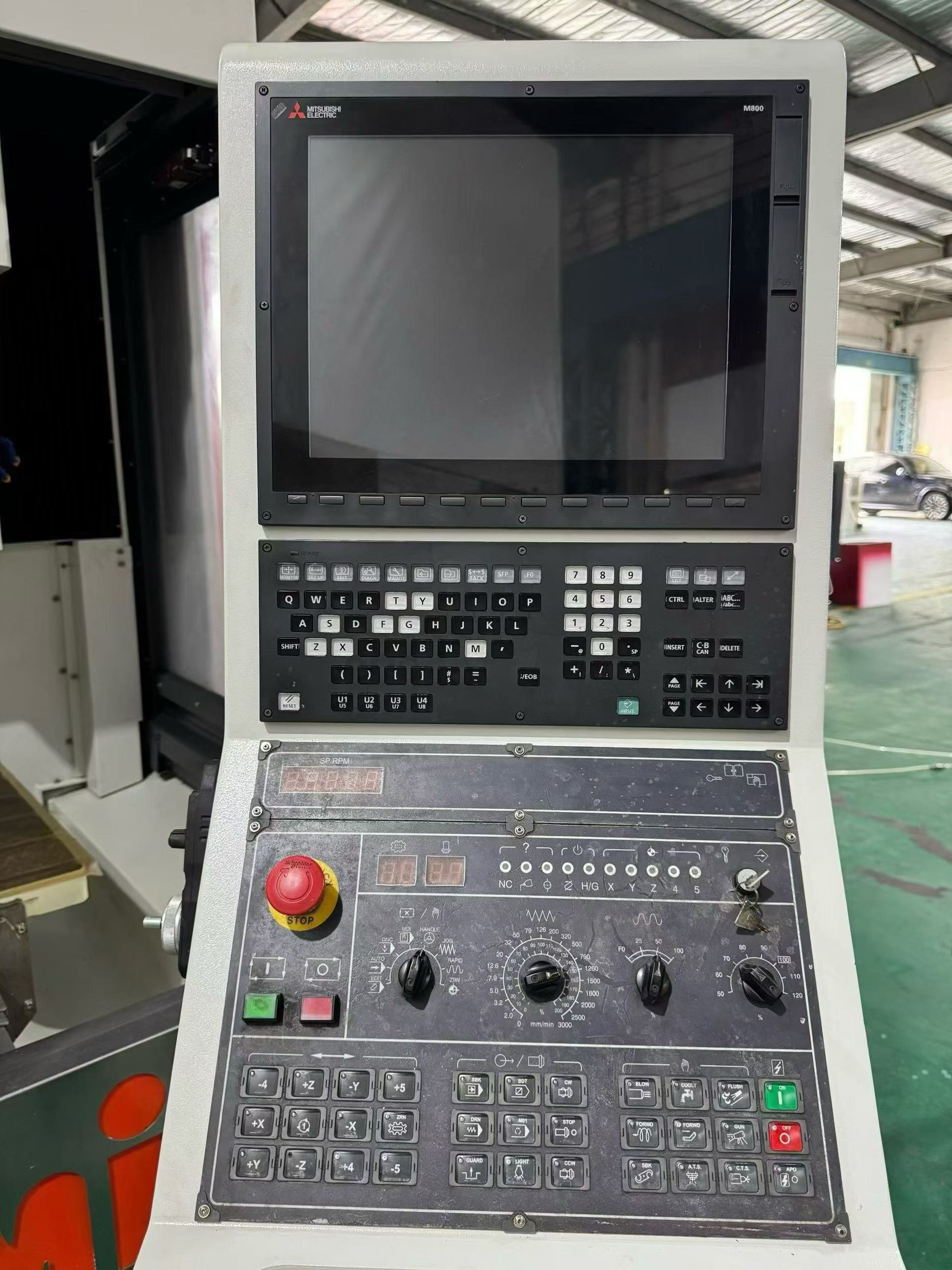

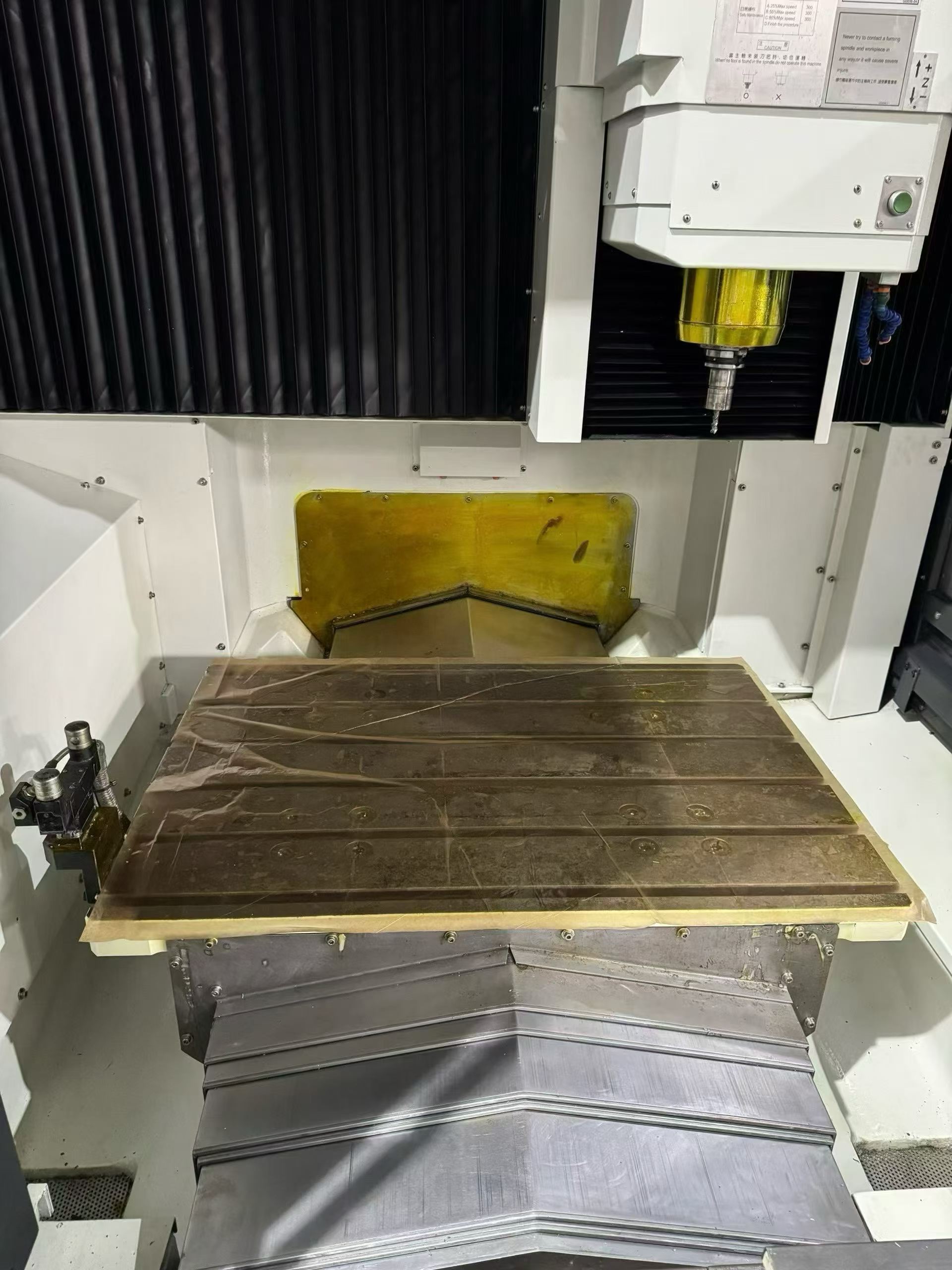

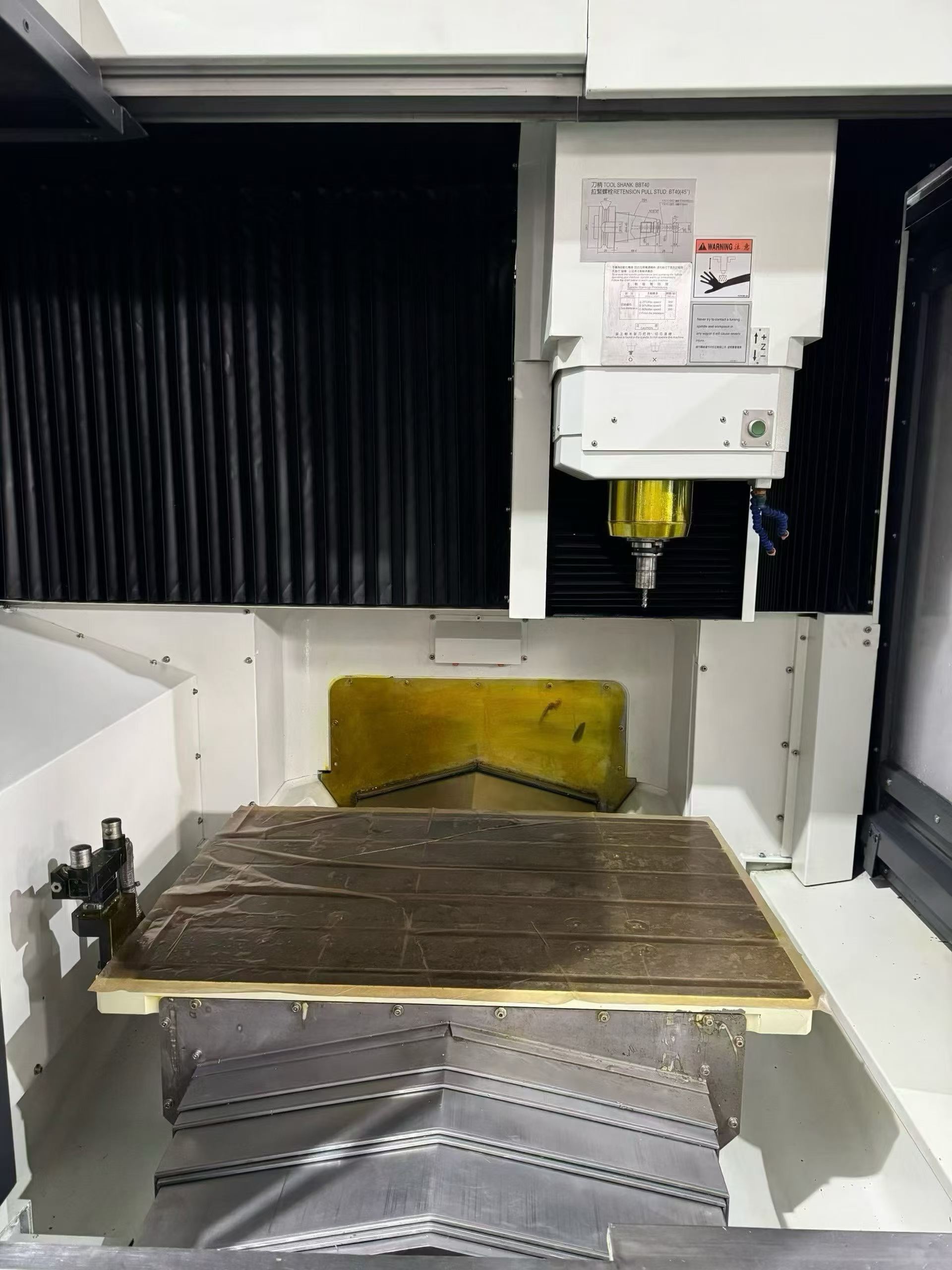

Takumi H 10 M gantry-type high-speed machining center, a double-column bridge machine built for high-speed milling of dies, molds and precision parts. The machine is equipped with the Mitsubishi M 80 CNC control system and a BBT 40 direct-drive spindle running at 15,000 rpm. Travels are 1000 mm on the X axis, 680 mm on the Y axis and 500 mm on the Z axis, moving over a 1050 x 700 mm worktable with a maximum load capacity of 800 kg. The clearance between the two columns is 1080 mm, and the spindle nose sits 200 mm above the worktable surface, giving a rigid, compact working envelope for high-speed cutting. The gantry structure and direct-drive BBT 40 spindle make this H 10 M well suited to high-speed milling of complex contours, fine details and hardened mold surfaces in tool rooms and production shops.

Machine Code

MC260977

Year

On request

Location

China

Usage Hours

On request
