Used Turn-Mill CNC Lathe available from China stock. The machine information is translated from the original Chinese supplier notes and can be verified by video or on-site inspection. Two units: one brand new never used, one 95% new.
4 live tools (2 axial, 2 radial)
| Maximum swinging diameter over bed | 500 mm |
|---|---|
| Maximum machining length | 300 mm |
| Spindle motor power | 7.5 kW |
| Spindle nose | A2-6 |
| Chuck diameter | 8 inch |

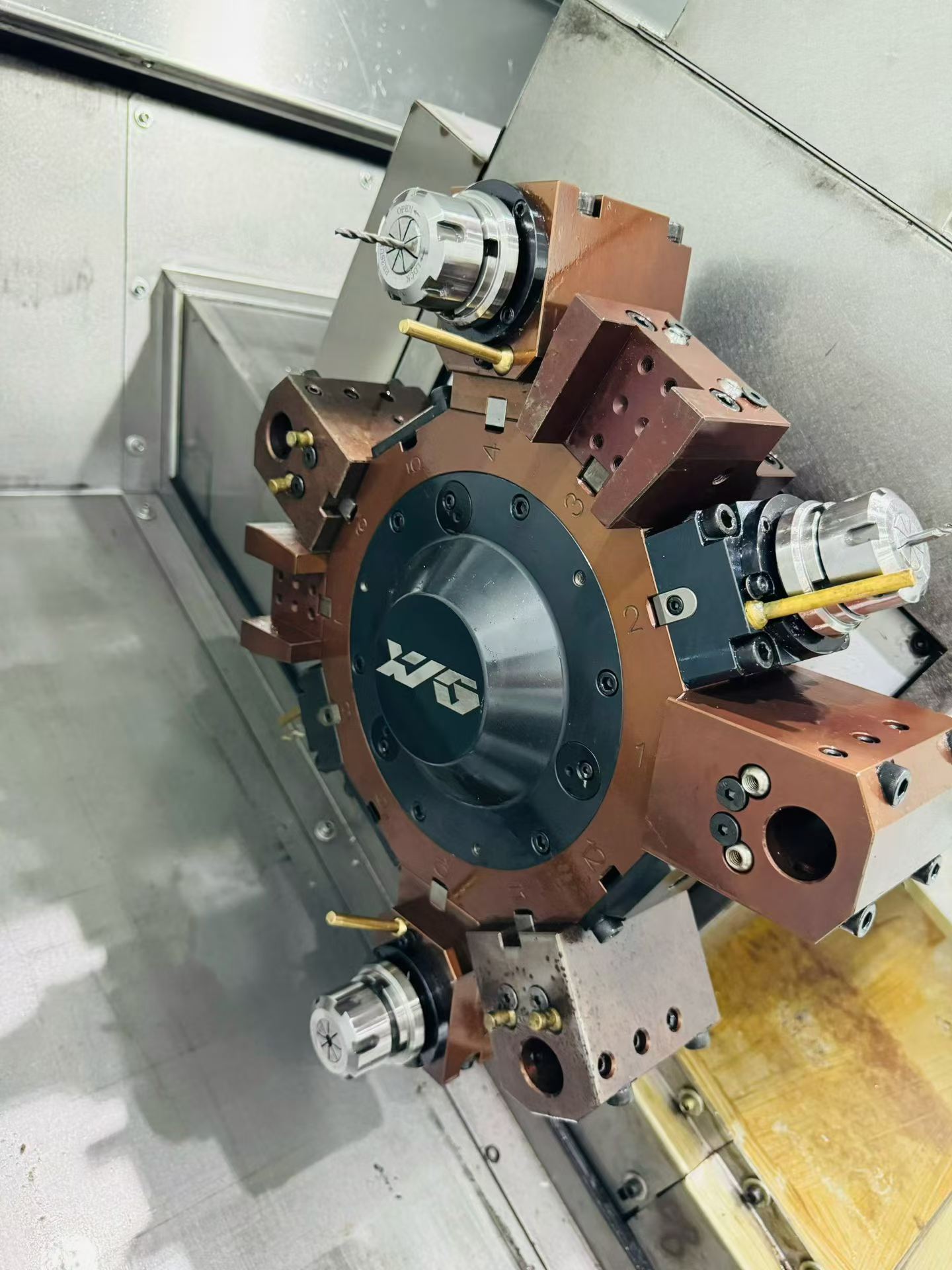

| Number of turret stations | 12 |
| Turret type | BMT45 Y-axis servo live tooling |
| Number of live tools | 4 (2 axial, 2 radial) |
| Guideway type | Roller linear guideway (3-axis) |

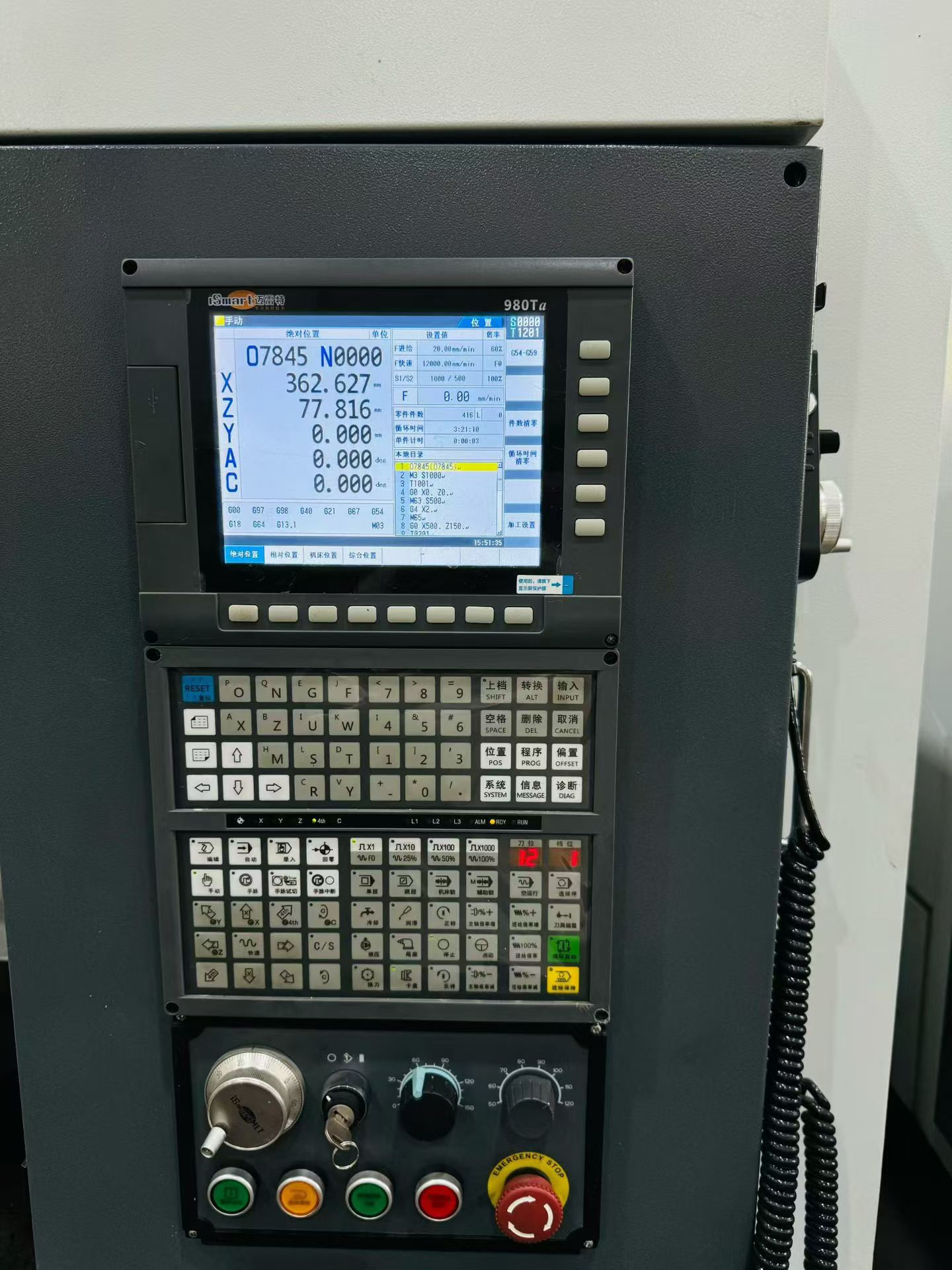

| Controller | Mailite 980 bus absolute |
| Machine Type | Turn-mill composite with Y-axis, 8-inch chuck, model 52 |
| Live Tools (axial) | 2 at 0° |
| Live Tools (radial) | 2 at 90° |
| Guideway Configuration | X/Y/Z roller linear guideway |
| Condition | 95% new |
| Turret Specification | 12-station BMT 45 Y-axis servo live tooling |

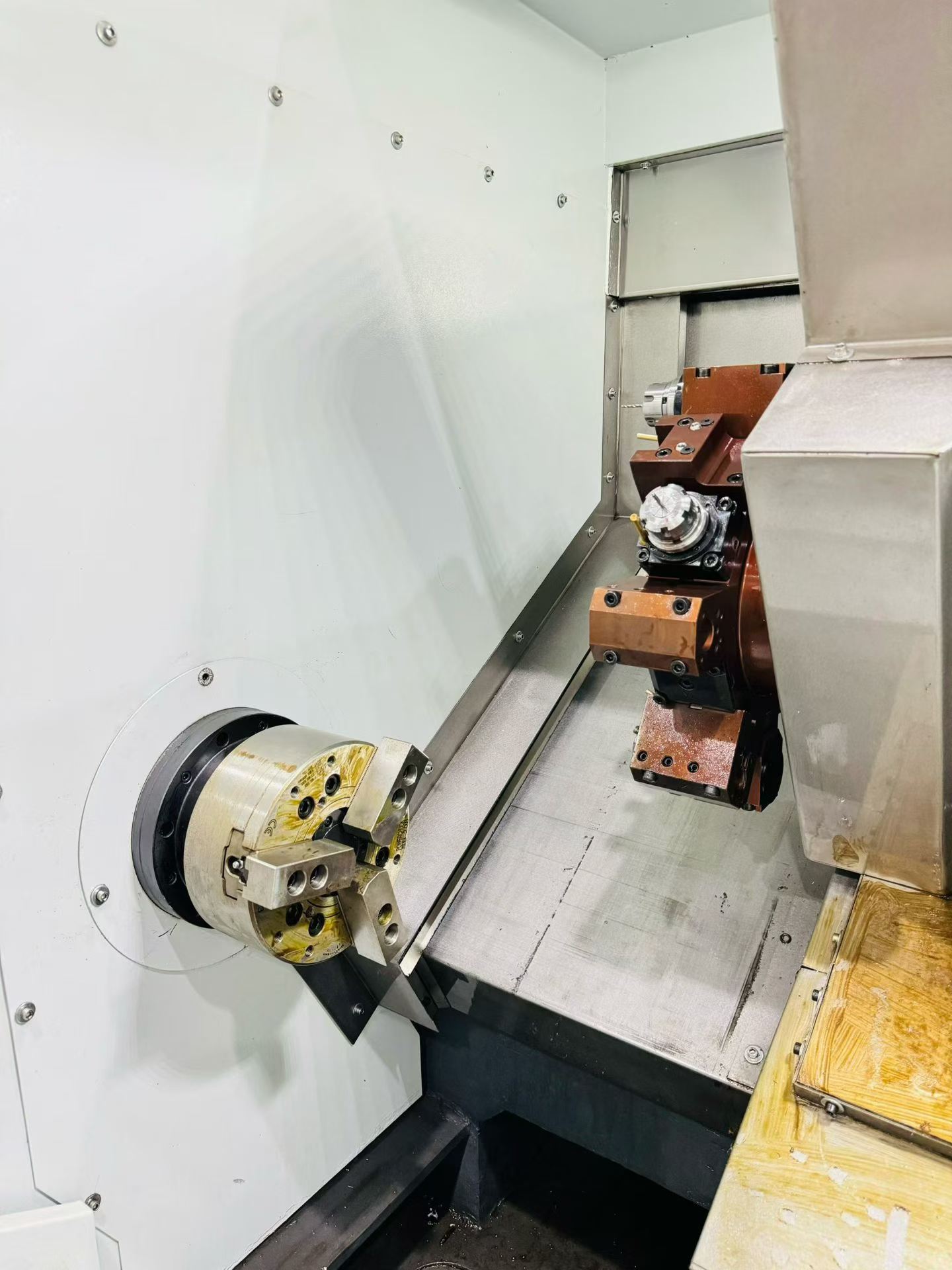

| Chuck Type | Hydraulic hollow |
