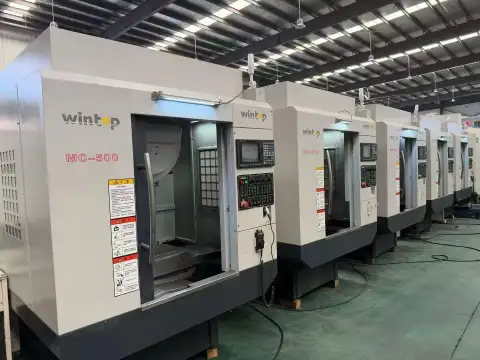

Used Wintop MC 500 Vertical Drilling and Tapping Center with Mitsubishi M 70 A Control
Wintop · MC500
2000 · Mitsubishi · China
AvailableMachining Center
Used AWEA A+1600 Heavy-Duty Vertical Gantry Box Guideway Machining Center
Original Taiwan-built AWEA A+1600 heavy-duty vertical gantry box guideway machining center. Equipped with a 24-position disc-type tool magazine, Mitsubishi M80 control system (optional), through-spindle coolant, and screw-type automatic chip conveyor. The gear-driven spindle provides high torque for mold machining and heavy roughing operations.
- Machine Code
- MC260830
- Year
- 2000
- Location
- China
- Usage Hours
- On request
Accessories
• Through-spindle coolant • Screw-type automatic chip conveyor
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications
| X/Y/Z travel | 1600 mm x 800 mm x 800 mm |
|---|---|
| Worktable size | 1700 mm x 800 mm |
| Max table load | 2000 kg |
| Spindle nose to table distance | 200–1000 mm |
| Spindle center to column guideway distance | 900 mm |
| Spindle taper | BT-50 |
| Spindle motor | 7.5/11 kW |
| Spindle speed | 6000 rpm |
| Spindle structure | Gear-driven head, high torque |
| Tool magazine capacity | 24 tools (disc-type) |
| Controller | Mitsubishi M80 |
| Cooling | Through-spindle coolant |
| Chip removal | Screw-type automatic chip conveyor |
| Machine Type | Vertical gantry machining center |
| Guideway Configuration | Box guideway |
| Brand | AWEA |
| Model | A+1600 |
| Origin | Taiwan |
| Application | Heavy roughing |
