AvailableCNC Lathe

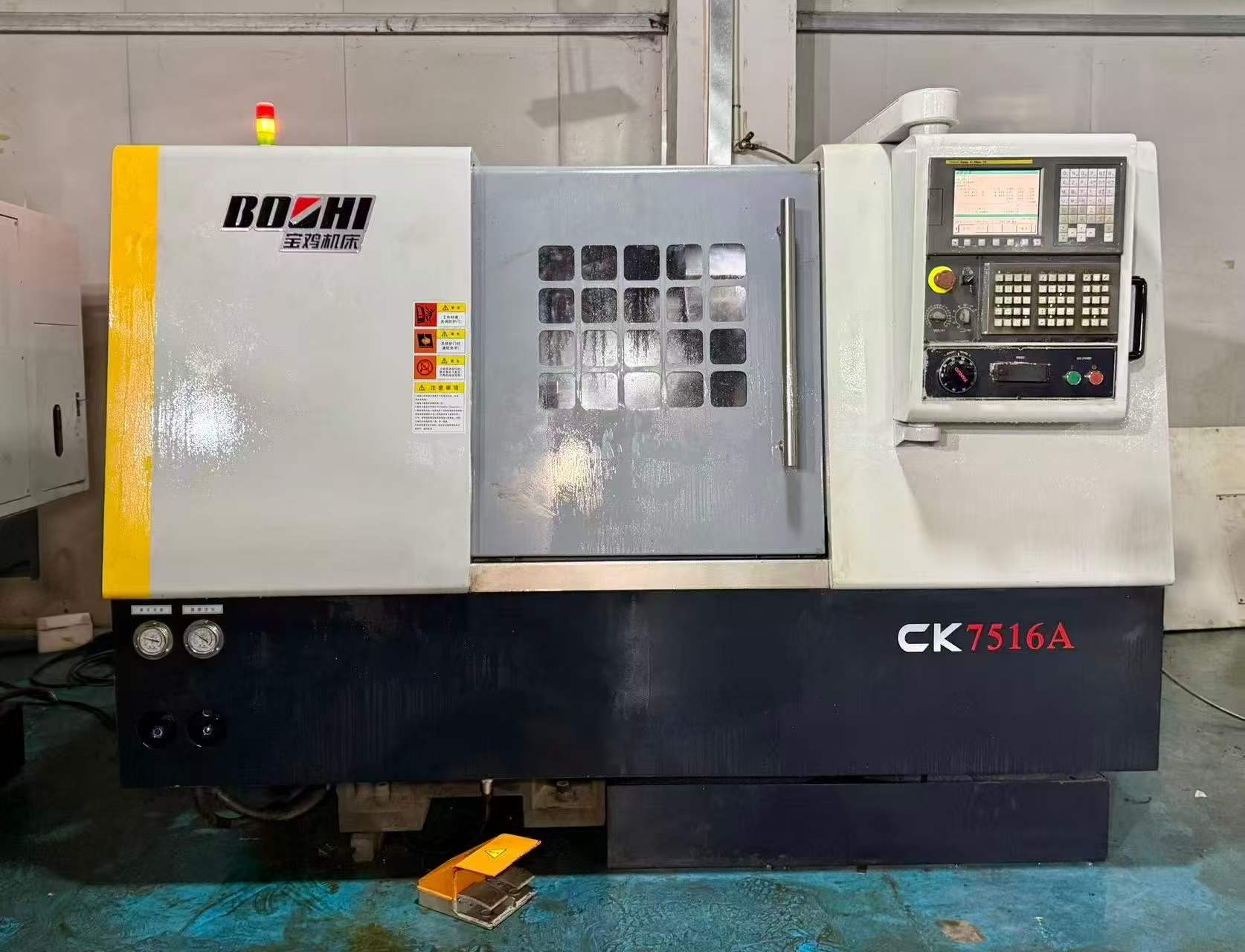

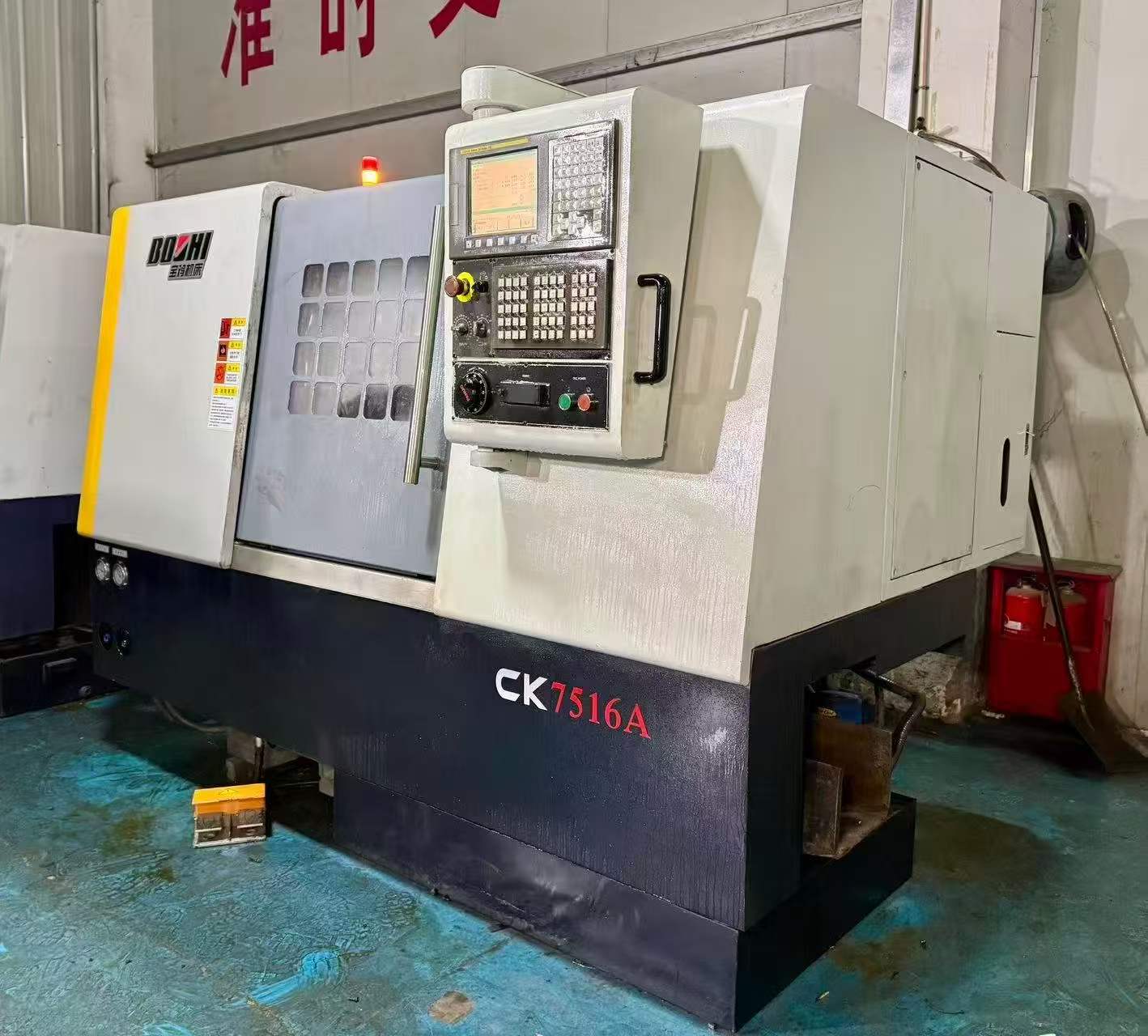

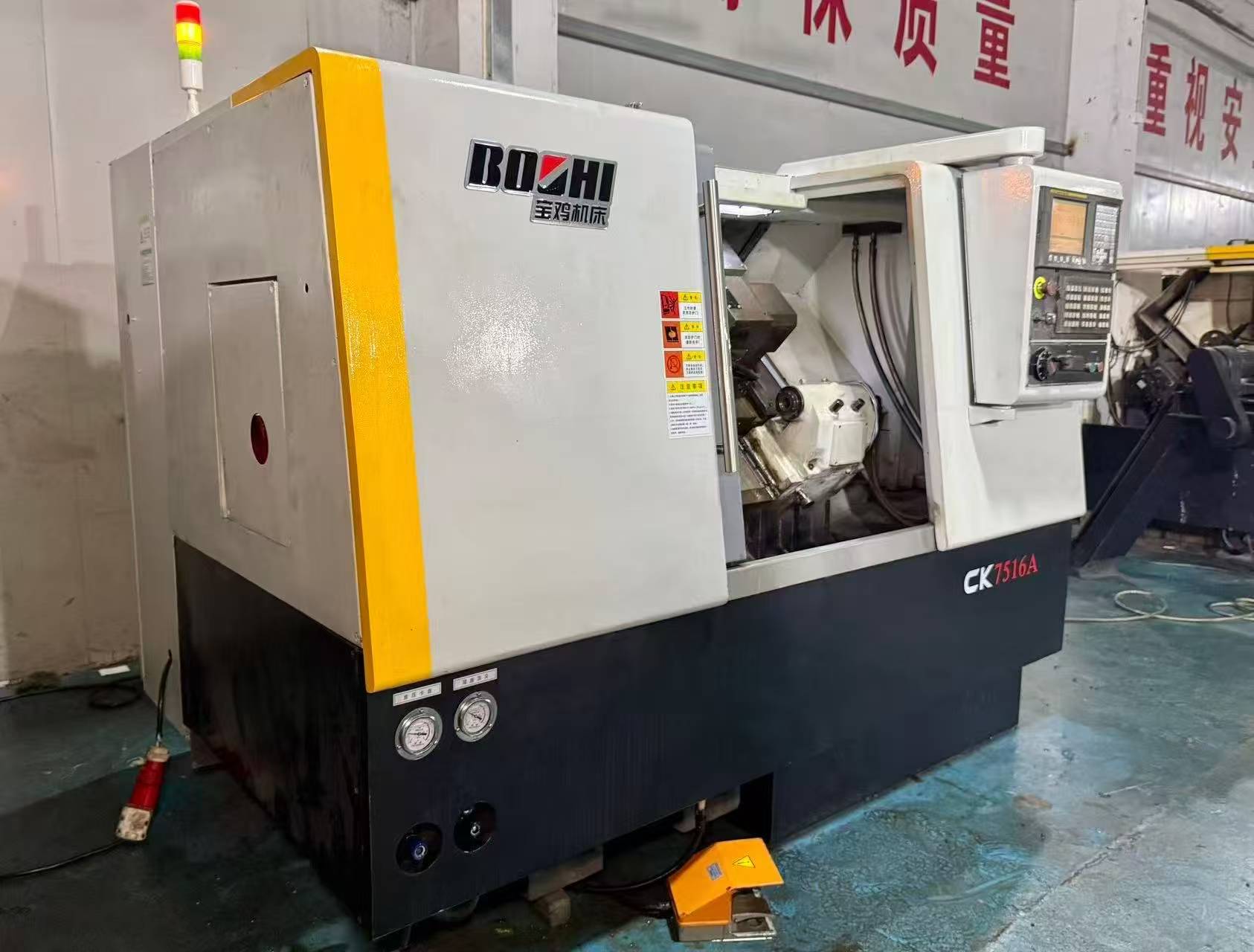

Used Baoji CK 7516 A Slant Bed Turret CNC Lathe with Fanuc
Used Baoji CK 7516 A slant bed turret CNC lathe with Fanuc TD control. Equipped with 7.5/11 kW servo main motor, 10-inch hollow hydraulic chuck, hardened steel box guideway, 8-station turret, and hydraulic tailstock. Machining diameter and length both 400 mm. Tested machining accuracy within 0.01 mm. Multiple units available, contact for bundled pricing.
- Machine Code
- CL260780
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories

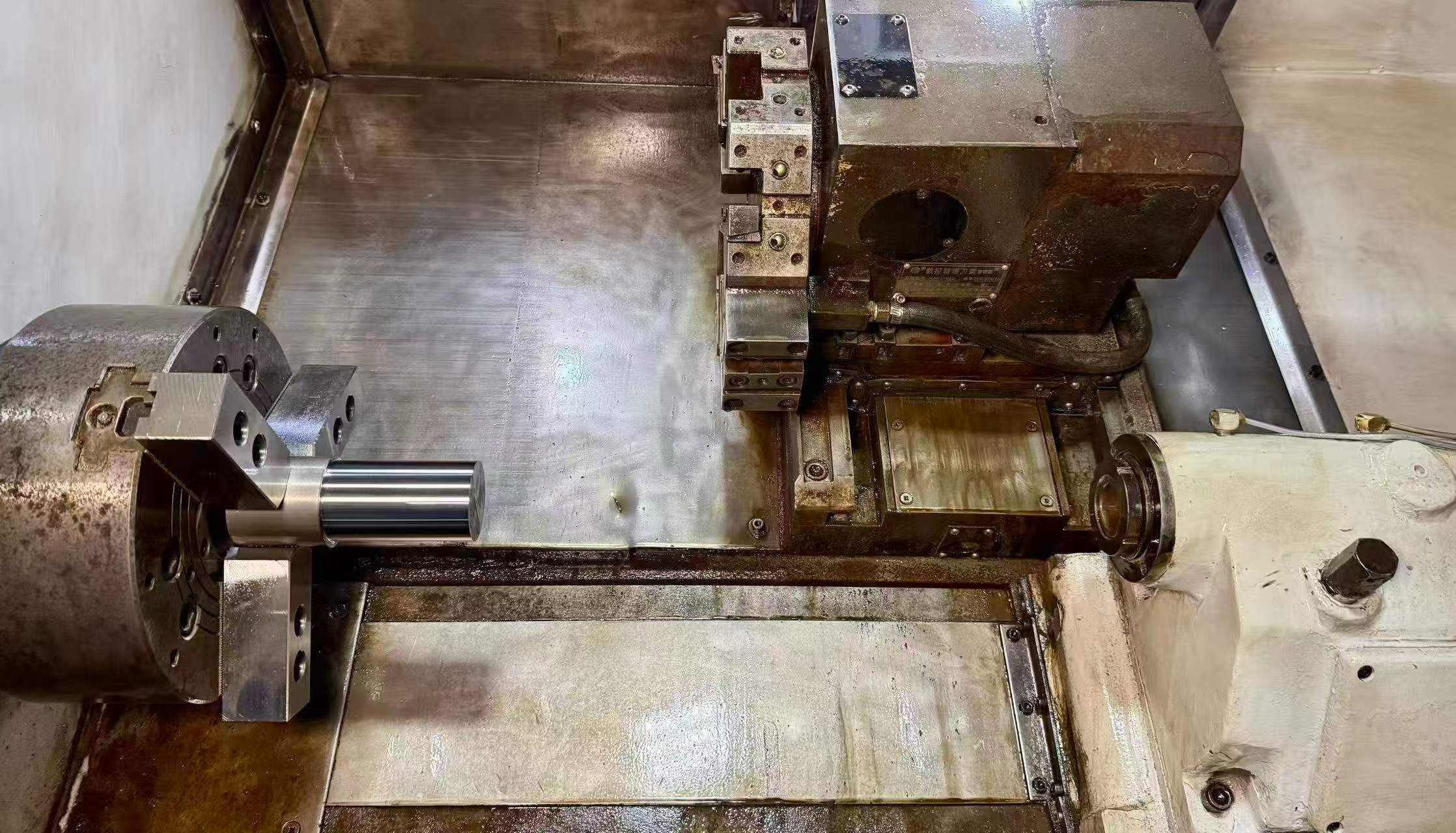

Hydraulic chuck, hydraulic tailstock, 8-station turret.
Main Specifications
| Swing diameter over bed | 400 mm |
|---|---|
| Maximum machining length | 400 mm |
| Spindle motor power | 7.5/11 kW |
| Chuck size | 10 inch |
| Number of turret stations | 8 |
| Tailstock type | Hydraulic |
| Guideway type | Hardened steel box guideway |
| Tested machining accuracy | ≤ 0.01 mm |
| Machine Model | Baoji CK 7516 A |

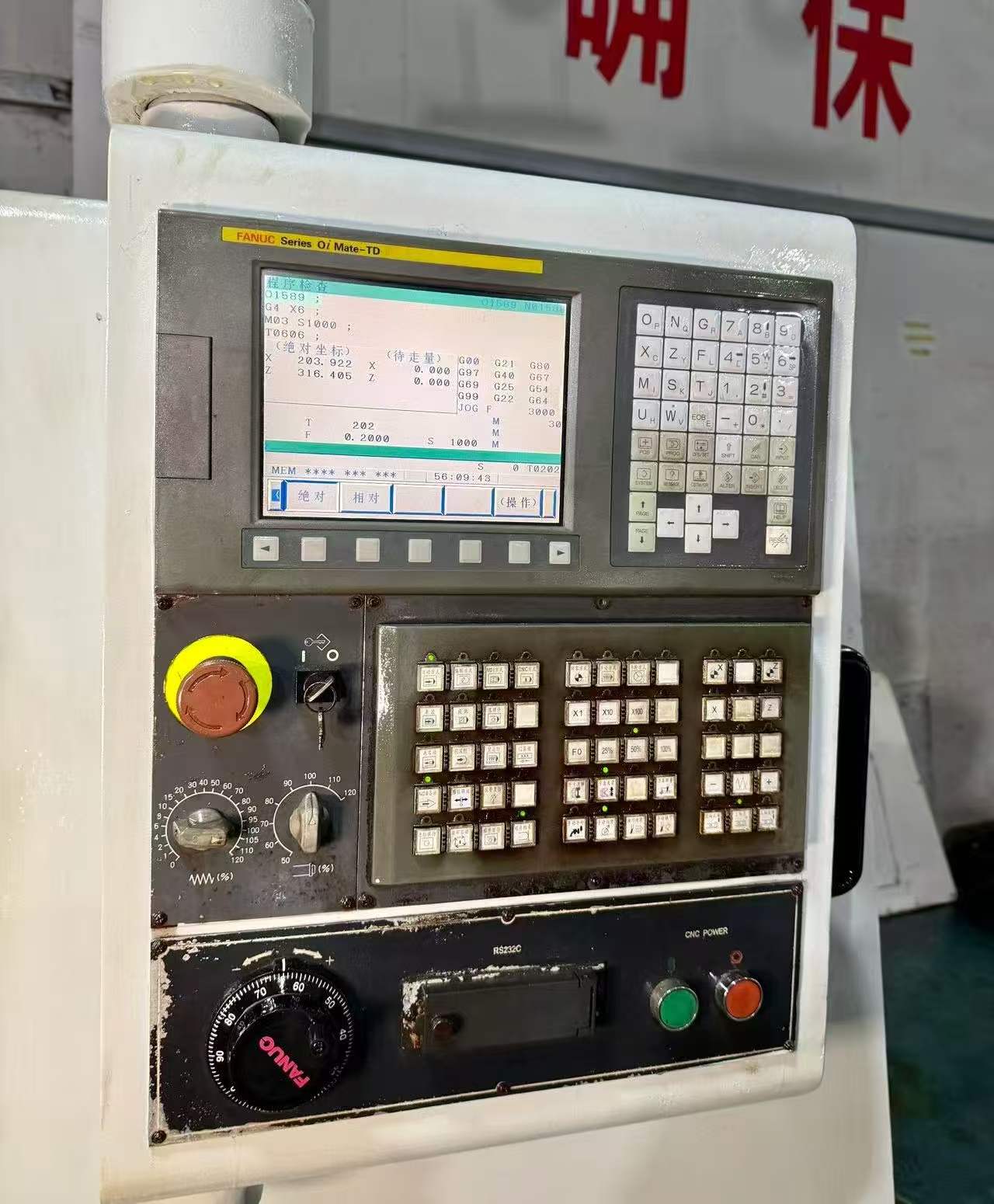

| Controller | Fanuc TD |
| Guideway Configuration | Hardened steel box guideway |
| Machine Type | Slant-bed turret CNC lathe |
| Chuck Type | Hollow hydraulic chuck |
