DisponívelCNC Lathe

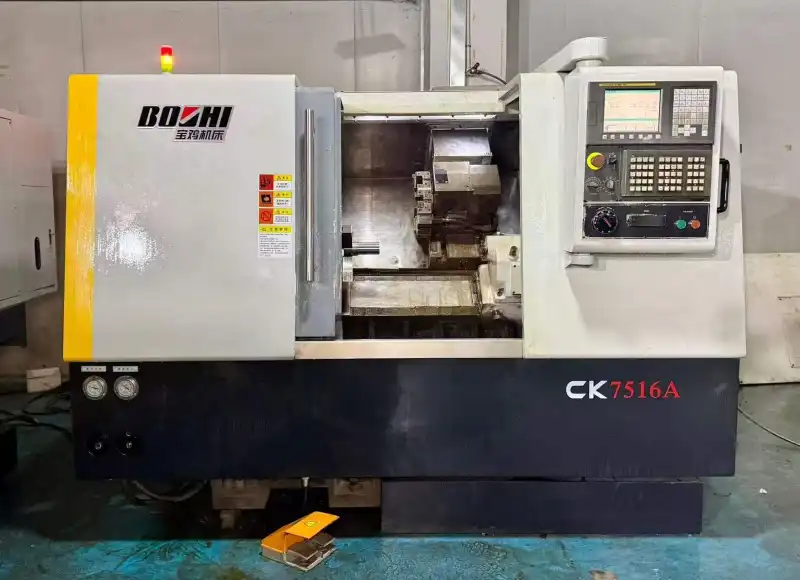

Used Baoji CK 7516 A Slant Bed Turret CNC Lathe with Fanuc

Used Baoji CK 7516 A slant bed turret CNC lathe with Fanuc TD control. Equipped with 7.5/11 kW servo main motor, 10-inch hollow hydraulic chuck, hardened steel box guideway, 8-station turret, and hydraulic tailstock. Machining diameter and length both 400 mm. Tested machining accuracy within 0.01 mm. Multiple units available, contact for bundled pricing.

Código da Máquina: CL260780
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Acessórios

Hydraulic chuck, hydraulic tailstock, 8-station turret.

Consulta por E-mail

Principais Especificações

Swing diameter over bed	400 mm
Maximum machining length	400 mm
Spindle motor power	7.5/11 kW
Chuck size	10 inch
Number of turret stations	8
Tailstock type	Hydraulic
Guideway type	Hardened steel box guideway
Tested machining accuracy	≤ 0.01 mm
Machine Model	Baoji CK 7516 A
Controller	Fanuc TD
Guideway Configuration	Hardened steel box guideway
Machine Type	Slant-bed turret CNC lathe
Chuck Type	Hollow hydraulic chuck
