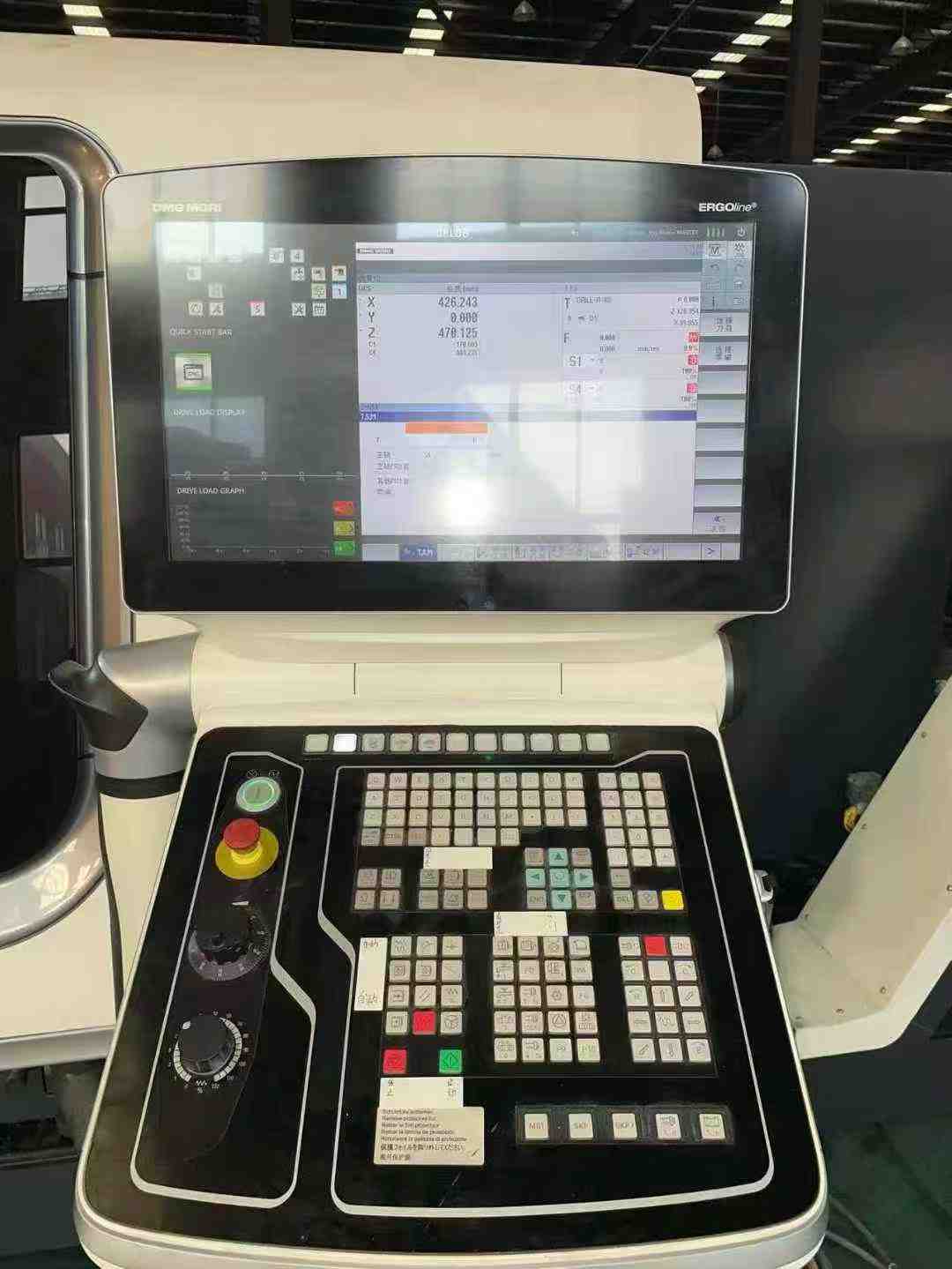

X/Y/Z travel: 300/±60/1300 mm. Equipped with Siemens CELOS with ShopTurn 3 G control and 21.5" ERGOlineControl multi-touch panel.
Motorized spindle, Y-axis, 2 live tools, probe, tailstock, chip conveyor
| Max swing over bed | 700 mm |
|---|---|
| Max cutting diameter | 410 mm |
| Max machining length with tailstock | 1,300 mm |
| Spindle speed (max) | 4,000 rpm |
| Spindle model | ISM102 |

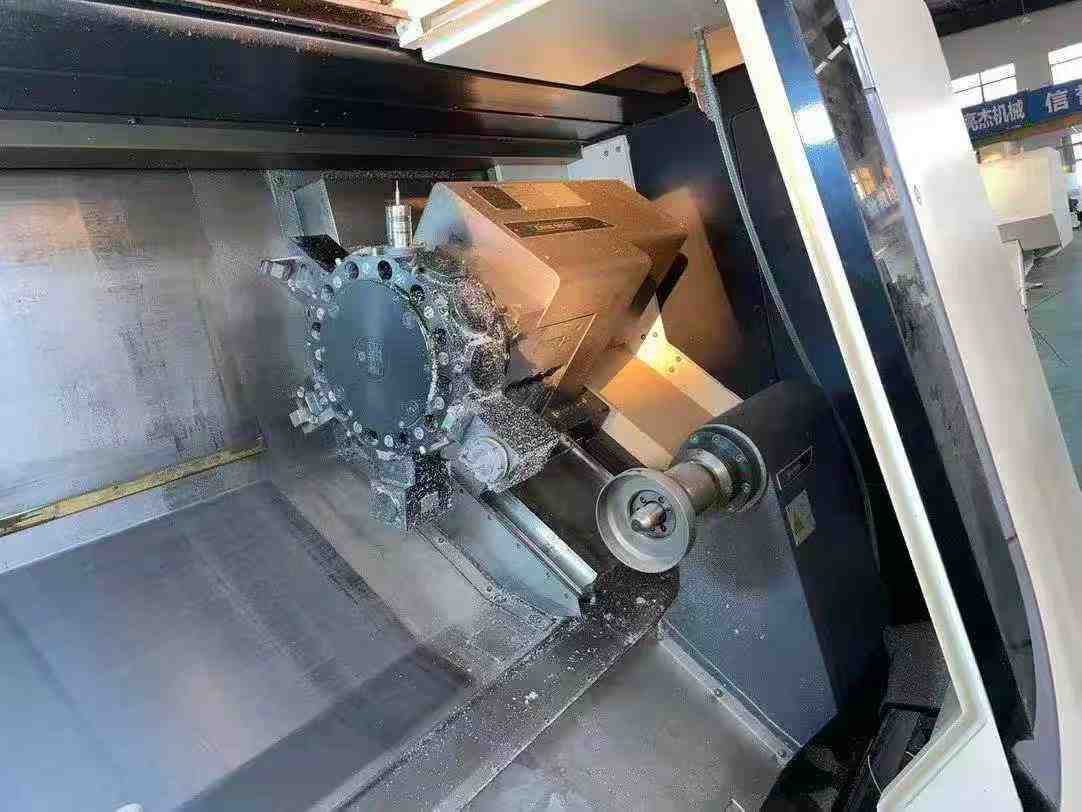

| Number of tool stations | 12 VDI40 + 6 block tools |
| Live tool speed (max) | 4,000 rpm |
| X travel | 300 mm |
| Y travel | ±60 mm |
| Z travel | 1,300 mm |

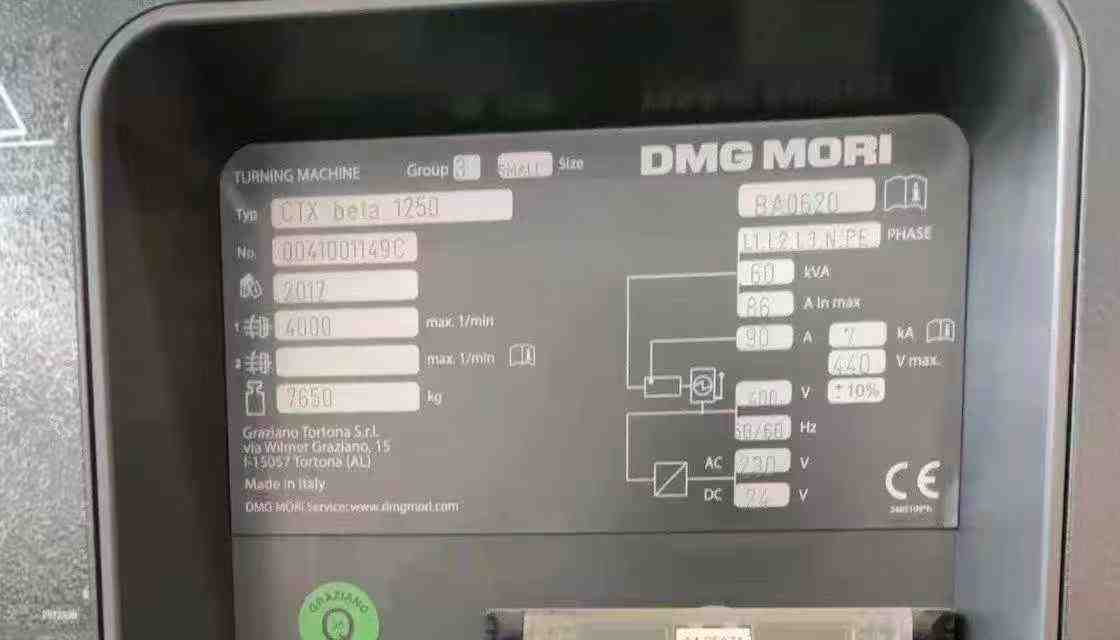

| Machine weight | 7,650 kg |

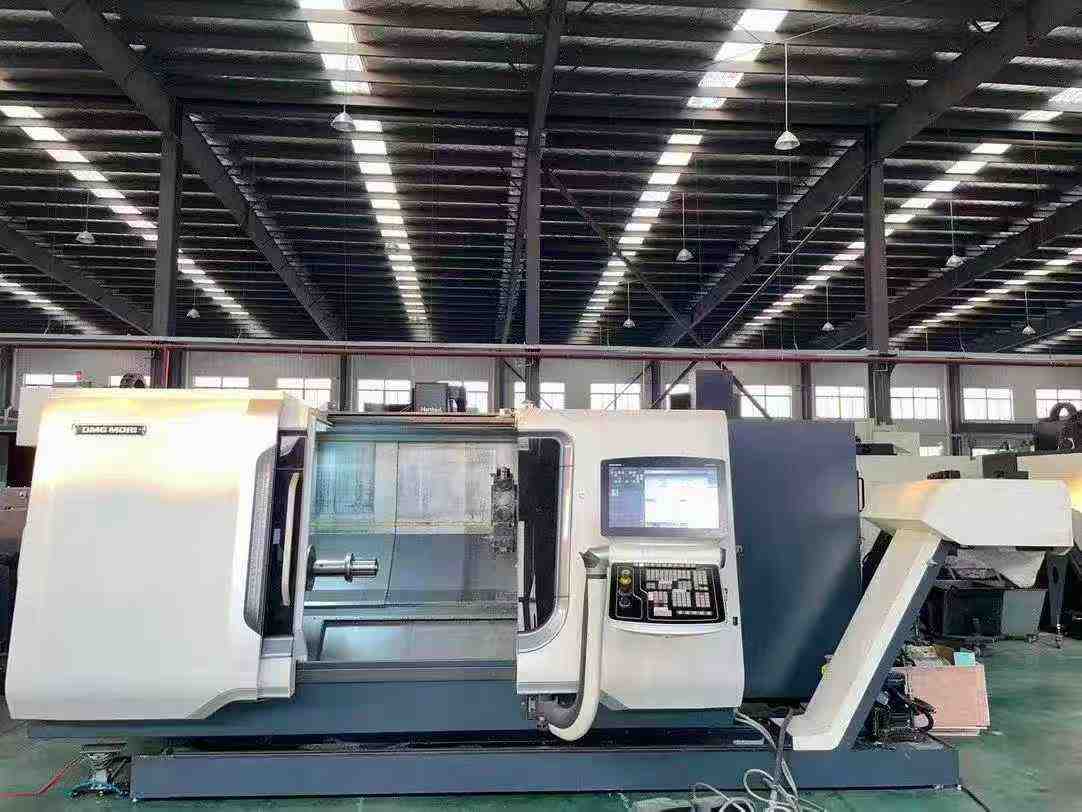

| Machine Type | DMG MORI CTX beta 1250 Turn-Mill with Y-axis |
| Year Of Manufacture | 2017 |

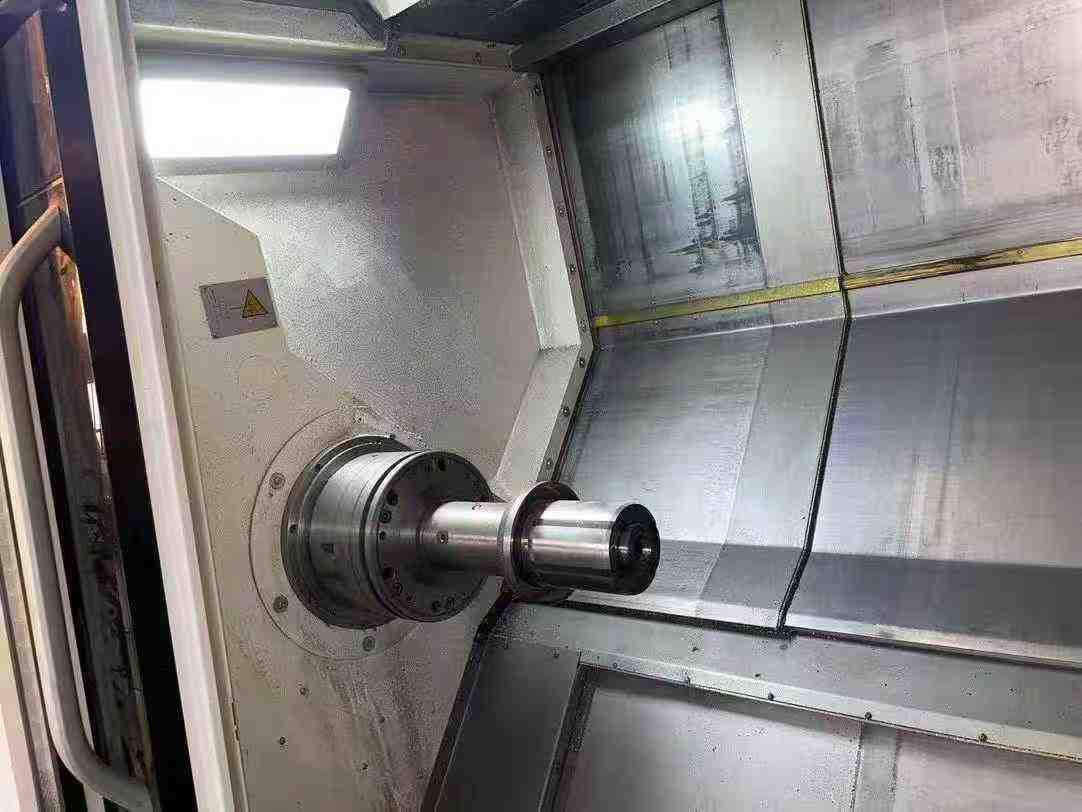

| Spindle Type | Motorized spindle |
| Number Of Live Tools | 2 |
| Chip Conveyor | Yes |
| C Axis | Yes, 0.001° resolution |
| Tool Turret Seat | Present |
| Controller | Siemens ShopTurn 3 G with CELOS and 21.5" ERGOline Control multi-touch panel |
| Tool Turret Slide | Upper turret |
