AvailableHorizontal Machining Center

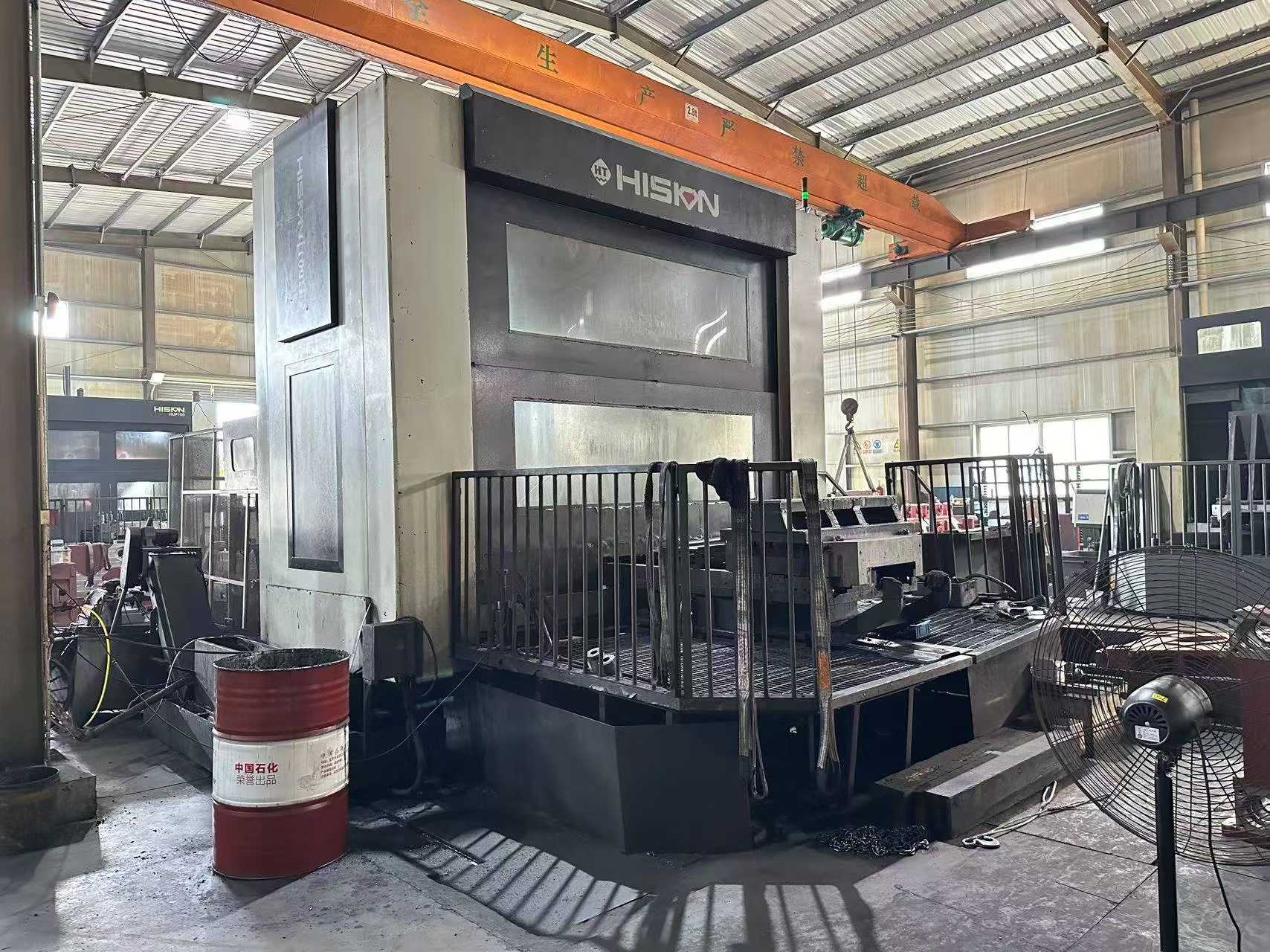

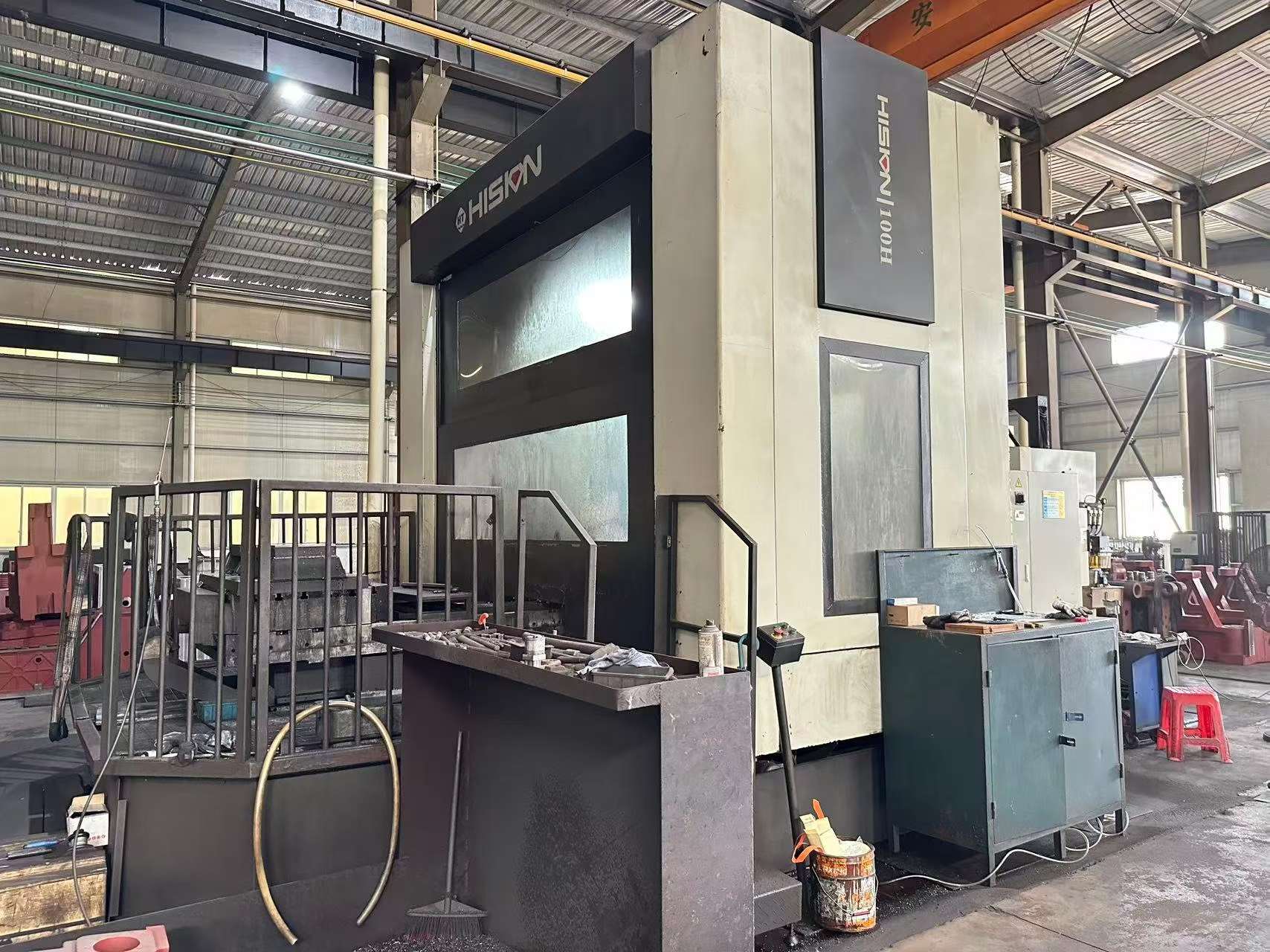

Used Haitian HTM-100 H Dual-Station Horizontal Machining Center with FANUC 0i-MD

Used Haitian HTM-100 H dual-station horizontal machining center with W-axis, equipped with FANUC 0i-MD control. Manufactured in 2016. The machine is currently in operation and available for inspection in China. Suitable for heavy cutting applications with a 22 kW spindle motor and 60-tool magazine.

Machine Code
HMC260625
Year
2016
Location
China
Usage Hours
On request
Email Inquiry

Main Specifications

Spindle speed20-6000 rpm
Spindle taperBT50
Spindle motor power22 kW
X-axis travel2000 mm
Y-axis travel1300 mm
Z-axis travel1200 mm
W-axis (boring spindle) travel535 mm

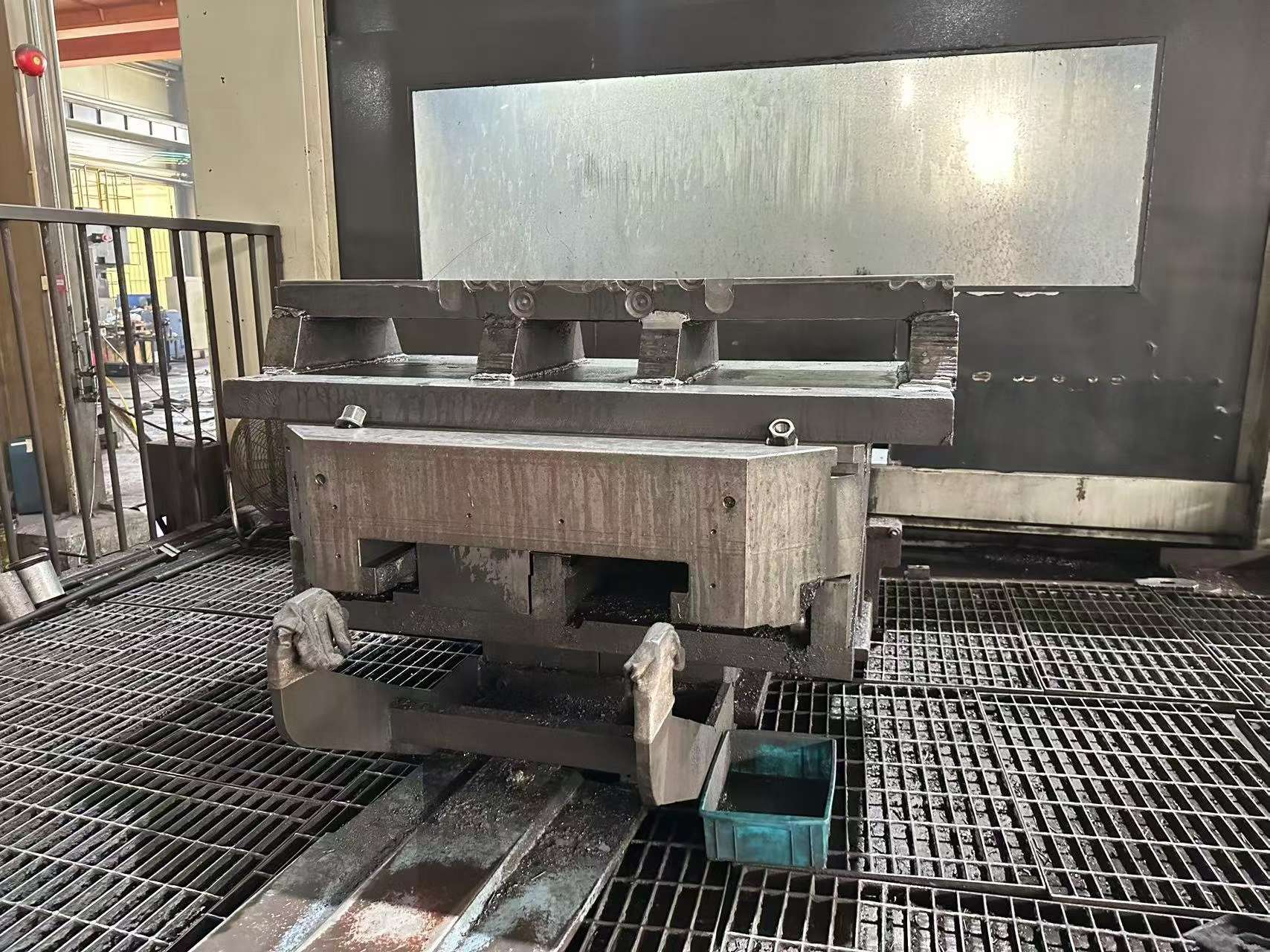

Worktable size1000 x 1000 mm
Max table load per pallet3400 kg
Table indexing0.001° continuous

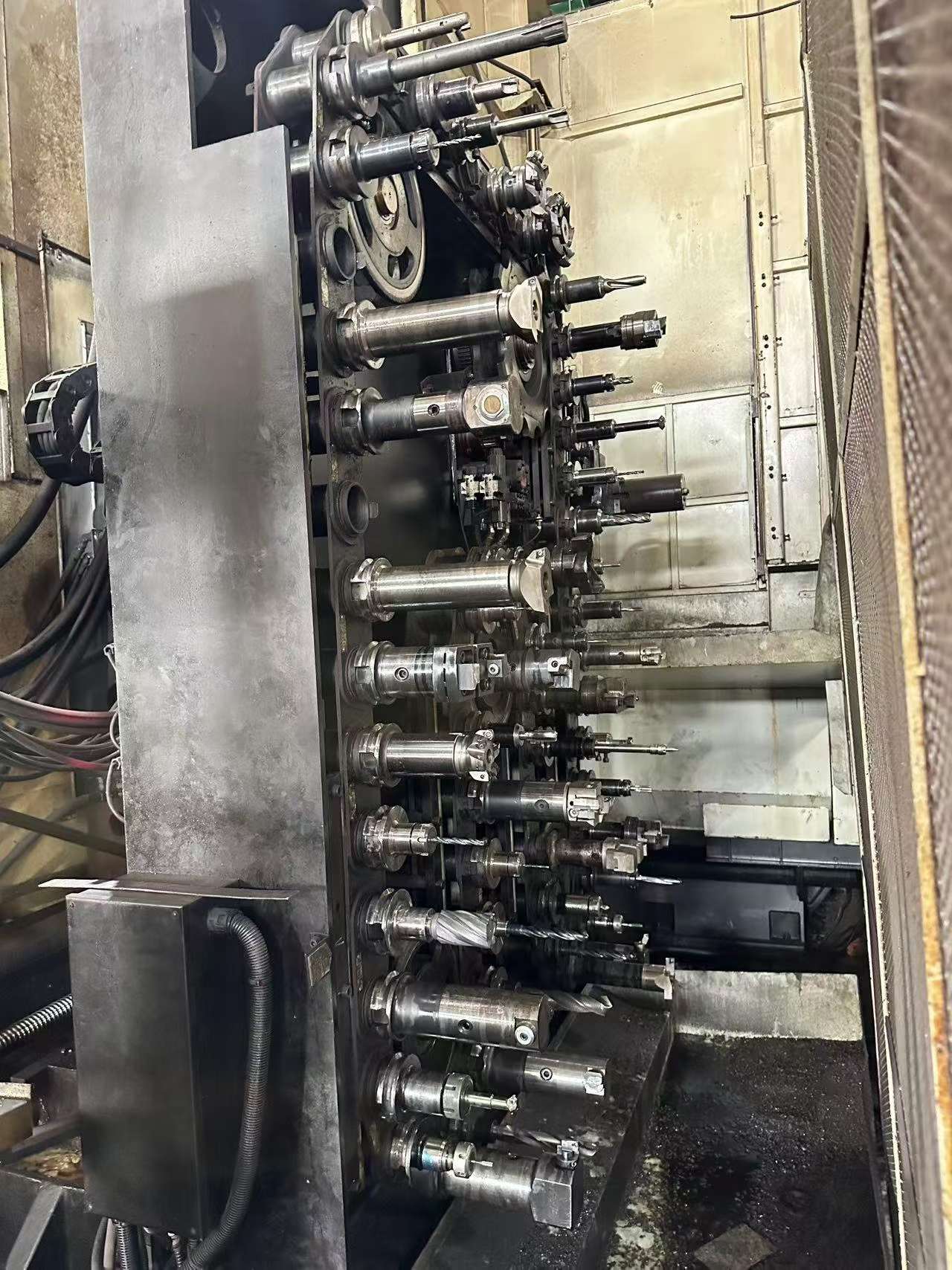

Tool magazine capacity60 tools
Max tool diameter120 mm
Max tool length550 mm
Max tool weight≤15 kg
Machine weight42 tons
Machine TypeDual-station horizontal machining center with W-axis
BrandHaitian
ModelHTM‑100 H

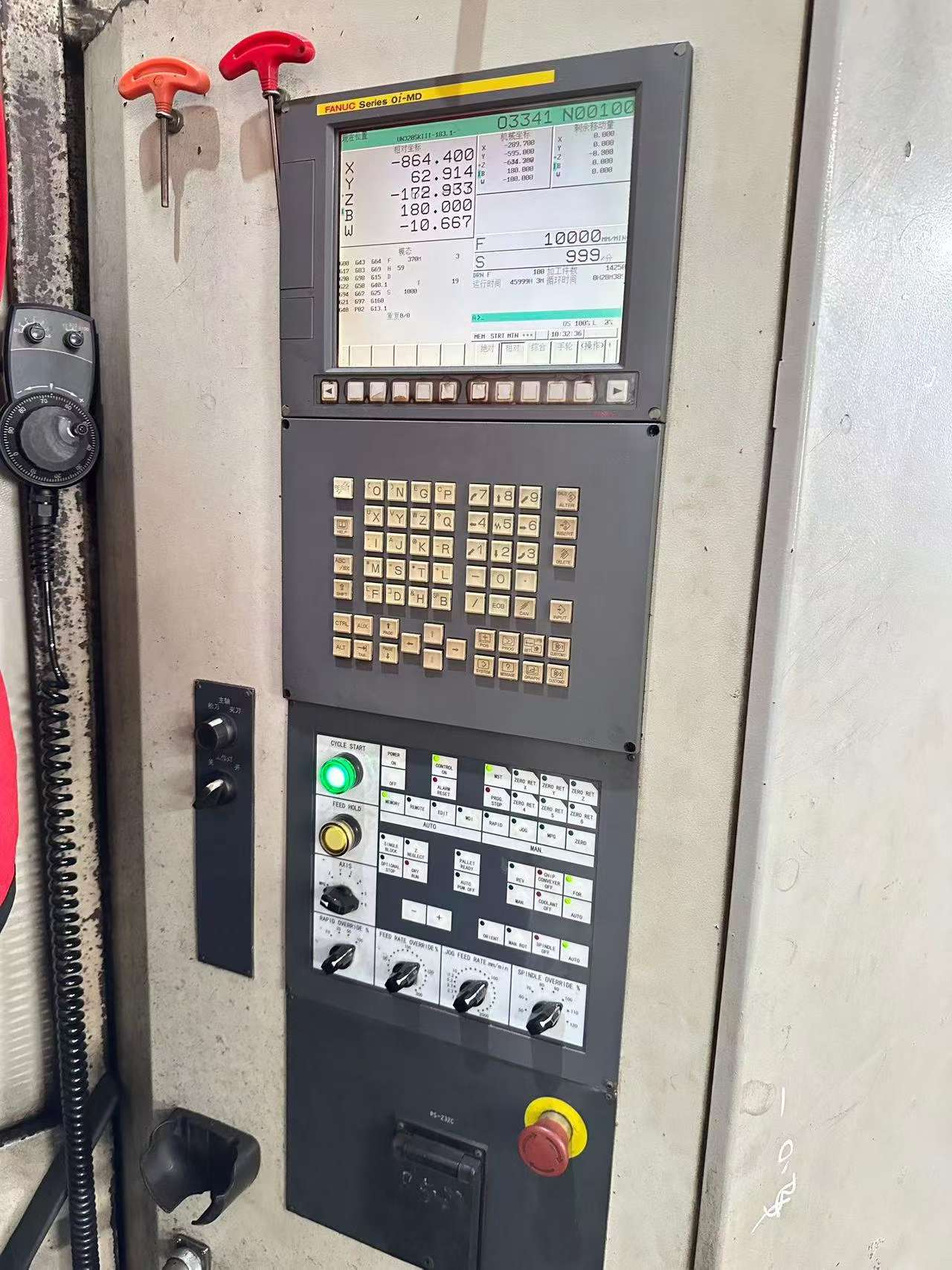

ControllerFANUC 0i-MD
Year Of Manufacture2016
Distance From Spindle Center To Table Surface100-1400 mm
Distance From Spindle Nose To Table Center280-1480 mm
Spindle Drive TypeGear-driven
Spindle Speed Range20-6000 rpm
Machine Dimensions7500 x 5500 x 4200 mm
