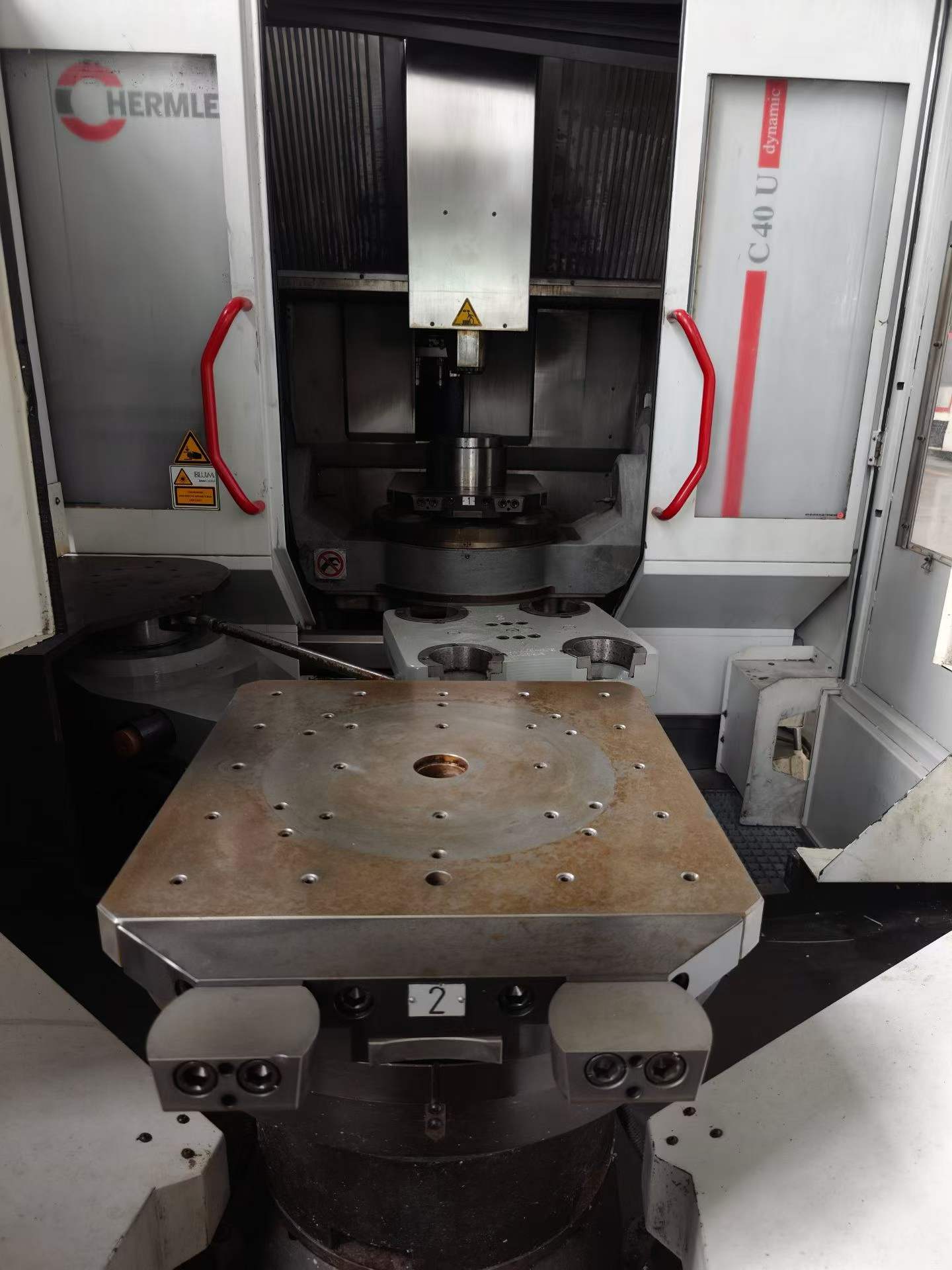

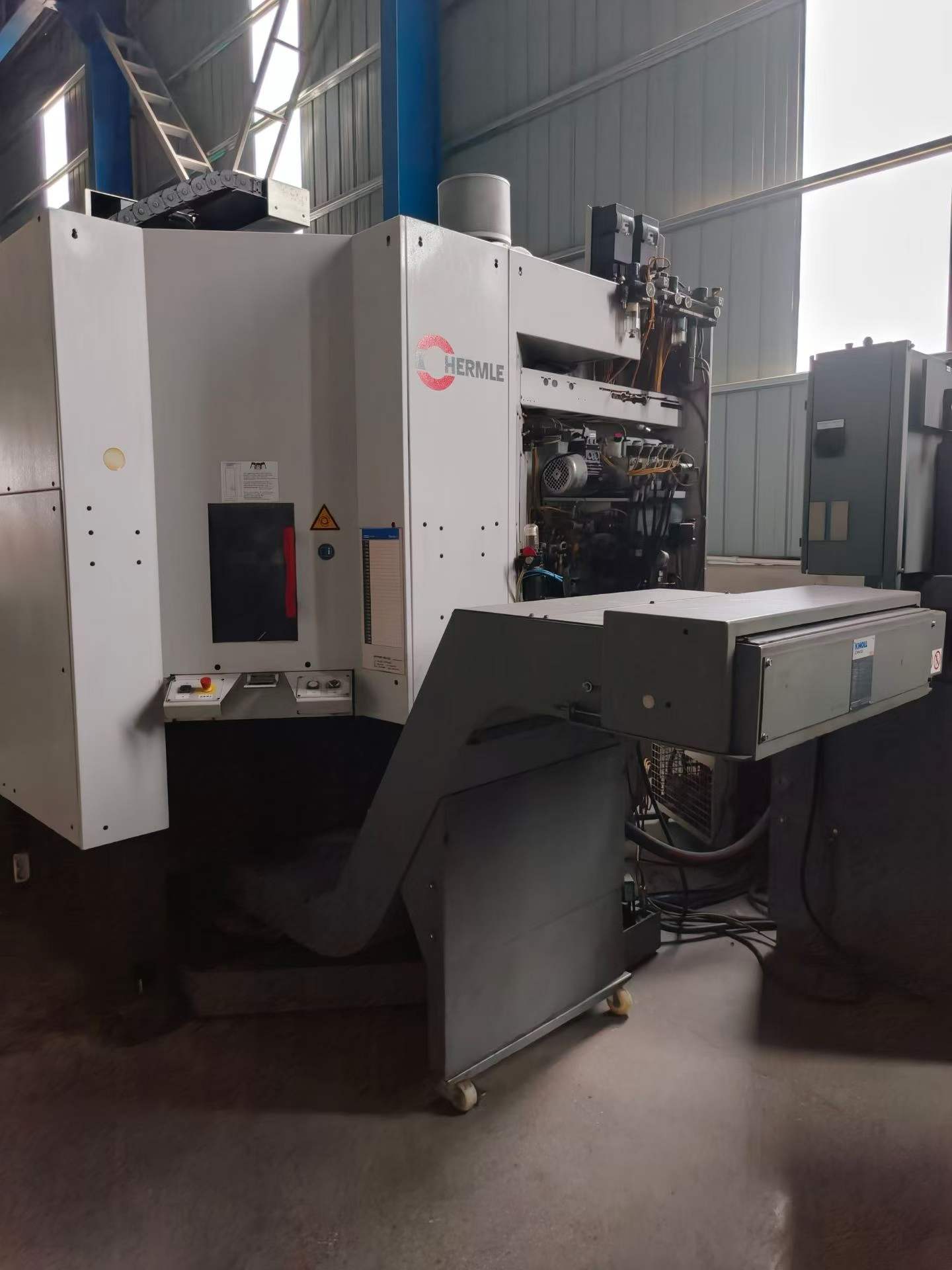

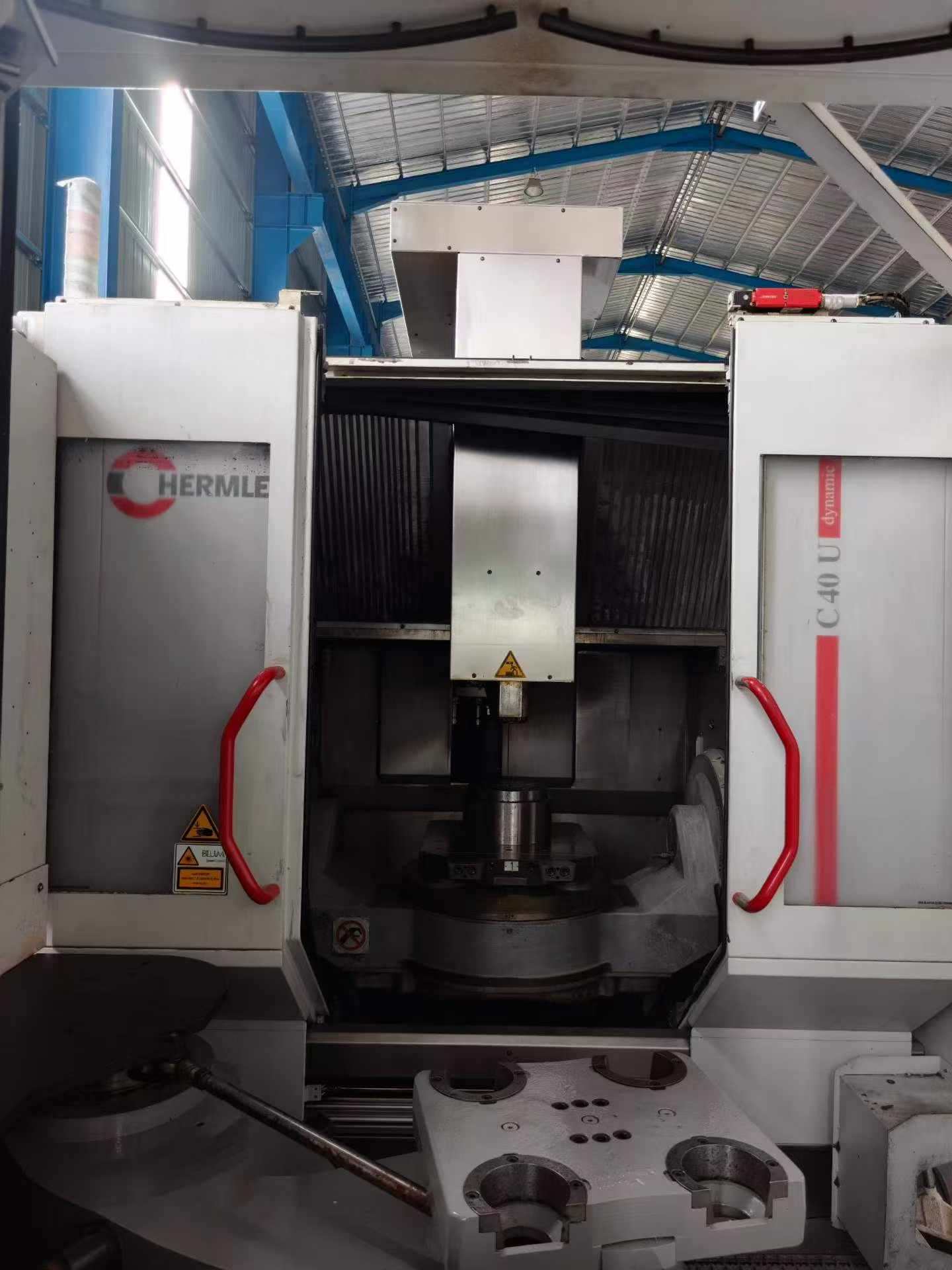

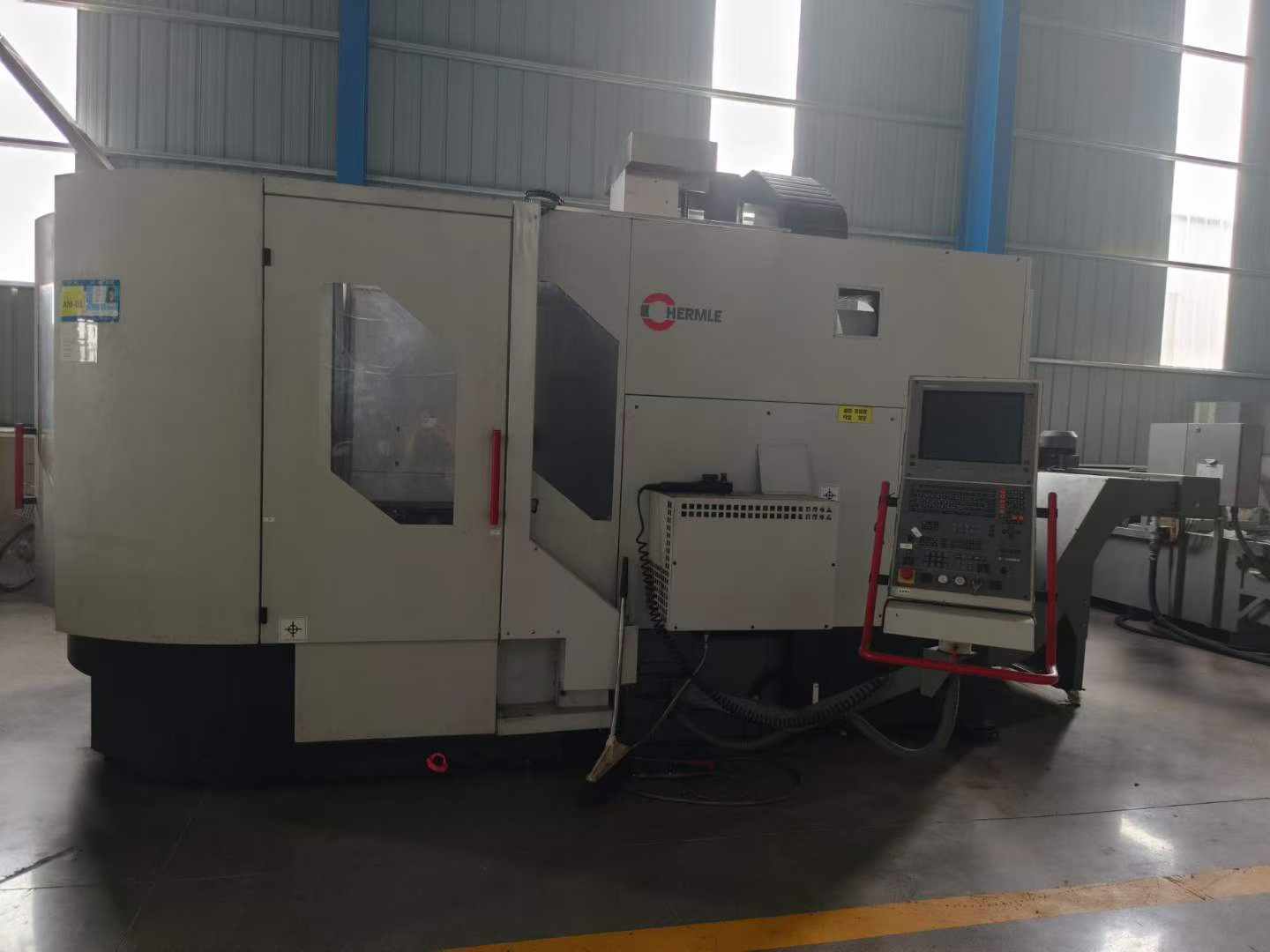

Used HERMLE C 40 UP 5-Axis Machining Center with Heidenhain Control

HERMLE C 40 UP 5-Axis Machining Center with Heidenhain iTNC 530 control. Full 5-axis simultaneous machining with RTCP function. Equipped with dual-pallet changer and high-speed spindle. Ideal for complex part production.

Machine Code: MC260766
Year: On request
Location: China
Usage Hours: On request

Accessories

Infrared probe and on-machine workpiece measurement (Renishaw OMP 60 compatible)

Email Inquiry

Main Specifications

X-axis travel	800 mm
Y-axis travel	700 mm
Z-axis travel	500 mm
Spindle speed	18000 rpm
Spindle motor power (S1)	26 kW
Spindle torque	120 N·m
Tool magazine capacity	38 tools
Max tool diameter	80 mm
Max tool length	300 mm
Max tool weight	8 kg
Tool change time	4.5 sec

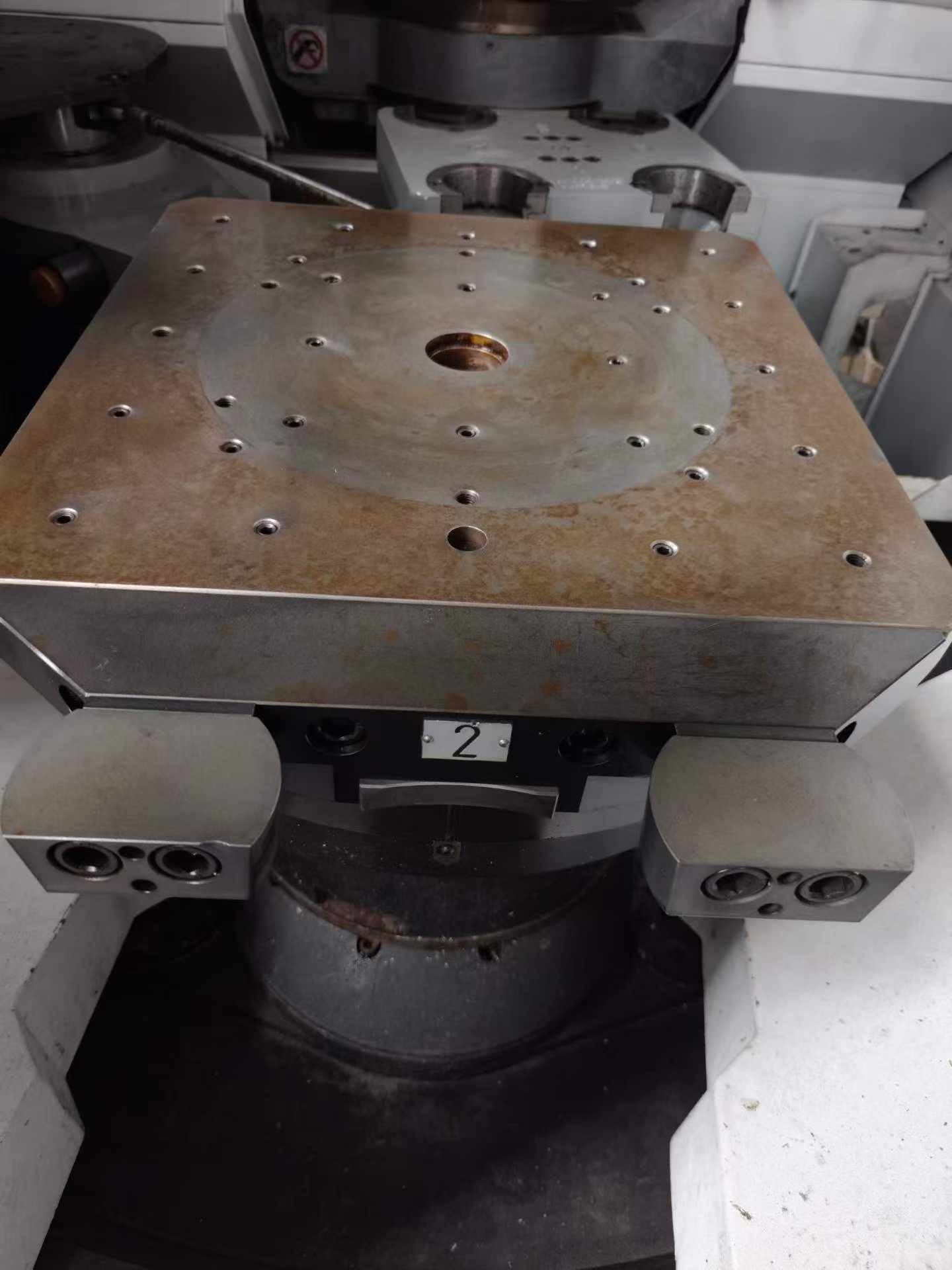

Pallet size	Φ500 mm
Pallet load capacity	250 kg
C-axis indexing	360° infinite
A-axis travel	-130° to +100°
Pallet exchange time	12 sec
Rotary table repeatability	≤±0.002°
Spindle interface	HSK-A 63
Radial runout	≤0.002 mm

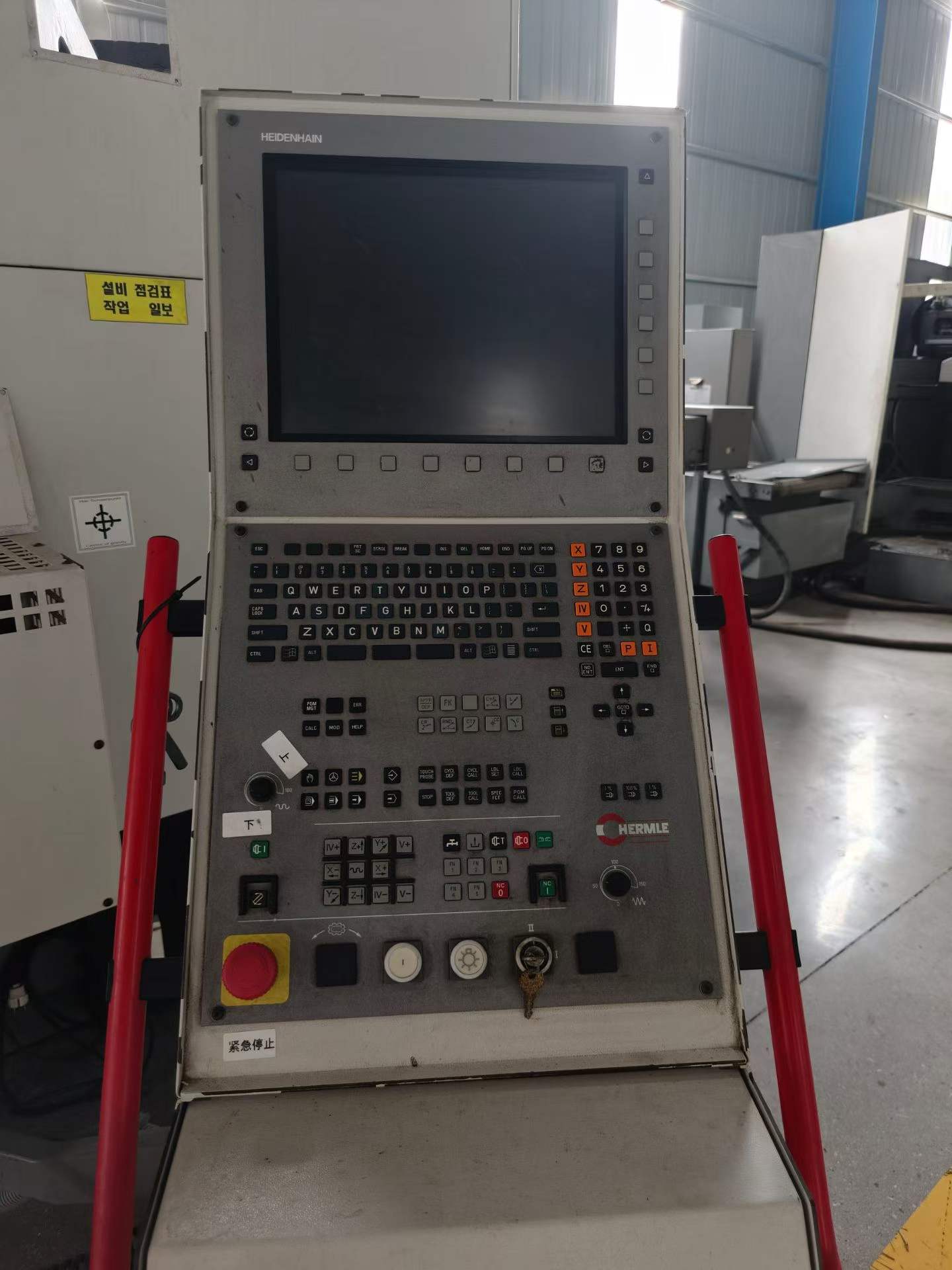

Controller	Heidenhain iTNC 530
Machine Type	5-Axis Machining Center
Brand	HERMLE
Model	C 40 UP
Rtcp Function	Yes (standard)
Infrared Probe	Supported
Online Workpiece Measurement	Compatible with Renishaw OMP 60

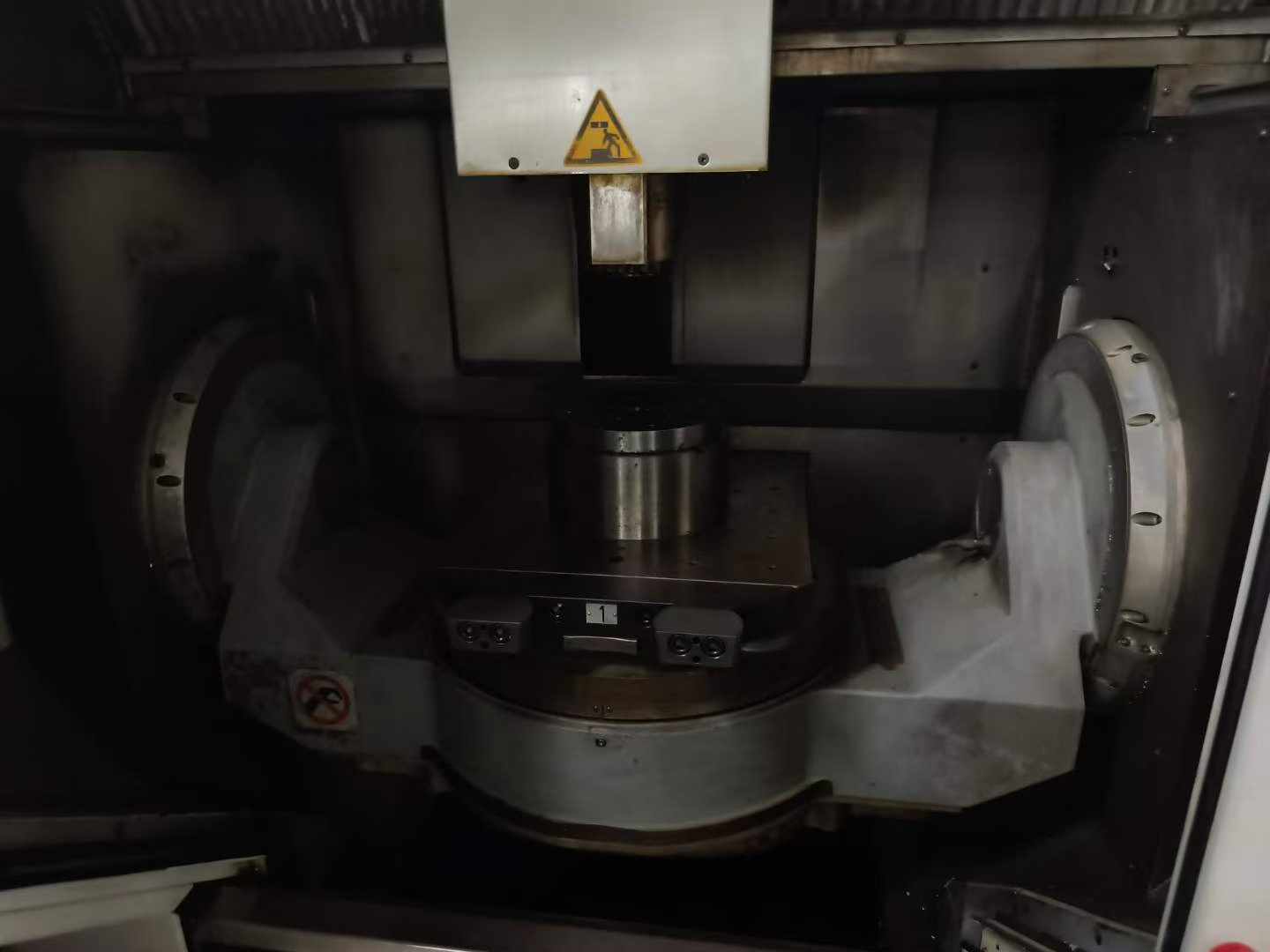

Rotary Table Type	Dual rotary table with A/C axis and dual pallet exchanger
Infrared Probe Support	Supported
