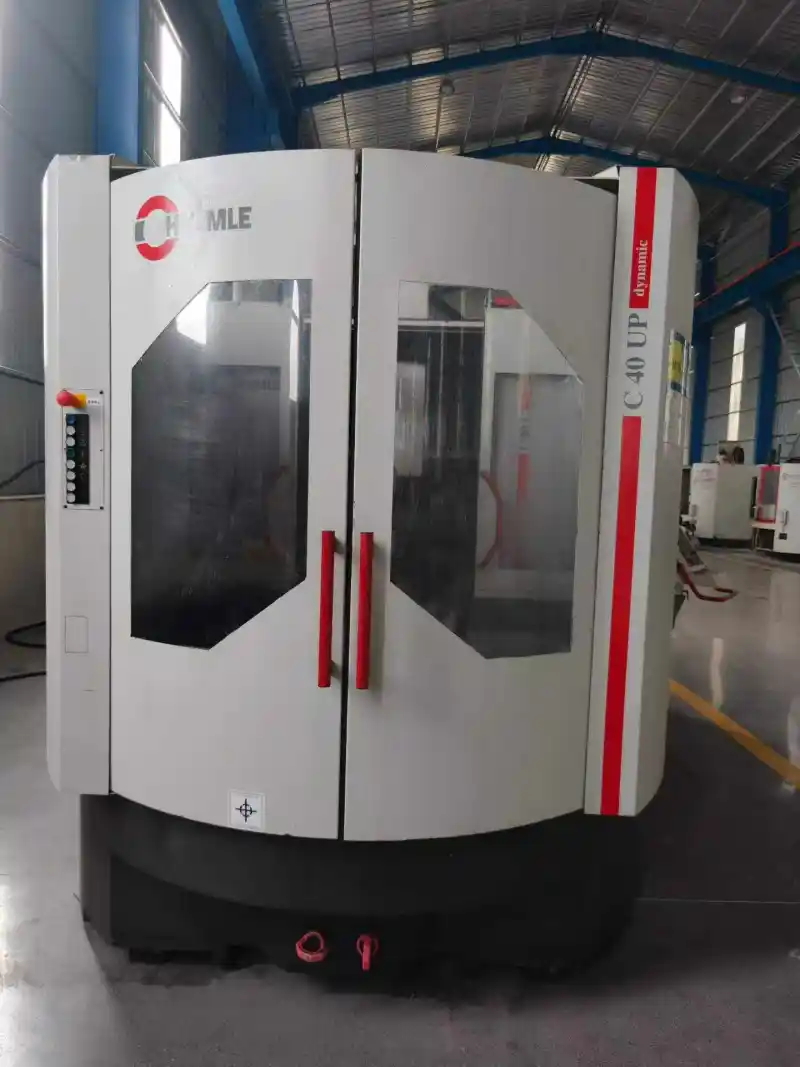

Used HERMLE C 40 UP 5-Axis Machining Center with Heidenhain Control
HERMLE C 40 UP 5-Axis Machining Center with HEIDENHAIN iTNC 530 control. Full 5-axis simultaneous machining with RTCP function. Equipped with dual-pallet changer and high-speed spindle. Ideal for complex part production.
- Código da Máquina
- MC260766
- Ano
- Sob consulta
- Localização
- China
- Horas de Uso
- Sob consulta
Acessórios
Infrared probe and on-machine workpiece measurement (Renishaw OMP 60 compatible)
Principais Especificações
| X-axis travel | 800 mm |
|---|---|
| Y-axis travel | 700 mm |
| Z-axis travel | 500 mm |
| Spindle speed | 18000 rpm |
| Spindle motor power (S1) | 26 kW |
| Spindle torque | 120 N·m |
| Tool magazine capacity | 38 tools |
| Max tool diameter | 80 mm |
| Max tool length | 300 mm |
| Max tool weight | 8 kg |
| Tool change time | 4.5 sec |
| Pallet size | Φ500 mm |
| Pallet load capacity | 250 kg |
| C-axis indexing | 360° infinite |
| A-axis travel | -130° to +100° |
| Pallet exchange time | 12 sec |
| Rotary table repeatability | ≤±0.002° |
| Spindle interface | HSK-A 63 |
| Radial runout | ≤0.002 mm |
| Controller | HEIDENHAIN iTNC 530 |
| Machine Type | 5-Axis Machining Center |
| Brand | HERMLE |
| Model | C 40 UP |
| Rtcp Function | Yes (standard) |
| Infrared Probe | Supported |
| Online Workpiece Measurement | Compatible with Renishaw OMP 60 |
| Rotary Table Type | Dual rotary table with A/C axis and dual pallet exchanger |
| Infrared Probe Support | Supported |
