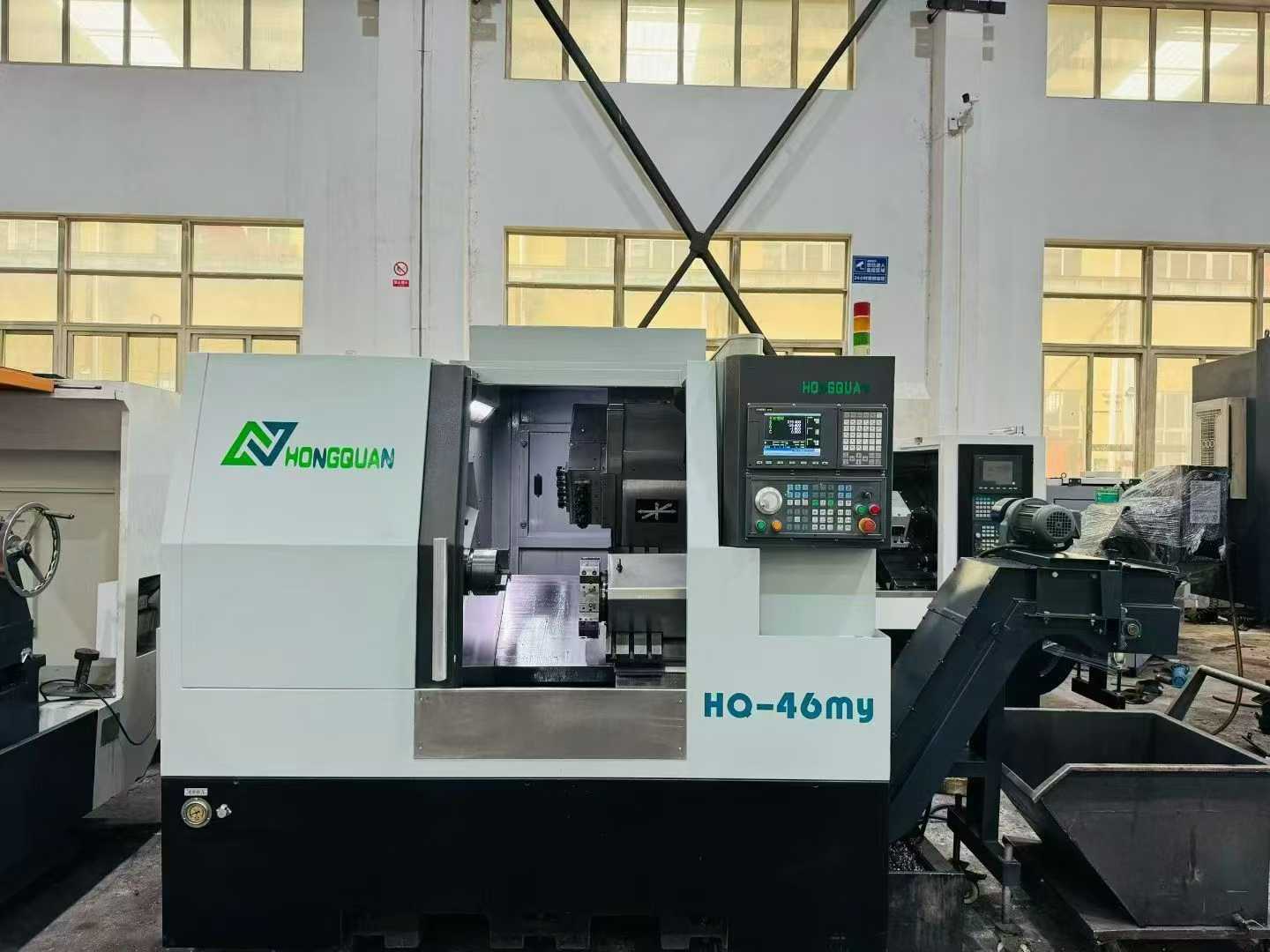

Used Hongquan HQ-46 Turn-Mill CNC Lathe

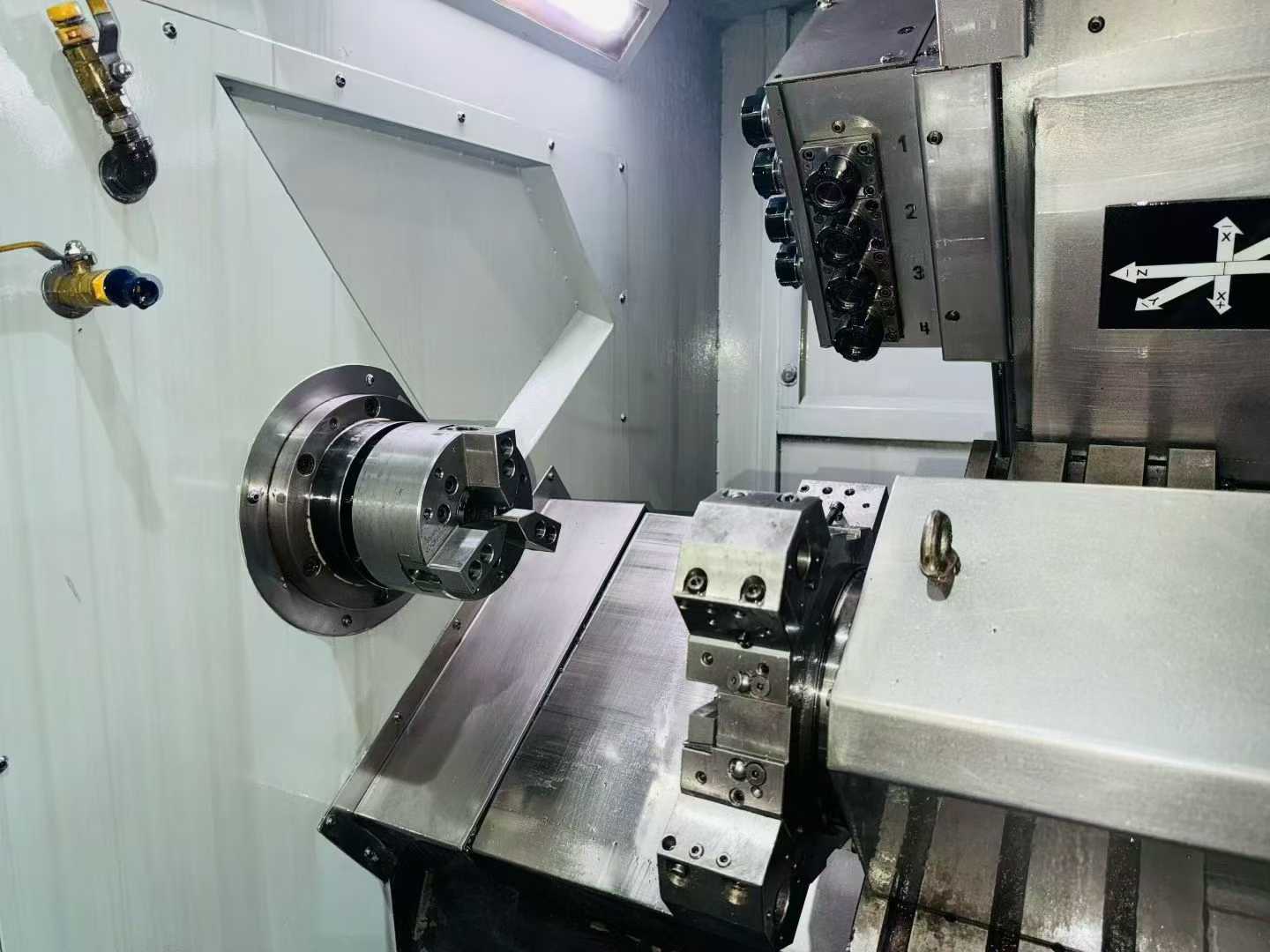

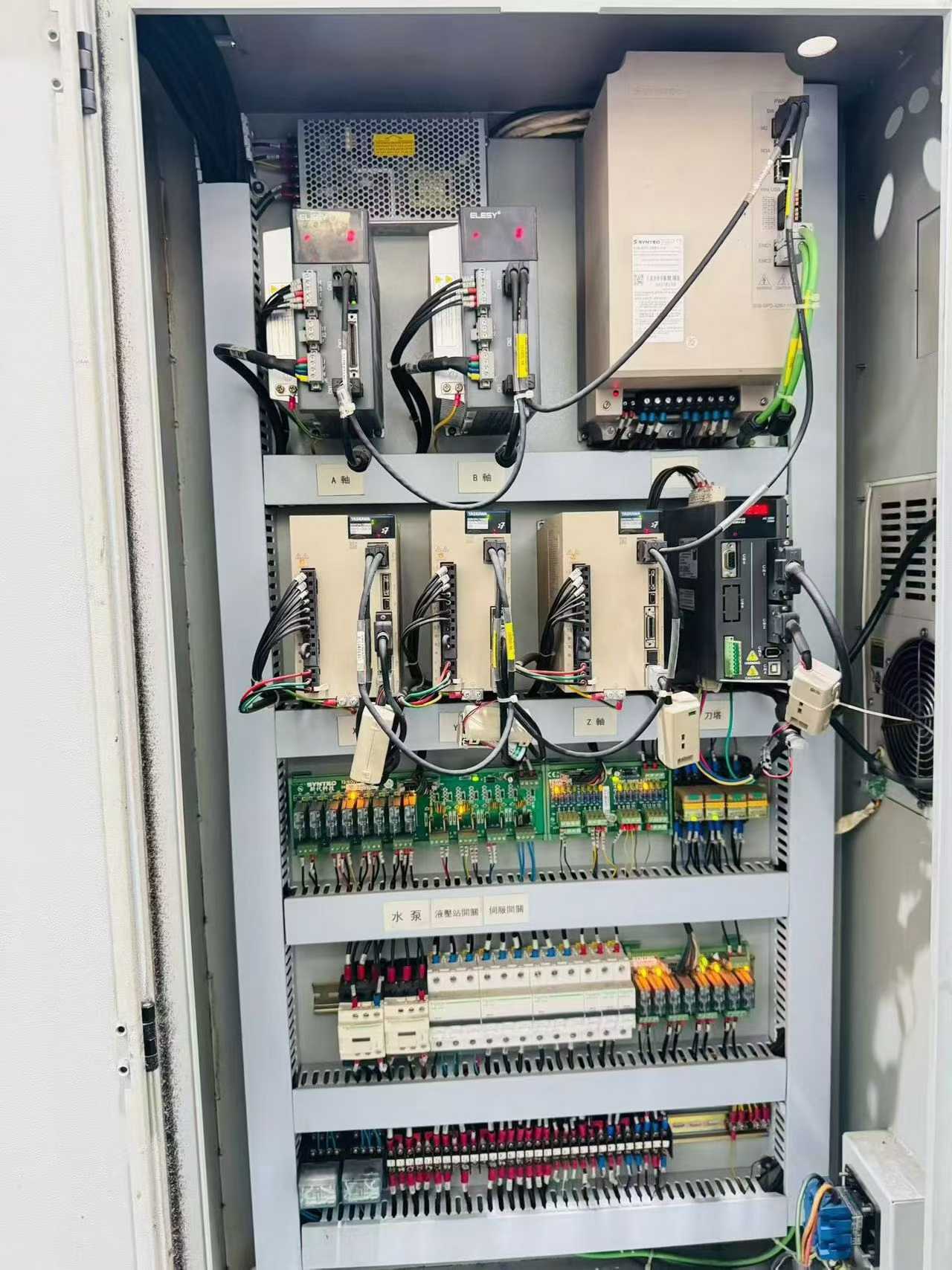

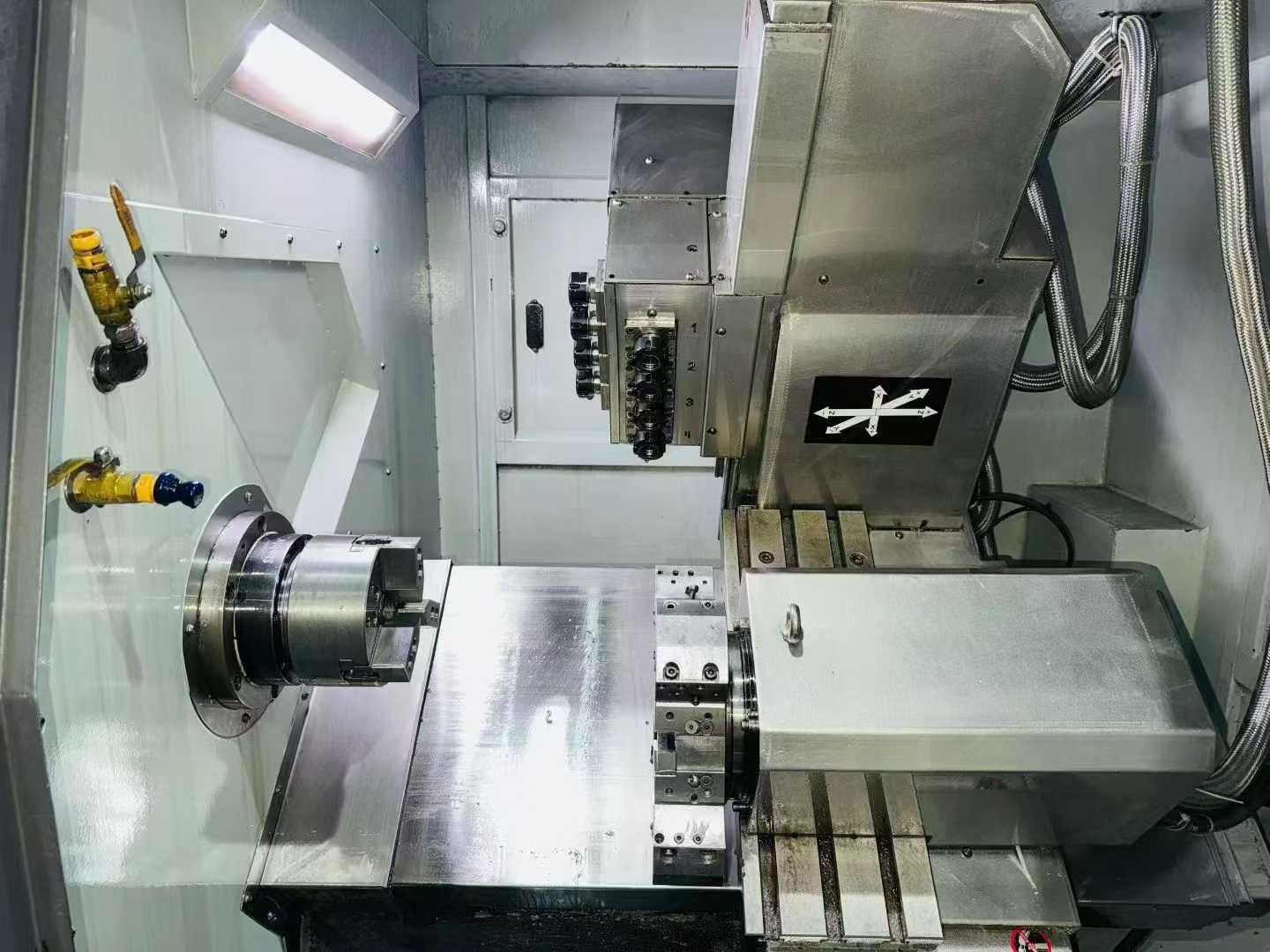

Used Hongquan HQ-46 turn-mill center (90% new) available from stock in China. Equipped with SYNTEC 21 TB bus absolute control, Yaskawa drive motors, Chandox 6in. through-hole hydraulic chuck, A 2-5 high-speed spindle unit, C-axis hydraulic brake, 8-station servo turret with 4+4 ER 25 live tooling, X/Y/Z travel 700 x 220 x 350 mm, max through-bar diameter ∅45 mm, and chain chip conveyor. The original new machine purchase price was RMB 250,000; current price is very favorable. Machine can be verified by video or on-site inspection.
- Machine Code
- TML260811
- Year
- On request
- Location
- China
- Usage Hours
- On request
Accessories
Chain chip conveyor
Main Specifications
| Max through-bar diameter | 45 mm |
|---|---|
| X-axis travel | 700 mm |
| Y-axis travel | 220 mm |
| Z-axis travel | 350 mm |
| Spindle nose | A 2-5 |
| Chuck | Chandox 6in. through-hole hydraulic chuck |

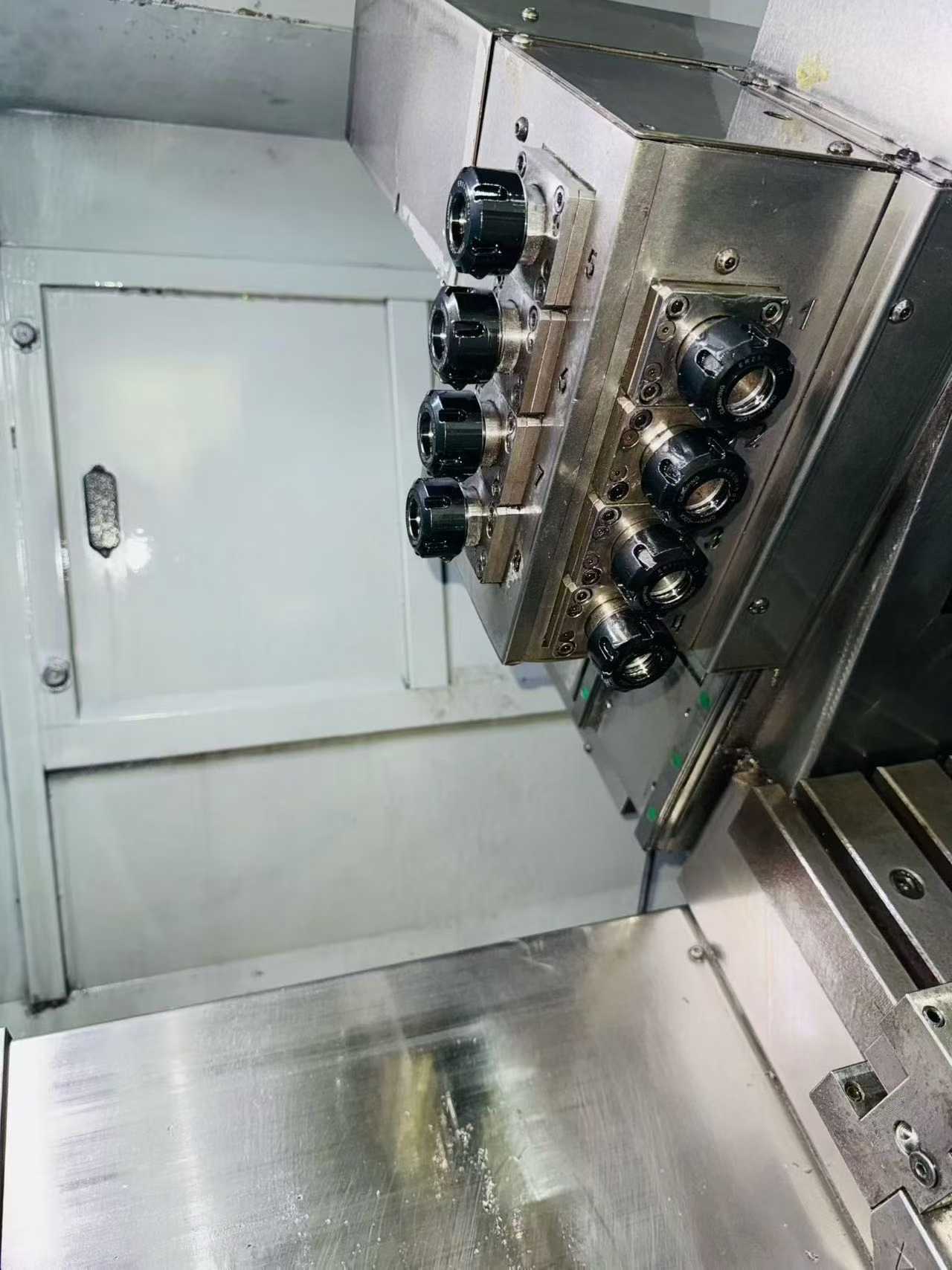

| Live tooling | 4+4 ER 25 |

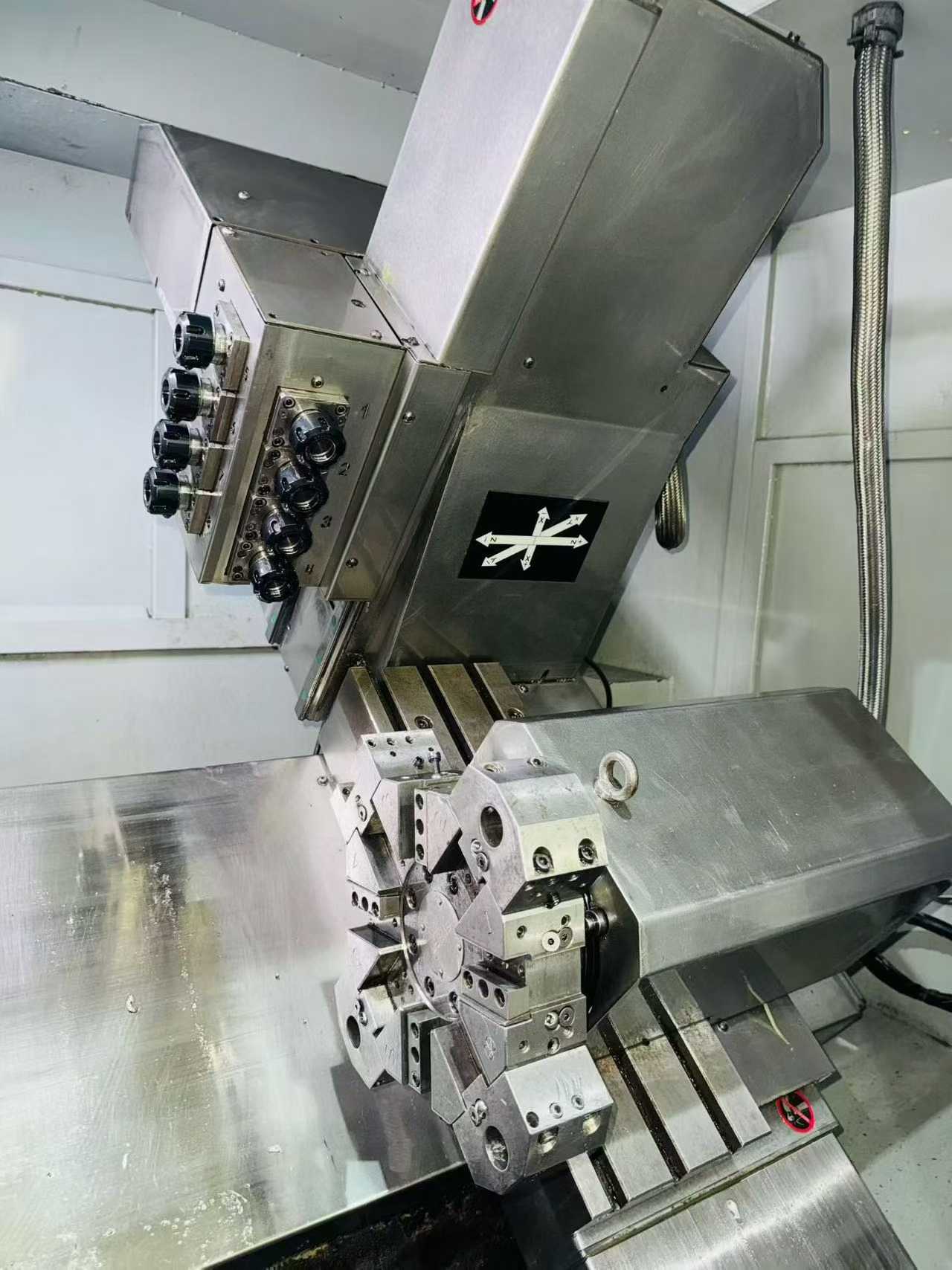

| Turret | 8-station servo turret |

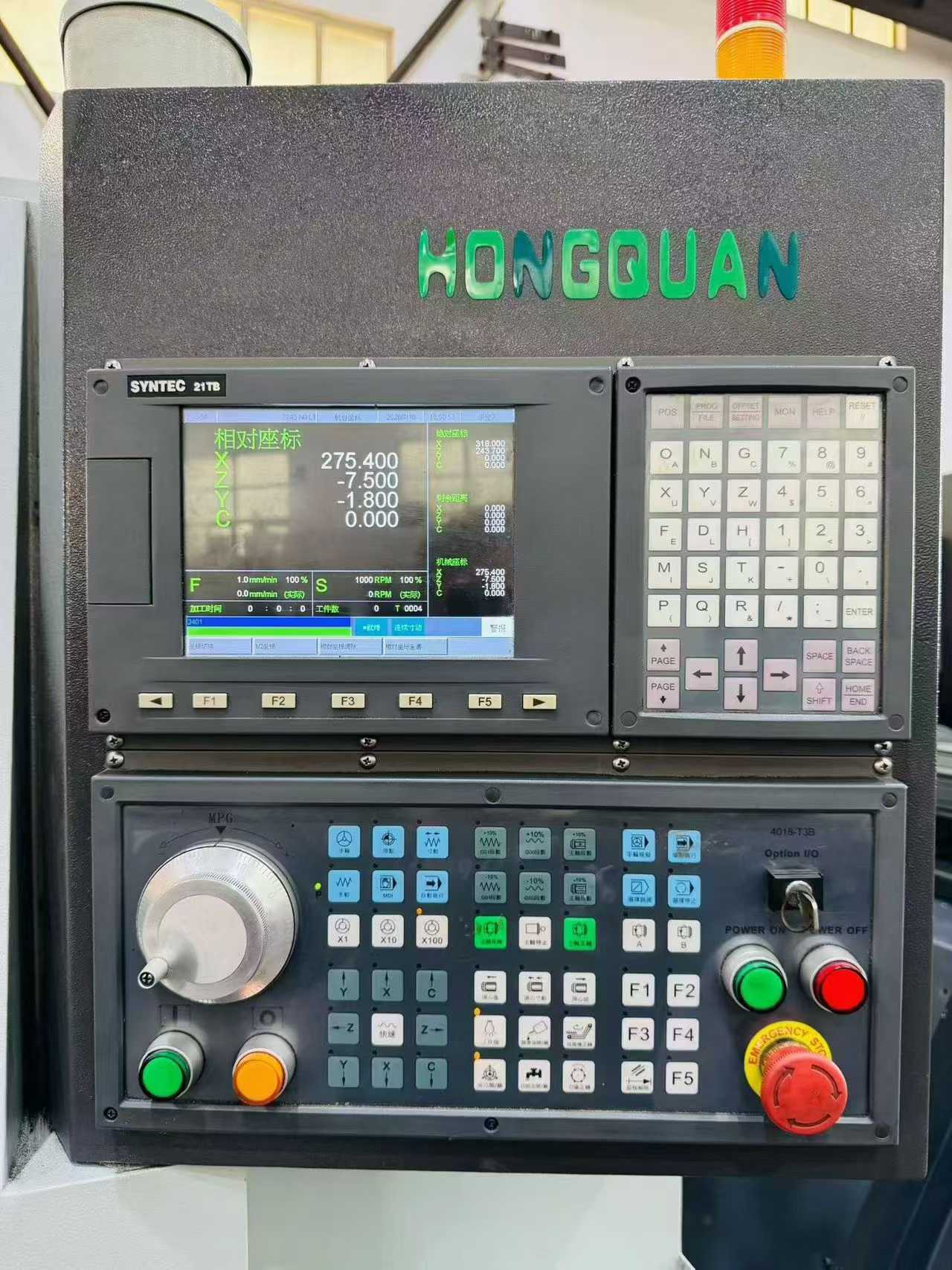

| Controller | SYNTEC 21 TB (bus absolute system) |
| Machine Type | Turn-Mill |
| Brand | Hongquan |
| Model | HQ-46 |
| Condition | 90% new |
| Spindle Type | High-speed unit spindle |
| C-axis Brake | Hydraulic |
| Chip Conveyor | Chain-type chip conveyor |
| New Machine Purchase Price | 25 w |
