Used Makino D 500 5-Axis Machining Centers (2023 & 2024)

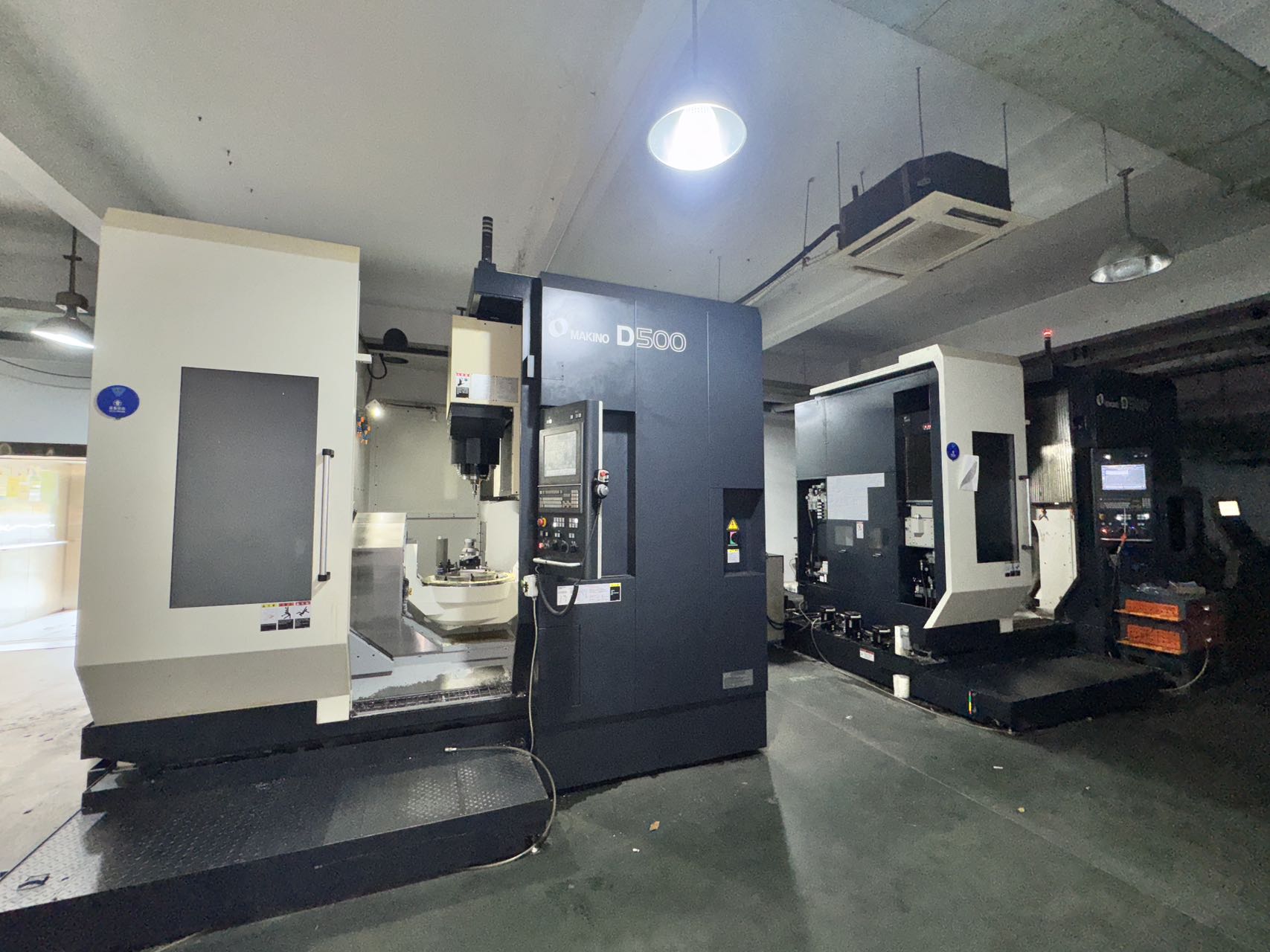

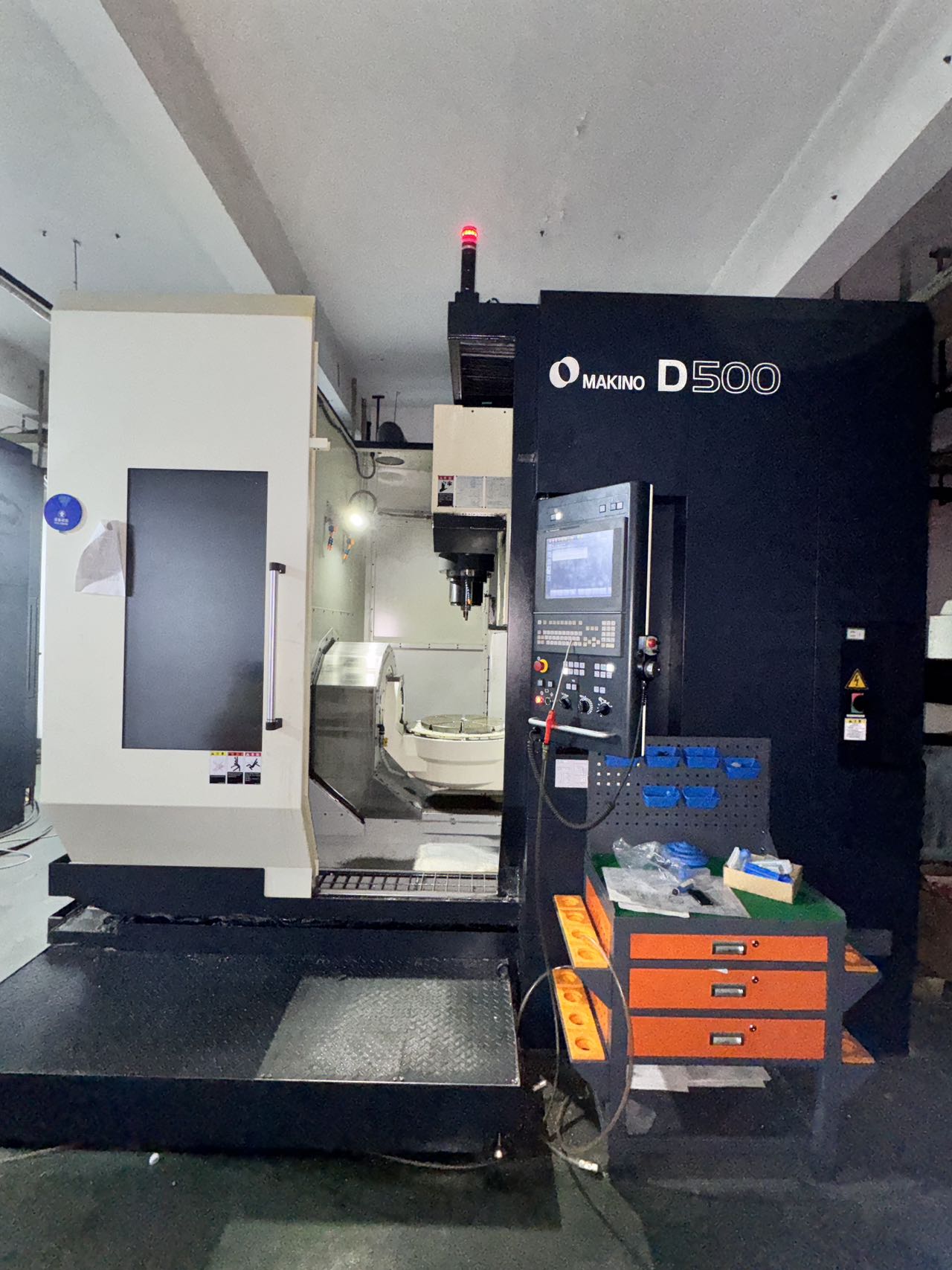

Item No. 96/97. Two used Makino D 500 5-axis machining centers are offered for sale in place at a factory in Wuxi, China. One unit is 2023 and the other is 2024. They are in near-new condition and have been used only for sample machining. Power-on hours are approximately 1,000+ and 2,000+ hours respectively. Both are equipped with BT40 tool holder, 40-tool magazine, and Makino Professional 6 control. The above parameters are for reference only; the actual machine shall prevail.

Machine Code: MC2608221
Year: 2000
Location: Wuxi, China
Usage Hours: On request

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Number of units	2
X/Y/Z travel	550 x 1000 x 500 mm

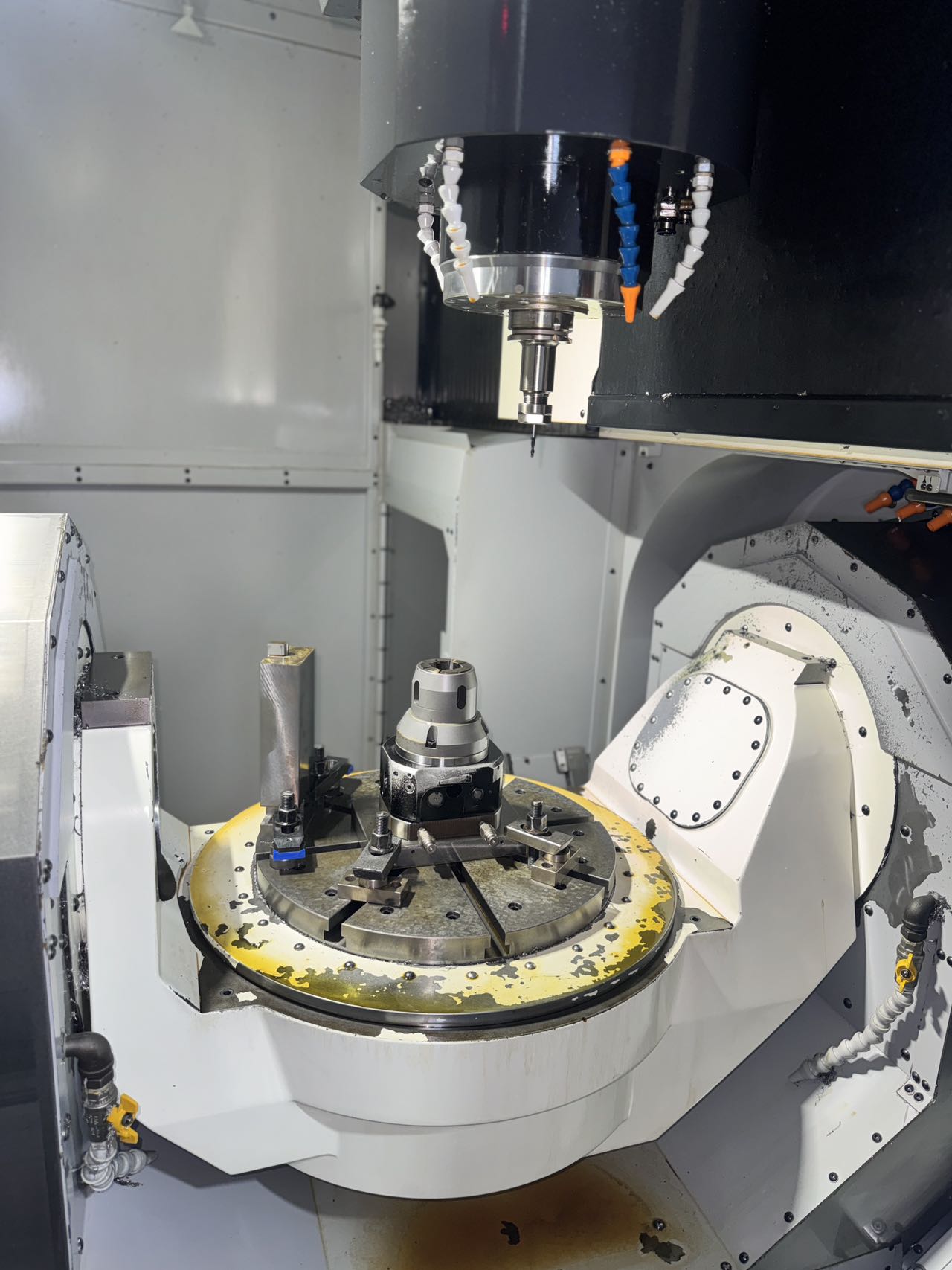

A-axis travel	150° (-120° to +30°)
C-axis rotation	360° continuous

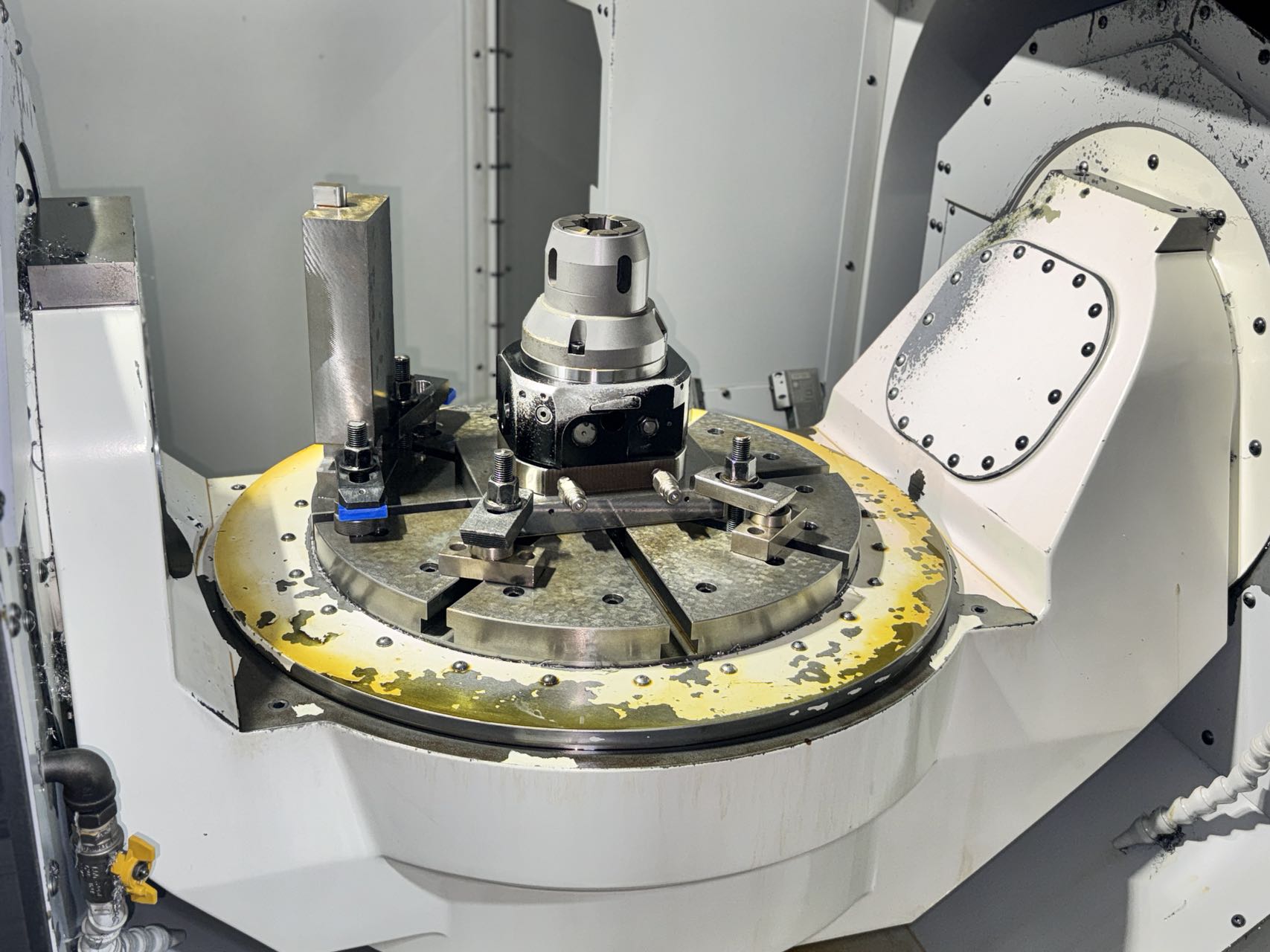

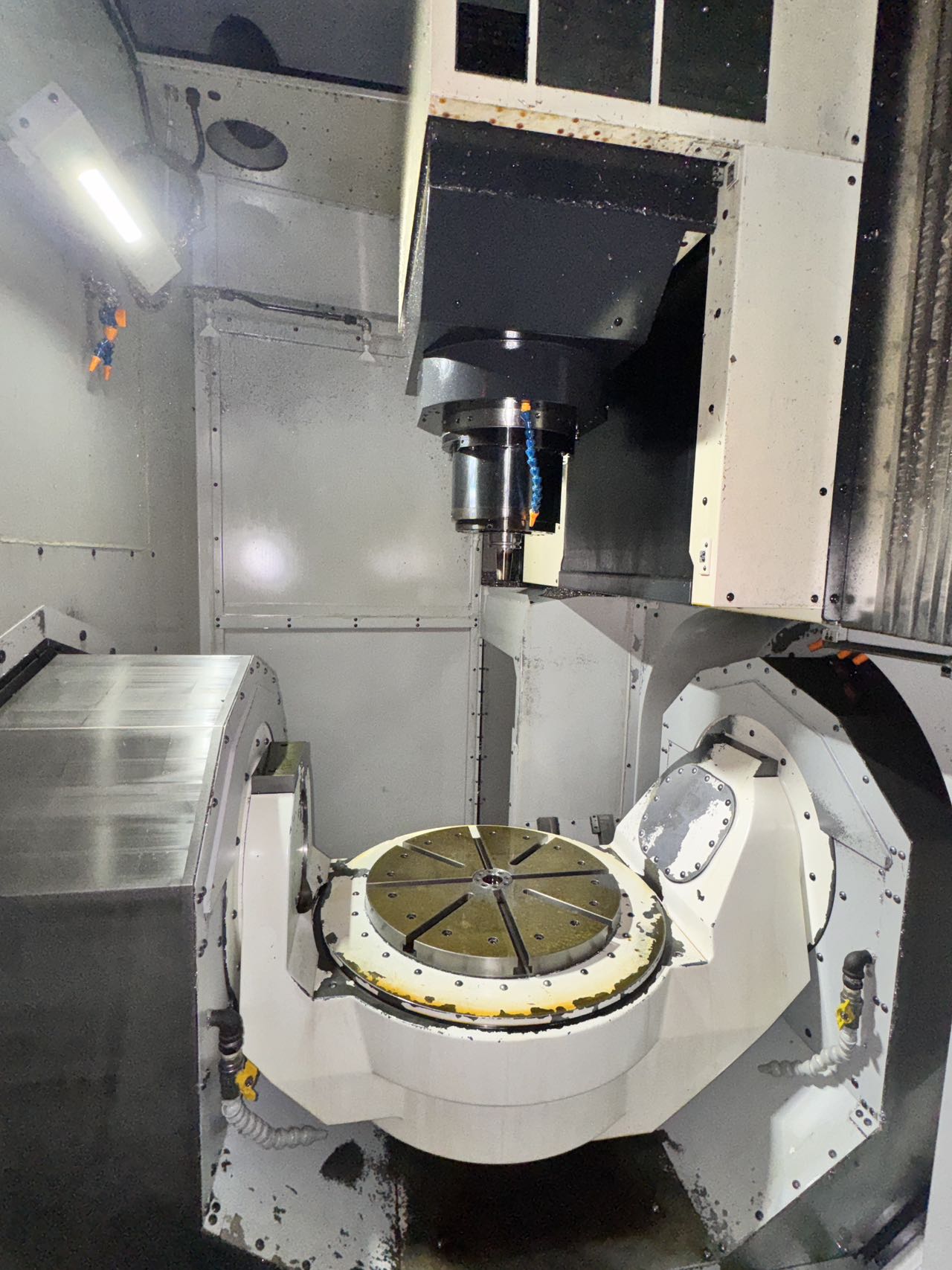

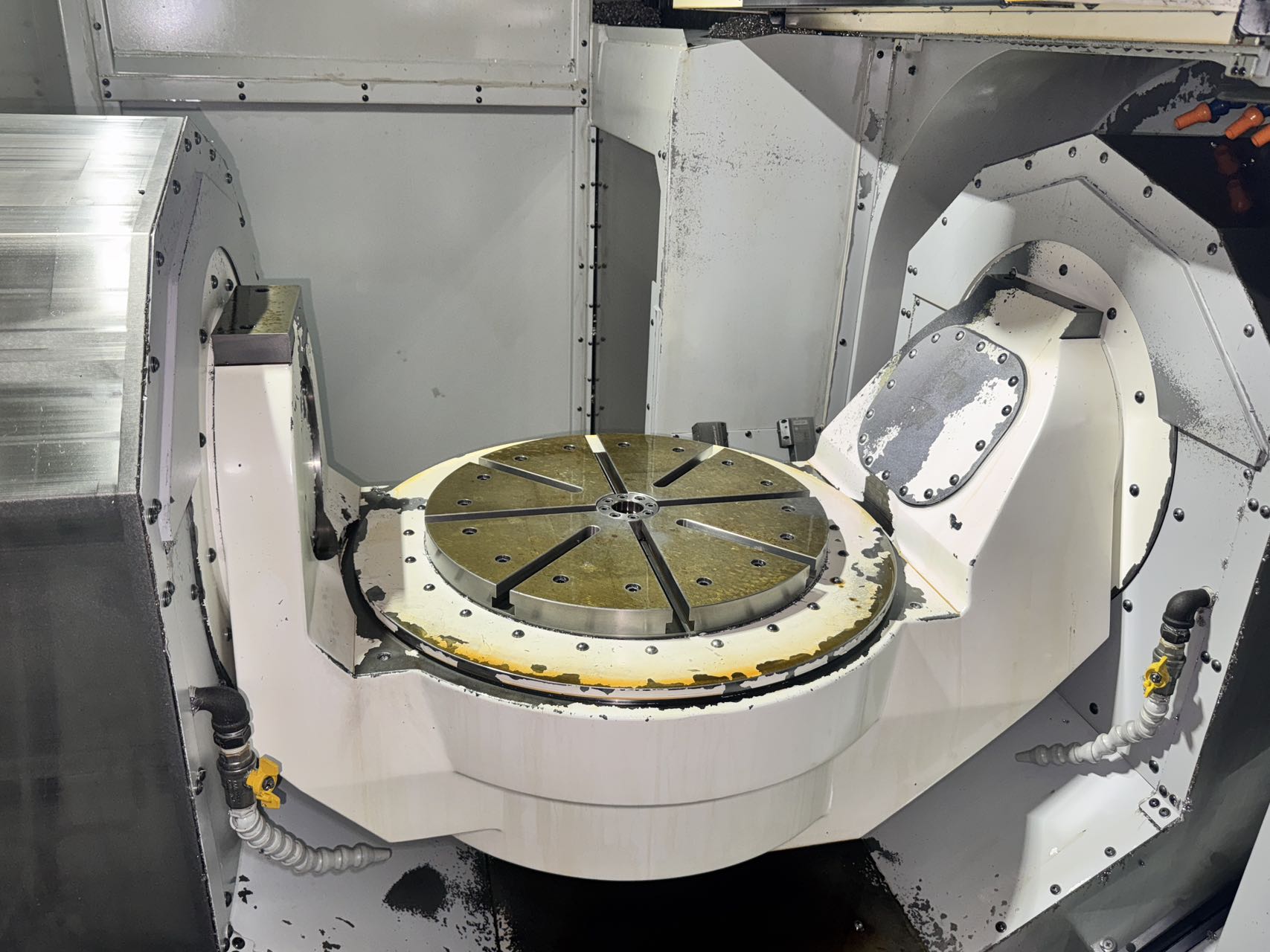

Worktable size	500 mm
Max workpiece size	650 x 500 mm
Max table load	350 kg

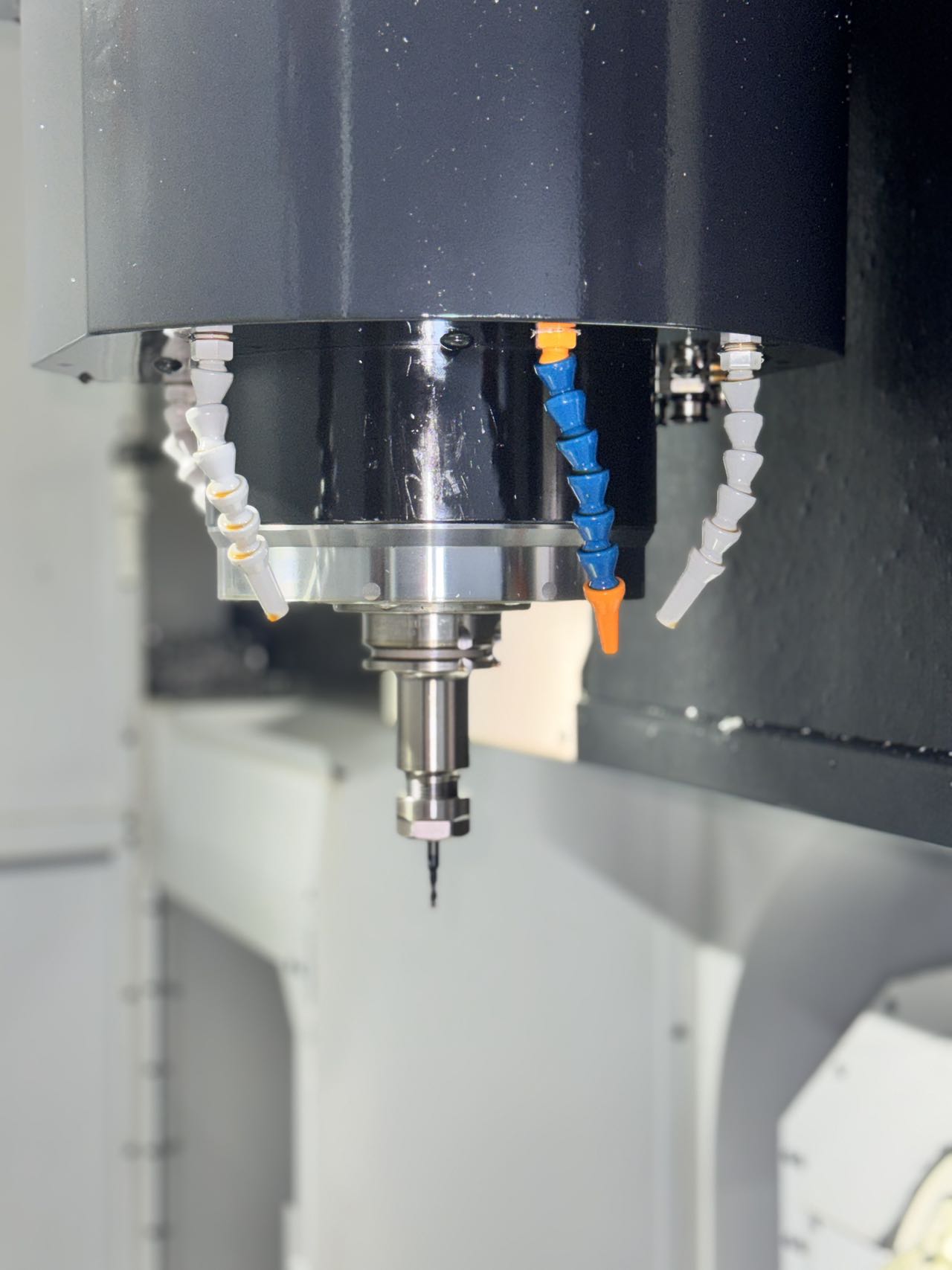

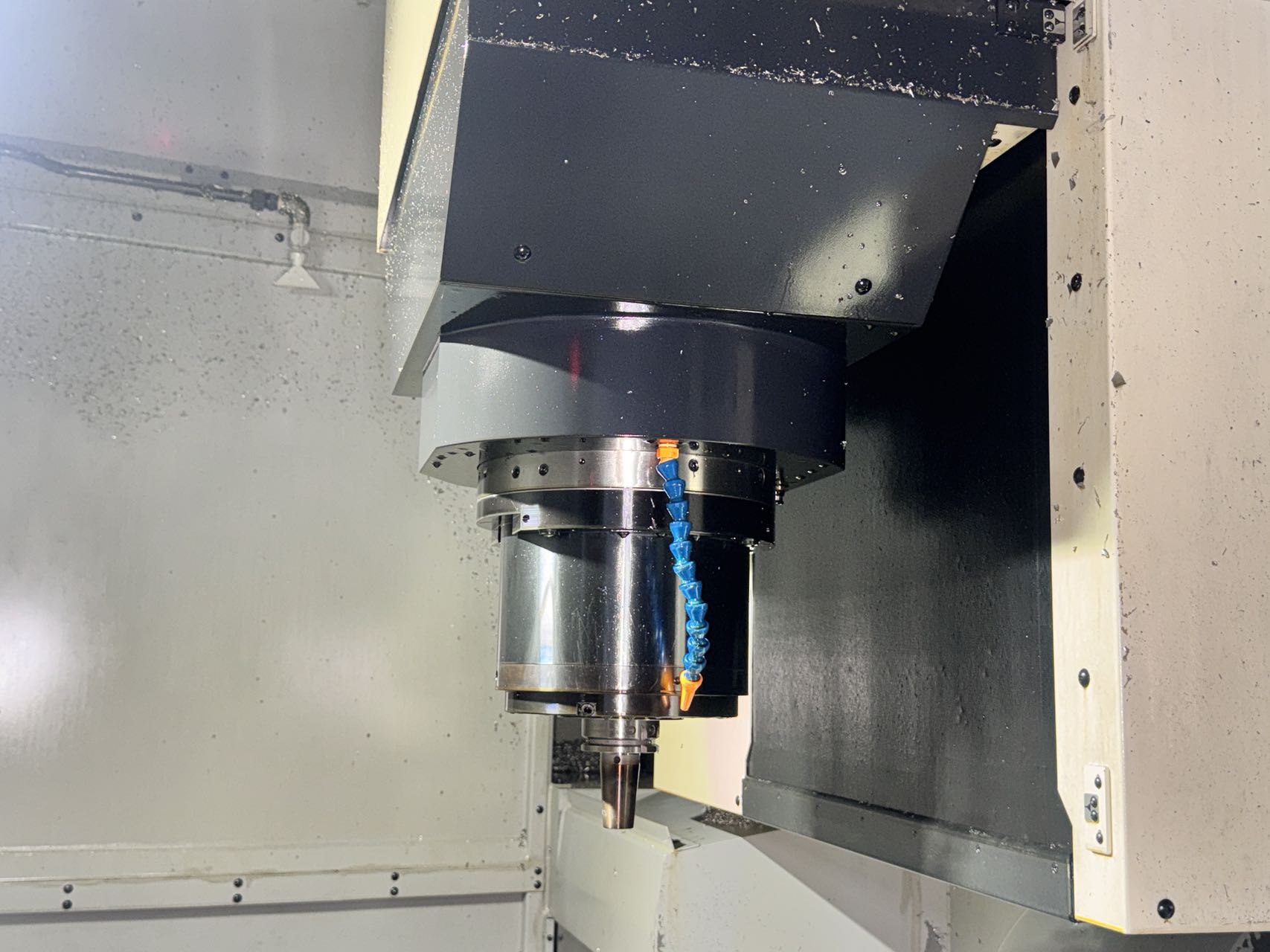

Spindle speed	14,000 rpm
Main motor power	25/22/18.5 kW
Torque	201/167/118/96 N·m
Tool holder taper	BT40

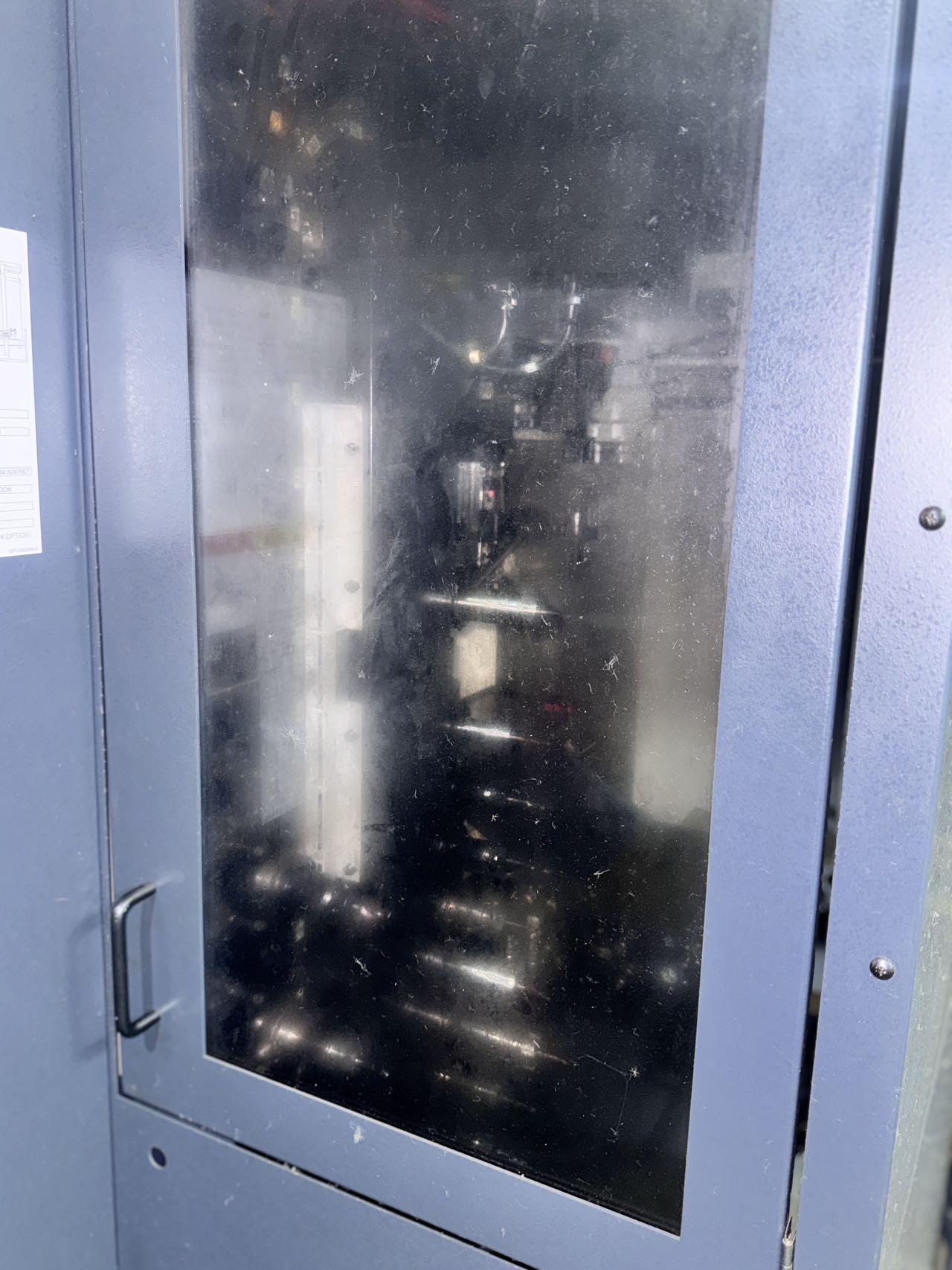

Tool magazine capacity	40 tools

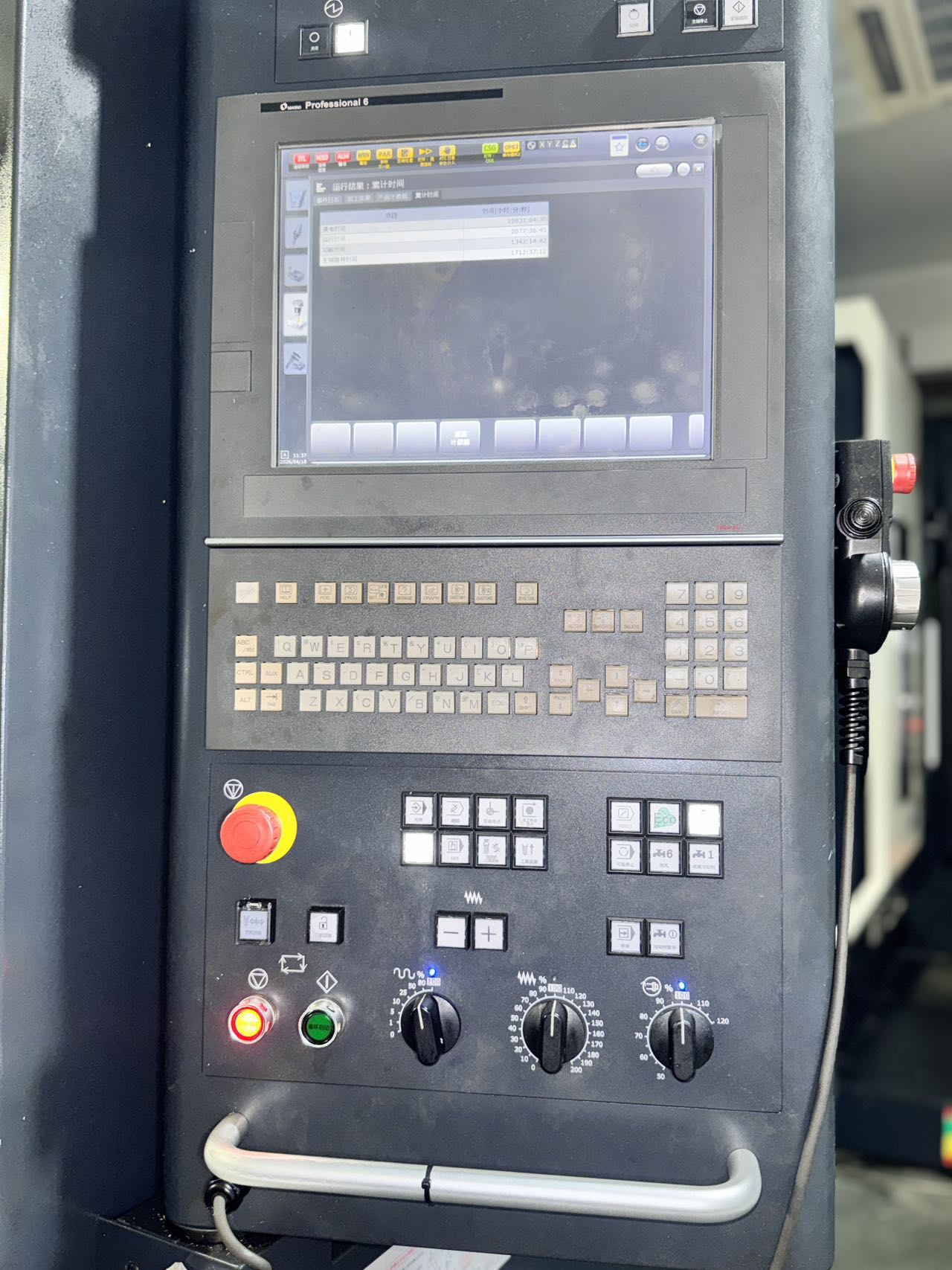

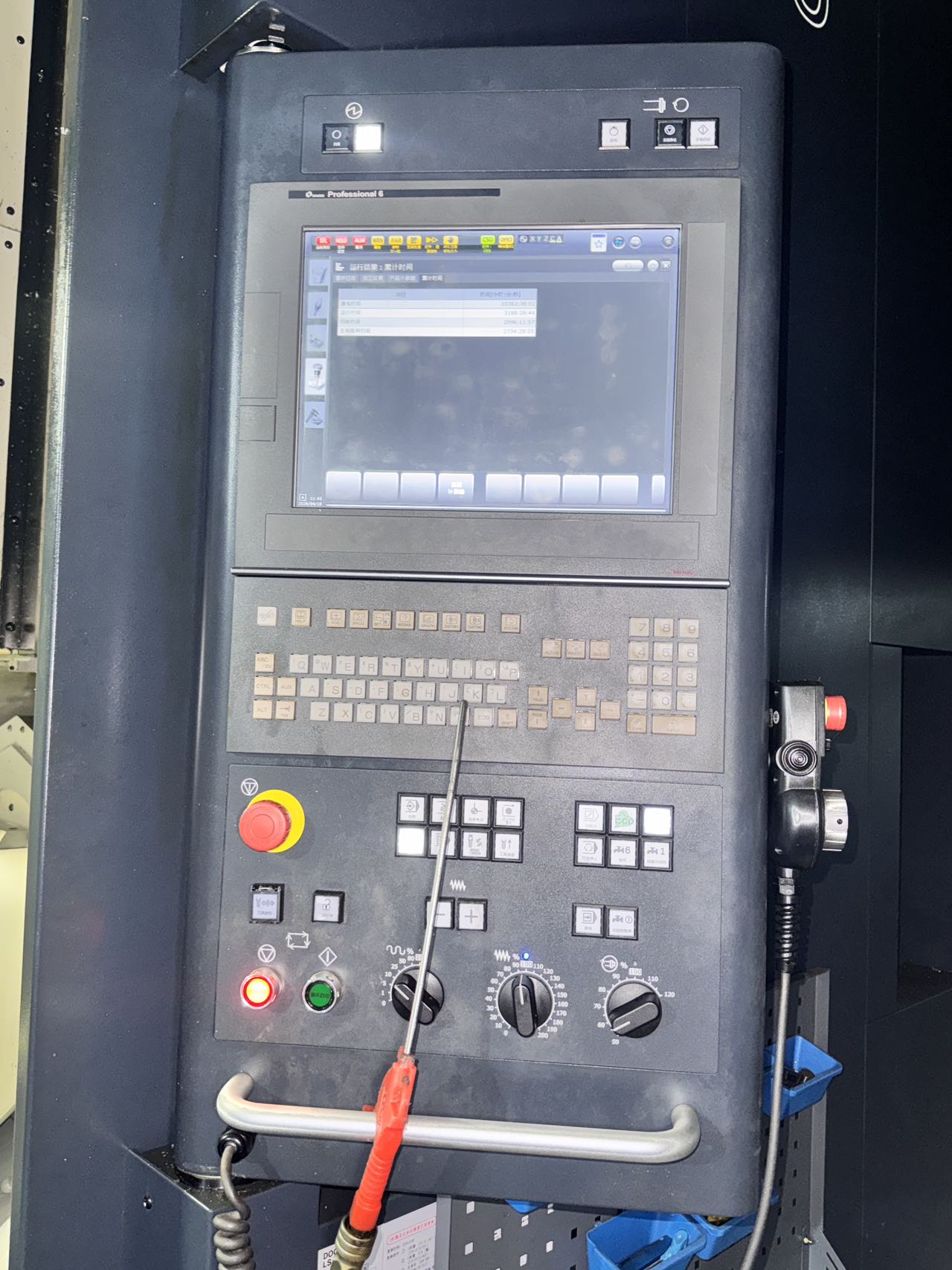

Control system	Makino Professional 6
Power-on hours	1,000+ / 2,000+ hours
Condition	Near-new, used only for sample machining
