Used MAZATROL HCN 5000 IIIL Dual-Station Horizontal Machining Center

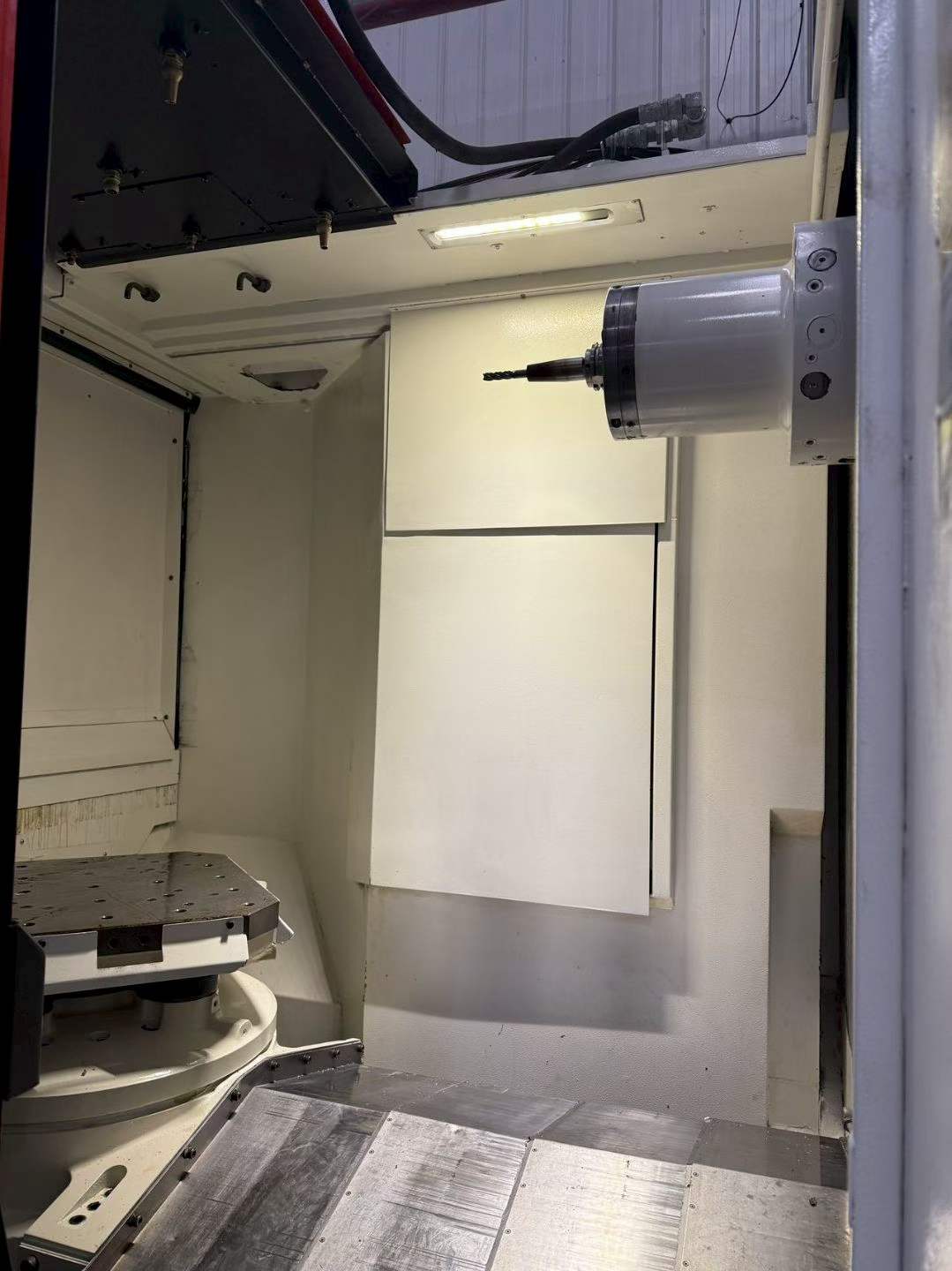

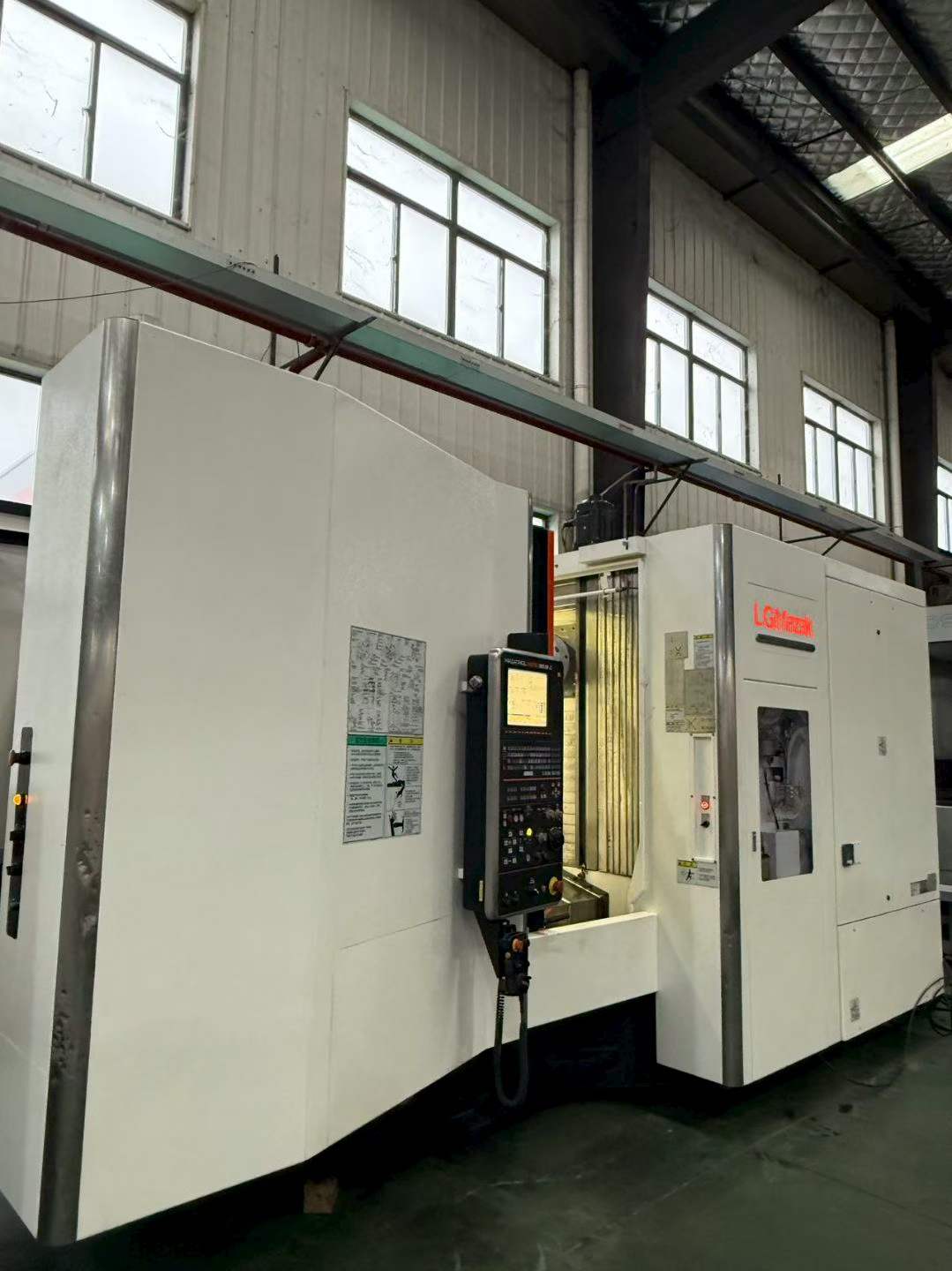

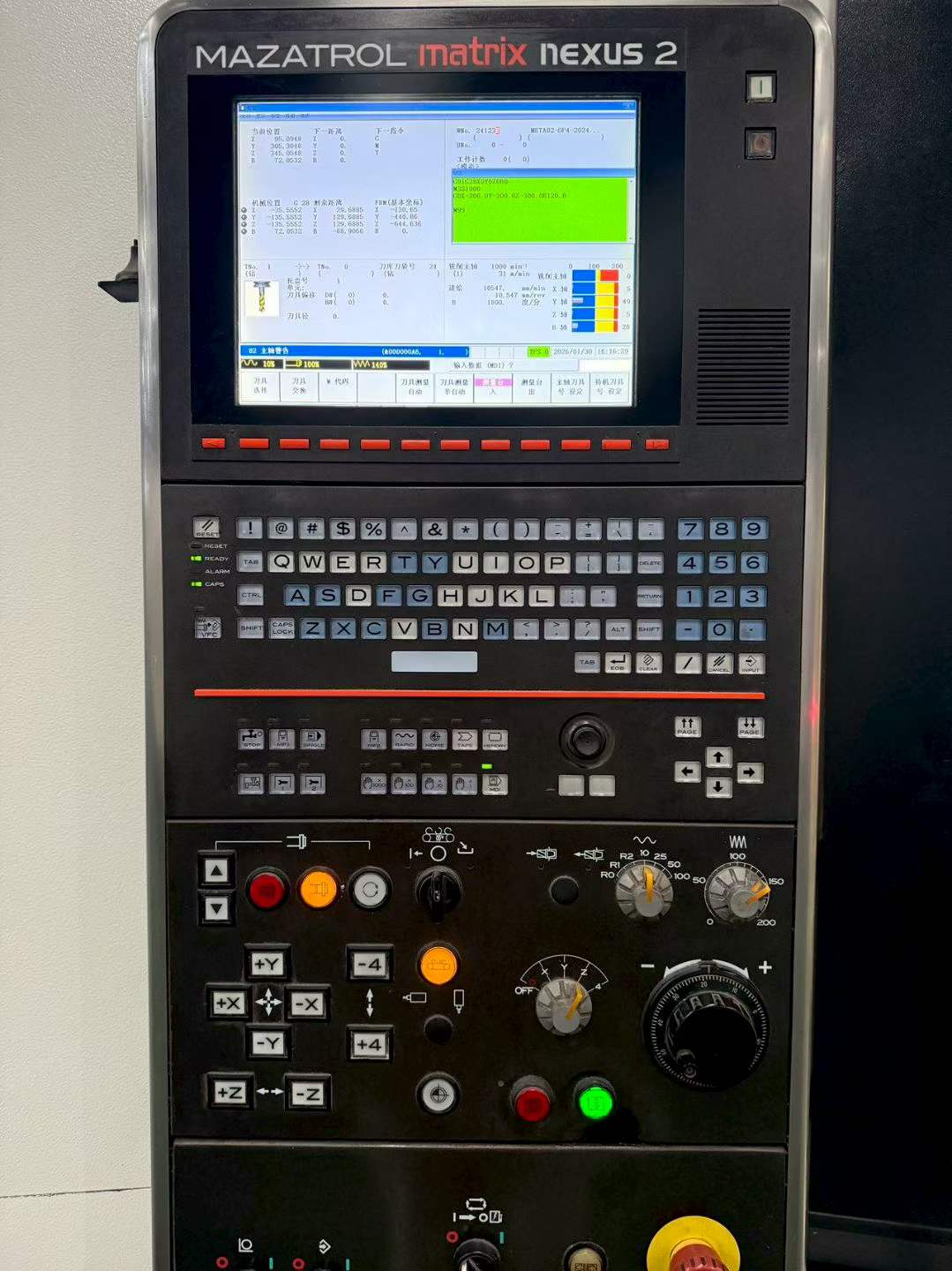

MAZATROL HCN 5000 IIIL dual-station horizontal machining center, 2015 production, with MAZATROL control, HSK63 spindle at 14000 rpm, 40-tool magazine, through-spindle coolant at 38 kg pressure, X/Y/Z travels 730 x 730 x 800 mm, worktable 500 x 500 mm with 0.001° indexing. Machine includes chip conveyor, ball screw hollow cooling, cutting water cooling, and oil cooler. Available for inspection.
- Machine Code
- HMC260709
- Year
- 2015
- Location
- China
- Usage Hours
- On request
Accessories
Chip conveyor, ball screw hollow cooling, cutting water cooling, oil cooler
Contact access
Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.
Loading…
Main Specifications

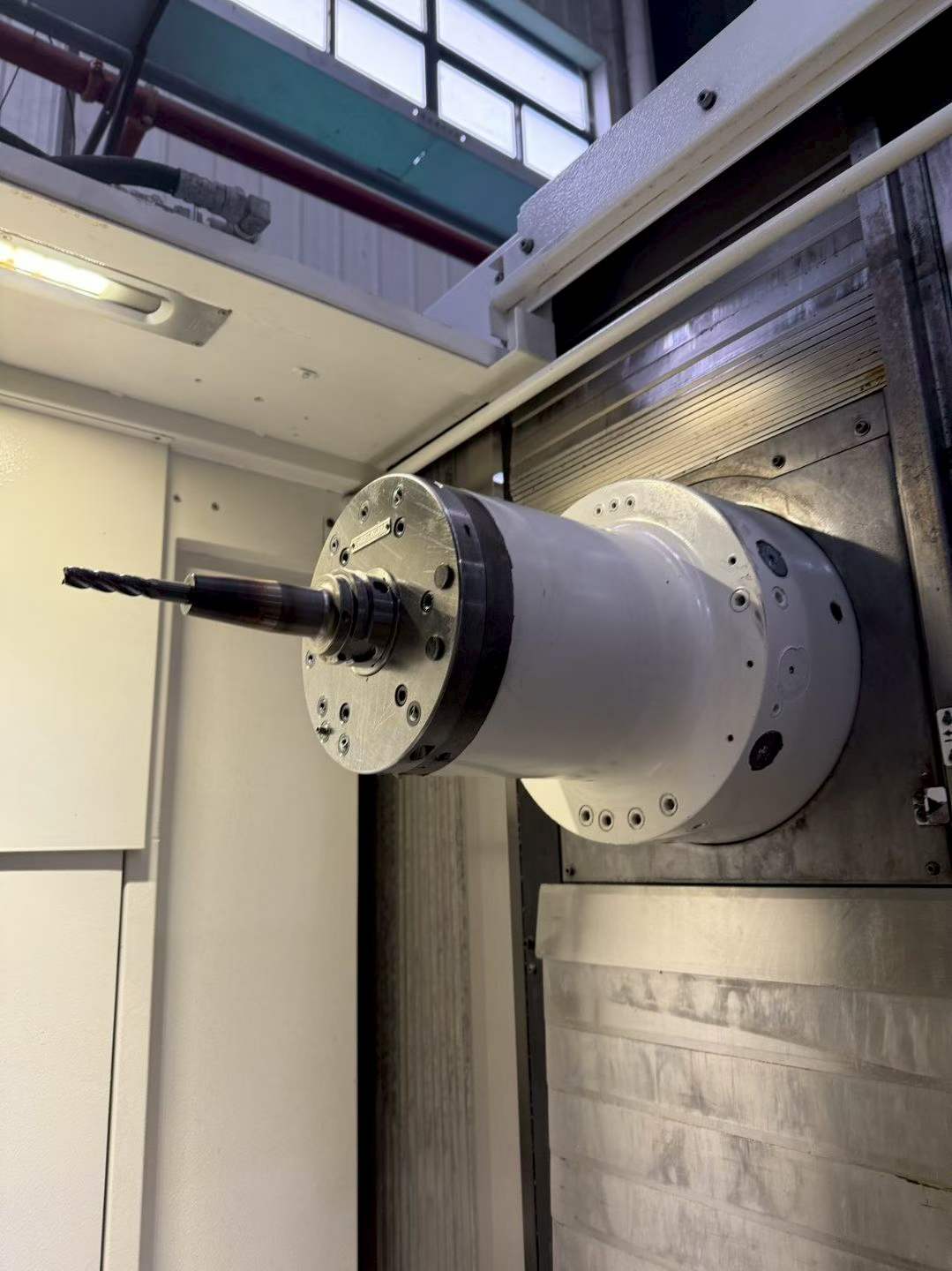

| Spindle speed | 14000 rpm |
|---|---|
| Spindle taper | HSK63 |
| Tool capacity | 40 |
| Through-spindle coolant pressure | 38 kg |
| X axis travel | 730 mm |
| Y axis travel | 730 mm |
| Z axis travel | 800 mm |

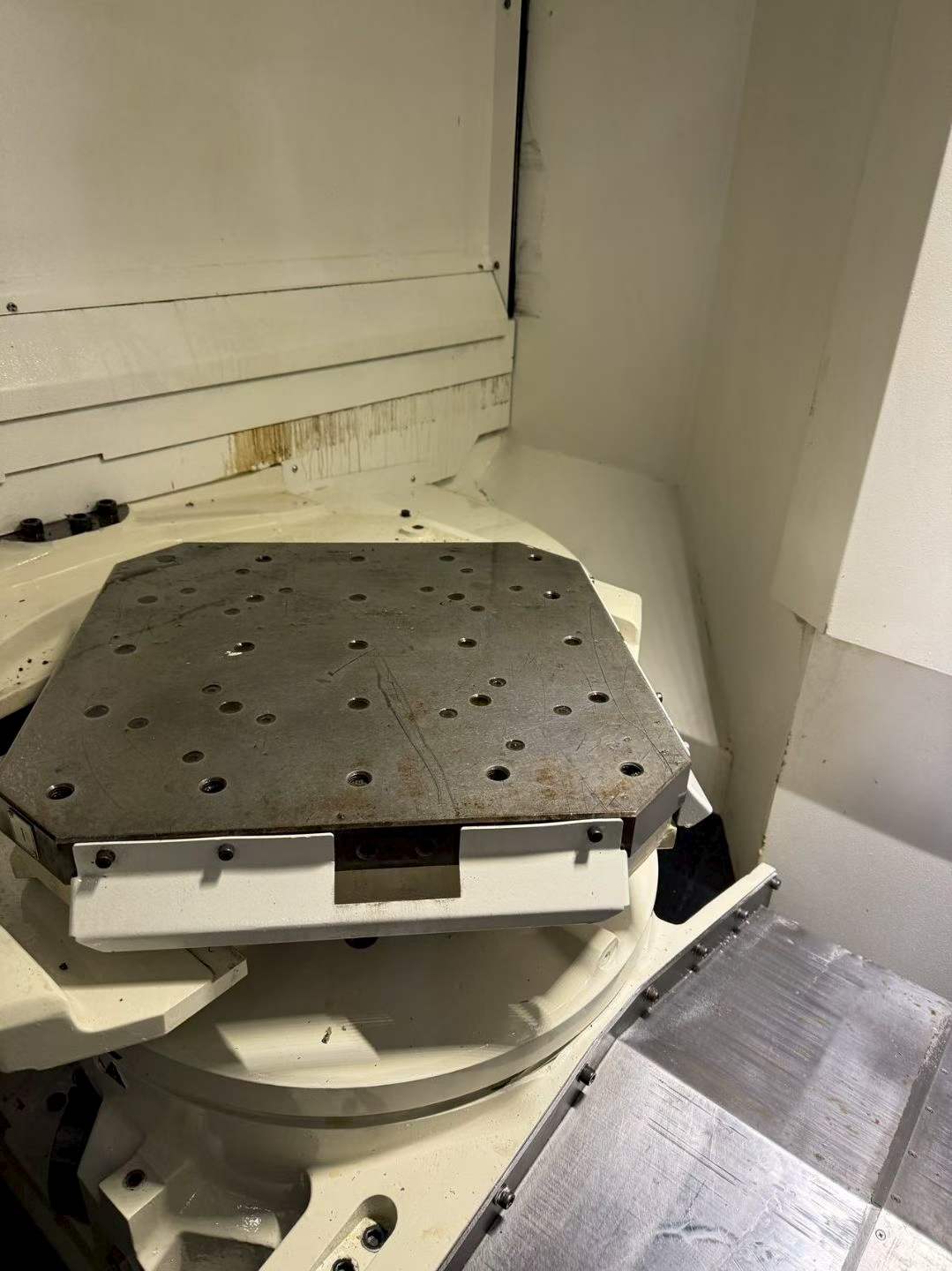

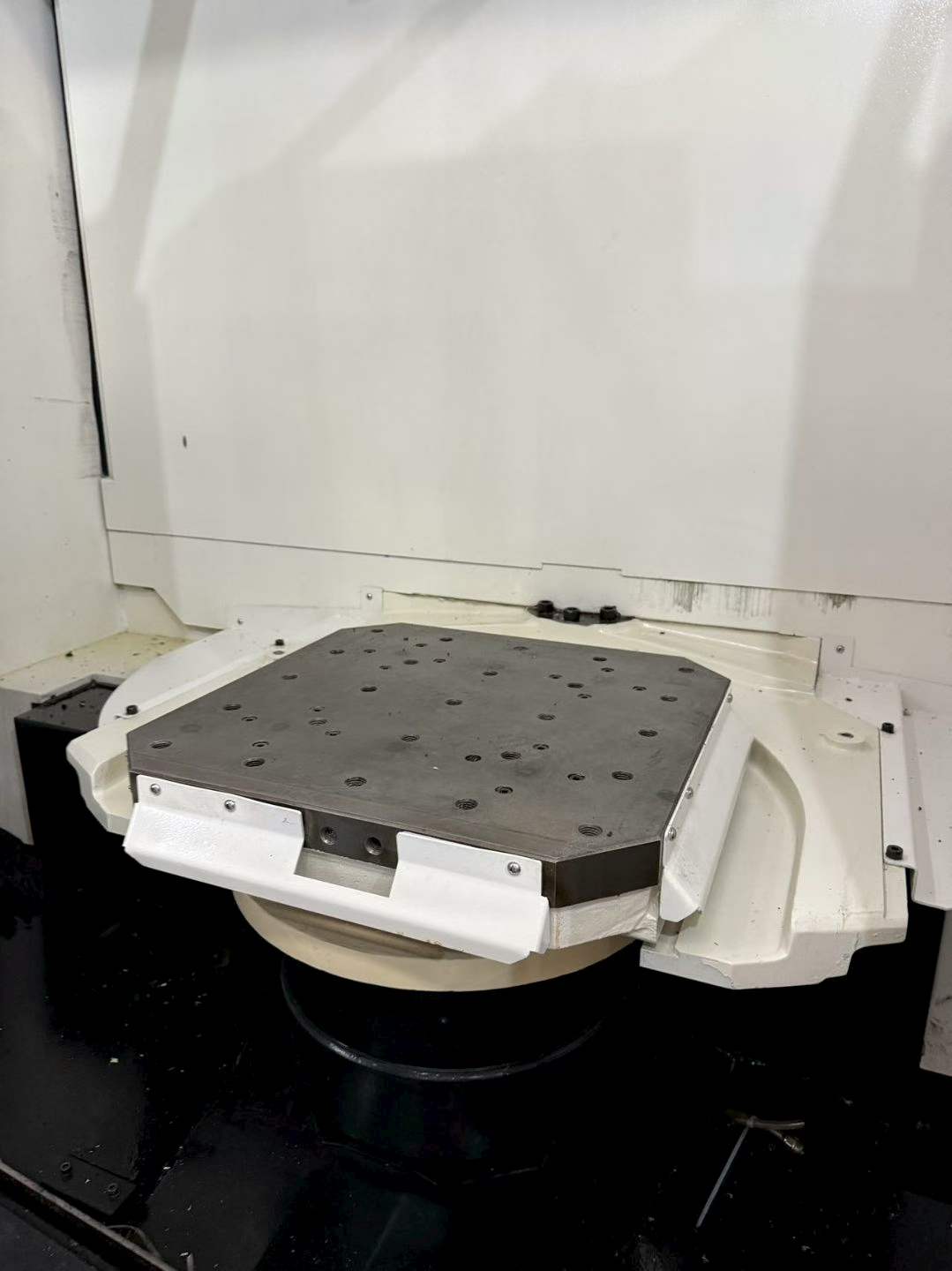

| Worktable size | 500 x 500 mm |
| Worktable indexing | 0.001° |
| Chip conveyor | Yes |
| Ball screw cooling | Hollow cooling |
| Cutting water cooling | Yes |
| Oil cooler | Yes |
