AvailablePlaner Milling Machine

Used Nantong Guosheng 2716 CNC Gantry Milling Machine

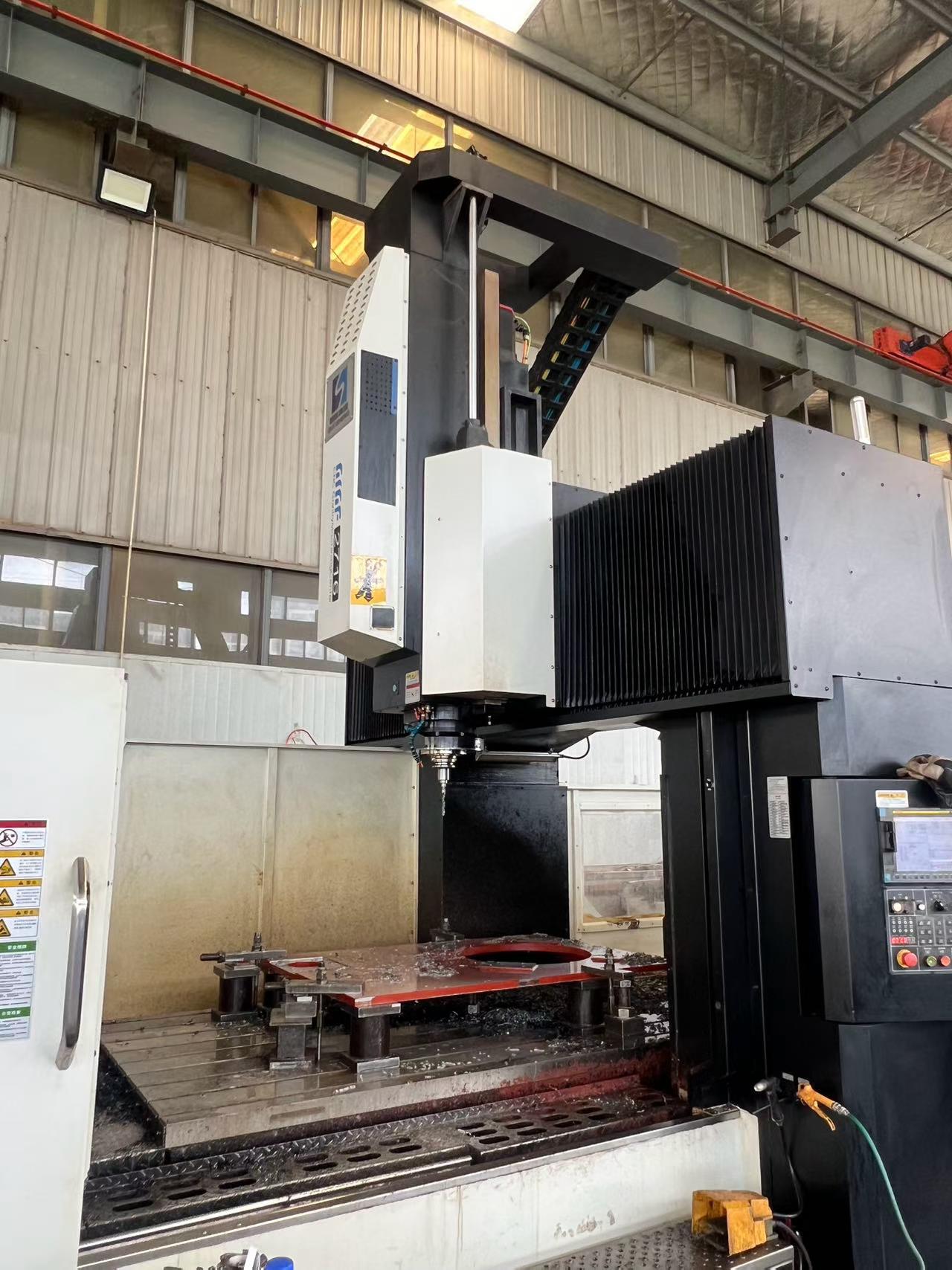

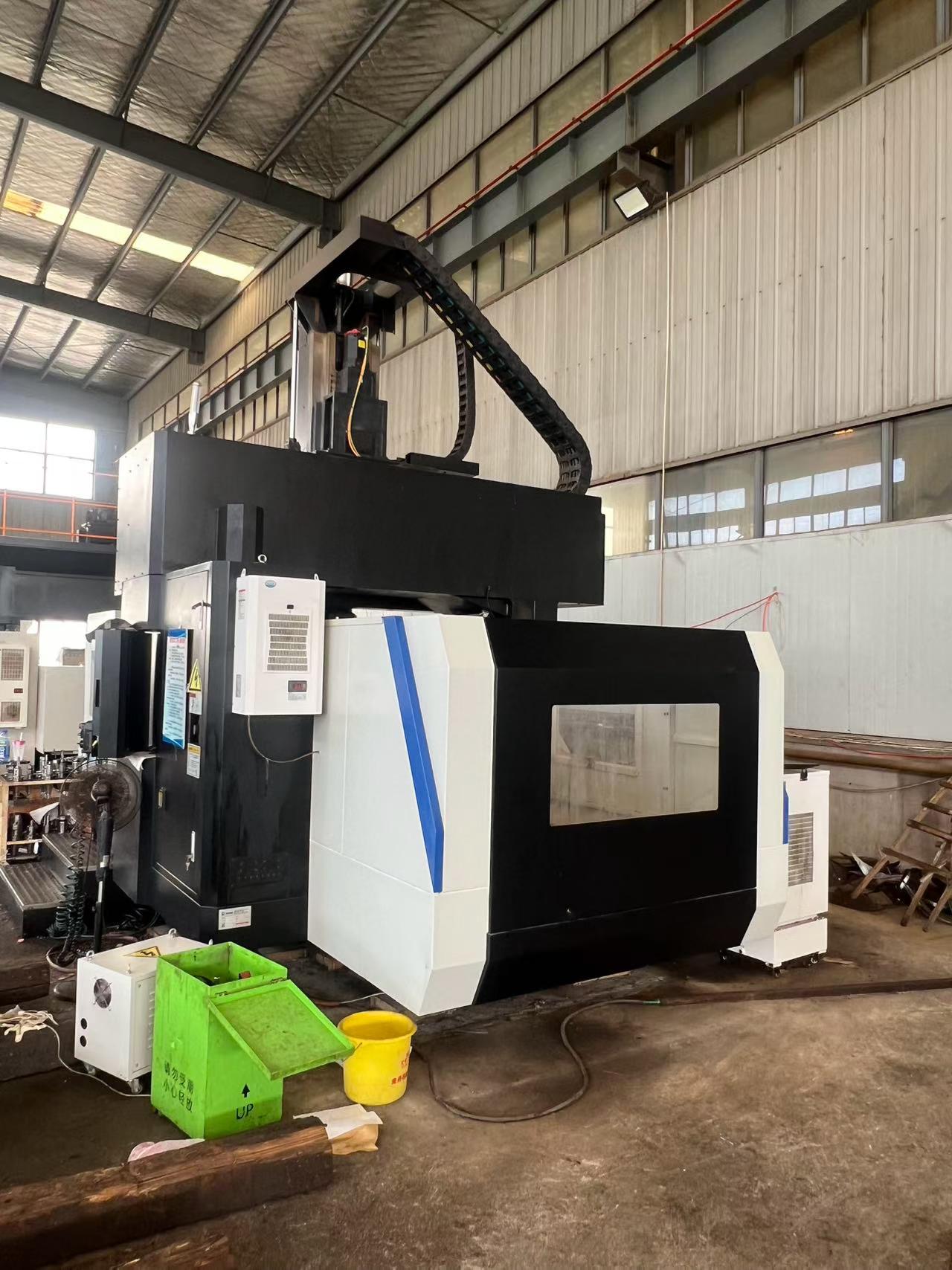

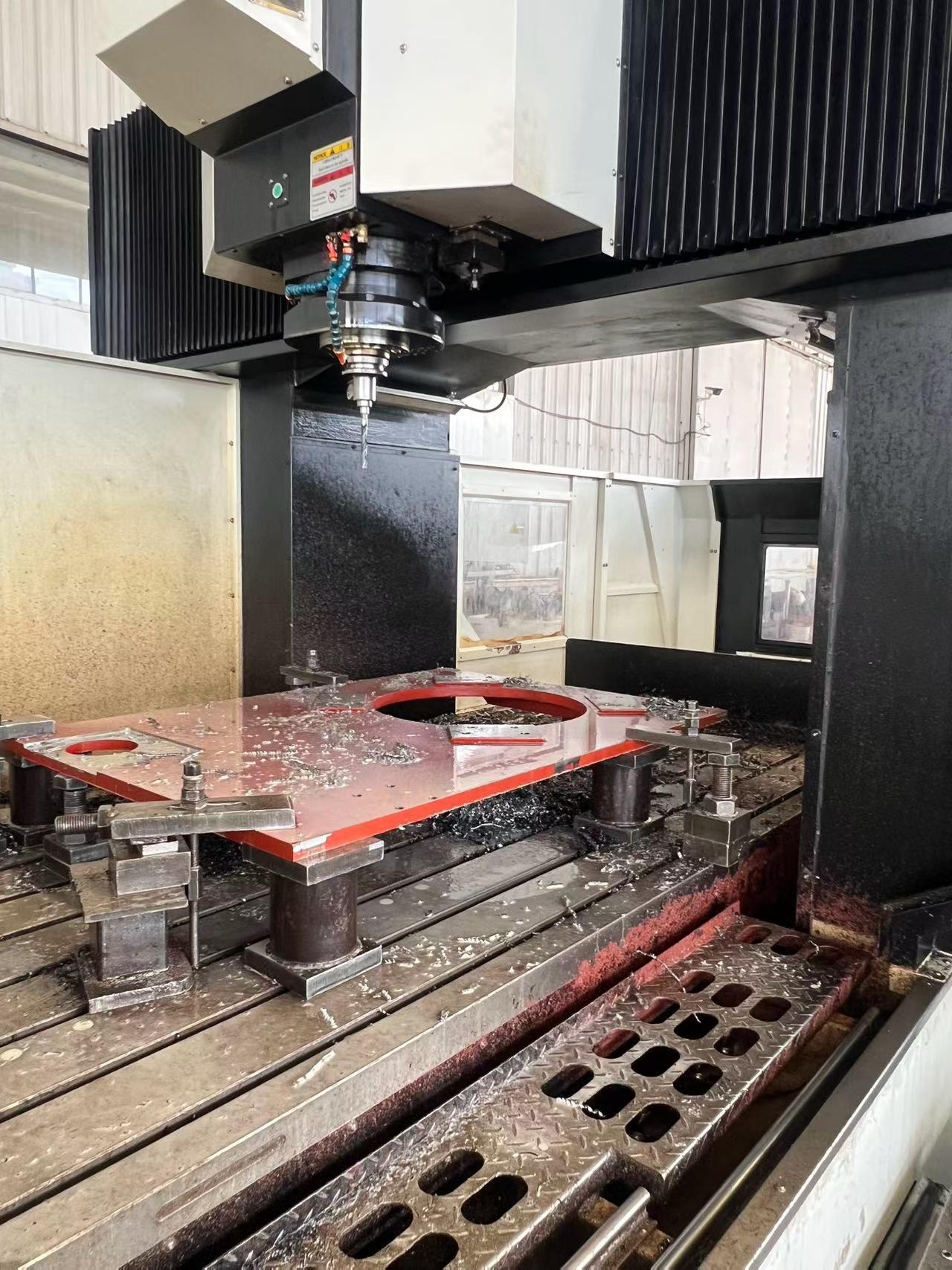

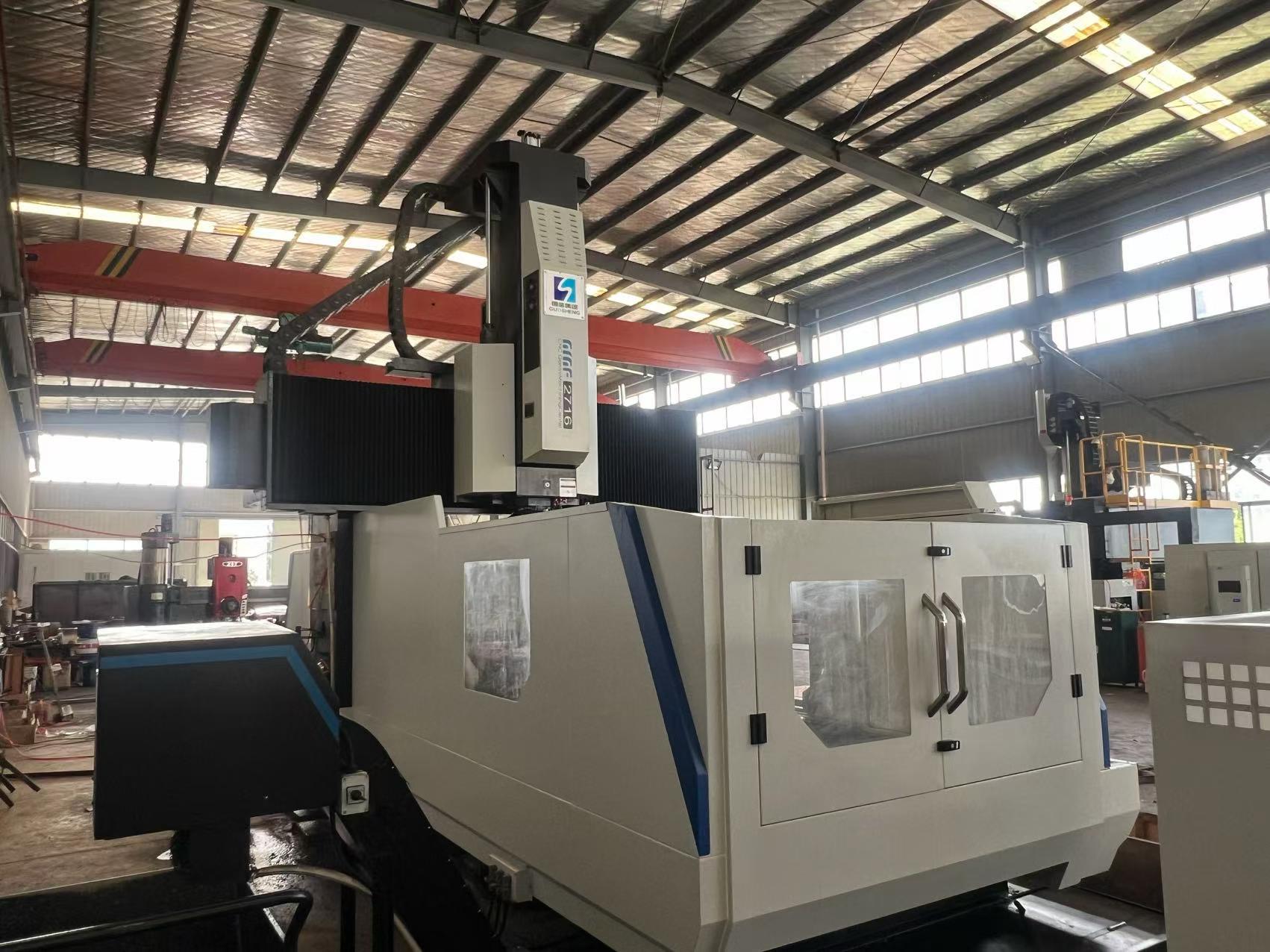

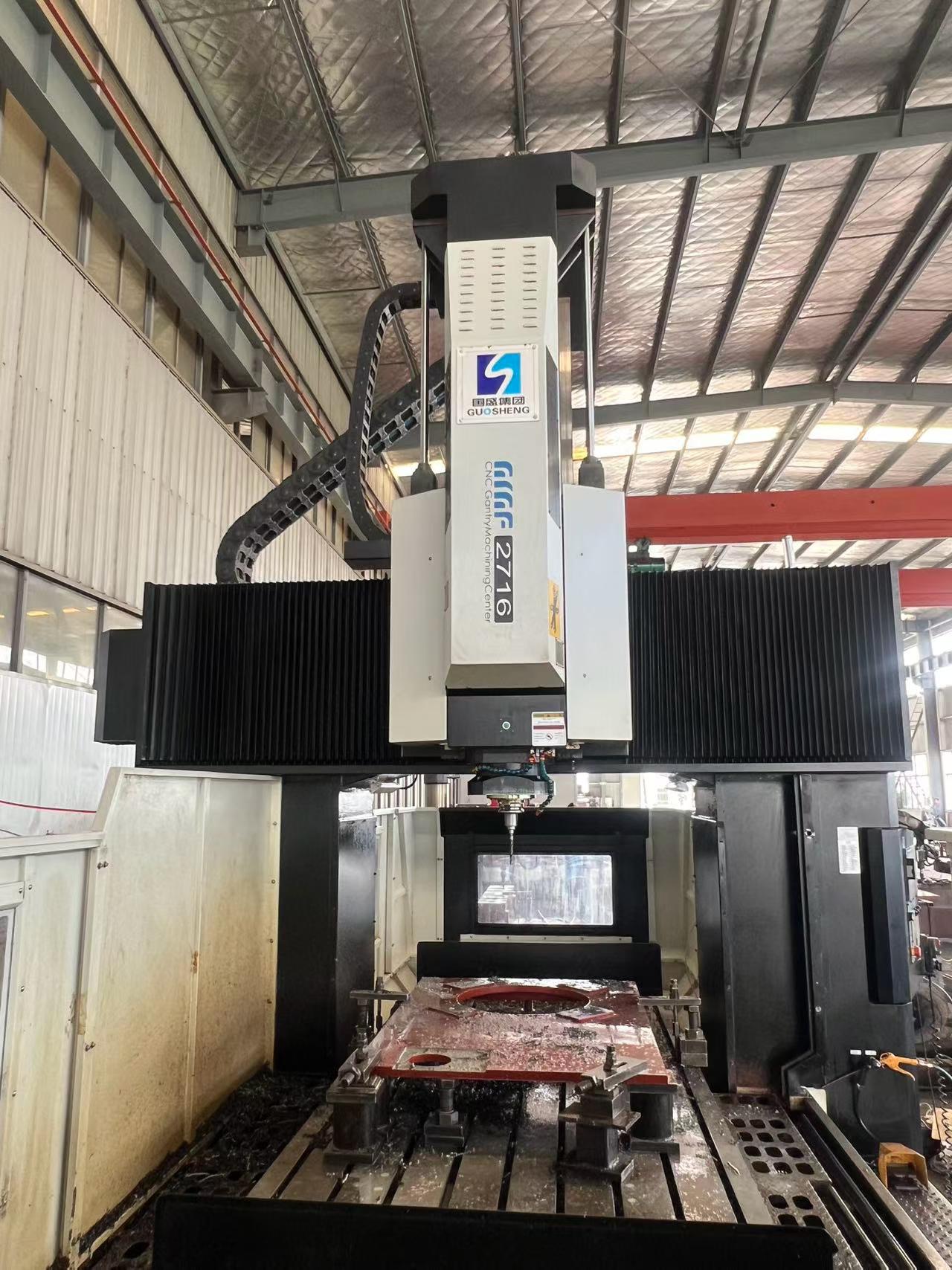

Used Nantong Guosheng 2716 CNC Gantry Milling Machine available from China stock. Machine features a worktable of 1400 x 2700 mm, door width 1700 mm, door height 1100 mm, X/Y/Z travels of 2500/1600/900 mm, two linear guideways and one box guideway, BT50 spindle at 6000 rpm, FANUC Plus control system, and includes a manual side milling head.

Machine Code: PM260724
Year: On request
Location: China
Usage Hours: On request

Accessories

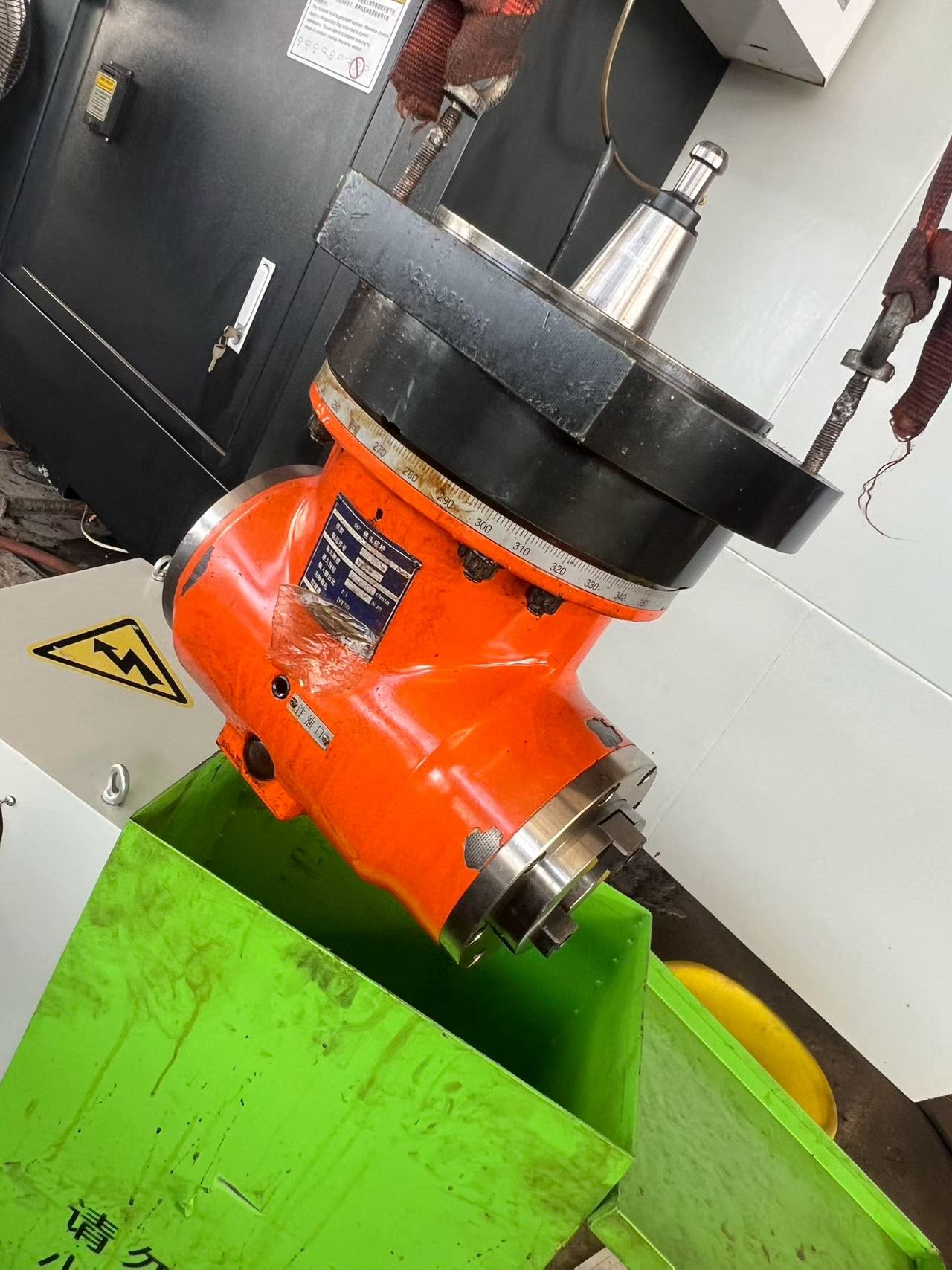

Manual side milling head

Contact access

Dealer contact details are distinct from the machine location. Availability and prices require confirmation with the seller.

Loading…

Main Specifications

Worktable size	1400 x 2700 mm
Door width	1700 mm
Door height	1100 mm
X-axis travel	2500 mm
Y-axis travel	1600 mm
Z-axis travel	900 mm
Spindle taper	BT50
Spindle speed	6000 rpm
Guideway type	Two linear guideways and one box guideway
Machine Type	Gantry Machining Center
Brand	Nantong Guosheng
Model	2716
Guideway Configuration	Two linear guideways and one box guideway

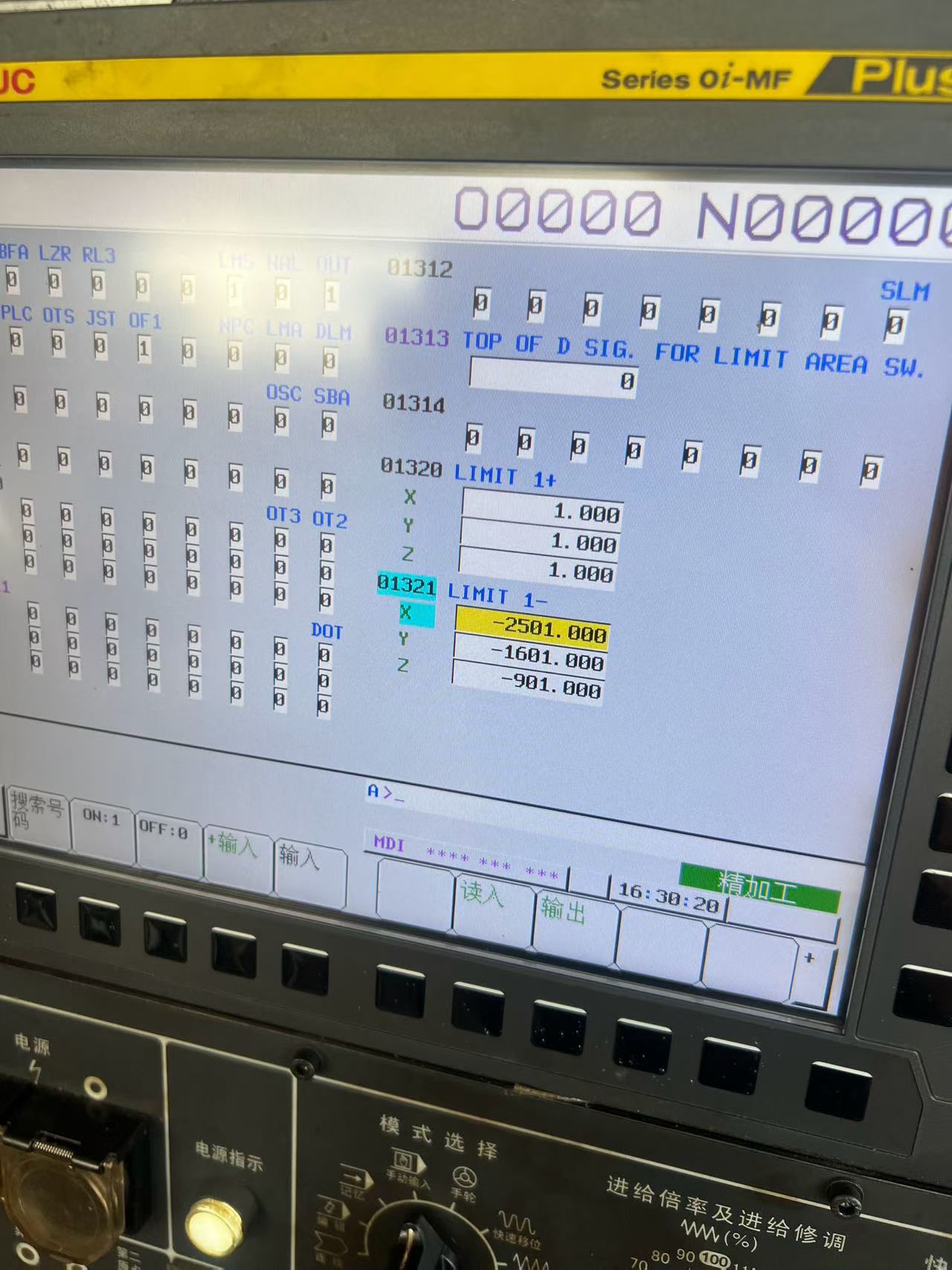

Controller	FANUC Plus
Accessories	Manual side milling head (1 piece)
