DisponívelPlaner Milling Machine

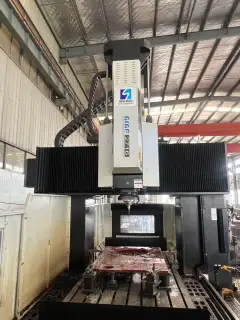

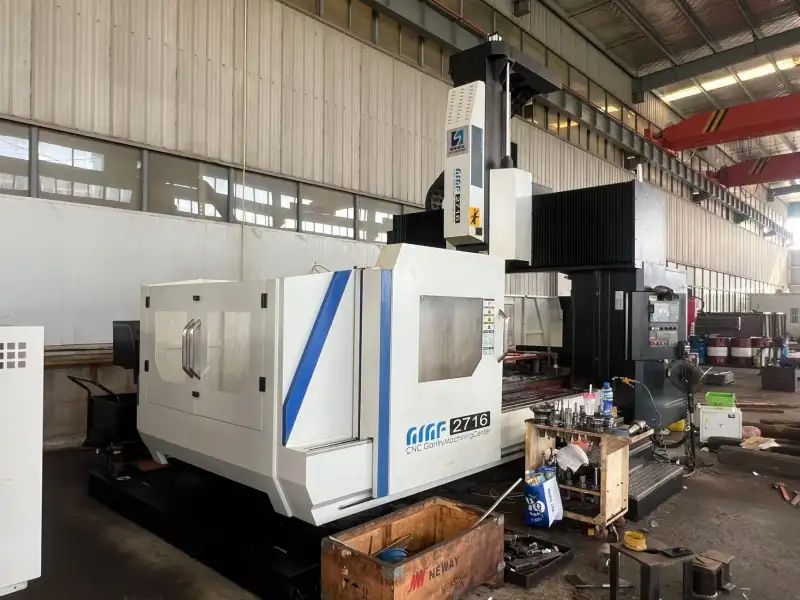

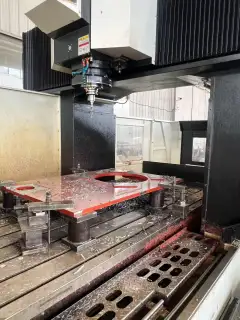

Used Nantong Guosheng 2716 CNC Gantry Milling Machine

Used Nantong Guosheng 2716 CNC Gantry Milling Machine available from China stock. Machine features a worktable of 1400 x 2700 mm, door width 1700 mm, door height 1100 mm, X/Y/Z travels of 2500/1600/900 mm, two linear guideways and one box guideway, BT50 spindle at 6000 rpm, FANUC Plus control system, and includes a manual side milling head. The machine information is translated from original Chinese supplier notes and can be verified by video or on-site inspection.

Código da Máquina: PM260724
Ano: Sob consulta
Localização: China
Horas de Uso: Sob consulta

Acessórios

Manual side milling head

Consulta por E-mail

Principais Especificações

Worktable size	1400 x 2700 mm
Door width	1700 mm
Door height	1100 mm
X-axis travel	2500 mm
Y-axis travel	1600 mm
Z-axis travel	900 mm
Spindle taper	BT50
Spindle speed	6000 rpm
Guideway type	Two linear guideways and one box guideway
Machine Type	Gantry Machining Center
Brand	Nantong Guosheng
Model	2716
Guideway Configuration	Two linear guideways and one box guideway
Controller	FANUC Plus
Accessories	Manual side milling head (1 piece)
