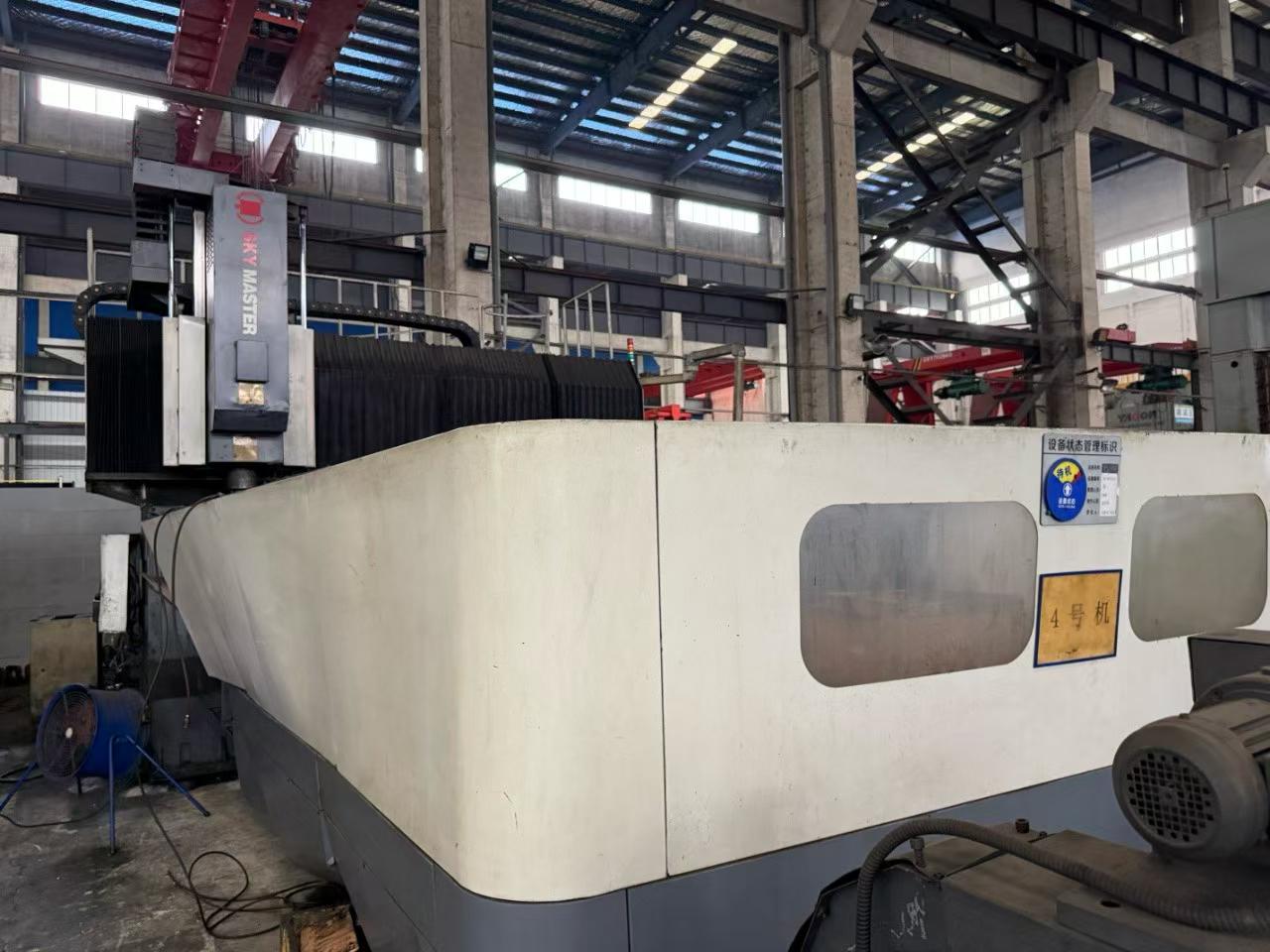

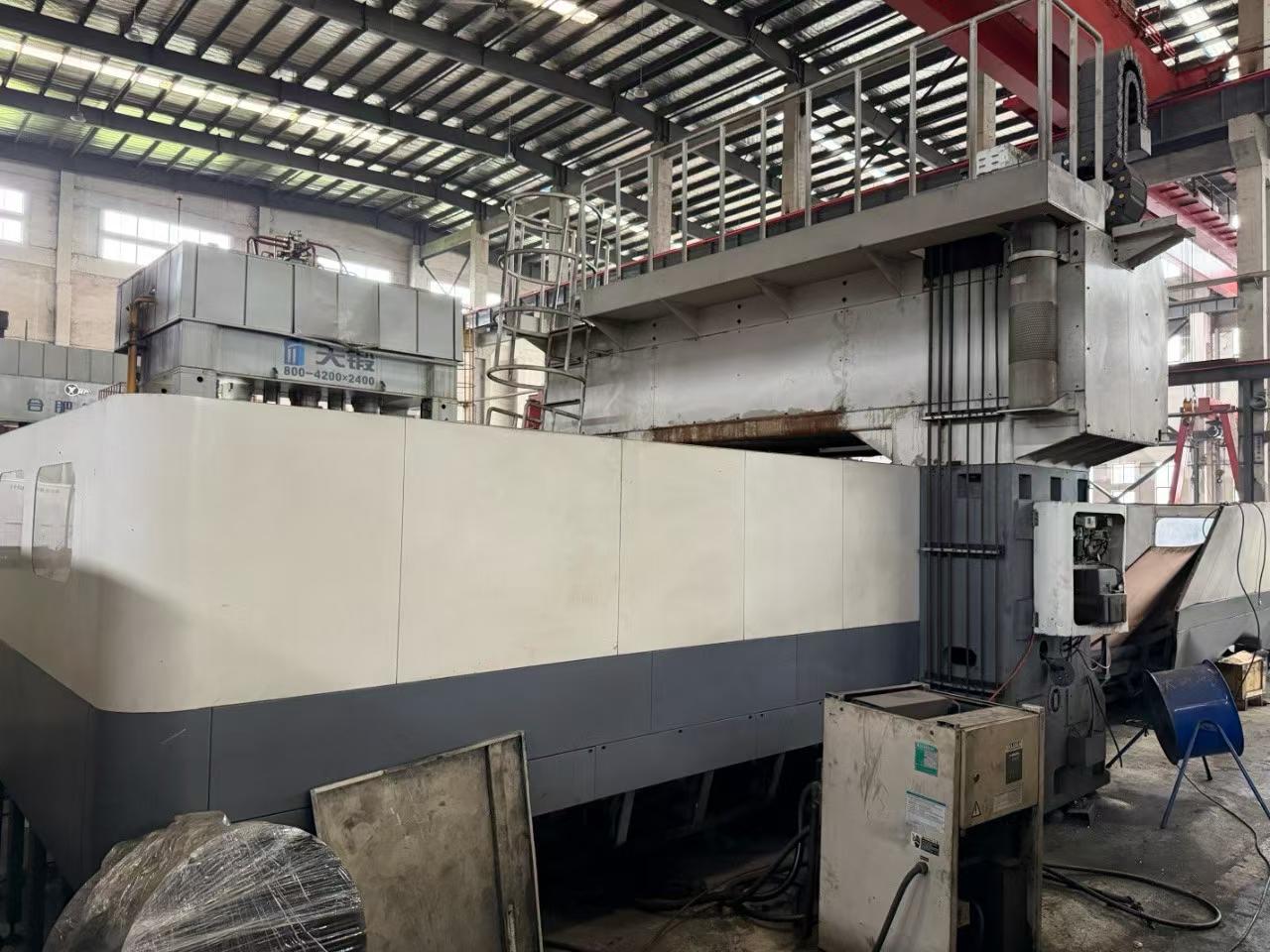

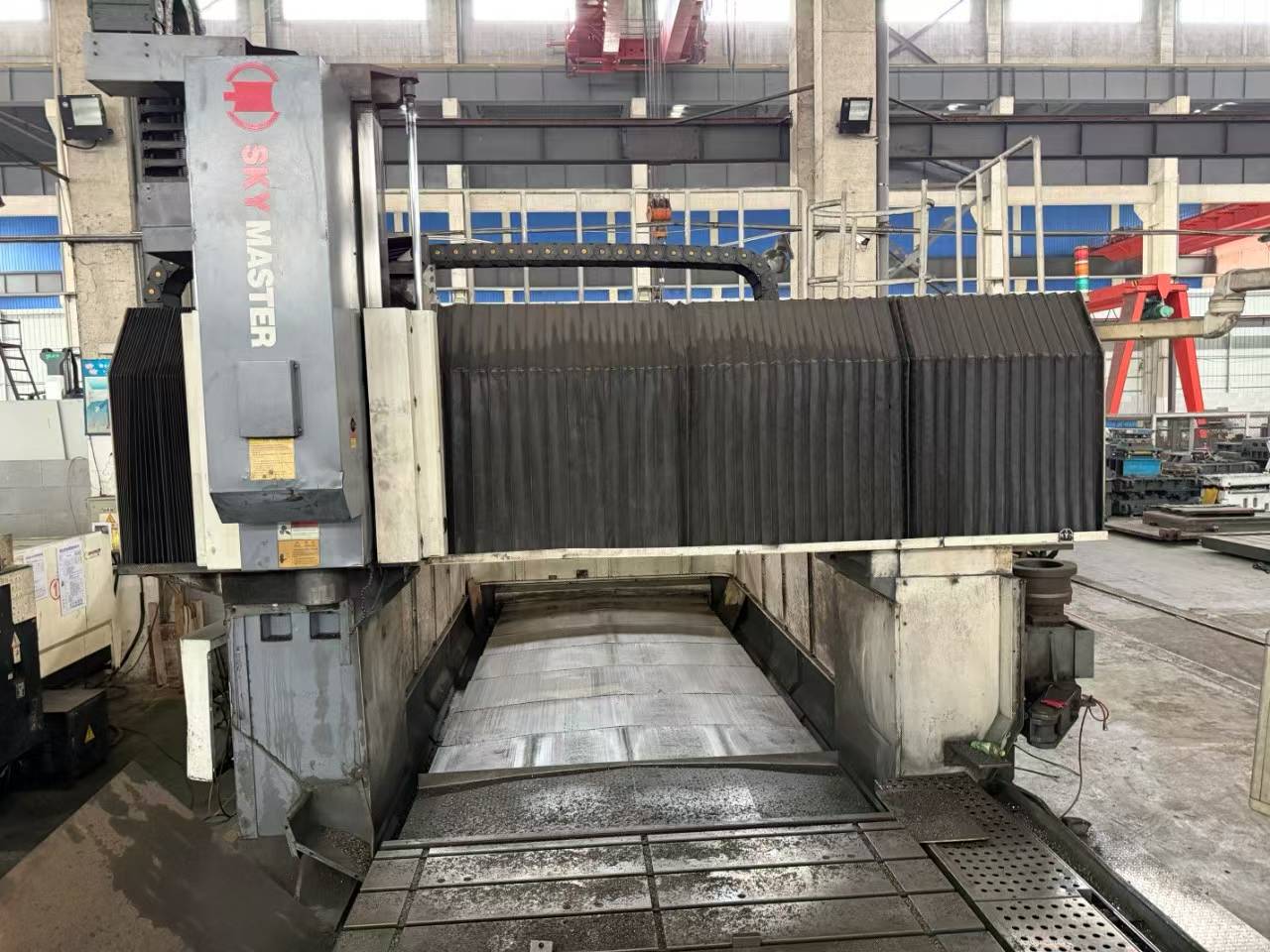

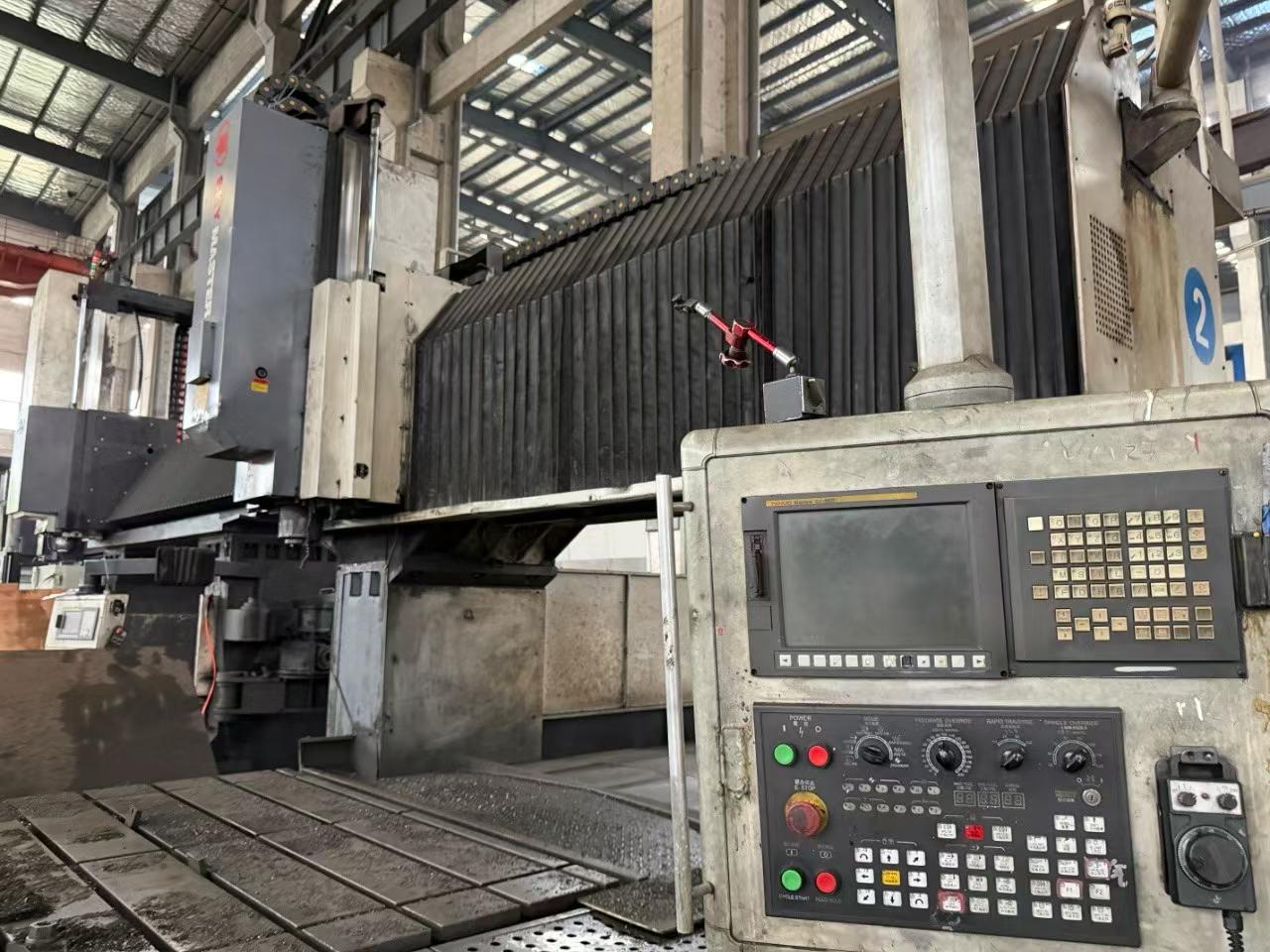

Used Ningbo Tianrui 4225 Gantry Planer Milling Machine with FANUC Control

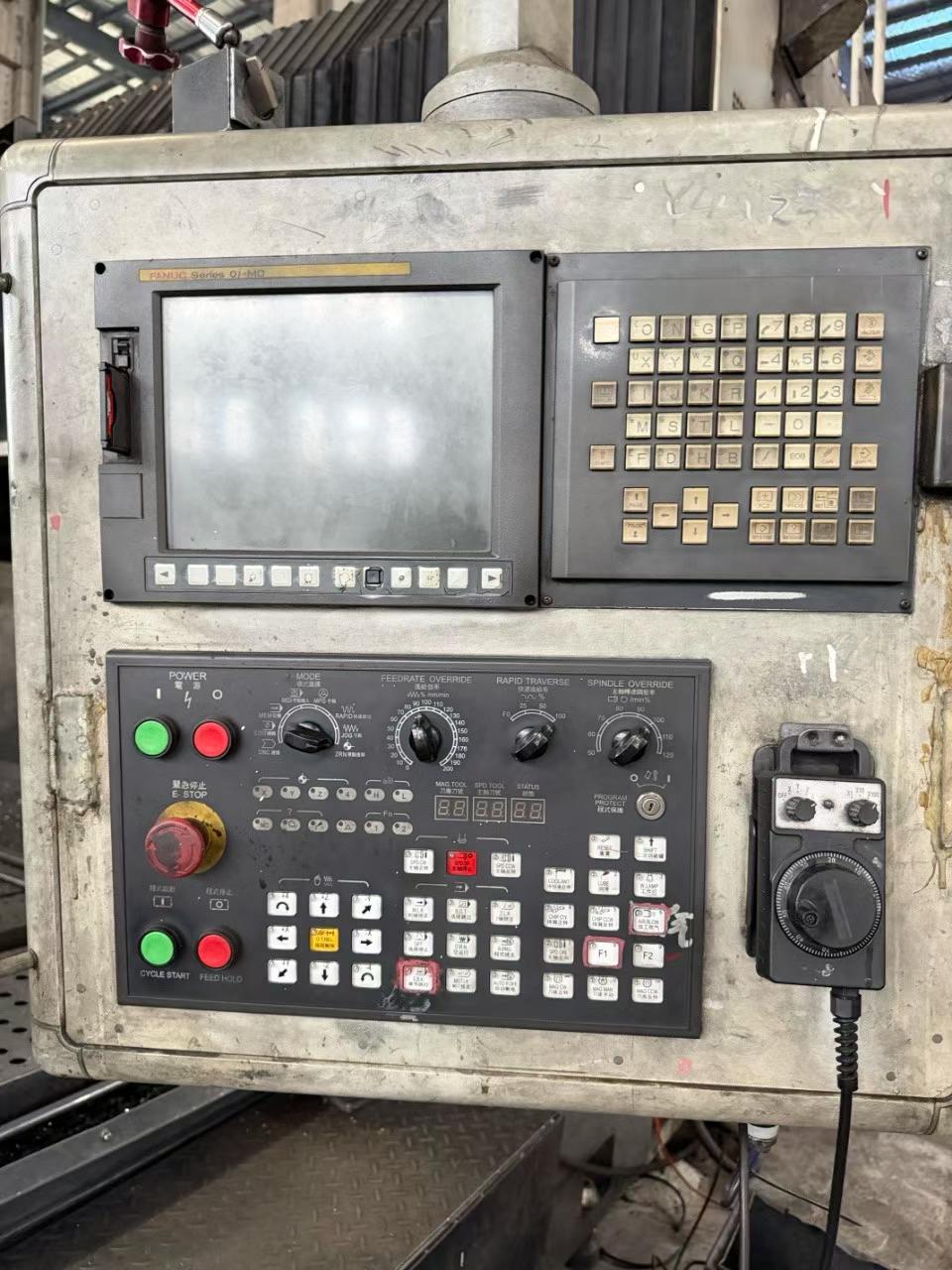

This used Ningbo Tianrui 4225 gantry planer milling machine was manufactured in 2015. It features a FANUC control system with α drive and mold package. The machine has two linear guideways and one box guideway, with X axis having 4 guideways. It is equipped with a BT50 spindle gear head running at 6000 rpm, a worktable of 2200 x 4000 mm, door width 2500 mm, door height 1100 mm, and travels of 4200 x 2600 x 800 mm. Includes linear scale and manual side milling head.
- Machine Code
- PM260714
- Year
- 2015
- Location
- China
- Usage Hours
- On request
Accessories
Linear scale, manual side milling head
Main Specifications
| Spindle speed | 6000 rpm |
|---|---|
| Spindle taper | BT50 |
| X-axis travel | 4200 mm |
| Y-axis travel | 2600 mm |
| Z-axis travel | 800 mm |
| Worktable size | 2200 x 4000 mm |
| Door width | 2500 mm |
| Door height | 1100 mm |
| Machine Type | Gantry Machining Center |
| Model | Ningbo Tianrui 4225 |
| Controller | FANUC system with A method drive and mold package |
| Guideway Configuration | X/Y linear guideways + Z box guideway |
| Linear Scale | Yes |
| Manual Side Milling Head | Yes |
| Factory Date | 2015 |
