DisponívelPlaner Milling Machine

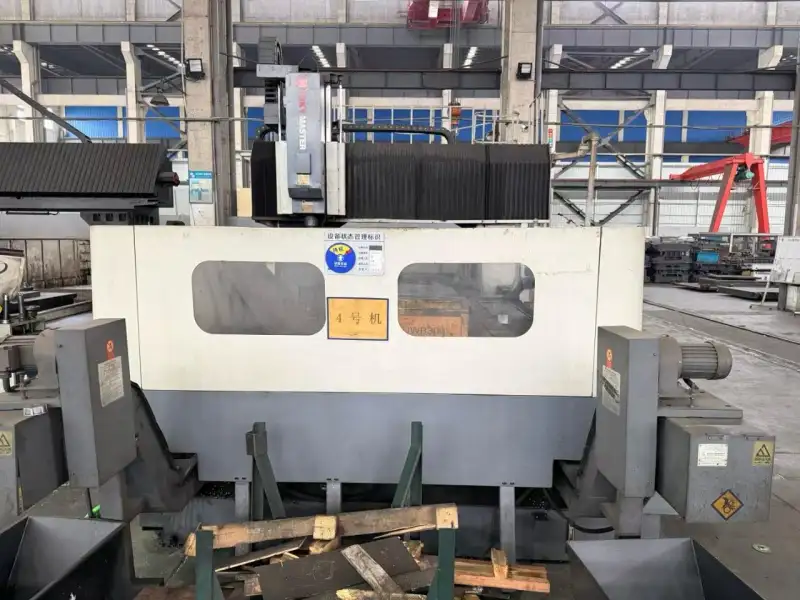

Used Ningbo Tianrui 4225 Gantry Planer Milling Machine with FANUC Control

This used Ningbo Tianrui 4225 gantry planer milling machine was manufactured in 2015. It features a FANUC control system with α drive and mold package. The machine has two linear guideways and one box guideway, with X axis having 4 guideways. It is equipped with a BT50 spindle gear head running at 6000 rpm, a worktable of 2200 x 4000 mm, door width 2500 mm, door height 1100 mm, and travels of 4200 x 2600 x 800 mm. Includes linear scale and manual side milling head.

Código da Máquina: PM260714
Ano: 2015
Localização: China
Horas de Uso: Sob consulta

Acessórios

Linear scale, manual side milling head

Consulta por E-mail

Principais Especificações

Spindle speed	6000 rpm
Spindle taper	BT50
X-axis travel	4200 mm
Y-axis travel	2600 mm
Z-axis travel	800 mm
Worktable size	2200 x 4000 mm
Door width	2500 mm
Door height	1100 mm
Machine Type	Gantry Machining Center
Model	Ningbo Tianrui 4225

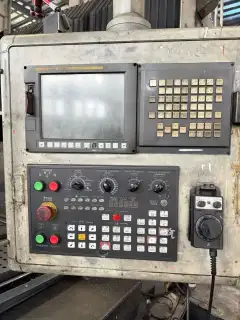

Controller	FANUC system with A method drive and mold package
Guideway Configuration	X/Y linear guideways + Z box guideway
Linear Scale	Yes
Manual Side Milling Head	Yes
Factory Date	2015
