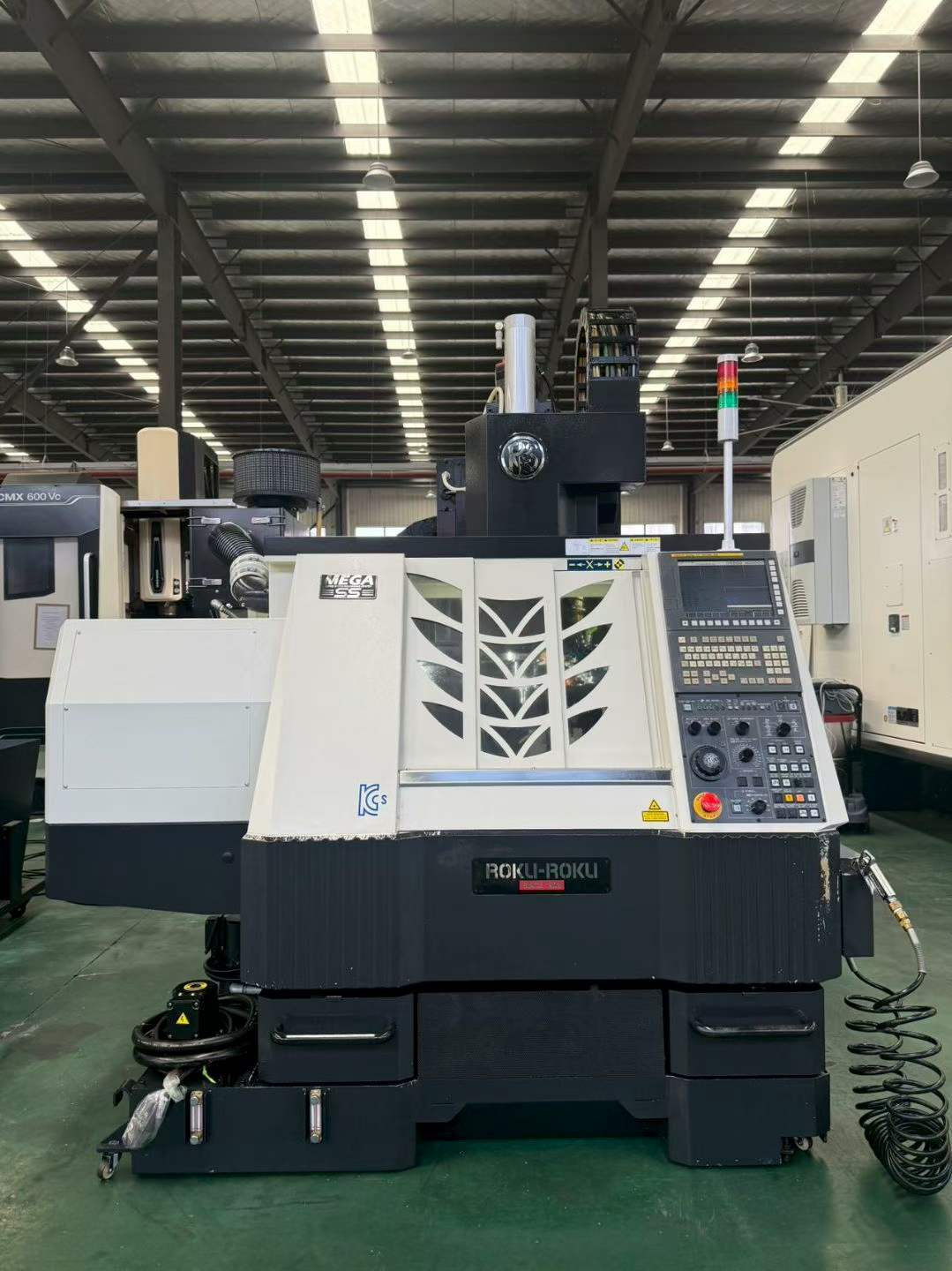

Used ROKU-ROKU MEGA-SS 400 Ultra-Precision Micro Machining Center with FANUC 31i-B 5-Axis

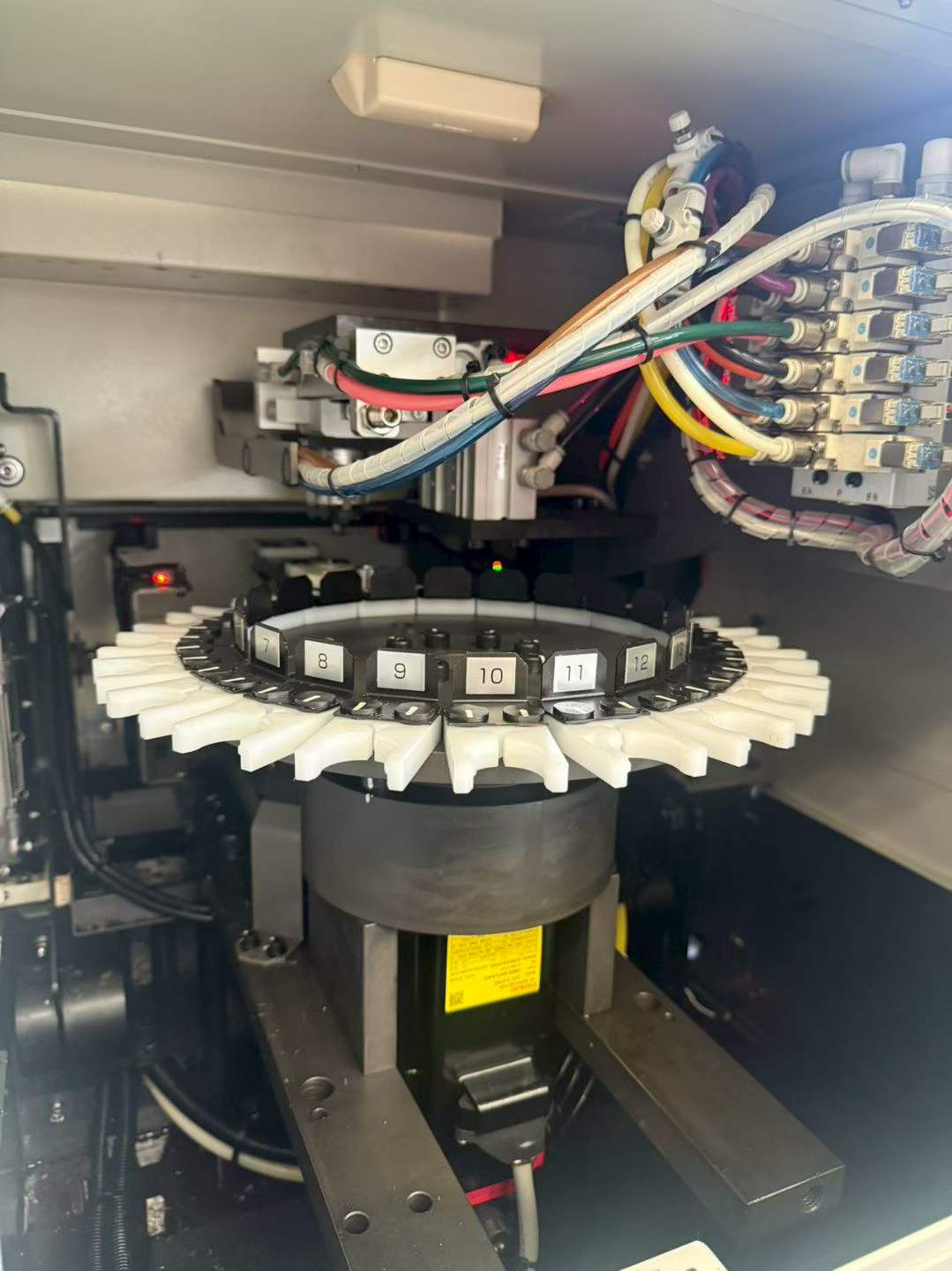

ROKU-ROKU MEGA-SS 400 ultra-precision micro machining center, original from Japan. Gantry-type high-rigidity structure with mineral casting base. Equipped with FANUC 31i-B 5-Axis control system, HSK-E 25 spindle holder, 20-tool arm-type ATC, and 40,000 rpm oil-cooled spindle. Suitable for micro-hole drilling (min. φ0.01 mm drill) and ultra-small end mills (R 0.05).
- Machine Code
- MC260778
- Year
- 2019
- Location
- China
- Usage Hours
- On request
Accessories

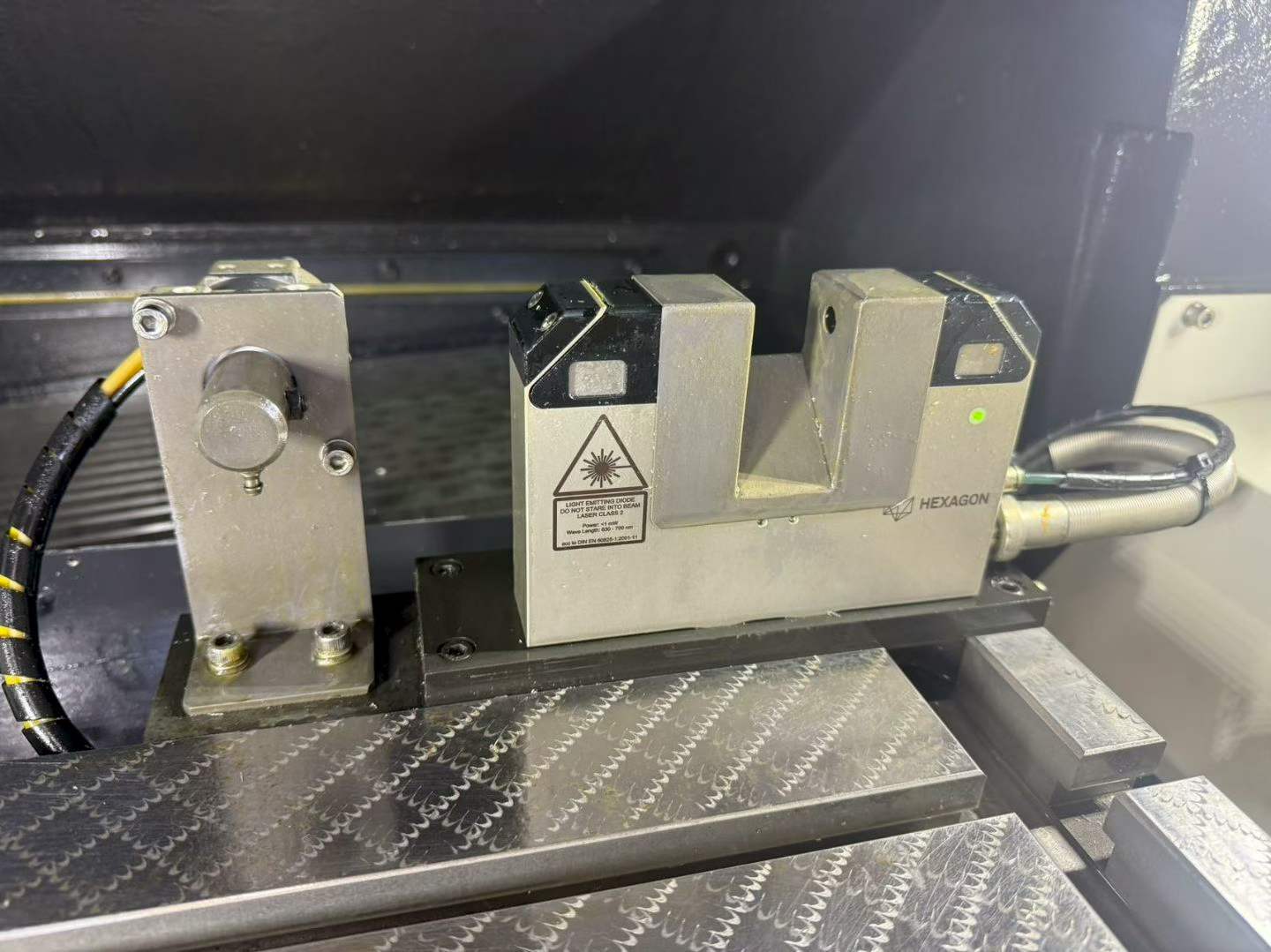

Optional: Swiss Hexagon tool setter
Main Specifications
| Spindle speed | 40000 rpm |
|---|---|
| Spindle power | 4.0 kW |
| X/Y/Z travel | 410 x 330 x 200 mm |
| Worktable size | 450 x 350 mm |
| Table load capacity | 200 kg |
| Tool magazine capacity | 20 |
| Rapid traverse (X/Y) | 32 m/min |
| Rapid traverse (Z) | 24 m/min |
| Machine weight | 2500 kg |
| Year | 2019 |
| Machine Type | Ultra-Precision Micro Machining Center (Gantry type) |

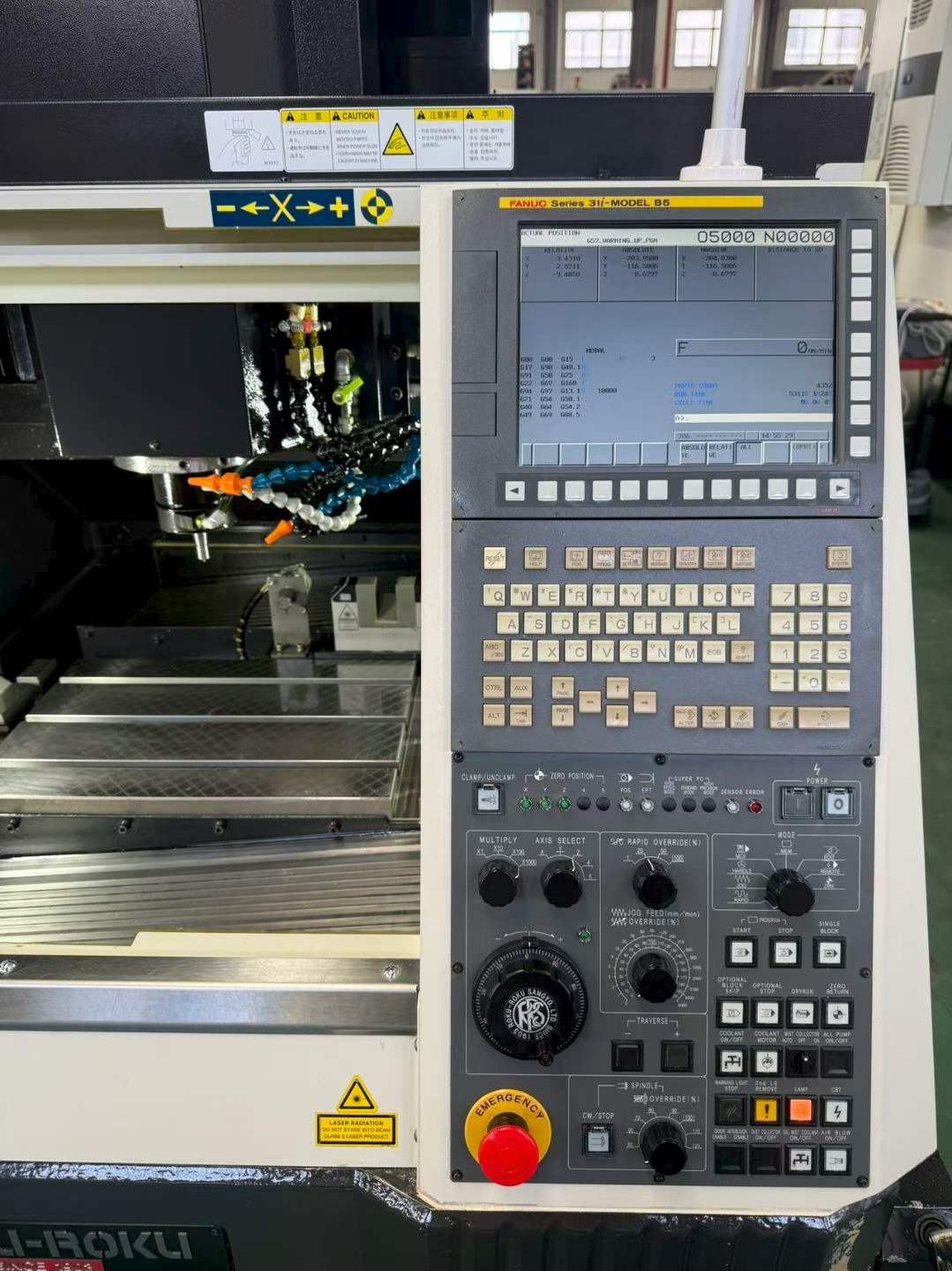

| Controller | FANUC 31 i-B 5 |
| Machine Structure | Gantry type high-rigidity bed |
| Accessory | Swiss Hexagon tool setter (optional) |
| Tool Holder Specification | HSK-E 25 |
| Applicable Tools | Minimum φ0.01 micro drill |
| Cutting Feed | 1~10000 mm/min |
| Applicable Industry | Semiconductor fixtures |
| Minimum Hole Diameter | 0.01 mm |
| Machine Base Material | Mineral casting |
